IL70A
IN-LINE DC Strain Gage Conditioner
1
G
ENERAL
The Model IL70A is a single-channel instrument which is easily configured, rugged, analog based
signal conditioner made to operate with traditional Wheatstone mv/V stain gage bridge sensors
used to measure force, pressure, torque and other DC strain gage related measurements. The Model
IL70A has an extremely wide DC power input range with user selectable gain, zero and anaolg output
making it adaptable to any users sensor application that requires stable, repeatable and noise free
analog signals for control or data acquisition.
The Model IL70A is best calibrated by means of a "two-point (dead-weight)" or shunt-calibration
technique, which is outlined in section three. The supplied calibration resistor is 59 kilohms, 1%
which is located internally to the IL70A pcb circuit.
Shunt Operation:
selection. "EXT" is for an external - user installed shunt or "INT" for the internal - built in - 59K Ohm shunt. Installing the jumper
enables the selected feature. For an external shunt resistor, install the leaded resistor between the "Cal Sense" (pin 7) terminal
and either the + Signal (pin 5) or the - Signal (pin 6) terminals. Use the SW4 "Shunt" button to engage the shunt resistor across
the selected side of the bridge or "SHP or "SHN" logic input lines. For transducers with an installed shunt resistor, place the
jumper on the "EXT" teminals and wire the "Cal Sense" line to the transducer's shunt connector pin.
DC Strain Gage Symmetry Operation:
torque cells), the IL70A contains a symmetry adjustment which corrects for negative span or slope of the transducer.
92375.00 rev. B
D
ESCRIPTION AND

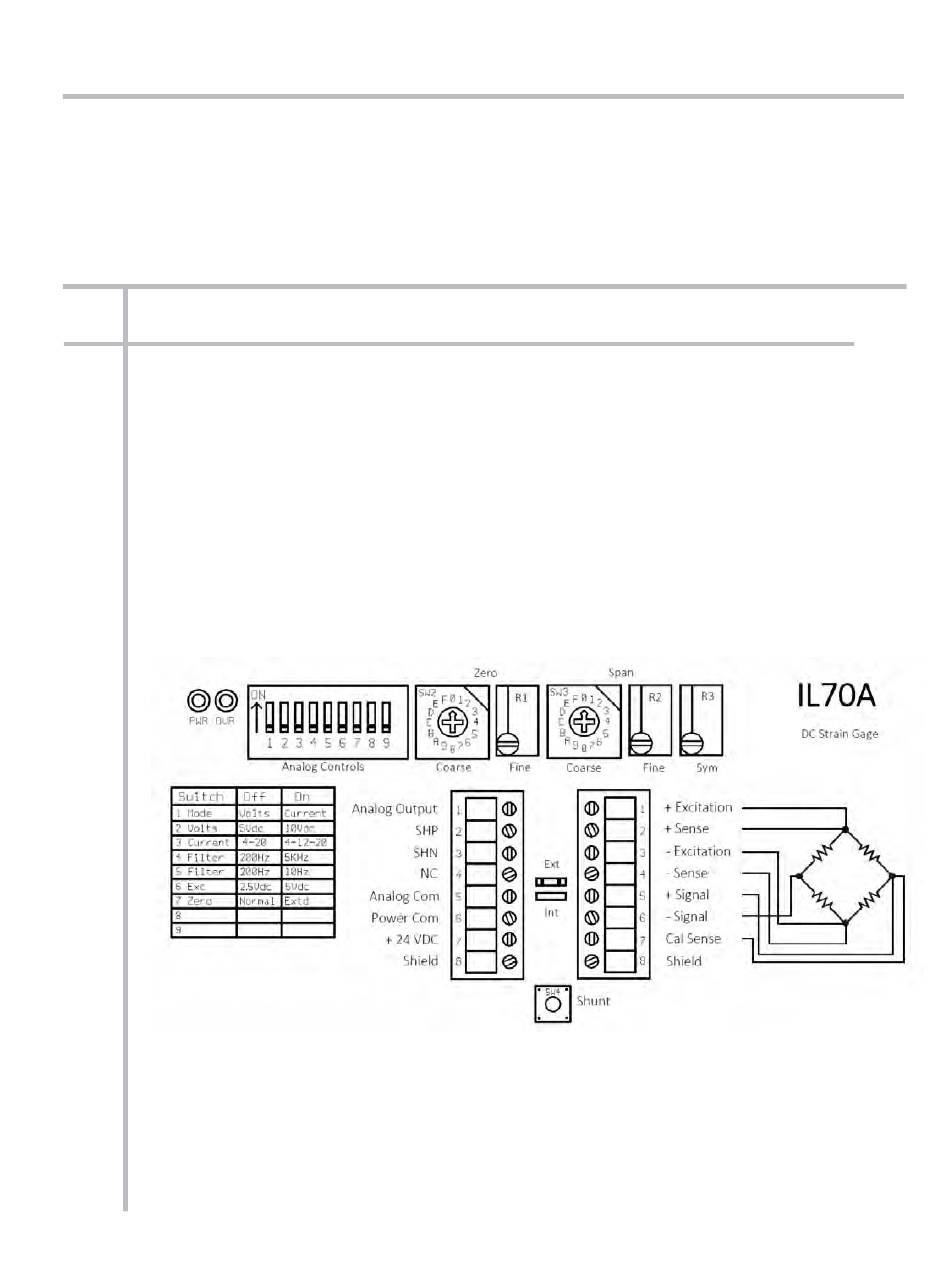

Top View of the Model IL70A DC Strain Gage Module (cover removed)
Located between the two screw terminal connectors, the IL70A contains a Shunt resistor jumper
For applications requiring precision in both tension and compression (CW & CCW for
M
ODEL
DC Strain Gage
C
ONDITIONER
S
PECIFICATIONS
GENERAL DESCRIPTION AND SPECIFICATIONS
IL70A
Module
IL70A.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IL70A and is the answer not in the manual?

Questions and answers

Summary of Contents for DayTronic IL70A

  • Page 1 DC Strain Gage Symmetry Operation: For applications requiring precision in both tension and compression (CW & CCW for torque cells), the IL70A contains a symmetry adjustment which corrects for negative span or slope of the transducer. GENERAL DESCRIPTION AND SPECIFICATIONS IL70A.1...
  • Page 2 WARNING Death, serious injury, or fire hazard could result from improper connection of this instrument. Read and understand this manual before connecting this instrument. Follow all installation and operating instructions while using this instrument. Connection of this instrument must be performed in compliance with the National Electrical Code (ANSI/NFPA 70-2014) of USA and any additional safety requirements applicable to your installation.
  • Page 3: Safety Precautions

    WARNUNG Der falsche Anschluß dieses Gerätes kann Tod, schwere Verletzungen oder Feuer verursachen. Bevor Sie dieses Instrument anschließen, müssen Sie die Anleitung lesen und verstanden haben. Bei der Verwendung dieses Instruments müssen alle Installation- und Betriebsanweisungen beachtet werden. Der Anschluß dieses Instruments muß in Übereinstimmung mit den nationalen Bestimmungen für Elektrizität (ANSI/NFPA 70- 2014) der Vereinigten Staaten, sowie allen weiteren, in Ihrem Fall anwendbaren Sicherheitsbestimmungen, vorgenommen werden.
  • Page 4: Medidas De Seguridad

    Medidas de seguridad Las medidas de seguridad siguientes deberán observarse cuando se realice cualquier tipo de conexión al instrumento. ο Cuando se haga conexiones a circuitos eléctricos o a equipo de activación por pulso, deberá abrirse sus respectivas cajas de seguridad. NO deberá hacerse ninguna conexión del instrumento en líneas eléctricas bajo tensión. ο...
  • Page 5: Standard Accessories

    Sicherheitsvorkehrungen Die folgenden Sicherheitsvorkehrungen sind immer dann zu befolgen, wenn eine Verbindung zum Instrument hergestellt wird. ο Öffnen Sie beim Anschluß an elektrische Stromkreise oder Impulsauslösungseinrichtungen die entsprechenden Unterbrecher. Es dürfen KEINE Anschlüsse an das Instrument unter stromführenden Spannungsleitungen montiert werden.
  • Page 6 To 0.1% of final value: 0.090 sec; (0.0046 sec @ 200 Hz) (0.00018 sec @ 5 kHz) To 0.02% of final value: 0.100 sec; (0.0054 sec @ 200 Hz) (0.0002 sec @ 5 kHz) Dimensions GENERAL DESCRIPTION AND SPECIFICATIONS IL70A.1...
  • Page 7: Transducer Connections

    RANSDUCER ONNECTIONS The Model IL70A I/O CONNECTIONS are via non-removable screw terminals which will accept wire sizes from AWG 16 to 30. NOTE: The recommended transducer cabling would be eight wire, individually shielded, twisted pair - wired as indicated (Fig. 1). Sense lines must be connected at the transducer (as recommended) or at the IL70A screw terminals - as a minimum.
  • Page 8 IL70A DC Strain Gage Conditoner Module Shunt Resistor Selection The IL78A has a Internal and External shunt selection jumper located between the two wiring connectors. Below are the appropriate wiring and jumper selections depending on the application using the recommended 7 wire configuration.
  • Page 9 Turn power ON to the IL70A DC Power input terminal (11 to 28 Vdc input) The front- panel indicator should light green to indicate the application of DC power. Allow 10 minutes of warmup for stabilization of transducer characteristics.
  • Page 10 Zero (balance) value. Note: When appling the SHUNT resistor value for calibration, the sensor should be in an "unloaded" condition. When completed, ensure connections and proper shielding are correct to the moduleand re-install the top conver to the IL70A case. Calibration IL70A.3...
  • Page 11 IL70A DC Strain Gage Conditoner Module 3. CALIBRATION (cont.) If the transducer calibration is unknown, the following calculation is useful to calculate an Equivalent Input value for the factory installed, 59K Ohm shunt resistor. This will approximate the value assuming that the mv/V sensititivity and bridge resistance of the sensor are known.
  • Page 12: Verification Of Normal Operation

    It is the purpose of this section to aid the user in determining, in the event of a malfunction of which the Model IL70A is suspected of contributing, whether the instrument is functioning normally or whether it is the source of the observed trouble. In the event the unit requires repair, the user may also contact the factory Service Department or the local Daytronic Representative for assistance.
  • Page 13 IL70A DC Strain Gage Conditoner Module Fig. 4 Star Bridge...
  • Page 14: Product Warranty And Repair

    DC Strain Gage Conditoner Module Product Warranty and Repair Daytronic Corporation warrants its products to be free from defects in material and workmanship, under normal and proper use in accordance with our instructions, for the period of time specified below. Our liability under...
