Summary of Contents for Magner 155
-
Page 2: Table Of Contents
Contents Safety Instructions General Instructions Operation Circumstances Banknotes Avoidance Caution For Operators Installation Guide At Installation Machine Overview User Settings Select currency Add Up Function Settings Operation Reject Reason Detail Count Mode Display - - - - 1 1 1 1 - - - -... - Page 3 Daily Maintenance Maintenance Guide for Components Error & Guide When Errors Occur Error Code List Supplement Product Specifications List of Attachments - - - - 2 2 2 2 - - - -...
-
Page 4: Safety Instructions
Safety Instructions General Instructions Do not place the product near heat sources such as a stove or a heater. Do not try to disassemble or repair the product if you are not trained and authorized. Such an unauthorized activity may cause accident or critical damage to the product and it would not be covered with the warranty. -
Page 5: Operation Circumstances
Safety Instructions Operation Circumstances Do not expose the product to the direct sunlight for normal operation and life cycle. Avoid dusty location and place the product on the stable and non- vibrating desk. Keep and use the product under the optimal conditions as follows: -Temperature: 5℃~45℃(41F~113F) -Humidity: 0%~85%(no condensation) Do not press the LCD screen or control keys with sharp objects such as a... -
Page 6: Banknotes Avoidance
Safety Instructions Banknotes Avoidance Do not count the wet or significantly worn notes. Do not count the torn or deformed notes. Otherwise, it may cause jam. Damaged Banknotes Curled Banknotes Folded or Partial Banknotes - - - - 5 5 5 5 - - - -... -
Page 7: Caution For Operators
Safety Instructions Caution for Operators During operation, never put anything like clips or any other stuff except banknotes on the hopper. Surely be careful that the operator’s hair, clothes or necktie would not be picked and absorbed into machine. Straighten the folds or corners of banknotes before insertion. Banknotes should be properly arranged and then put on the hopper as shown below for efficient operation. -
Page 8: Installation Guide
Installation Guide At installation For normal installation, contact to the designated sales agent near to you. · This product is allowed only for indoor use. Do not install outdoors. · The product should be installed in the stable place enough to endure the weight and operation. -

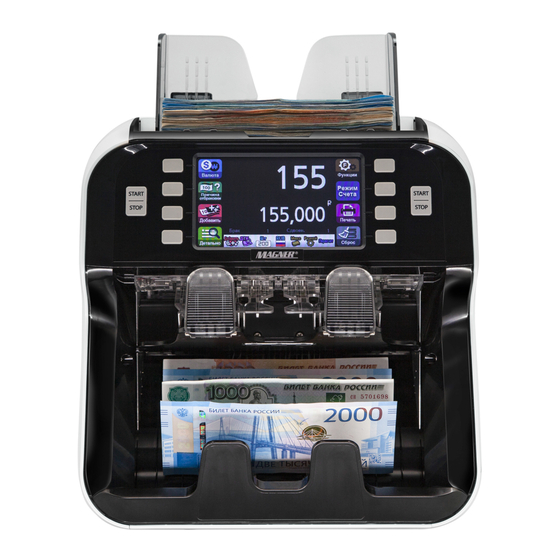

Page 9: Machine Overview
Installation Guide Machine Overview Name of Each Part (Front View) Space for Loading Notes Hopper Display Panel Direct U/I by Full Color Touch Screen Stacker Space for Counted Notes Hopper guide Adjustable Guides to Note Size Pick-up Roller to Feed Notes for Counting Pickup Roller Start/Stop Keys for Counting Operation buttons... - Page 10 Installation Guide Name of Each Part (Rear View) Adjustment screw for feed gap size Feed gap Adjustment Dust Pocket Pocket for Colleting Dust on Operation Hopper guide Adjustable Guides to Note Size Upper cover lever Latch Handle to Open Upper Cover Latch Handle to Open Lower Cover Low cover lever Switch for Power On/Off...
- Page 11 Installation Guide Description on Control Panel To Start/Stop Start/Stop Button Function Keys To select the function (equal to using touch key) Status Band To show current settings To show the menu available Menu icons To show the number and the amount of LCD Screen notes - - - - 10...
- Page 12 Installation Guide Description on I/O PORT Port CON6 CON4 CON5 CON3 CON2 CON1 Input Power Spec. USB2.0 USB2.0 Serial communication 100~240V AC Device Host Ethernet Printer Display Display2 *Recommended Printers are STP-103 III, IDP-3550, TSP-600, TM-881V - - - - 11 11- - - -...
- Page 13 Installation Guide External Display (optional) Display Panel Full color graphical display. Micro SD port Micro SD saves icon & background data Port is linked to the EE7 EE7 interface port - - - - 12 12- - - -...
-
Page 14: User Settings
User Settings Summary of Each Setting Description of each setting can be found on the following pages Default setting Default setting Page Page Default setting Default setting Page Page Currency Add up Add up CF Run Single/mix Auto/Manu Auto Batch Service Language English... -
Page 15: Select Currency
User Settings Select Currency Select Currency for counting A range of currencies registered within the EE7 firmware are displayed but the currency with active data table could be counted and evaluated. 1)Press the button below to enter the currency select menu. 2)Press national symbol to select currency. -
Page 16: Add Up
User Settings ADD UP Select ADD UP mode When activated, the current amount and number of banknotes are added up to the total counting. Even though the banknotes are removed from the pocket, it is still displayed until the button, , is pressed. -
Page 17: Function
User Settings Function How to Set the Function Each setting item has to be set prior to use 1)Press the button below to enter the function menu 2)Press the function button to use among 3)When finishing the selection of the function, press button to exit the function selection mode. - Page 18 User Settings List of Functions - - - - 17 17- - - -...
- Page 19 User Settings Description of Functions 1. CF (Counterfeit) Decides to run or stop when a counterfeit is detected. 1)Press button to select setting. *The CF symbol will appear/disappear on the screen when a counterfeit is detected. 2. Single / Mix Single mode is to count the designated denomination only, which is recognized for the first time.
- Page 20 User Settings 3. Auto / Manual Automatic counting would be started when the notes are set in the hopper under AUTO mode. In case of Manual, the counting would start only when press the START button. 1)Press button to select setting. *The Auto/Manual symbol will change on the screen to indicate the selected state.
-
Page 21: Service
User Settings 5. Setting Refer to “Setting” on 24 page. 6. Service and F/W versions check Check and adjust the EE7 1)Press button. 2)Press after press passwords. 3)Press Service buttons to set the each setting. 4)When finishing, press the button to exit the service menu. - - - - 20 20- - - -... - Page 22 User Settings List of Service Versions of F/W - - - - 21 21- - - -...
- Page 23 User Settings Service Service Menu Service Menu Service Menu Service Menu Sub Menu Sub Menu Sub Menu Sub Menu Template Version To obtain Template Version Black Box Display the history of this machine since factory shipment. Sensor To check sensors state Calibration CIS Calibration CIS-R...
- Page 24 User Settings Service Service Menu Service Menu Sub Menu Sub Menu Service Menu Service Menu Sub Menu Sub Menu Interface Print To set Baud rate, Data Bit, Stop Bit, Parity. Column, Cutting Code about Print Network To set IP, Subnet mask, Gate Way, DNS, Port, Fixed IP External Display To set 7 Segment, LCD Single, LCD...
-
Page 25: Settings
User Settings Settings How to Change the Settings Each setting item has to be set prior to use 1) Press the buttons below to enter the setting password menu 2)Press after press passwords. 3)Press button to set the each setting. 4)When finishing, press the button to exit the setting menu. - Page 26 User Settings List of Settings - - - - 25 25- - - -...
- Page 27 User Settings Description of Settings 1. Language Select language for the display. Choose from English or, another registered language. 1)Press button to select language. 2. Digit Mark Select the digit mark to display the amount of money. 1)Press button to select digit mark style. - - - - 26 26- - - -...
- Page 28 User Settings 3. Beep Turn ON or OFF the Beep. If beep setting is ON, the beep tone will be generated when button is pressed. 1)Press button to select turn on or off. 4. Time Setting the date and time. 1)Press date or time button to select item.
- Page 29 User Settings 5. Setting Old/New Counts separately between the old banknotes and the new ones. 1)Press button to select setting. 6. Setting Capacity Sets the maximum capacity of the stacker and reject. 1)Press stacker capacity button and reject capacity button. *If select S-500 ,stacker should be emptied every 200 notes.
-
Page 30: Operation
User Settings 7. Setting Speed The EE7 offers with three speeds; 800 / 1000 NPM (Notes per Minute) 1)Press button to select EE7 speed. 8. Setting Cyclone Turn ON or OFF the Cyclone. If Cyclone setting is ON, dusts collected in dust pocket during the operation. - Page 31 User Settings - - - - 30 30- - - -...
-
Page 32: Operation
Operation Summary of Operation Description of each setting can be found on the following pages Default setting Default setting Default setting Default setting page page page page Reject reason none Detail none Count Value Face Value Orient Face & Orient 38,39 Fitness Sort Serial Number... -
Page 33: Reject Reason
Operation Reject Reason To display the reason of rejected banknotes It displays the reject codes, reject reasons and the number of the rejected up to the reject code 1) Press the button below to enter the reject reason menu. 2) When finishing, press the button to exit the reject reason menu. -
Page 34: Detail
Operation Detail Confirm the count The table shows the denomination, the number of each denomination and the amount of the summation value to each denomination. 1) Press the button below to confirm the detail counting results. 2)When finishing, press the button to exit the detail table. -
Page 35: Count Mode
Operation Count Mode How to Select the Count Option Each count mode has to be set prior to use 1)Press the button below to enter the count mode menu 2)Press button to set the each setting. 3)When finishing, press the button to exit the count mode menu. - Page 36 Operation List of Count Modes - - - - 35 35- - - -...
-
Page 37: Count
Operation Description of Count Mode 1. Count To count the total number of banknotes without recognition of denomination. 1)Press button to select free count mode. *The Free count symbol will appear on the screen to indicate the selected state. *The count mode doesn’t offer the detail menu. 2. -
Page 38: Face Value
Operation 3. Face To count by same side(front/back) of the banknote which is counted at first. If the note is not the same side, the machine will send the banknote to the reject pocket. 1)Press button to select face mode. *The face symbol will appear on the screen to indicate the selected state. -
Page 39: Face & Orient
Operation 5. Face & Orient To count by same side(front/back) and same direction(UP/Down) of the banknote which is initially counted. If the note is not the same side and direction, the machine will send the banknote to the reject pocket. 1)Press button to select Face &... -
Page 40: Serial Number
Operation 6.1. Fitness Second Sort If Counterfeit notes are Detected after First Fitness sort , Second Sort Mode will Start Automatically. 1)Press button to Run Second sort at message 2)Clear Notes in Stack and Move Notes in Reject bin to Hopper. *To Stop Second sort Press after Run Message. -
Page 41: Display
Operation Display How to Set the Display Each setting item has to be set prior to use 1)Press the button below to enter the function menu 2)Press button to set the each setting. 3)When finishing, press the button to exit the display menu. - - - - 40 40- - - -... - Page 42 Operation List of Display - - - - 41 41- - - -...
-
Page 43: Serial No Info
Operation Description of Display 1. Serial Number Information This table shows the time and date obtained, the denomination value and the serial numbers. 1)Press button to select serial number information. To search the serial number information, press button *If an external printer is fitted and enabled, pressing button will transmit the serial number information to the Printer *To remove serial number information, press... -
Page 44: Black List
Operation 2. Black List This table shows black list registration date, denomination value, the serial numbers. If the serial number of banknote is in black list, the machine will send the banknote to the reject pocket. 1)Press button to select black list. To search the black list, press button *If an external printer is fitted and enabled, pressing... -
Page 45: Count Log
Operation 3. Count Log This table shows count log. 1)Press button to select count log. 2)To set the time the log was recorded. 4. Sort up/down Decide to sort method. 1)Press button to select setting. - - - - 44 44- - - -... -
Page 46: Total
Operation 5. Total To show the denomination and the number of banknotes and the total amount of the banknotes counted. 1)Press button to select setting. 6. Sub Total To show the denomination and number of banknotes, the total amount of the banknotes received from Total 1)Press button to select setting. -
Page 47: Grand Total
Operation 7. Grand Total Show the denomination and number of banknotes, the total amount of the banknotes received from sub total 1)Press button to select setting. *Press button to transfer the count value of sub total to the grand total. - - - - 46 46- - - -... -
Page 48: Maintenance
Daily Maintenance Maintenance Maintenance Method Check Point Check Point Check Point Check Point Maintenance Maintenance Maintenance Maintenance Method Method Method Method Cycle Cycle Cycle Cycle Remarks Remarks Remarks Remarks Hopper Sensor and Rollers Cleaning Daily 48 Page Detection sensors Cleaning Daily 49 Page Stacker sensor and reject... -
Page 49: Guide For Components
Daily Maintenance Miscounting may be caused if dust, dirt, and other materials get stuck or clutter the sensors. It is necessary to clean the sensors and rollers with an attached cleaner once a day. Turn off the power switch before cleaning. otherwise, this may result an electric shock or injury. - Page 50 Daily Maintenance Detection sensors Open the upper cover by pulling the lever and clean the sensors as shown in the photo below with a soft cotton towel or a brush. < MR and Upper CIS > <Lower CIS> - - - - 49 49- - - -...
- Page 51 Daily Maintenance The stacker sensor and reject stacker sensor Clean the sensors as shown in the photo below with a soft cotton towel or a brush. <Stack Sensor> <Reject Sensor> - - - - 50 50- - - -...
- Page 52 Daily Maintenance Diverter sensor Open the lower cover by pulling the lever and clean the sensors as shown in the photo below with a soft cotton towel or a brush. <Diverter Sensor> The dust pocket Pull out a dust pocket and clean it <dust pocket>...
- Page 53 Daily Maintenance - - - - 52 52- - - -...
-
Page 54: When Errors Occur
Error & Guide When Errors Occur If an error occurs during using, an error code is displayed on the LCD display. Find the cause of the error by the error code and follow the instructions to release the error. *Press the button, after cleared error. -
Page 55: Error Code List
Error & Guide Error Code List Code Code Code Code Reason Reason Reason Reason Releasing Method Releasing Method Releasing Method Releasing Method 1. Turn the power switch off and on. 01~05 Communication error 2. If the Error continues, please Contact to service Center. - Page 56 Error & Guide Code Code Code Code Reason Reason Reason Reason Releasing Method Releasing Method Releasing Method Releasing Method 1. Open the upper cover, remove the notes. Pickup JAM 2. Press auto clear button. 1. Open the upper cover and lower part, remove Path JAM the notes.
- Page 57 Error & Guide - - - - 56 56- - - -...
-
Page 58: Product Specifications
Supplement Product Specifications Count, Value, Single, Mixed, Face/Orient, Fitness Sort, Serial Mode Number Recognition Pocket number 2 Pockets Outside Dimensions 273(W) x 275(D) x 293(H) mm Weight 8.6kg Value Counting, 1000 Note/min Fitness Sorting (EE7-FS) Counting Speed Serial Number Recognition 800 Note/min Size of countable notes W:50~90mm, L:100~185mm... -
Page 59: List Of Attachments
Supplement List of Attachments Standard Attachments Power Cord User Guide Optional Attachments External display External display cable - - - - 58 58- - - -...
