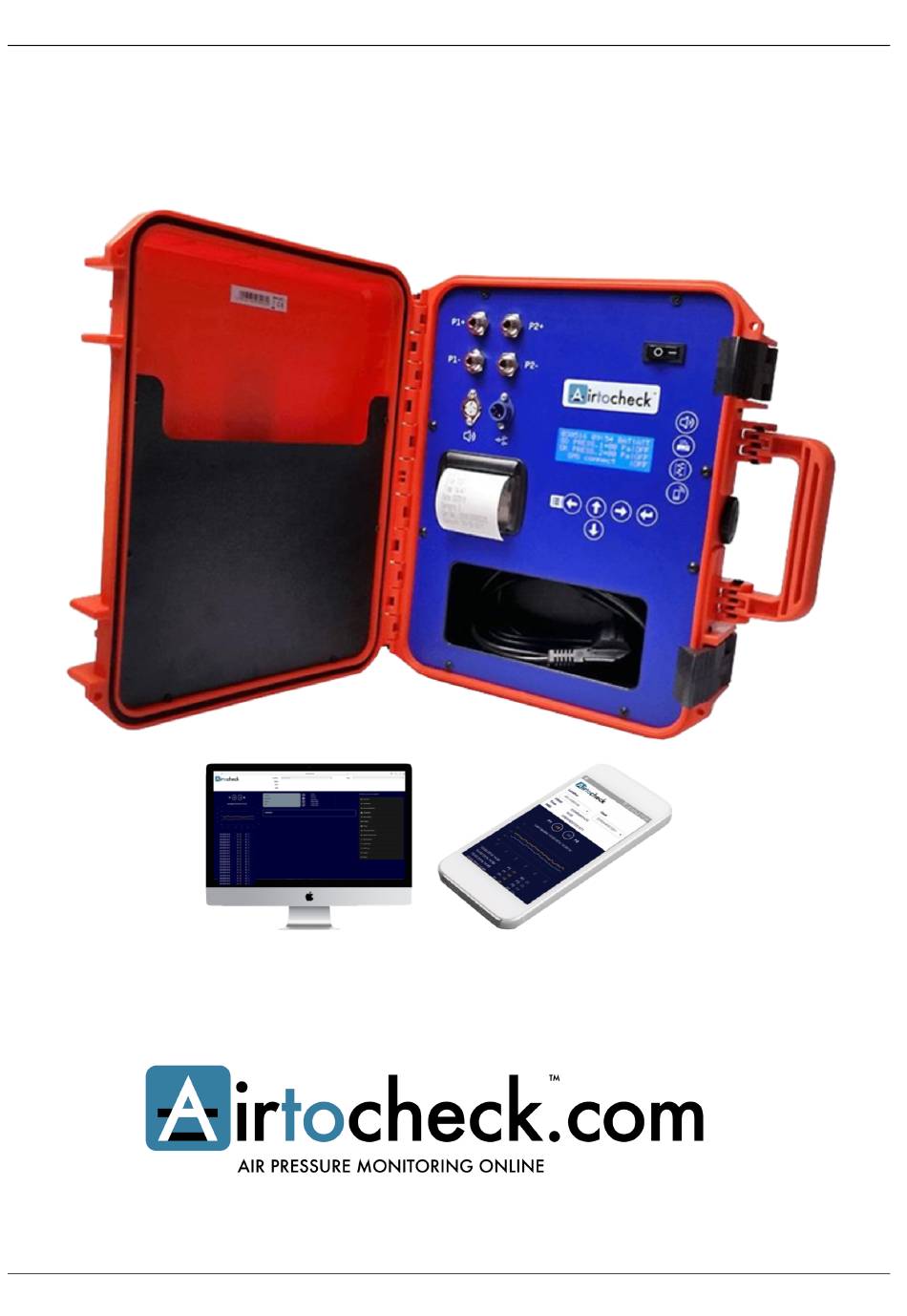

- Page 1 User Manual AIRTOCHECK Monitor...
-
Page 2: Table Of Contents
User Manual Airtocheck monitor English Table of Contents HOW TO HANDLE MEASUREMENT DATA SAFETY AND PREPARATION BEFORE USE SAFETY GUIDELINES AND WARNINGS RISK OF ELECTRIC SHOCK INTRODUCTION & BLOCK DIAGRAM DESCRIPTION OF KEYS AND COMPONENTS INSTALLATION DISPLAY CLARIFICATION OPERATING THE MENU... - Page 3 User Manual Airtocheck monitor English . 3: . 2: . 1: SYSTEM MENU P1 R ELAY ALIBRATION EPROGRAM DELAY ECALL DEFAULT ET DEFAULT ANGUAGE ETTINGS ENSORS IGH LEVEL OW LEVEL IMITED MENU TECHNICAL SPECIFICATIONS ACCESSORIES WARRANTY PROVISIONS Version 3.0...
-
Page 4: How To Handle Measurement Data
You can then view the data in real time via the Airtocheck website or app. Please make sure to check regularly whether the Internet connection is still intact. If it is disconnected briefly (such as due to a malfunction), the monitor will supplement the missing data as soon as the Internet connection has been re-established (firmware version 230318 or higher). -
Page 5: Safety And Preparation Before Use
Airtocheck monitor and provide additional information on these aspects. The Airtocheck monitor is fitted with a highly user-friendly menu and operating it is very safe, provided that the monitor is installed, operated and maintained in exact accordance with all safety instructions in this manual. -
Page 6: Risk Of Electric Shock
– please contact an electrician. The use of accessories not recommended by Airtocheck is not permitted. First connect the cable to the monitor before plugging the power supply into the wall socket. When disconnecting the monitor, first remove the plug from the wall socket before you disconnect the cable from the monitor (if desired). -
Page 7: Introduction & Block Diagram
Airtocheck offers the latest technology available for measuring negative pressure. You can opt for the web-based/SMS version, the web-based version, or the SMS version of the Airtocheck monitor. If you choose the web-based model, you will be able to read negative pressure values in real time via the app or website and generate measurement reports (for more information, please go to www.airtocheck.com). -
Page 8: Description Of Keys And Components
User Manual Airtocheck monitor English Description of keys and components Storage Move cursor down Storage for manual Move cursor right Storage for 3-metre pressure hose(s) Enter key Sticker with serial number + CE statement Internal horn on/off Connection point for pressure sensor 1... -
Page 9: Installation
SD card (only ever use the supplied SD card) Printer roll SIM card (only for the web-based version) The Airtocheck monitor must only ever be used outside the contaminated area. Installation Determine the correct location (near a wall socket and near the area to be measured). -
Page 10: Display Clarification
User Manual Airtocheck monitor English Display clarification Horn on/off: Measurement settings A/B/C/D/E/Off: This section enables you to turn the internal horn on/off. This section enables you to select measurement ranges In the event of an alarm, an indicator will appear here to... - Page 11 User Manual Airtocheck monitor English Date: Measurement value P2-: The date currently set on the monitor. The last known negative pressure value on channel P2-. Optional, only on monitors with 2 channels. Time: Web activity indicator: The time currently set on the monitor.
- Page 12 User Manual Airtocheck monitor English Power status AC (220v) / Battery: SD card status / memory status: Indicator of whether the monitor is hooked up to mains If no SD card has been installed, the memory indicator voltage AC (220v) or the battery. This image shows the will indicate that the internal memory is currently being monitor using its battery.
-
Page 13: Operating The Menu
You can use this text field to enter a location or a project number or a name/description, for instance. (On the Airtocheck website, you can use the ‘Cases’ option to immediately request the measurement data for your given location, project number or name/description.) Change current name and enter new name: 1. -
Page 14: Results Menu
User Manual Airtocheck monitor English RESULTS menu This menu allows you to view, copy, print and delete measurement data. Copy memory Print memory* Start date..* Show memory* Clear memory Please note! All features marked * are only available if the ‘Limited menu’ feature has been turned off. -
Page 15: Start (Print Memory From This Date Onwards
User Manual Airtocheck monitor English Start (print memory from this date onwards: ..): Printing the memory from a certain starting date and time onwards. Please note! This feature is only available if the ‘Limited menu’ feature has been turned off. -
Page 16: Modem Menu
User Manual Airtocheck monitor English MODEM menu This menu allows you to edit the Internet connection and SMS feature settings. SMS delay Restart system RSSI level APN* Provider* IMEI number* IP number* Message modem * Internet PIN code modem * SMS tel. -
Page 17: Restart System
User Manual Airtocheck monitor English Restart system: The monitor will automatically indicate when a restart is required, such as if the Internet and/or APN features have been edited. If the monitor is having trouble connecting to the Internet, rebooting the system can sometimes help. -
Page 18: Provider
User Manual Airtocheck monitor English Provider: Displays the name of the Provider for the Internet and/or SMS feature (only for SMS/web-based version). Please note! This feature is only available if the ‘Limited menu’ feature has been turned off and is intended for Airtocheck service staff. -
Page 19: Message Modem
User Manual Airtocheck monitor English Message modem: Displays the modem message in order for you to check its functioning. Please note! This feature is only available if the ‘Limited menu’ feature has been turned off and is intended for Airtocheck service staff. -
Page 20: Internet
User Manual Airtocheck monitor English Internet: Option of turning the Internet access on/off. Please note! For the web-based version, this feature must be set to ‘ON’; for the non-web-based versions, it must be set to ‘OFF’. 1. Press the Menu key 9 to open the menu. -
Page 21: Sms Tel . No . 2
User Manual Airtocheck monitor English Deleting a phone number: 1. Press the Menu key 9 to open the menu. 2. Press key 12 2 times to select the MODEM menu. 3. Press the Enter key 13 to open the MODEM menu. -
Page 22: Sms Tel . No . 1
User Manual Airtocheck monitor English SMS tel. no. 1: Option to have all SMS alarm messages sent to 3 different phone numbers. Please note! A SIM card and SMS or SMS & Data subscription is required for this feature! Always use international notation to enter phone numbers, i.e. -
Page 23: System Menu
User Manual Airtocheck monitor English SYSTEM menu This menu allows you to edit the monitor’s other settings, such as language, date, time, sensors and negative pressure limits. P1 relay (delay time for the operating of the external relay for measuring point P1-) -
Page 24: Calibration
User Manual Airtocheck monitor English Calibration: Option of calibrating the monitor. Please note! This feature is only available if the ‘Limited menu’ feature has been turned off and is intended for Airtocheck service staff. Reprogram: Option of adding new software to the monitor. -
Page 25: Set Default
2 times to return to the home screen. Settings: Option of configuring the monitor. Please note! This feature is only available if the ‘Limited menu’ feature has been turned off. This feature is only intended for Airtocheck service staff. Version 3.0... -
Page 26: Date
User Manual Airtocheck monitor English Date: Option of editing the date. 1. Press the Menu key 9 to open the menu. 2. Press key 12 3 times to select the SYSTEM menu. 3. Press the Enter key 13 to open the SYSTEM menu. -
Page 27: Sensors
User Manual Airtocheck monitor English Sensors: This feature allows you to choose to activate channel 2 (P2-) in addition to channel 1 (P1-). When measuring 1 containment, only activate P1-. When measuring 2 containments, activate channels P1- and P2- simultaneously. -
Page 28: Limited Menu
User Manual Airtocheck monitor English Limited menu: This feature allows you to only enable the most frequently used features in the menu. The following features are turned off if the ‘Limited menu’ feature is turned on: Print memory, Start date, Show memory, APN, provider, IMEI number, IP number, Message modem, PIN code modem, Calibrate, Reprogram, Recall default, Set default, Language, Settings. -
Page 29: Technical Specifications
User Manual Airtocheck monitor English Technical specifications Dimensions : 33.5 cm x 29 cm x 14.5 cm Weight : 4.5 kg. Electricity grid : 100-240V AC 50/60 Hz 35W Temperature : 5 to 45 °C; non-condensing (in use) Temperature : -20 to 60 °C;... -
Page 30: Accessories
The conditions during the removal process are not always ideal. For example, signals from the monitor are not always audible to the users. Therefore, Airtocheck offers you the option of connecting an extra acoustic alarm directly to the monitor by way of an additional horn. -
Page 31: Warranty Provisions
Warranty provisions General The warranty applies to all claims directed at Airtocheck by end users who buy a product offered for sale by an Airtocheck entity established within the EEA on or after 18-05-2016 in the EEA. The warranty applies to the end users who are legal owners of said product. End users renting an Airtocheck product should instead contact the party from whom they are renting said product to determine whether the warranty also extends to them. - Page 32 In the event that the end user presents a monitor to be repaired and then decides not to have it repaired for whatever reason, Airtocheck or your Airtocheck dealer is entitled to charge the resulting research costs.
- Page 33 European warranty End users can claim warranty services within the EEA by contact the relevant local Airtocheck customer service department. Their right to receive said support according to their warranty (in terms of the warranty period and supplied services and the like) will be assessed in accordance with the regulations that apply in the territory where the claim is issued.
- Page 34 User Manual Airtocheck monitor English YOUR DEALER: Asgro & Van der Voort 13b Nijverheidsweg 3401 MC IJsselstein +31 (0)30-2202980 ijsselstein@asgrovandervoort.com www.asgrovandervoort.com Airtocheck B.V. Diakenhuisweg 27 2033 AP Haarlem +31 (0)88-5665405 www.airtocheck.com Manufactured in the Netherlands Version 3.0...
