QC0161 Temperature/Humidity/CO2 Sensor

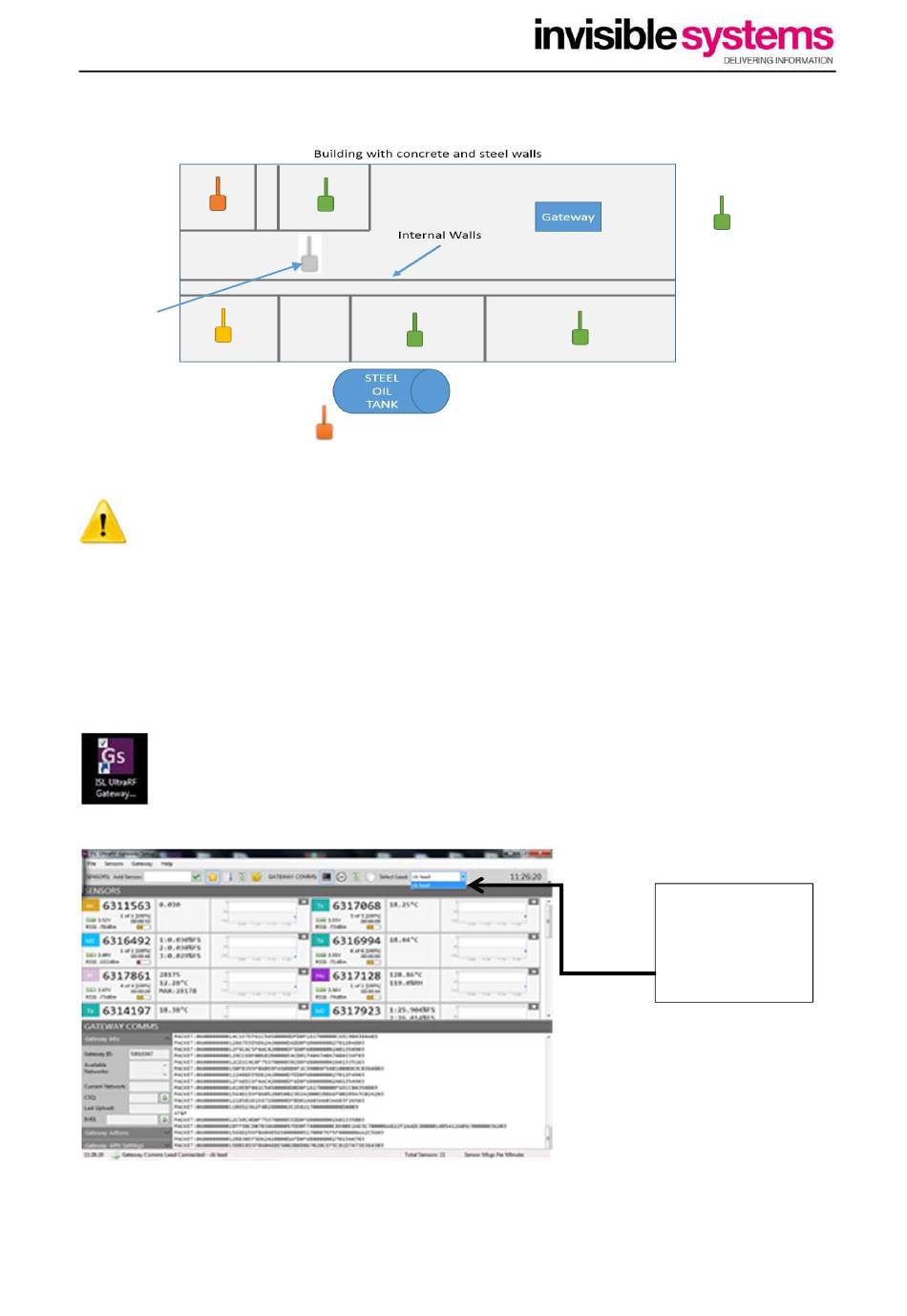

The following illustration shows how sensors which are hidden behind large metal objects like tanks
or steel walls may have difficulty in transmitting to the gateway.
Possible
repeater
location
Notes
Care must be taken when installing this sensor as live electrical circuits are usually within
the vicinity.  Seek to guidance of a qualified electrician if you are unsure.

5. Checking operation
Following installation of the Box Temperature transmitter, it is suggested that the operation is
checked to ensure the transmitter is being received by the Gateway.
Open Ultra RF Gateway Setup – This should be located on the desktop of your laptop.


On first use, if requested, select the USB lead being used and highlight for use.
Screen information being displayed.
Invisible Systems Limited
7‐9 Beetham Road, Milnthorpe Cumbria, LA7 7QL, England
Phone: 01539 722 520 Email: info@invisible‐systems.com











Name lead
connection and
select it in drop
down list
 P a g e
 | 9
