QC0161 Temperature/Humidity/CO2 Sensor

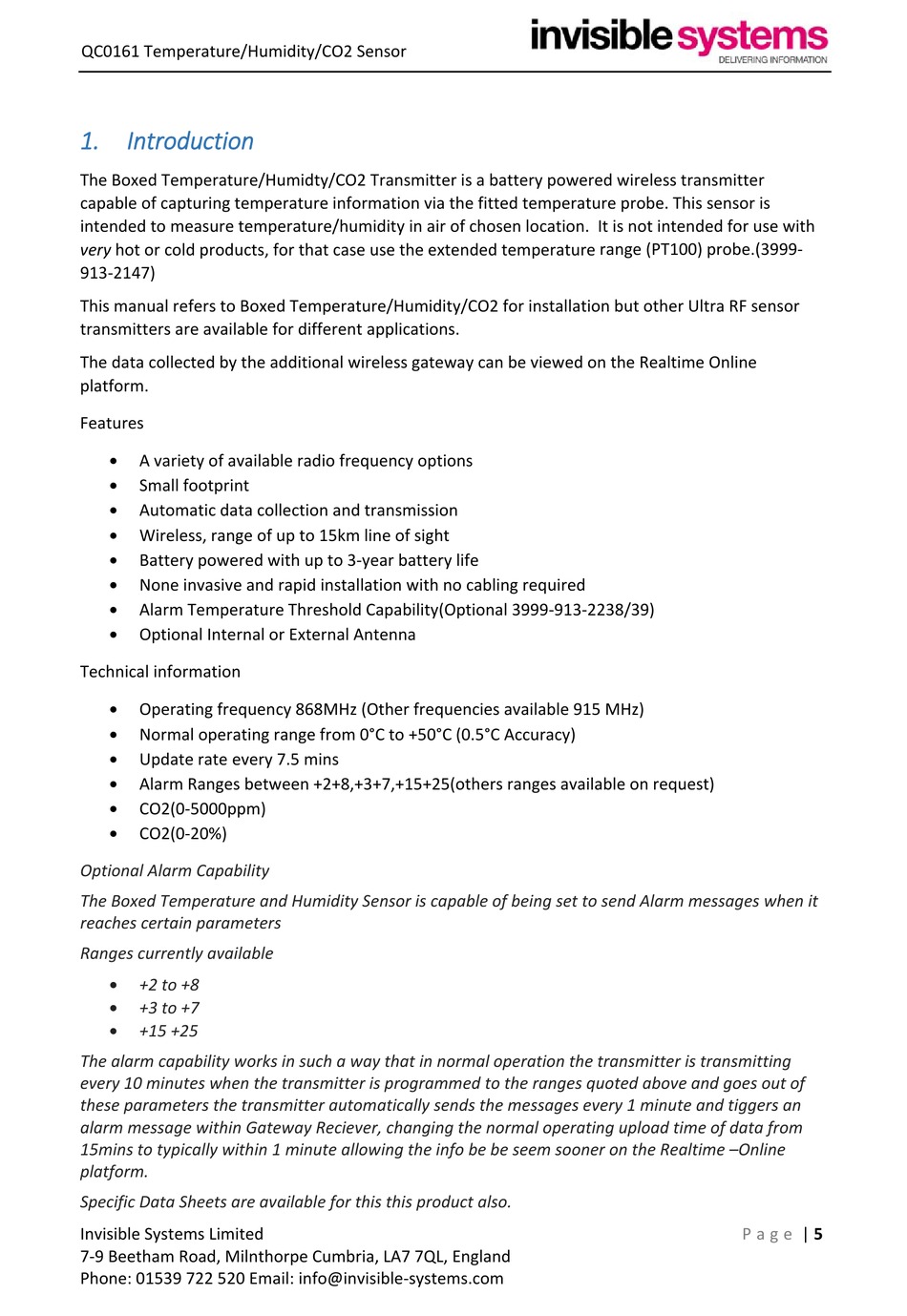

1. Introduction
The Boxed Temperature/Humidty/CO2 Transmitter is a battery powered wireless transmitter
capable of capturing temperature information via the fitted temperature probe. This sensor is
intended to measure temperature/humidity in air of chosen location. It is not intended for use with
very hot or cold products, for that case use the extended temperature range (PT100) probe.(3999‐
913‐2147)
This manual refers to Boxed Temperature/Humidity/CO2 for installation but other Ultra RF sensor
transmitters are available for different applications.
The data collected by the additional wireless gateway can be viewed on the Realtime Online
platform.
Features

A variety of available radio frequency options

Small footprint

Automatic data collection and transmission

Wireless, range of up to 15km line of sight

Battery powered with up to 3‐year battery life

None invasive and rapid installation with no cabling required

Alarm Temperature Threshold Capability(Optional 3999‐913‐2238/39)

Optional Internal or External Antenna
Technical information

Operating frequency 868MHz (Other frequencies available 915 MHz)

Normal operating range from 0°C to +50°C (0.5°C Accuracy)

Update rate every 7.5 mins

Alarm Ranges between +2+8,+3+7,+15+25(others ranges available on request)

CO2(0‐5000ppm)

CO2(0‐20%)
Optional Alarm Capability
The Boxed Temperature and Humidity Sensor is capable of being set to send Alarm messages when it
reaches certain parameters
Ranges currently available

+2 to +8

+3 to +7

+15 +25
The alarm capability works in such a way that in normal operation the transmitter is transmitting
every 10 minutes when the transmitter is programmed to the ranges quoted above and goes out of
these parameters the transmitter automatically sends the messages every 1 minute and tiggers an
alarm message within Gateway Reciever, changing the normal operating upload time of data from
15mins to typically within 1 minute allowing the info be be seem sooner on the Realtime –Online
platform.
Specific Data Sheets are available for this this product also.
