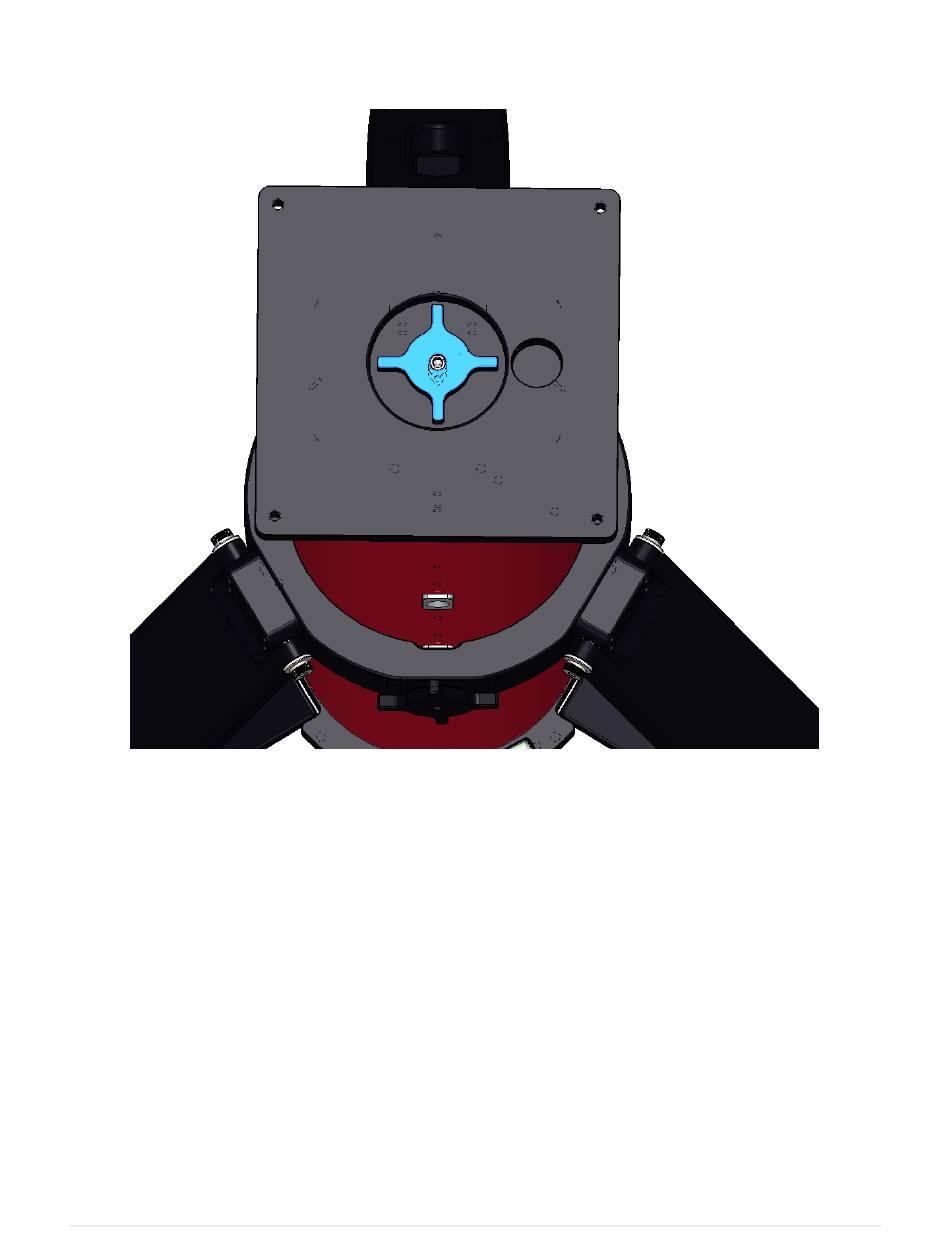

Figure 9: Top plate and knob.
Leveling the M T Tripod
Y
There are three bubble level plus arrow pairs machined in to the bottom ring of the tripod (Figure 10).
Each arrow points to the leg that changes the level of this bubble; see the examples highlighted in blue
in Figure 11.
Use these three levels to get your tripod as level as possible before mounting the Paramount M T. The
Y
circular depression in the top plate is a mounting hole for an optional bubble level (sold separately).
While the three bubble levels that are integrated into the legs should provide the means to achieve level
exceptionally well, the optional level bubble, when installed, can also be used to help level the tripod.
