Software Bisque Paramount MYT User Manual page 12

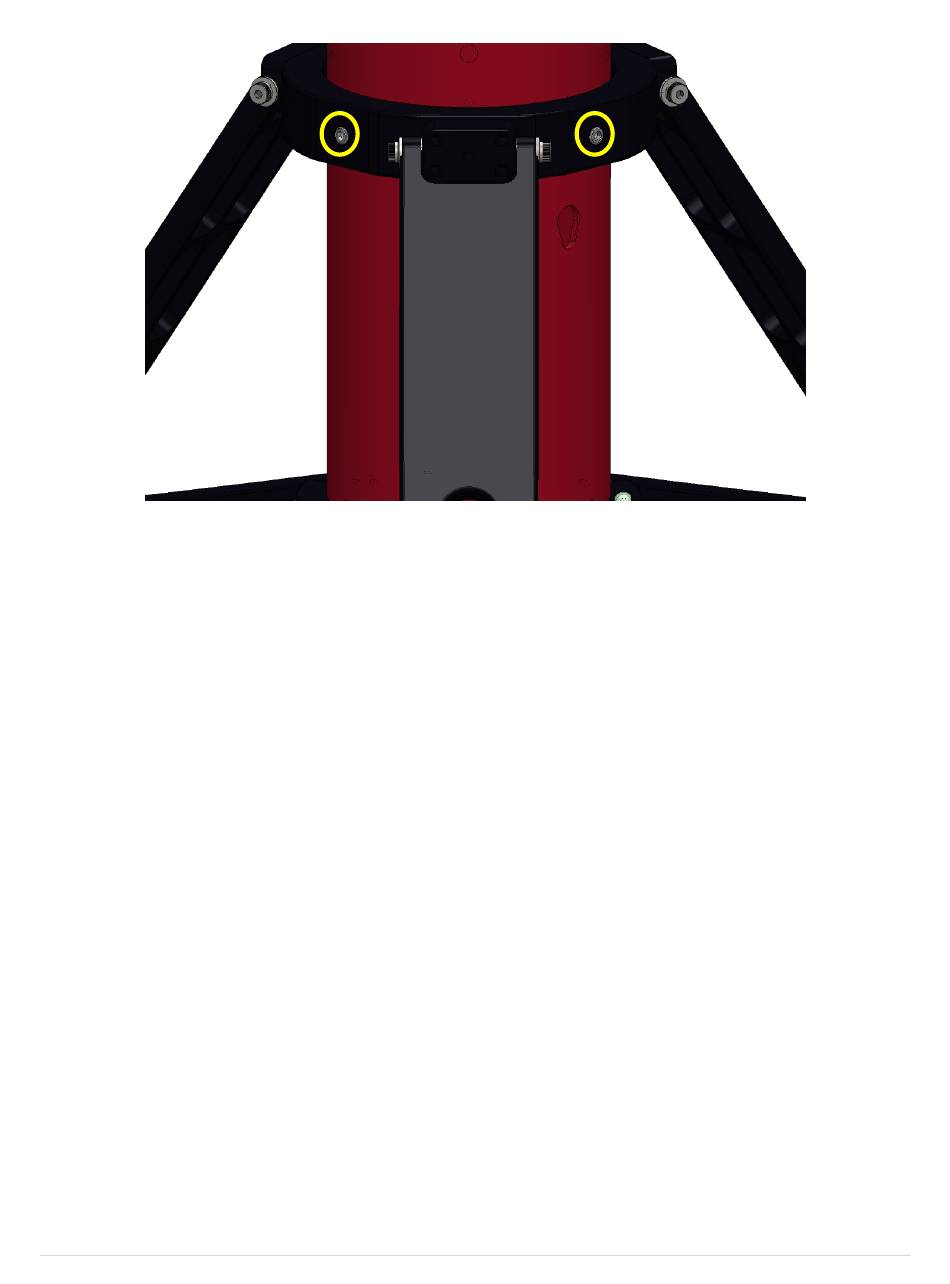

Figure 12: Stainless steel set screws circled in yellow
There are two 3/8-24 set screws stacked on each other in each of the two contact spots. The set screw
closest to the center tube you can look at from above the tripod and should be able to see it touching
the top of the button head cap screw (BHCP) as shown in Figure 13. The one stacked behind the first set
screw is there to prevent the first from moving or coming unscrewed.
The only time you should need to adjust these screws are when the locking knob is screwed all the way
in and the BHCPs are not sufficiently contacting the set screws.
