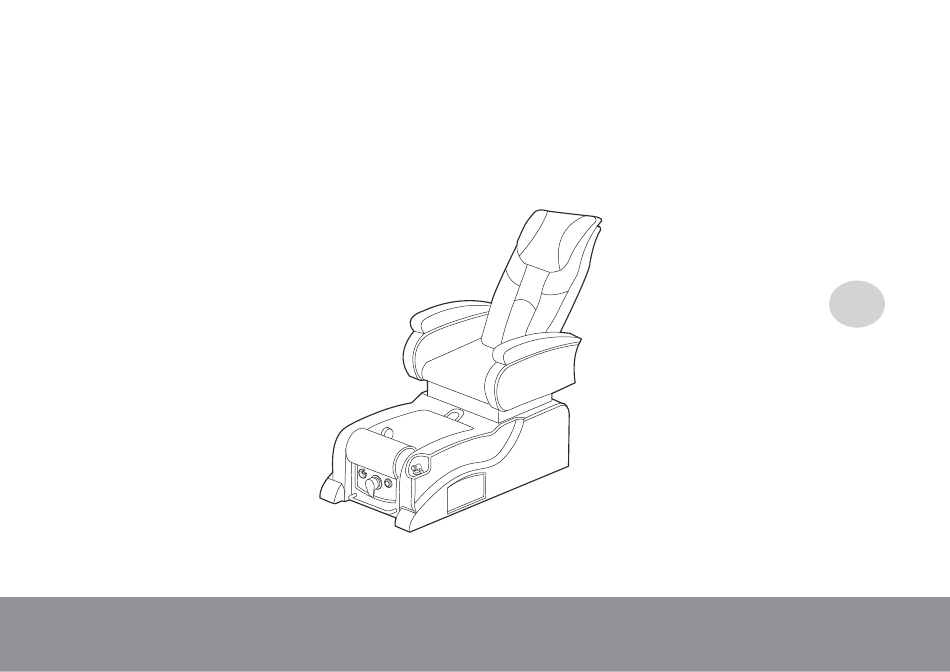

- Page 1 Toya 5450 INSTRUCTION MANUAL DIR | www.dirgroup.co.uk |...
-
Page 2: Table Of Contents
CONTENTS www.dirgroup.co.uk Introduction Safety & Precaution Pedicure Spa Parts Assembly Instructions Operation Instructions Control Panel Aftercare Instructions Warranty Aftercare instructions Contact Us Please read the operation manual before using the product. Please put the operation manual in the place easy for you to read and you can read it at any time. -
Page 3: Introduction

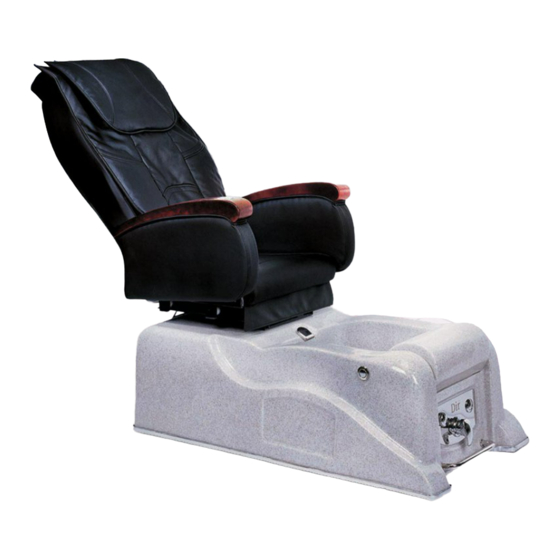

Product Name: Toya Product Code: 5450 Thank you for selecting DIR, the leading salon and beauty Furniture company in the UK. The Toya pedicure spa comes with four-wheel driven muted massage system which gives you the experience of ultimate relaxation. Please take time to read this entire manual before assembly and use. - Page 4 WARRANTY www.dirgroup.co.uk The warranty period is one year. DIR warrants to you, the original buyer, that goods shall be free of defects in material and/or workmanship attributable to manufacture for one year from date of buyer′s receipt of product. Damage resulting from improper handling after merchandise is received, or from exposure to weather or extreme atmospheric conditions is not covered by the warranty.
-
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS www.dirgroup.co.uk Headrest Cushion Backrest Cushion Legrest Seat Faucet Handle Drain Button Access Panel Shower Head Power on/off Min Max Adjuster... - Page 6 ASSEMBLY INSTRUCTIONS www.dirgroup.co.uk The backrest cushion and the The headrest cushion and the seat are connected by a zip. backrest cushion are connect- ed by velcro. Headrest Cushion Backrest Cushion Step 1 Seat...
- Page 7 ASSEMBLY INSTRUCTIONS www.dirgroup.co.uk Rubber Step 2 Step 3 Align the seat with the pre-drilled holes on the base then tightly secure with the nuts and bolts provided. (use the alan key provided) Need two person assembly.
- Page 8 ASSEMBLY INSTRUCTIONS www.dirgroup.co.uk Step 4 Assembly Complete Attach the covers for the seat to the front and both sides of the seat.
- Page 9 ASSEMBLY INSTRUCTIONS www.dirgroup.co.uk Waste Pipe Waste Pipe NOTE: waste pipe must be on a downward flow.
- Page 10 ASSEMBLY INSTRUCTIONS www.dirgroup.co.uk 400 mm 15.7 in Wall 26 in 2 Meters apart...
- Page 11 ASSEMBLY INSTRUCTIONS www.dirgroup.co.uk Operation Manual Filling Spa a. Lift the tap located on the front of the spa. b. Adjust water temperature by moving the tap left or right. c. Fill the spa to the height of the clientʼs ankles. Caution there is no overflow protection.
- Page 12 ASSEMBLY INSTRUCTIONS www.dirgroup.co.uk Adjust Legrest Lift the Legrest to meet customerʼs needs.
-
Page 13: Control Panel
ASSEMBLY INSTRUCTIONS www.dirgroup.co.uk Power: to start or stop message of the upper body. The button will not work when the massage device is at its position of recovery. Adjust Shoulder First: when you start the massage functions of the upper body, the massage device begins to move downward to suit the position of your shoulder. - Page 14 ASSEMBLY INSTRUCTIONS www.dirgroup.co.uk KNEAD FUNCTION Back Stretching: to select full-range, partial or fixed massage. (overall, fixed, partial ) FLAP FUNCTION Up Arrow: when fixed massage has been chosen, press this button to move the massage device KNEAD & FLAP FUNCTION upward to suit precise massage points, not available under auto state.
- Page 15 ASSEMBLY INSTRUCTIONS www.dirgroup.co.uk Caring for the cushion and covers Soak a piece of soft cloth in lukewarm water in which a small amount of mild detergent has been added. Then thoroughly wring it out before cleaning off any spots or grime. Caring for the remote control Wipe dirt off the remote control with a dry cloth.
- Page 16 The warranty is under the condition that the goods shall be received free of defects, in its original condition when purchased and manufactured faults. Damage resulting from general wear and improper usage will not be covered under the warranty. Should you require further information or technical support please contact DIR on: +44(0)121 643 3877 Exclusions 1.
-
Page 17: Aftercare Instructions
AFTERCARE INSTRUCTIONS www.dirgroup.co.uk After an initial period of use, check all fastenings for any loosened screws etc. If found, please tightened appropriately... -
Page 18: Contact Us
CONTACT US www.dirgroup.co.uk DIR BIRMINGHAM DIR NEW YORK DIR IRELAND (HEADQUATERS) 66 Rea Street South 24 Woodward Ave. Unit 5 Block E Birmingham Suite C Riverview Business Park B5 6LR Queens, NY 11385 Nangor Road Dublin 12 Sales: +44(0)800 085 3667...
