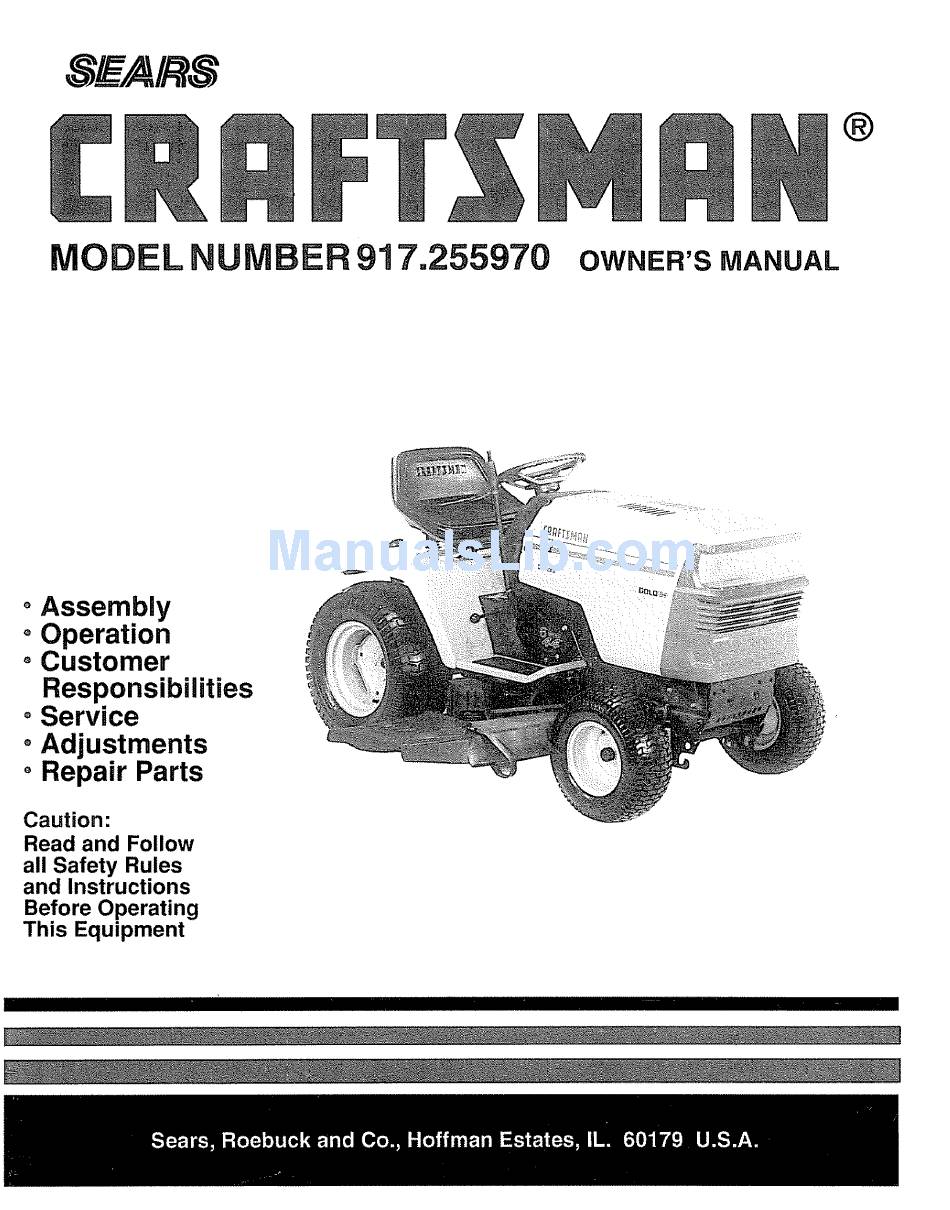

917.255970
OWNER'S MANUAL
oAssembly
oOperation
oCustomer
Responsibilities
oService
oAdjustments
• Repair Parts
Caution:
Read and Follow
all Safety Rules
and Instructions
Before Operating
This Equipment

Advertisement

Table of Contents
loading

Related Manuals for Craftsman 917.25597

Summary of Contents for Craftsman 917.25597

  • Page 1 ® 917.255970 OWNER'S MANUAL oAssembly oOperation oCustomer Responsibilities oService oAdjustments • Repair Parts Caution: Read and Follow all Safety Rules and Instructions Before Operating This Equipment...
  • Page 2 Safe Operation IMPORTANT: THIS CUTTING MACHINE ISCAPABLE OF AMPUTATING HANDSAND FEETANDTHROWING FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. GENERAL OPERATION Read, understand, and follow all instructions in the manual and on the machine before starting. •...
  • Page 3 For two (2) years from the date of purchase, if this riding equipment is maintained, instructions in the owner's manual, Sears will repair or replace, free of charge, any parts found to be defective in material or workmanship. This Warranty does not cover: Expendable items which become worn during normal use, such as blades, spark plugs, air cleaners and belts..

  • Page 4: Table Of Contents

    SAFETY RULES PRODUCT SPECIFICATIONS CUSTOMER RESPONSIBILITIES ... 3,15-18 WARRANTY ... TABLE OF CONTENTS ... INDEX ... ASSEMBLY ... INDEX Adjustments: Attachment Lift Spring ... Brake ... Carburetoi ..:... 25 Attachment Clutch ... Gauge Wheels ... Mower: Front-To-Back Side-To-Side Throttle Control Cable ...
  • Page 5 PERFORMANCE Sears offers a wide variety of attachments that fit your tractor. Many of these are listed below with brief explanations of how they can help you. This list was current at the time of publication; however, it may change in future years - more attachments...
  • Page 6 CONTENTS Parts Bag contents shown full size (1) Shoulder Bolt 5/16-18 (1) Knob (1) Washer 17/32 x 1-3/16 x 12 Gauge (3) Retainer Springs (4) Retainer Springs (2) Hex Bolts 1/4-20 x 3/4 (2) Hex Nuts 1/4-20 (2) Washers 9/32 x 5/8 x 16 Gao (2) Lock Washers (2) Wing Nuts 1/4-20 OF HARDWARE...
  • Page 7 You r new tractor has been assembled at the factory with the exception of those parts teft unassembled for shipping purposes. To ensure safe and proper operation of your tractor, all parts and hardware you assemble must be tightened securely° Use the correct tools as necessary to insure proper tightness_ TOOLS REQUURED FOR ASSEMBLY...
  • Page 8 HOW TO SET UP YOUR TRACTOR PREPARE BATTERY (See Fig. 3) CAUTION: Wear eye and face shield. Wash hands or clothing immediately accidentally in contact with battery acid. Do not smoke. Fumes from charged bat- tery acid are explosive. Read the instructions included with the battery vent caps.
  • Page 9 INSTALL MOWER AND DRIVE BELT (See Fig. 5 and 8) Be sure tractor is on level surface,, Engage parking brake. Cut and remove tie down wire between anti-sway bar and Roll,, gauge wheel brackeL Swing anti-sway barto left side of mower deck, Slide mower under tractor with discharge guard to right side of tractor.
  • Page 10 INSTALL BATTERY (See Figs. 6 and 7) CAUTION: Do not short battery termi- nals. Before installing battery, remove etc. etal bracelets, wristwatch bands, rings, Positive terminal must be connected first to prevent sparking from grounding. Raise hood° Make sure drain tube is fastened to drain hole in battery tray and battery tray is positioned in hole of battery support..

  • Page 11: Attachment Clutch

    CHOKECOI CLUTCH/BRAKEPEDAL HEIGHT ADJUSTMENT KNOB GEARSHIFT LEVER Sears tractors conform to the safety standards of the American National Standards Institute_ ATTACHMENT CLUTCH SWITCH mower blades or other attachments mounted to your trac- tor. LIFT LEVER - Used to raise and lower mower deck or other...
  • Page 12 Never use choke to stop engine_ OPERATION at Sears retail or catalog stores. NOTE: Under certain conditions when tractor is standing idle with the engine running, hot engine exhaust gasses may cause "browning" of grass. To eliminate this possibil- ity, always stop engine when stopping tractor on grass areas.

  • Page 13: Gauge Wheels

    TO ADJUST GAUGE WHEELS Adjust mower to desired cutting height. ° Lower mower with lift control,. Remove rear retainer spring and clevis pin which secure each gauge wheel.. • Lower gauge wheels to ground. Raise gauge wheels slightly to align holes in bracket and gauge wheel bar and insert clevis pins., Gauge wheels should be slightly off the ground °...
  • Page 14 ADD GASOLINE FIll fuel tank. Use fresh, clean, regular unleaded gasoline.. (Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life).. IMPORTANT: WHEN OPERATING tN TEMPERATURES BELOW 32°F(0°C), USE FRESH, CLEAN WINTER GRADE GASOLINE TO HELP INSURE GOOD COLD WEATHER STARTING.
  • Page 15 CUSTOM MAINTENANCE SCHEDULE FILL IN DATES AS YOU COMPLETE R+E.GULA._+R SERVlC_F Check Brake Operation Check Tire Pressure Check for Loose Fasteners SharpentRepiace Mower Blades Lubrication Chart Check Battery Leve!tRecharge Clean Battery and Terminals Adjust Blade Belt(s) Tension Adjust Motion Drive Belt(s) Tension Check Engine Oil Level Change Engine Oil.
  • Page 16 CUSTOM TRACTOR Always observe safety rules when performing any mainte- nance_ BRAKE OPERATION If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be adjusted.. (See "TO ADJUST BRAKE" in the Service and Adjust- ments section of this manual).
  • Page 17 CUSTOM BATTERY (See Fig. 17) Your unit has a batter,/charging system which is sufficient for normal user However, periodic charging of the battery with an automotive charger will extend it's life,, • Acid solution level in each battery cell should be even with bottoms of vent welts,, Add only distilled or iron flee water if necessary.
  • Page 18 CUSTOM CLEAN AIR SCREEN (See Fig. 20) The air screen must be kept free of dirt and chaff to prevent engine damage from overheating.. Clean with a wire brush or compressed air to remove dirt and stubborn dried gum fibers.. CLEAN ENGINE COOLING...

  • Page 19: Side-To-Side

    SERVICE AND ADJUSTMENTS CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS: • Depress clutch/brake pedal fully and setparking Place gearshift lever in NEUTRAL" position. Place attachment clutch in "DISENGAGED" Turn ignition key "OFF" and remove key. Make sure the blades and all moving parts have completely stopped. Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.
  • Page 20 SERVICE AND A JUSTMENTS FRONT-TO-BACK ADJUSTMENT (See Figs25 and 26) - IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IFTHE FOLLOWING" FRONT-TO-BACK NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-SIDE. To obtain the best cutting results, the mower housing should be adjusted so the front is approximately 1/8"...
  • Page 21 TO REPLACE MOWER BLADE (See Fig. 28) Park the tractor on level surface_ Engage parking brake. Remove mower drive belt (See'q'O REPLACE MOWER DRIVE BELT" in this section of this manual). Remove mower (See "TO REMOVE MOWER" in this section of this manual). Remove four screws from Roll.
  • Page 22 SERVICE AN TO REPLACE MOTION DRIVE BELT (See Fig. 31) Park the tractor on level surface_ Engage parking brake. For ease of service there is a belt installation guide decal on bottom of left footrest. It is not necessaryto BELT REMOVAL - •...
  • Page 23 /q iiUHII,IWql ,rqll,q ,111 $ERVUCE AN TO REMOVE WHEEL FOR REPAIRS FRONT WHEEL (See Fig_ 34) - • Block up axle secureiy_ • Remove axle cover, retaining ring and washers to allow wheel removal, Repair tire and reassemble, Replace washers and snap retaining ring securely in axle groove.
  • Page 24 illl ,,i,i TO REMOVE HOOD AND GRILL ASSEMBLY (See Fig. 38) • Raise hood,. • Unsnap headlight wire connector,. ° Stand in front of tractor, G rasp hood at sides, tilt toward engine and lift off of tractor. ° To replace, reverse above procedure. HOOD FIG.

  • Page 25: Throttle Control Cable

    $ERVRCE AND ADJUSTMENTS TO ADJUST CARBURETOR (See Figs. 41 and 42) The carburetor has been preset at the factory and adjust- ment should not be necessary° However, minor adjust- ment may be required to compensate for differences in fuel, temperature, altitude or Ioado If the carburetor does need adjustment, proceed as follows:...

  • Page 26: Cleaning

    Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more.. CAUTION: Never store the tractor with gasoline in the tank inside a building where fumes may reach an open flame or spark.
  • Page 27 iii1,,i,i, iii RVIC NOTES...

  • Page 28: Air Screen

    TROUIBLESHOOTmNG PROBLEM CAUSE Will not start Out of fuel Engine not "CHOKED" properly Engine flooded Bad spark plug, Dirty air filter Dirty fuel filter. Water in fuel Loose or damaged wiring.. Carburetor Engine valves out of adjustment, Hard to start Dirt_,' air filter Bad spark plug., Weak or dead battery.
  • Page 29 TF OUBLESHOOT NG PROBLEM CAUSE Engine continues to run I.. Faulty operator-safety when operator leaves seat with attachment clutch engaged Poor cut - uneven Worn, bent or loose blade. Mower deck not level Buildup of grass, leaves, and trash under mower.. Bent blade mandrel Clogged mower deck vent holes from buildup of grass, leaves, and trash around mandrels...
  • Page 30 ... 18 HP44" SCHEMATIC oilllllo IGNITION _£), BLACK SWITCH LIFT KIT WIRING 30 1 RELAY IGNITION SWITCH POSITION CIRCUIT M + G START" B + S TRACTOR - MODEL NUMBER BLACK BATTERY FUSE 3O AMP. CLUTCH / BRAKE (PEDAL UP) SEAT SWITCH (NOT OCCUPIED) (DISENGAGED)

  • Page 31: Decals

    REPAIR PARTS 18 HP 44" TRACTOR DECALS 13 18 KEY PART NO. NO. DESCRIPTION 136794 Decal, Operating instruction '138279 Decal, Hood, Craftsman, RH 138280 Decal Hood, Craftsman, LH 138264 Decal Grille, Craftsman 133644 Decal Maintenance Decal Side Panel 138049 Decal Side Panel 138262 125880X Decal Fender, Craftsman...
  • Page 32 REPAIR PARTS 18 HP 44" TRACTOR - MODEL NUMBER 917.255970 ELECTROCAL t_J17...
  • Page 33 REPAIR PARTS 18 HP 44" TRACTOR ELECTRBCAL KEY PART NO. NO. NOTE: - MODEL NUMBER 917.255970 DESCRIPTION 109310X Key, Ignition 4406R Switch, Ignition 123620X Cover, Switch Key 124211X Nut, ignition 110712X Switch, Light 121537X Battery 7603J Tray, Battery 7697J Tube, Drain 109596X Clamp, Hose 138406...
  • Page 34 REPAIR PARTS 18 HP 44" TRACTOR - MODEL NUMBER 917.255970 CHASSIS AND ENCLOSURES 16 _...
  • Page 35 REPAIR PARTS 18 HP 44" TRACTOR CHASSIS AND ENCLOSURES KEY PART NO. NOw DESCRIPTION 138597 Rail, Frame RH 7982J Drawbar, Gt 136671X417 Panel Asmo, Side LH 73800700 Nut, Lock Hex 7/16 Unc 136696 Dash, Plastic Black 137251 Dash Asm. Lower 17720408 Screw, Thd Cut 1/4-20 x 1/2 137563...
  • Page 36 REPAIR PARTS 18 HP 44" TRACTOR GROUND DRIVE - MODEL NUMBER 917.255970...
  • Page 37 REPAIR PARTS 18 HP 44" TRACTOR GROUND DRIVE KEY PART NO. NO. DESCRIPTION 9858M1 Key, Woodruff 2228M Key, Woodruff 7563R Washer, Thrust, Axle 135758 Wheel Hub Assembly 12000034 Klip Ring 1304H Bolt, Hub 214J Drum, Brake 101122M Band, Brake 9204H Locknut 1/2-20 STD551125...
  • Page 38 REPAIR PARTS 18 HP 44" TRACTOR STEERING ASSEMBLY 21 2O - MODEL NUMBER 917.255970...
  • Page 39 REPAIR PARTS 18 HP 44" TRACTOR STEERING ASSEMBLY KEY PART NO, NO. NOTE: - MODEL NUMBER 917,255970 DESCRIPTION 133741 Wheel, Steering 674A243 Axle Asm., Front 6855M Fitting, Grease 136960 Spindle Asm, LH 136959 Spindle Asm. 6266H Bearing, Race Thrust Harden Washer 25/32 x 1-5/8 x 16 Ga.
  • Page 40 REPAIR PARTS 18 HP 44" TRACTOR ENGINE - MODEL NUMBER 917.255970...
  • Page 41 REPAIR PARTS 18 HP 44" TRACTOR ENGINE KEY PART NO. NO. DESCRIPTION t38t61 Engine B7S 18 IC Gold Vert 139217 Muffler Asm Briggs (lnco Key No, 29 & 34) 132403O0 Elbow Street 3/8 NPT 13280328 Nipple Pipe 3i8NPT X 3 - 1/2 13200300 Elbow STD 90 Degree 3/8 - 18 NPT 138129...
  • Page 42 REPAIR PARTS 18 HP 44" TRACTOR SEAT ASSEMBLY KEY PART NO. NO. DESCRIPTION 127438X Seat 126656X Bracket, Pivot Seat 275tR Clip, Line Fuel 73680600 Nut, Crownlock 124181X Spring, Seat Cprsn 174905O8 Screw, Thdrol 5/16-18 X 1/2 19131614 Washer 13/32 X 1 X 14Ga+ 131454 Pan, Seat 121251X...
  • Page 43 REPAIR PARTS 18 HP 44" TRACTOR LiFT ASSEMBLY PART DESCRIPTION 121006X Rod Asmo, Lever 137295 Shaft Asm, Lift Vgt 121002X Lever Astor, Lift Rh 12000022 E-Ring Truarc #5133-87 19292016 Washer 29/32 x 1-1/4 x 16 Gao 74780624 Bolt, Fin Hex 3/8-16 x 1-1/2 125631X Grip, Handle Fluted 122365X...
  • Page 44 REPAIR PARTS 18 HP 44" TRACTOR - MODEL NUMBER 917.255970 44" MOWER DECK...
  • Page 45 REPARR PARTS 18 HP 44" TRACTOR 44" MOWER DECK KEY PART DESCRIPTION 136471 Deck Asm., Mower 44" Vented 7380050O Locknut, Hex W/Ins 5/16-I8 Unc 72110506 Bolt, Carriage 7631J Runner, Mower LH 138457 Bracket Asm,., Sway Bar 4939M Retainer, Spring 130832 Arm Suspension, Rear 850857 Bolt 3/8-24 x 1,.25 Gr.
  • Page 46 REPAIIR PARTS 18 HP 44" TRACTOR TRANSAXLE ,_97 - MODEL NUMBER 92 93- 917.255970...
  • Page 47 REPAIR PARTS 18 HP 44" TRACTOR TRANSAXLE KEY PART NO. NO. DESCRIPTION 4197R Axle Shaft 12000034 Retaining Ring Final Drive Gear 4199R Differential Gear 4216R Differential Pinion 4215R Differential Carrier 4217R 6256H Axle Thrust Washer 74020652 Bolt, Hex Head 3/8-24 x 3-1/4 (1"...
  • Page 48 REPAIR PARTS 18 HP 44" TRACTOR BRIGGS & STRATTON ENGINE - MODEL NUMBER - MODEL NUMBER 422707, * REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCT{O N MANUAL, 917.255970 TYPE NUMBER 1243-01 "_...
  • Page 49 REPAIR PARTS 18 HP 44" TRACTOR - MODEL NUMBER 917.255970 BRIGGS & STRATTON ENGINE - MODEL NUMBER 422707, TYPE NUMBER 1243-01 lt_l 358 GASKET SET] [861 PUMP REPAIR KIT I [121 CARBURETOR OVERHAUL...
  • Page 50 REPAIlR PARTS 18 HP 44" TRACTOR - MODEL NUMBER 917.255970 BRIGGS & STRATTON ENGINE - MODEL NUMBER 422707, TYPE NUMBER 1243-01...
  • Page 51 REPAaR PARTS 18 HP 44" TRACTOR BRIGGS & STRATTON ENGINE Reference Number Motor and I Thru Bolt I Manufacturer Briogs & _ Housing Stratton Length Drive Ass'y. i Assembty lAssembfyi I... 3-5,;8" 394808 "includes BrushSet _.Ref e_ r Number Starter re-T-'-"...
  • Page 52 RE:PAnR PARTS 18 PiP 44" TRACTOR BRIGGS & STRATTON ENGINE KEY PART NO. NO, DESCRIPTION 494533 Cylinder Assembly 399265 Bearing, Cylinder 391086 Seal, Oil 493457 Head, Cylinder' Number I 493458 Head, Cylinder Number 2 271867 * Gasket, Cylinder Head Number 1 271868 * Gasket, Cylinder Head Number 2 398065...

  • Page 53: Starting

    REPAIR PARTS 18 HP 44" TRACTOR BRIGGS & STRATTON ENGINE KEY PART NO, NO. DESCRIPTION 262375 Link 393415 Oi! Slinger Assembly 219A 394348 Gear, Governor 222773 Washer, Thrust 491282 Plate Assembly, Governor Control 94297 Screw, Pan Head 491297 Lever Assembly, Governor 62199 Washer 223882...
  • Page 55 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATRON SIGHTING GUIDE ,,_,, Operate your Tractor up and down the face of slopes (not greater than 15°), never across the face. Make turns gradu- ii! _ ally to prevent tipping or loss of control. Exercise extreme caution when changing direction on slopes.

  • Page 56: Transaxle

    The model number for your' engine will be found on the blower housing of the engine° AII parts listed herein may be ordered from any Sears, Roebuck and Co_ Service CentedDepartment Retail Store& WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION;...
