SkylinkHome TB-318 User Manual

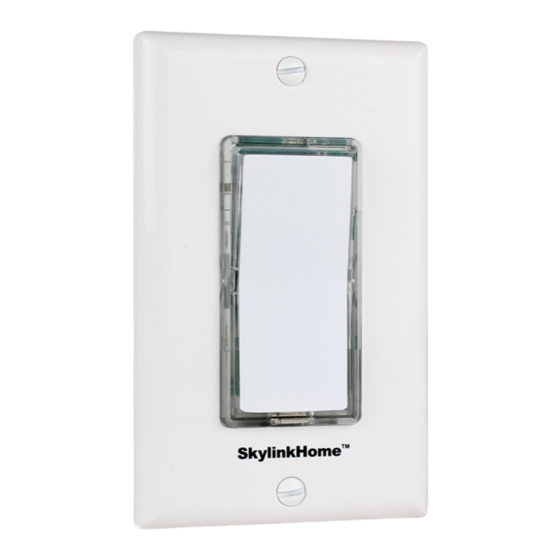

Wall Mount Transmitter

1. INTRODUCTION

Thank you for your purchase of a SkylinkHome Lighting Automation,
Wall Mount Transmitter, Model TB-318. This transmitter allows you to
wirelessly operate different lighting fixtures with the SkylinkHome
lighting receiver modules.
All wireless signal communications within the SkylinkHome lighting
system are based on rolling code technology to ensure highest security
is used.
You will find the following in this package:
- Wall Mount Transmitter
- Mounting Accessories & Double-sided Foam Tape
- Lithium Battery CR-2032
- User's Instructions
Wall Mount
Transmitter
Before you can control the lights with the transmitter, you need to program
it to a receiver module. Follow the instructions below to program the trans-
mitter to a receiver module.

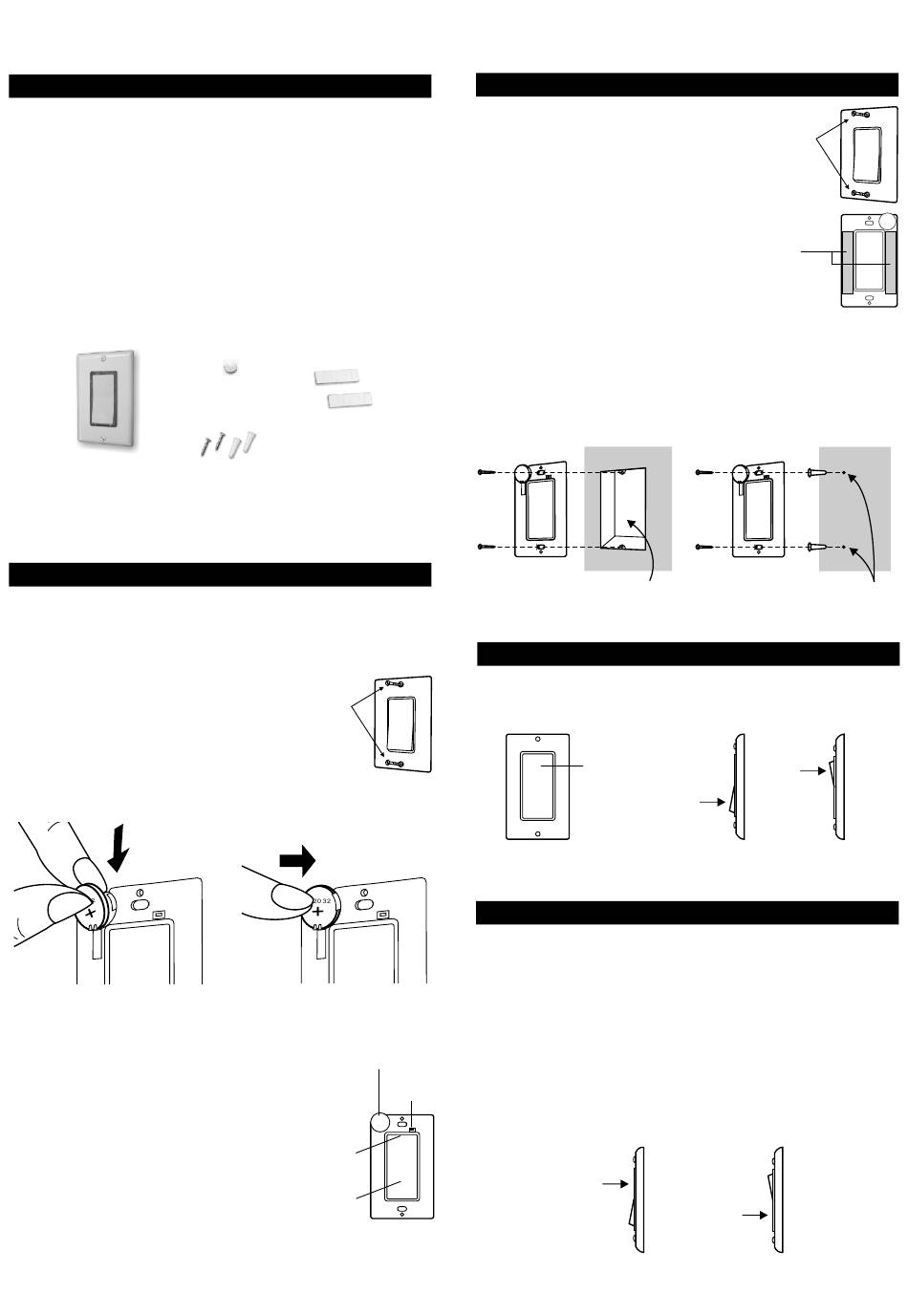

2. PROGRAMMING TRANSMITTER TO RECEIVER MODULE

In order to operate the receiver module remotely with a transmitter, it
must be programmed to the receiver module.
To program a transmitter into the receiver module, follow the instructions
below.
1. Remove the wall plate from the Wall Mount
Transmitter by loosening up the 2 screws.
2. Insert the battery to the Wall Mount Transmitter
as shown. Please note on the polarity, positive
side up. When the battery is installed, the red
LED on the transmitter will be on for 1 second.
Slide in
3. Put the receiver module that you plan to program
into programming mode. Refer to the User's
Instructions of that receiver module.
4. Once the receiver module is in programming mode,
you may transmit the programming signal from the
transmitter by pressing the "SET" button on the
transmitter. The red LED on the transmitter will be
on.
5. Activate the Wall Mount Transmitter by pressing
the pad on the front. Its red LED will flash then off.
6. Once the transmitter is programmed, the receiver
module will quit from programming mode.
7. You may operate the light with the programmed
transmitter.
Model TB-318
TM
TM
Lithium
battery
Double-sided
Foam Tape
Accessories
Loosen up
2 screws
Push
Down
Battery
(Positive side up)
CR 2032
Red
LED
Pad
After programming, you are now ready to install
the Wall Mount Transmitter .
TM
You may use double sided foam tape to stick the
transmitter on the wall, or you may use screws
to mount the transmitter.
Using double sided foam tape:
Place the 2 double sided foam tape on the back
of the back plate. Clean the surface of the wall
where you plan to install the back plate. Peel
off the foam tape and stick it to the wall surface.
Using screws:
If you are using screws, tighten the back plate of the wall mount trans-
mitter by the 2 screws provided. If you are installing the back plate to an
]existing wall switch with gang box, no need to use the anchors. Other-
wise, drill 2 small pilot holes based on the 2 mounting screw positions
and insert the anchors before tightening the back plate with screws.
After securing the back plate, either by double sided foam tape or screws,
tighten the 2 screws on the front to secure the front plate.
Pushing the pad from one position to the other will toggle the light,
i.e. when the light is off, pushing the pad will turn on the light, vice versa.
Besides turning on and off the light, you may also control the brightness
of the light if the receiver module and the light bulb is dimmable, i.e. either
incandescent light and designated dimming compact fluorescent light.
To change the brightness, first turn on the light by pushing the pad.
Press and hold the pad after the light is on will change the brightness of
the light. Hold onto the button until the desired brightness is reached,
then release the pad.
SET
Press and hold the pad again to alter the brightness (from dim to brighten,
Button
and from brighten to dim), until the desired brightness is reached, then
release the pad.
+

3. INSTALLATION

Existing Gang Box
(No Anchor)

4. ON / OFF OPERATION

Push pad to
turn on / off
Push

5. BRIGHTNESS CONTROL OPERATION

Hold
OR
Hold
Brightness Control
Tighten
2 screws
Place
double-sided
foam tape
Drill 2 pilot holes
& insert anchors
Push
Toggle the light on / off
