High output drive operational amplifiers with shutdown

Advertisement

Quick Links

D
High Output Drive . . . >300 mA
D
Rail-To-Rail Output
D
Unity-Gain Bandwidth . . . 2.7 MHz
D
Slew Rate . . . 1.5 V/µs
D
Supply Current . . . 700 µA/Per Channel
D
Supply Voltage Range . . . 2.5 V to 6 V
D
Specified Temperature Range:
− T
= 0°C to 70°C . . . Commercial Grade
A
− T
= −40°C to 125°C . . . Industrial Grade
A
D
Universal OpAmp EVM
description
The TLV411x single supply operational amplifiers provide output currents in excess of 300 mA at 5 V. This
enables standard pin-out amplifiers to be used as high current buffers or in coil driver applications. The TLV4110
and TLV4113 come with a shutdown feature.
The TLV411x is available in the ultra small MSOP PowerPAD package, which offers the exceptional thermal
impedance required for amplifiers delivering high current levels.
All TLV411x devices are offered in PDIP, SOIC (single and dual) and MSOP PowerPAD (dual).
DEVICE
DEVICE
TLV4110
TLV4111
TLV4112
TLV4113
HIGH-LEVEL OUTPUT VOLTAGE
HIGH-LEVEL OUTPUT CURRENT
3.0
2.9
2.8
2.7
T A = 125°C
2.6
T A = −40°C
2.5
T A = 0°C
2.4
T A = 25°C
2.3
T A = 70°C
2.2
2.1
2.0
0
50
100
I OH − High-Level Output Current − mA
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PowerPAD is a trademark of Texas Instruments. All other trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
FAMILY OF HIGH OUTPUT DRIVE OPERATIONAL
FAMILY PACKAGE TABLE
PACKAGE TYPES
NUMBER OF
NUMBER OF
CHANNELS
MSOP
PDIP
1
8
8
1
8
8
2
8
8
2
10
14
vs
V DD = 3 V
150
200
250
300
POST OFFICE BOX 655303
TLV4110, TLV4111, TLV4112, TLV4113
AMPLIFIERS WITH SHUTDOWN
SLOS289E − DECEMBER 1999 − REVISED SEPTEMBER 2006
Operational Amplifier
TLV4112
D, DGN, OR P PACKAGE
(TOP VIEW)
1OUT
1
1IN −
2
1IN +
3
GND
4
SHUTDOWN
SHUTDOWN
SOIC
8
Yes
Refer to the EVM
Refer to the EVM
8
Selection Guide
Selection Guide
8
(Lit# SLOU060)
(Lit# SLOU060)
14
Yes
LOW-LEVEL OUTPUT VOLTAGE
vs
LOW-LEVEL OUTPUT CURRENT
1.0
V DD = 3 V
0.9
T A = 70°C
0.8
T A = 25°C
0.7
T A = 0°C
0.6
T A = −40°C
0.5
T A = 125°C
0.4
0.3
0.2
0.1
0.0
0
50
100
150
I OL − Low-Level Output Current − mA
Copyright  1999−2006, Texas Instruments Incorporated
DALLAS, TEXAS 75265
+
V
8
DD
2OUT
7
2IN −
6
2IN+
5
UNIVERSAL
UNIVERSAL
EVM BOARD
200
250
300
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TLV4110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments TLV4110

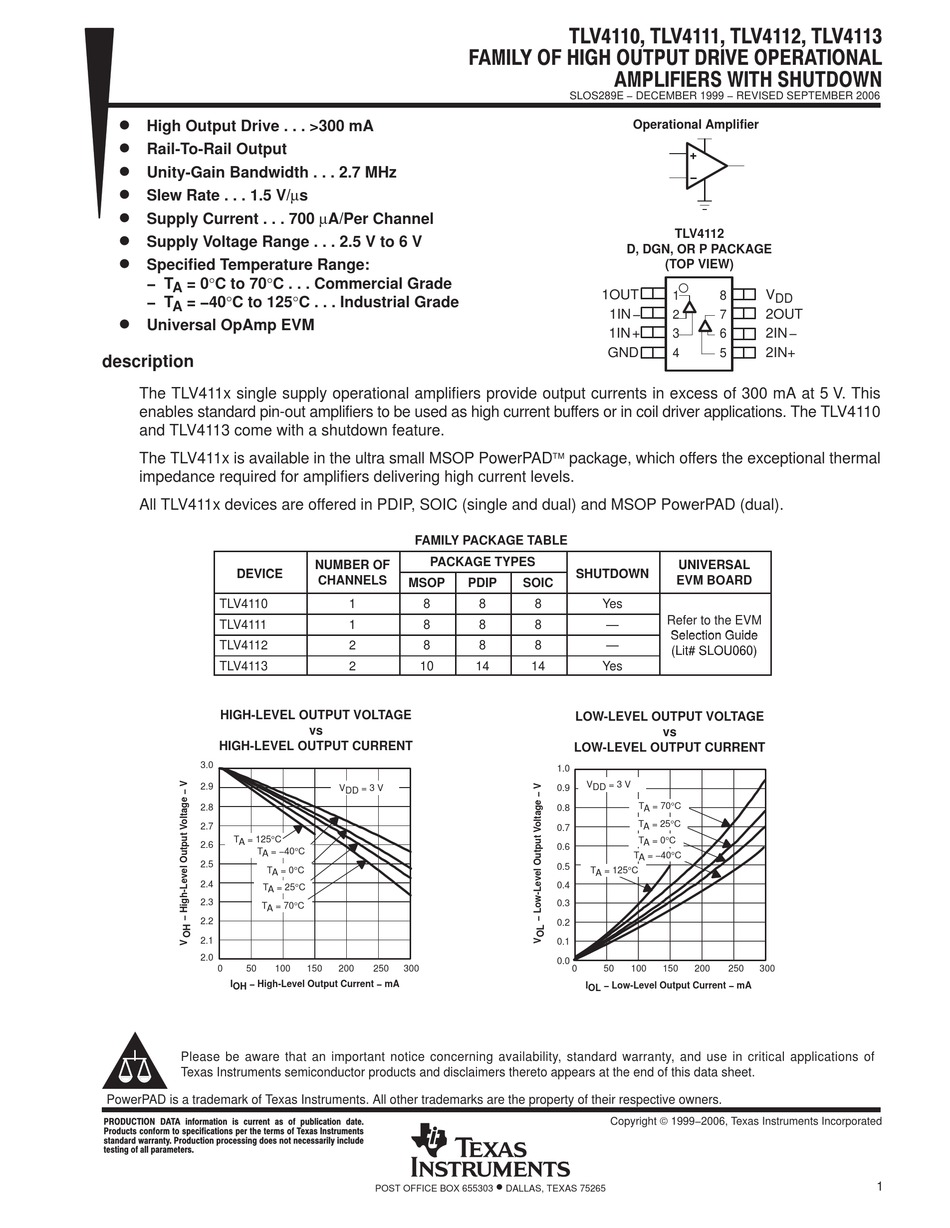

  • Page 1 The TLV411x single supply operational amplifiers provide output currents in excess of 300 mA at 5 V. This enables standard pin-out amplifiers to be used as high current buffers or in coil driver applications. The TLV4110 and TLV4113 come with a shutdown feature.
  • Page 2 TLV4110, TLV4111, TLV4112, TLV4113 FAMILY OF HIGH OUTPUT DRIVE OPERATIONAL AMPLIFIERS WITH SHUTDOWN SLOS289E − DECEMBER 1999 − REVISED SEPTEMBER 2006 TLV4110 AND TLV4111 AVAILABLE OPTIONS PACKAGED DEVICES MSOP SMALL OUTLINE SMALL OUTLINE PLASTIC DIP PLASTIC DIP SMALL OUTLINE SMALL OUTLINE (D) †‡...
  • Page 3 ‡ See The Texas Instruments document, PowerPAD Thermally Enhanced Package Application Report (literature number SLMA002), for more information on the PowerPAD package. The thermal data was measured on a PCB layout based on the information in the section entitled Texas Instruments Recommended Board for PowerPAD on page 33 of the before mentioned document.
  • Page 4 TLV4110, TLV4111, TLV4112, TLV4113 FAMILY OF HIGH OUTPUT DRIVE OPERATIONAL AMPLIFIERS WITH SHUTDOWN SLOS289E − DECEMBER 1999 − REVISED SEPTEMBER 2006 electrical characteristics at recommend operating conditions, V = 3 V and 5 V (unless otherwise noted) dc performance T A †...
  • Page 5 TLV4110, TLV4111, TLV4112, TLV4113 FAMILY OF HIGH OUTPUT DRIVE OPERATIONAL AMPLIFIERS WITH SHUTDOWN SLOS289E − DECEMBER 1999 − REVISED SEPTEMBER 2006 electrical characteristics at specified free-air temperature, V = 3 V and 5 V (unless otherwise noted) (continued) output characteristics T A †...
  • Page 6 TLV4110, TLV4111, TLV4112, TLV4113 FAMILY OF HIGH OUTPUT DRIVE OPERATIONAL AMPLIFIERS WITH SHUTDOWN SLOS289E − DECEMBER 1999 − REVISED SEPTEMBER 2006 electrical characteristics at specified free-air temperature, V = 3 V and 5 V (unless otherwise noted) (continued) dynamic performance T A †...
  • Page 7 TLV4110, TLV4111, TLV4112, TLV4113 FAMILY OF HIGH OUTPUT DRIVE OPERATIONAL AMPLIFIERS WITH SHUTDOWN SLOS289E − DECEMBER 1999 − REVISED SEPTEMBER 2006 TYPICAL CHARACTERISTICS Table of Graphs FIGURE V IO Input offset voltage vs Common-mode input voltage 1, 2 CMRR Common-mode rejection ratio...
  • Page 8: Vs High-Level Output Current

    TLV4110, TLV4111, TLV4112, TLV4113 FAMILY OF HIGH OUTPUT DRIVE OPERATIONAL AMPLIFIERS WITH SHUTDOWN SLOS289E − DECEMBER 1999 − REVISED SEPTEMBER 2006 TYPICAL CHARACTERISTICS INPUT OFFSET VOLTAGE COMMON-MODE REJECTION RATIO INPUT OFFSET VOLTAGE COMMON-MODE INPUT VOLTAGE FREQUENCY COMMON-MODE INPUT VOLTAGE 6000...
  • Page 9: Vs Frequency

    TLV4110, TLV4111, TLV4112, TLV4113 FAMILY OF HIGH OUTPUT DRIVE OPERATIONAL AMPLIFIERS WITH SHUTDOWN SLOS289E − DECEMBER 1999 − REVISED SEPTEMBER 2006 TYPICAL CHARACTERISTICS DIFFERENTIAL VOLTAGE POWER SUPPLY REJECTION RATIO AMPLIFICATION AND PHASE FREQUENCY FREQUENCY V DD = 3 & 5 V R F = 1 kΩ...
  • Page 10: Vs Frequency

    TLV4110, TLV4111, TLV4112, TLV4113 FAMILY OF HIGH OUTPUT DRIVE OPERATIONAL AMPLIFIERS WITH SHUTDOWN SLOS289E − DECEMBER 1999 − REVISED SEPTEMBER 2006 TYPICAL CHARACTERISTICS INVERTING LARGE-SIGNAL VOLTAGE-FOLLOWER VOLTAGE-FOLLOWER PULSE RESPONSE LARGE-SIGNAL PULSE RESPONSE SMALL-SIGNAL PULSE RESPONSE V IN 2.55 V IN...
  • Page 11 TLV4110, TLV4111, TLV4112, TLV4113 FAMILY OF HIGH OUTPUT DRIVE OPERATIONAL AMPLIFIERS WITH SHUTDOWN SLOS289E − DECEMBER 1999 − REVISED SEPTEMBER 2006 TYPICAL CHARACTERISTICS SHUTDOWN SUPPLY CURRENT / OUTPUT VOLTAGE V DD = 3 V A V = 1 R L = 100 Ω...
  • Page 12 APPLICATION INFORMATION shutdown function Two members of the TLV411x family (TLV4110/3) have a shutdown terminal for conserving battery life in portable applications. When the shutdown terminal is tied low, the supply current is reduced to just nano amps per channel, the amplifier is disabled, and the outputs are placed in a high impedance mode. In order to save power in shutdown mode, an external pullup resistor is required, therefore, to enable the amplifier the shutdown terminal must be pulled high.
  • Page 13 TLV4110, TLV4111, TLV4112, TLV4113 FAMILY OF HIGH OUTPUT DRIVE OPERATIONAL AMPLIFIERS WITH SHUTDOWN SLOS289E − DECEMBER 1999 − REVISED SEPTEMBER 2006 APPLICATION INFORMATION R null Figure 29 general power design considerations When driving heavy loads at high junction temperatures there is an increased probability of electromigration affecting the long term reliability of ICs.
  • Page 14 TLV4110, TLV4111, TLV4112, TLV4113 FAMILY OF HIGH OUTPUT DRIVE OPERATIONAL AMPLIFIERS WITH SHUTDOWN SLOS289E − DECEMBER 1999 − REVISED SEPTEMBER 2006 APPLICATION INFORMATION general PowerPAD design considerations The TLV411x is available in a thermally-enhanced PowerPAD family of packages. These packages are constructed using a downset leadframe upon which the die is mounted [see Figure 30(a) and Figure 30(b)].
  • Page 15 TLV4110, TLV4111, TLV4112, TLV4113 FAMILY OF HIGH OUTPUT DRIVE OPERATIONAL AMPLIFIERS WITH SHUTDOWN SLOS289E − DECEMBER 1999 − REVISED SEPTEMBER 2006 APPLICATION INFORMATION Although there are many ways to properly heatsink the PowerPAD package, the following steps illustrate the recommended approach.
  • Page 16: Vs Free-Air Temperature

    TLV4110, TLV4111, TLV4112, TLV4113 FAMILY OF HIGH OUTPUT DRIVE OPERATIONAL AMPLIFIERS WITH SHUTDOWN SLOS289E − DECEMBER 1999 − REVISED SEPTEMBER 2006 APPLICATION INFORMATION general PowerPAD design considerations (continued) MAXIMUM POWER DISSIPATION FREE-AIR TEMPERATURE T J = 150°C DGN Package Low-K Test PCB θ...
  • Page 17 TLV4110, TLV4111, TLV4112, TLV4113 FAMILY OF HIGH OUTPUT DRIVE OPERATIONAL AMPLIFIERS WITH SHUTDOWN SLOS289E − DECEMBER 1999 − REVISED SEPTEMBER 2006 APPLICATION INFORMATION macromodel information Macromodel information provided was derived using Microsim Parts, the model generation software used with Microsim PSpice. The Boyle macromodel (see Note 3) and subcircuit in Figure 33 are generated using the TLV411x typical electrical and operating characteristics at T = 25°C.
  • Page 18 PACKAGE OPTION ADDENDUM www.ti.com 9-Aug-2013 PACKAGING INFORMATION Orderable Device Status Package Type Package Pins Package Eco Plan Lead/Ball Finish MSL Peak Temp Op Temp (°C) Device Marking Samples Drawing (4/5) TLV4110ID ACTIVE SOIC Green (RoHS CU NIPDAU Level-1-260C-UNLIM -40 to 125 4110I &...
  • Page 19 PACKAGE OPTION ADDENDUM www.ti.com 9-Aug-2013 Orderable Device Status Package Type Package Pins Package Eco Plan Lead/Ball Finish MSL Peak Temp Op Temp (°C) Device Marking Samples Drawing (4/5) TLV4111IDGNRG4 ACTIVE MSOP- 2500 Green (RoHS CU NIPDAU Level-1-260C-UNLIM -40 to 125 PowerPAD &...
  • Page 20 PACKAGE OPTION ADDENDUM www.ti.com 9-Aug-2013 Orderable Device Status Package Type Package Pins Package Eco Plan Lead/Ball Finish MSL Peak Temp Op Temp (°C) Device Marking Samples Drawing (4/5) TLV4112IPE4 ACTIVE PDIP Pb-Free CU NIPDAU N / A for Pkg Type -40 to 125 TLV4112I (RoHS)
  • Page 21 PACKAGE OPTION ADDENDUM www.ti.com 9-Aug-2013 Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes. Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between the die and leadframe.
  • Page 22 PACKAGE MATERIALS INFORMATION www.ti.com 12-Dec-2011 TAPE AND REEL INFORMATION *All dimensions are nominal Device Package Package Pins Reel Reel Pin1 Type Drawing Diameter Width (mm) (mm) (mm) (mm) (mm) Quadrant (mm) W1 (mm) TLV4110IDGNR MSOP- 2500 330.0 12.4 12.0 Power TLV4110IDR SOIC 2500...
  • Page 23 PACKAGE MATERIALS INFORMATION www.ti.com 12-Dec-2011 *All dimensions are nominal Device Package Type Package Drawing Pins Length (mm) Width (mm) Height (mm) TLV4110IDGNR MSOP-PowerPAD 2500 358.0 335.0 35.0 TLV4110IDR SOIC 2500 340.5 338.1 20.6 TLV4111IDGNR MSOP-PowerPAD 2500 358.0 335.0 35.0 TLV4111IDR SOIC 2500 340.5...
  • Page 35: Important Notice

    IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue.
