AMX PS-POE-AT-TC Quick Start Manual

Overview
With the high power PS-POE-AT-TC Injector (FG423-84), transmit both power and data
through a single cable to a remotely located Power-over-Ethernet (PoE) touch panel.
Required for use with the MVP-9000i and DXLink Twisted Pair Transmitters and
Receivers, it is also compatible with the MXT-1000, MXD-1000, MXT-700, MXD-700
and MXD-430.
This self-contained single-port PoE Gigabit power supply "injects" DC power and data
into the same twisted pair cable at a distance of up to 100 meters (328 feet).
Common Application
The PS-POE-AT-TC PoE Injector sends power and data on demand to wall or table
docking stations of compatible touch panels via a single Ethernet connection.
Features
• 10/100/1000 (MbPS) Data Rates
• Meets IEEE802.3at requirements
• Load Diagnostic LED
• 100/240 VAC Universal Input

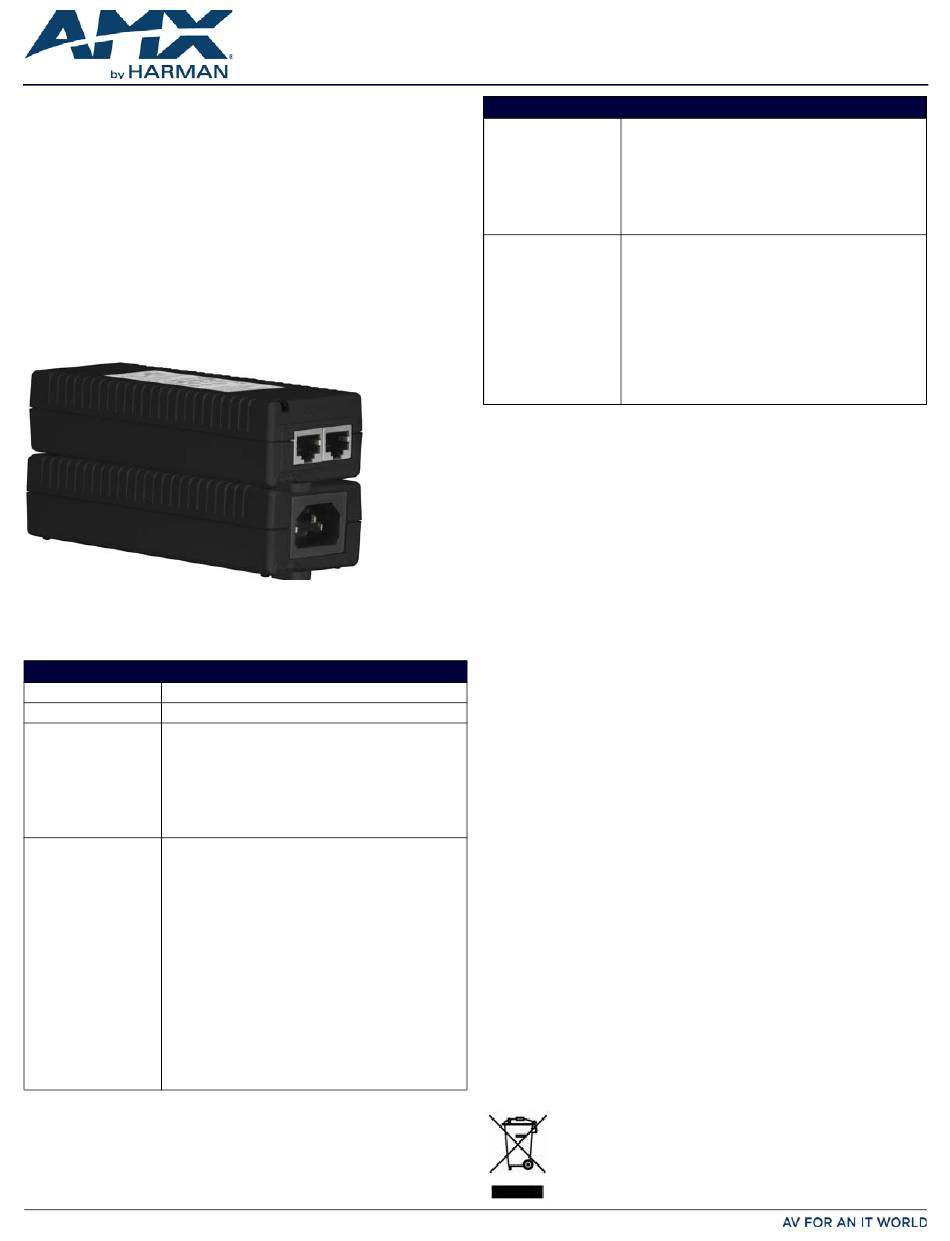

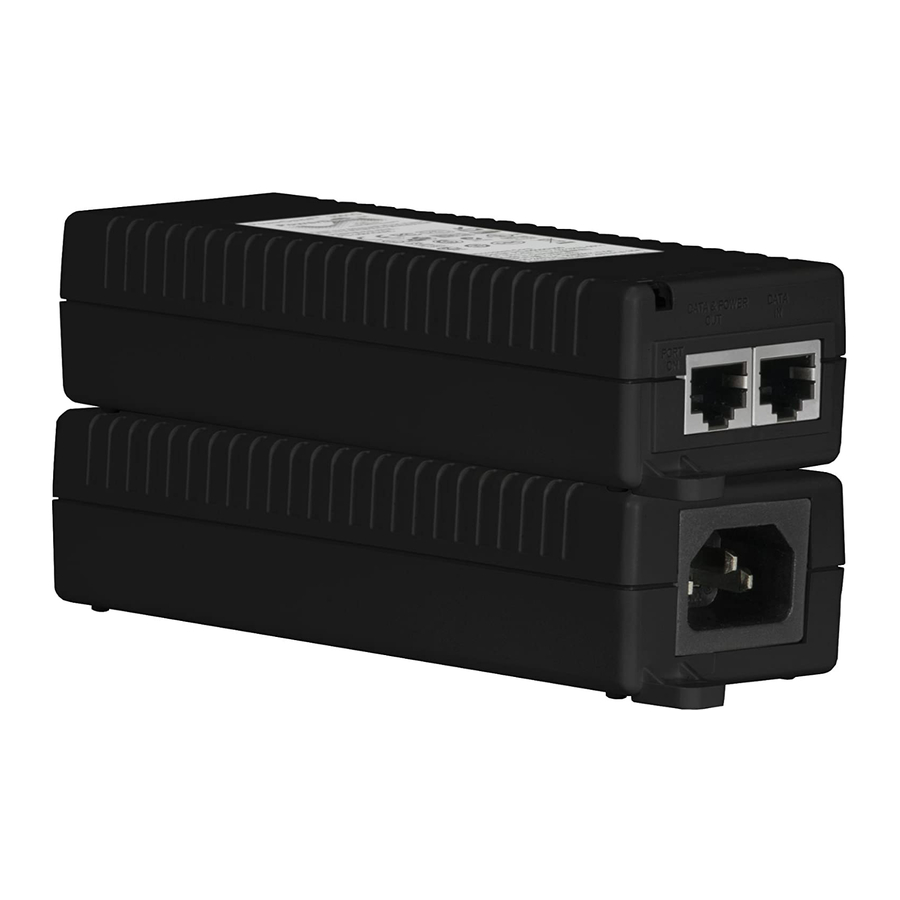

PS-POE-AT-TC - HIGH POWER POE INJECTOR, 802.3AT COMPLIANT
FIG. 1
The PS-POE-AT-TC supports the IEEE standard PoE pinout: Pins 4&5 Power (+) / Pins
7&8 Power (-). See Pin Connections (on reverse) for details.
Product Specif ications
PS-POE-AT-TC SPECIF ICATIONS
DIMENSIONS (HWD) 5 1/2" x 2 1/8" x 1 1/4" (14 cm x 5.3 cm x 3.25 cm)
WEIGHT .44 lbs (200 g)
ENVIRONMENTAL • Temperature (Operating):
-4°F to 104°F (-20°C to 40°C) @ 30W
-4°F to 131°F (-20°C to 55°C) @ 22.5W
• Temperature (Storage): -4°F to +158°F (-20°C to +70°C)
• Relative Humidity (Operating): Maximum 90%,
Non-Condensing
• Thermal Rating: 20 BTU/hr (@240VAC)
• Operating Altitude: -1000 to 10,000 ft. (-304.8 to 3048 m)
GENERAL • LEDs:
Yellow (On): power is on and active
Green (On): A remote terminal is connected
Green (Blinking): Overload state or short circuit
• Enclosure: Molded black matte plastic
• Cord and Connectors: Dual shielded RJ45 jacks built into the
enclosure, EIA 568A and 568B
• Approvals:
IEEE 802.3at (PoE)
RoHS / WEEE compliant
CE
FCC Part 15, Class B
EN 55022 Class B (Emissions)
EN 55024 (Immunity)
VCCI (Japan)
C-Tick
UL/cUL per IEC 60950-1
GS Mark per IEC 60950-1
PS-POE-AT-TC
PS-POE-AT-TC SPECIF ICATIONS (CONT.)
INPUT SPECIFICATIONS
OUTPUT SPECIFICATIONS
Safety Information
Important Safety Information
• The PS-POE-AT-TC should be connected to PoE networks only, without routing to
an outside network.
• Only qualified personnel can install or remove the PS-POE-AT-TC.
• AC Power Cord Set:
* The power cord must have regulatory agency approval for the specific country
* The power cord must be a three-conductor type (two current-carrying
* The power cord must be rated for a minimum of 250 VAC RMS operation, with a
• A PS-POE-AT-TC installed in Australia requires power cords with a minimum wire
gauge of 16 WWG (1.0 mm
• The PS-POE-AT-TC DATA IN and DATA & POWER OUT ports are shielded RJ45 data
sockets. They CANNOT be used as Plain Old Telephone Service (POTS) telephone
sockets. Only RJ45 data connectors may be connected to these sockets.
• The AC wall socket-outlet must be near the PS-POE-AT-TC and easily accessible.
You can remove AC power from the PS-POE-AT-TC by disconnecting the AC power
cord from either the wall socket-outlet or the PS-POE-AT-TC appliance coupler.
• The PS-POE-AT-TC "Data In" and "Data & Power Out" interfaces are qualified as
Safety Extra-Low Voltage (SELV) circuits according to IEC 60950-1. These
interfaces may only be connected to SELV interfaces on other equipment.
WARNINGS!
• The PS-POE-AT-TC should only be connected to devices compatible with this
product. Using the PS-POE-AT-TC with incompatible devices may cause damage
to the device.
• Read the installation instructions before connecting the PS-POE-AT-TC to its
power source.
• Follow basic electricity safety measures before connecting the PS-POE-AT-TC to
its power source.
• A voltage mismatch can cause equipment damage and may pose a fire hazard. If
the voltage indicated on the label is different from the power outlet voltage, do
not connect the PS-POE-AT-TC to this power outlet.
Recycling and Disposal
Disposal instructions for old products. The WEEE (Waste Electrical and Electronic
Equipment) national environmental initiatives have been put in place to ensure that
products are recycled using best available treatment, and recovery and recycling
techniques, to ensure human health and high environmental protection. Your product is
designed and manufactured with high-quality materials and components which can be
recycled and reused.
Do not dispose of your old product in your general household waste bin. Inform
yourself about the local separate collection system for electrical and electronic
products marked by this symbol:
High Power PoE Injector, 802.3AT Compliant
• AC Input Voltage Range: 100-240 VAC
• AC Input Current: 0.8A @ 100-240 VAC
• AC Frequency: 50 to 60 Hz
• AC Input Current: 0.8A MAX at 110-240 VAC
• Protection:
Internal Primary Current Fuse
Inrush Limiting
• Input Power Cord: Universal Power Cord, 3 Foot
• Pass Through Data Rates: 10/100/1000 Mbps
• Output Voltage: 55 VDC Nominal
• Output Power: 30 Watts (Guaranteed)
• Output Current: 0.6A (max)
• Ripple and Noise: Below the IEEE802.3af requirements
f<500Hz: Vp-p 0.5
500Hz to 150kKHz: Vp-p 0.2
150KHz to 500KHz: Vp-p 0.15
500KHz to 1MHz: Vp-p 0.1
• Transient Response: Meets IEC61000-4-4 (1Kv)
• DXLink Transport Layer Throughput: 10.2 Gbps pass thru
(only applicable to DXLink signals)
in which it is used (for example, UL, CSA, VDE, etc.)
conductors and one ground conductor) terminated on one end by an IEC
60320 appliance coupler (for connection to the PS-POE-AT-TC), and on the
other end by a plug containing a ground (earthing) contact.
minimum rated current capacity of 5 amps or a minimum wire gauge of 18 AWG
2
(0.75 mm ).
2
).
QUICK START GUIDE
