AMX PS-POE-AF Installation Manual

Overview
The PS-POE-AF (FG423-80) is a Power-over-Ethernet (PoE) power supply
with integral DC Injector (FIG. 1). It provides DC power for one PoE-
equipped device by "Injecting" DC power through the CAT5 ethernet cable.
The PS-POE-AF supports the IEEE standard PoE pinout:
Pins 4&5 Power (+) / Pins 7&8 Power (-). See Pin Connections (on reverse)
for details.

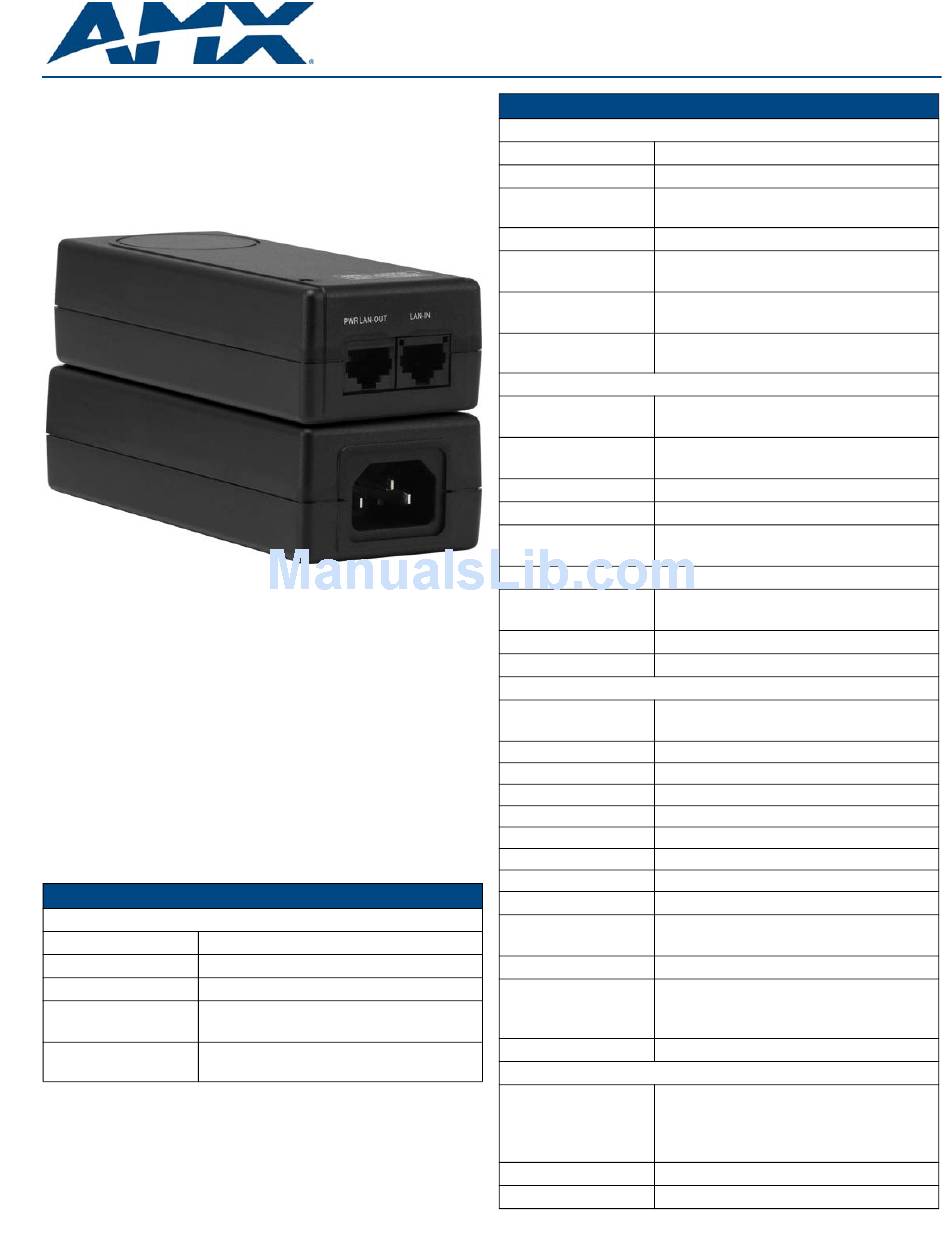

FIG. 1
PS-POE-AF Power-Over-Ethernet Power Supply
Key features include:
• Power over Ethernet (PoE)
• 10/100/1000 (MbPS) Data Rates
• Self-contained Injector
• 100-240VAC Universal Input
• Desktop Style / Non-vented Case
• IEEE802.3af Compliant Detection, Disconnect, Overload and Over
Voltage Control Function
• Load Diagnostic LED
• UNH IOL Test Report
• Over Load Shutdown and Short Circuit Protection
• Regulated Output With Low Ripple
• Meets Safety Agency Requirements
• Complies with EMI/RFI Regulations
Product Specifications
PS-POE-AF Specifications
Input Specifications
AC Input Voltage Range 100-240VAC -10%, +6%
Line Frequency 47-63Hz
AC Input Current 0.6A MAX at 90 VAC + Full Load
Protection • Internal Primary Current Fuse
• Inrush Limiting
Input Power Cord 50 mm IEC power cord terminated with a
grounded Edison plug for AC input
PS-POE-AF
PS-POE-AF Specifications (Cont.)
Output Specifications
Output Voltage 48 VDC Nominal
Output Current 0.3125 A Max
Combined Line and Excluding Cord ±1%
Load Voltage Regulation
Ripple and Noise 1% Vp-p Max
Transient Response • 0.5ms for 50%
• Load Change Typical
Protection • Foldback Overcurrent Protection
• Short Circuit Protection
Power Indicator LED indicates the presence of DC on the
output
General Specifications
Topology • Switching-Fixed
• Frequency Flyback
Dielectric Withstand • Primary-Secondary 3000VAC, 4250VDC
• Secondary-Ground 500VDC
Spacing 5mm Primary-Secondary
Leakage Current Less than 250 uA
Efficiency • 65% Typical @ Max. Load
• 120VAC/60 Hz
Weight (excluding cord) 7 oz (200 g)
Dimension (HWD) • 5 1/4" x 2 1/8" x 1 7/16"
• 13.3 cm x 5.4 cm x 3.6 cm
Case Material Black 94V0 Polycarbonate
Cord and Connectors Dual RJ45 jacks built into the enclosure
EMC Information
FCC • Part 15 Class B
• EN55022 Class B
Immunity ESD: EN61000-4-2
RS EN61000-4-3
EFT EN61000-4-4
Surge EN61000-4-5
CS EN61000-4-6
Voltage Dip EN61000-4-11
Harmonic EN61000-3-2
CE CE Compliant
Hold-up Time • @120VAC 10ms min. typ.
• @240VAC 40ms min. typ.
Storage Temp -30° C to +85° C
Approvals and • cULus: UL/CSA60950
Standards - Safety
• TUV: EN60950
• CE: LVD, EMCD
MTBF 100,000 Calculated Hours
Environmental Specifications
Thermal Performance • 32°F to 104°F (0°C to 40°C)
• No Derating
• Convectional Cooling
• Non Vented Case
Relative Humidity Non-Condensing 5% to 95%
Altitude 0-10,000 feet
Installation Guide
PoE Injector
