Summary of Contents for FibroLAN MetroStar MMM-01

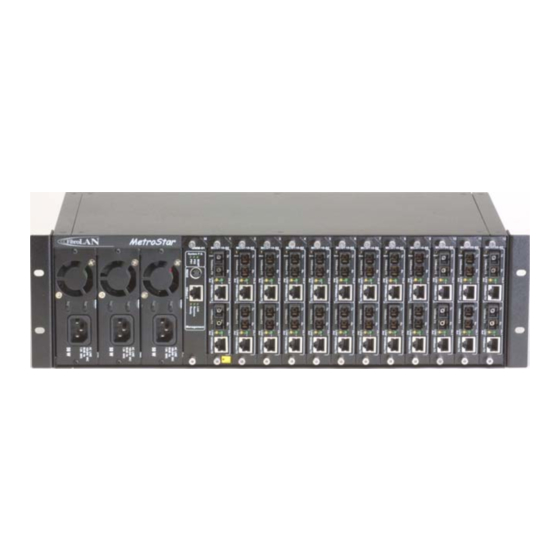

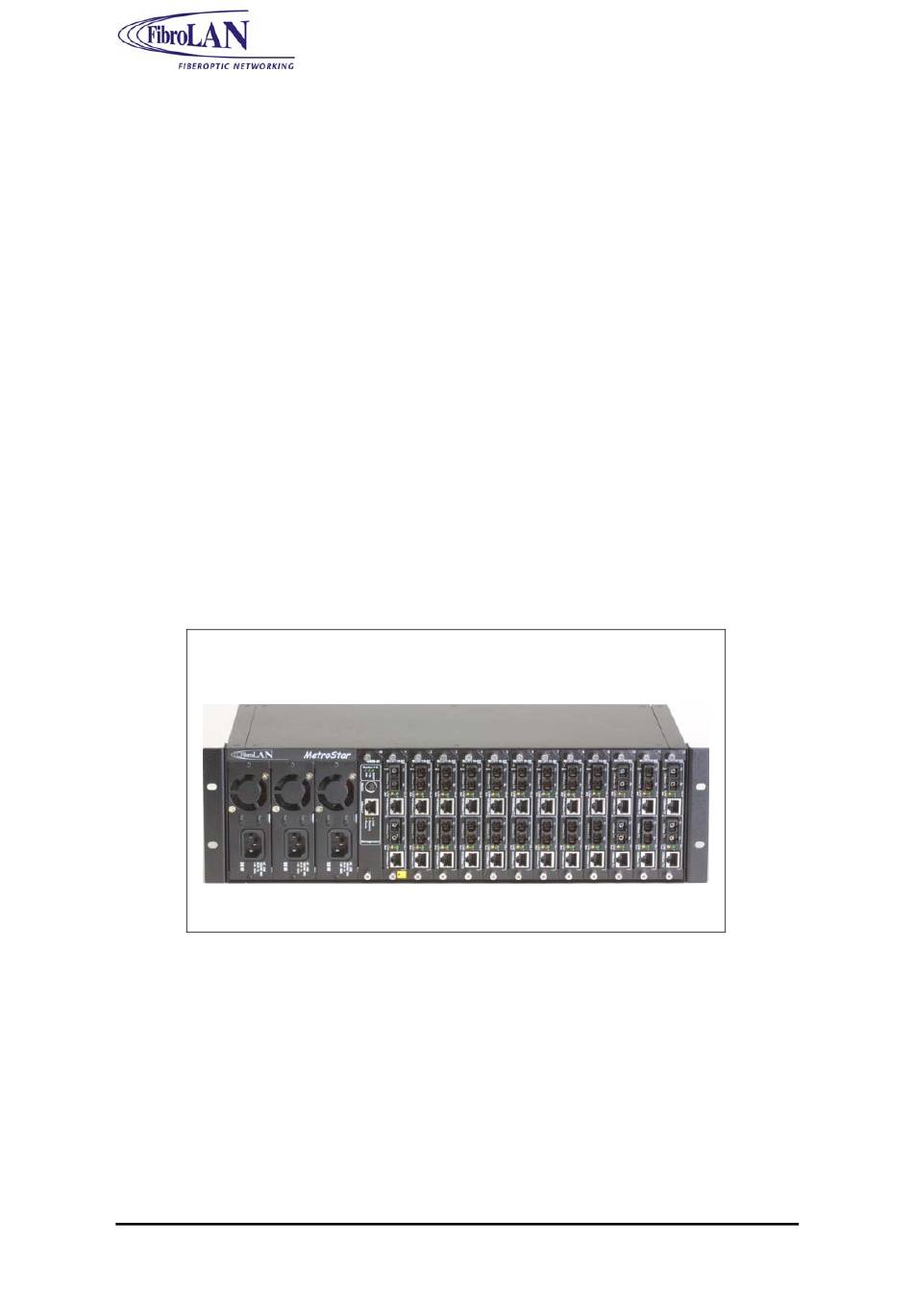

- Page 1 FibroLAN MMM-01 MetroStar™ System CLI User Reference Guide October 2006 SW Version 1.6.2 Document version: 1.5 FibroLAN Ltd. 6 Hayezira St. P.O. Box 544 Yokneam-Illit, 20692, ISRAEL Tel: 972-4-9591717 Fax: 972-4-9591718 e-mail: support@fibrolan.com web site: www.fibrolan.com...
-
Page 2: Table Of Contents
List of Tables....................... vii Document history ...................... viii Preface ........................... 1 General rules and guidelines ..................2 General command syntax ...................... 2 ‘view’ commands........................2 ‘view’ and ‘show’ alternatives....................2 ‘config’ commands ......................... 3 ? help modifier........................3 ! comment modifier ........................ 3 Strings are truncated...................... - Page 3 system login ......................... 26 system login password......................26 system login username ......................27 system net..........................27 system net defgw ......................... 27 system net ipaddr......................... 28 system net subnmask ......................28 system ntp..........................28 system ntp <on|off>......................29 system ntp server add......................29 system ntp server clear......................
- Page 4 system telnet acclist add...................... 49 system telnet acclist clear ....................50 system telnet acclist remove....................50 system telnet prompt......................51 system telnet timeout ......................51 test alarm send........................52 users ............................ 52 Module and CPE related commands ................ 53 802.1p ..........................53 802.1pbase ..........................
- Page 5 folb ............................74 forcefo ..........................74 forcetp ..........................75 global............................ 75 globalprio..........................76 globalvlan ..........................76 ingressfilter........................... 77 lb ............................77 loopback..........................78 lx2sxlst ..........................78 lxautonego..........................78 lxlb............................79 mac dynamic ........................79 mac dynamic clear ....................... 79 mac static ..........................80 mac static add ........................
- Page 6 t1 port <p> desc ........................96 t1 port <p> enable........................ 97 t1 port <p> encoding ......................97 t1 port <p> locallb ........................ 97 t1 port <p> remalb........................ 98 t1 port <p> remlb........................98 t1 port <p> resdef......................... 98 t1 port <p> rx........................99 t1 port <p>...
-
Page 7: List Of Tables
1. List of Tables Table 2-1 – document history page viii Table 5-1 – command availability by device type page 6 Table 6-1 – OFC model support page 14... -
Page 8: Document History
2. Document history The following table lists the changes made to this document. Version/date Changes Author 1.0/28.10.04 Initial draft Shamir Stein Added restore defaults commands, ‘?’ help modifier, ‘!’ comment 1.1/5.12.04 modifier, error messages, LTA41/MA Shamir Stein related commands, offline configuration section Added warning messages, MCM1000S &... -
Page 9: Preface
3. Preface This manual provides you with the necessary information for managing your MetroStar Access System using the MMM-01 management module (monitor and control), via the command line interface. The CLI is available both on the serial connection terminal (through the RS232 interface) and via remote Telnet sessions (through the Ethernet interface). -
Page 10: General Rules And Guidelines
4. General rules and guidelines General command syntax The main basic commands in the system, used for displaying and modifying configuration, of the various elements within the system, are the view and config. When using these commands to manage a speicfic device (module or CPE), the proper indexing information must be provided within the command. -
Page 11: Config' Commands
‘config’ commands The ‘config’ keyword will prefix any command that is intended to modify any configuration parameter within the system. Any config command uses the general syntax rules as described above. ? help modifier When the user wishes to know the options of a certain command, he should use the ‘?’... -
Page 12: Command Availability By Device Type
Command availability by device type The command reference provides details on each of the generally available commands in the system. In addition it specifies the scope of each command, that is, where this command can be used. Some commands however, may be available for a particular type of device and may not be applied to other types. -
Page 13: Error Messages
Error messages In any case, where a command cannot be executed properly, an error message will be displayed in response to the command. There are several types of error messages that will be displayed as a result of different illegal conditions. For example, if there is no module in slot 5 and the command sh 5 1 is given, the error message displayed is: No module in slot 5! Warning messages... -
Page 14: Device Type - Command Cross Reference
5. Device type – command cross reference The following table details the available commands for each device type within the MetroStar system. All commands specified within this table have the scope of either modules or CPEs. System related commands are detailed in the system command reference section. - Page 15 Model Available commands downsle pause enable forcefo forcetp bckp2mainfo bckp2maintp unusedfo unusedtp desc autonego datarate e2ethfp bwdown downsle pause enable PCM110-xE1 resdef e1 <port> <p> e1 <port> <p> remlb e1 <port> <p> tx e1 <port> <p> rx e1 <port> <p> taosonlos e1 <port>...
- Page 16 Model Available commands desc bwup enable pause f2tfp H.CON/MA autonego datarate resdef reset desc bwup enable pause f2tfp bckp2mainfo ATARA100 bckp2maintp forcefo forcetp unusedfo unusedtp resdef desc autonego datarate enable autocross mdix bcastprotect bw rxlow bw rxhigh bw txlow bw txhigh LTA41/MA bw rxdiff bw txdiff...
- Page 17 Model Available commands vlan add vlan add default vlan addport vlan removeport vlan delete vlan taginsert tagremove ingressfilter discardnpvid defvid port <p> vlan 802.1q nullvidreplace globalvlan prio 802.1p diffserv userprio port <p> prio 802.1pbase prioratio dscp <code> globalprio dscp mac dynamic clear mac dynamic mac static add mac static delete...
- Page 18 Model Available commands e1 port <p> userlb e1 port <p> remalb e1 resdef e1 reset All LTA41/MA commands and: t1 port <p> t1 port <p> desc t1 port <p> taos LTA41-xT1 t1 port <p> enable t1 port <p> userlb t1 port <p> remalb t1 resdef t1 reset t1 cablelen...
- Page 19 Model Available commands p2p1fp desc enable pause autonego upsle downsle bwdown autonego resdef enable p1lb MSM100U/622U p2lb resdef desc MSM2500U enable resdef desc bwup f2tlst enable GSM1010/MA folb resdef reset pause desc bwup lx2sxlst enable autonego GSM1000/MA sxautonego pause lxlb resdef reset desc...
- Page 20 Model Available commands desc bwup enable f2tlst bckp2mainfo bckp2maintp forcefo ATARA1000 forcetp unusedfo unusedtp folb tplb tpresponse resdef MDX-41/81 show|view command only desc bwup enable F.CON1F/MA pause oa2unifp resdef reset Table 5-1 – command availability by device type *commands appearing in italics are view|show commands...
-
Page 21: Offline Configuration
6. Offline configuration General The offline configuration facility (AKA OFC) allows you to preconfigure the chassis, before any modules or remote devices are physically installed. Once they are installed, they will automatically get the configuration that was prepared for them in advance. Refer to the MMM-01 user manual for more details. -
Page 22: Supported Models
Supported models The following table (4-1) details which devices are supported for offline configuration by each software version. The table also specifies the exact names to be used on the CLI when defining an offline configuration target. Software Supported models CLI model names version MCM100-01... -
Page 23: System Related Commands
7. System related commands chassis Scope System view|show chassis Syntax Description Displays the entire system status, including modules, CPEs connected and local port descriptions. Note: only populated slots are displayed. Default setting N/A Options None Example MetroStar>view chassis chassis modules Scope System Syntax view|show chassis modules... -
Page 24: Chassis Psu
chassis psu Scope System Syntax view|show chassis psu Description Displays the chassis PSU population and the chassis internal temperature. Possible PSU states are: OK, Fail and Not-Installed Default setting N/A Options None Example MetroStar>view chassis psu offline chassis Scope System Syntax view|show offline chassis Description Displays the offline configuration map of the chassis. -
Page 25: Offline Targetparams
offline targetparams Scope System Syntax view|show offline targetparams Description Displays the offline configuration target details, including the slot and channel numbers and the model name. If wildcards were used for slot and/or channel numbers, ‘ALL’ will be noted. Default setting N/A Options None MetroStar>show offline targetparams Example... -
Page 26: Offline Compare
offline compare Scope System Syntax config offline compare <s> <c> <loc|rem> Description Compares the offline configuration of the selected slot and channel numbers with the actual installed device. Comparison outcome is displayed. Default setting N/A Options The all keyword may be used to apply the command to all offline configured devices MetroStar>config offline compare 1 1 loc Example... -
Page 27: Offline Copy2Module
offline copy2module Scope System Syntax config offline copy2module <s> <c> <loc|rem> Description Copies the offline configuration of the selected slot and channel numbers to the physically installed device. Note that the copy operation does not actually apply the configuration to the device. It will be applied after a reboot. Default setting N/A Options The all keyword may be used to apply the command to all offline configured devices... -
Page 28: Offline Resdef
offline resdef Scope System Syntax config offline resdef Description Restores the default configuration for the current offline target. Default setting N/A Options The all keyword may be used to apply the command to all offline configured devices Example MetroStar>config offline resdef MetroStar>config offline resdef all offline save Scope System... -
Page 29: Sessions
sessions Scope System Syntax sessions Description Display the number of current Telnet session in progress. Default setting N/A Options None Example MetroStar>sessions system Scope System Syntax view|show system Description View the main system parameters Default setting N/A Options None MetroStar>view system Example system cfgupload Scope System... -
Page 30: System Cfgupload Filename
system cfgupload filename Scope System Syntax config system cfgupload filename <name> Description Set the configuration file name, which is required for the configuration upload process. The file name can consist of up to 31 characters. Default setting The default configuration file name is an empty string. Options None Example MetroStar>config system cfgupload filename... -
Page 31: System Cfgupload Tftpser
system cfgupload tftpser Scope System Syntax config system cfgupload tftpser <address> Description Set the IP address of the TFTP server to be used for configuration uploads. Default setting The default TFTP server address for configuration uploads is 192.168.1.18 Options None Example MetroStar>config system cfgupload tftpser 192.168.1.48... -
Page 32: System Fwupgr Rempath
system fwupgr rempath Scope System Syntax config system fwupgr rempath <path> Description Set the remote path name in which the FW upgrade file resides on the TFTP server. Default setting None Options None MetroStar>config system fwupgr rempath MS\fw Example system fwupgr revlocal Scope System view|show system fwupgr revlocal Syntax... -
Page 33: System Fwupgr Revremote
system fwupgr revremote Scope System Syntax view|show system fwupgr revremote Description Display the FW revisions map for all remote devices. If a remote target is selected, only remote devices of the target’s type will be displayed. Default setting N/A Options None Example MetroStar>show system fwupgr revremote system fwupgr target... -
Page 34: System Fwupgr Tftpser
system fwupgr tftpser Scope System Syntax config system fwupgr tftpser <address> Description Set the address of the TFTP server on which upgrade files reside. Default setting None Options None MetroStar>config system fwupgr tftpser 192.168.1.48 Example system login Scope System view|show system login Syntax Description Display the system login parameters Default setting N/A... -
Page 35: System Login Username
system login username Scope System Syntax config system login username <username> Description Set the system’s login username. Username is limited to 9 characters. Default setting moose Options None MetroStar>config system login username root Example system net Scope System view|show system net Syntax Description View the system’s network parameters Default setting N/A... -
Page 36: System Net Ipaddr
system net ipaddr Scope System Syntax config system net ipaddr <address> Description Set the system’s IP address. Default setting The default IP address is 192.168.1.90 Options None Example MetroStar>config system net ipaddr 192.168.1.20 system net subnmask Scope System Syntax config system net subnmask <subnet-mask> Description Set the system’s subnet mask` Default setting The default IP address is 0.0.0.0 (unused) Options None... -
Page 37: System Ntp
system ntp <on|off> Scope System Syntax config system ntp <on|off> Description Disable/Enable NTP operation Default setting Off Options None Example MetroStar>config system ntp on system ntp server add Scope System Syntax config system ntp server add <address> Description Configure an NTP server IP address Default setting No servers configured Options None MetroStar>config system ntp server add 129.6.15.28... -
Page 38: System Ntp Server Remove
system ntp server remove Scope System Syntax config system ntp server remove <address> Description Removes an NTP server IP address from the servers list Default setting No servers configured Options None Example MetroStar>config system ntp server remove 129.6.15.28 system ntp status Scope System view|show ntp status Syntax... -
Page 39: System Ntp Syncinterval
system ntp syncinterval Scope System Syntax config system ntp syncinterval <interval> Description Configure the timeservers automatic sync time interval in seconds to the nearest power of two (4-14) Default setting 10 Options None MetroStar>config system ntp syncinterval 6 Example system ntp timezone Scope System config system ntp timezone <+/-h<.5>>... -
Page 40: System Offlinecfg
system offlinecfg <on|off> Scope System Syntax config system offlinecfg <on|off> Description Enable or disable the offline configuration function Default setting Off Options None Example MetroStar>config system offlinecfg on system offlinecfg conflictalert Scope System Syntax config system offlinecfg conflictalert <on|off> Description Enable or disable the offline configuration conflict alert. When enabled, if the system detects a new device (e.g. -
Page 41: System Radius
Syntax config system radius secret <secret> Description Configure the shared secret (string, up to 32 characters long, minimum 8 characters long) Default setting ‘The FibroLAN secret is moose’ Options None Example MetroStar>config system radius secret mooseman system radius server add... -
Page 42: System Radius Server Clear
system radius server clear Scope System Syntax config system radius server clear Description Clear servers address list (requires confirmation) Default setting No servers configured Options None Example MetroStar>config system radius server clear system radius server remove Scope System Syntax config system radius server remove <address> Description Removes a RADIUS server IP address from the server list Default setting No servers configured Options None... -
Page 43: System Snmp
system snmp Scope System Syntax view|show system snmp Description View the system’s SNMP parameters Default setting N/A Options None Example MetroStar>show system snmp system snmp getcomm Scope System Syntax config system snmp getcomm <community-name> Description Set the system’s SNMP Get community string. The Get community name can contain up to 15 characters. -
Page 44: System Snmp Sendtrap
system snmp sendtrap Scope System Syntax config system snmp sendtrap {<trapid> {<severity> {<vars>}}} Description Generate a test trap, with optional specified trap ID, severity level and integer variables (up to 3). An additional string will always be bound to the trap, at the end of the varbind list, indicating a test trap with the system name. -
Page 45: System Snmp Syscontact
system snmp syscontact Scope System Syntax config system snmp syscontact <contact> Description Set the system contact parameter, in the MIB sysInfo group. The system contact can contain up to 18 characters, including white spaces. Default setting The default system contact is an empty string. Options None Example MetroStar>config system snmp syscontact john doe... -
Page 46: System Snmp Trapcomm
system snmp trapcomm Scope System Syntax config system snmp trapcomm <community-name> Description Set the system’s SNMP Trap community string. The Trap community name can contain up to 15 characters. Default setting The default Set community is trap. Options None MetroStar>config system snmp trapcomm frodo Example system snmp trapdest Scope System... -
Page 47: System Snmp Trapfilter Severity
system snmp trapfilter severity Scope System Syntax config system snmp trapfilter severity <on|off> Description Enable or disable trap filtering by severity. When enabled, any trap, whose severity level is lower or equal to the configured threshold, will not be sent. Default setting Off Options None Example... -
Page 48: System Snmp Traplog
system snmp traplog Scope System Syntax view|show system snmp traplog {<depth>} Description View the system’s trap log up to an optionally specified depth. The maximum log length is 64 traps (most recent). Request for more than 64 traps will result in display of entire log. -
Page 49: System Snmp Traplog
system snmp traplog <on|off> Scope System Syntax config system snmp traplog <on|off> Description Disable/Enable the trap log. Off: No more new traps will be registered in the trap log until it is enabled Default setting Options None MetroStar>config system snmp traplog off Example system snmp traplog clear Scope System... -
Page 50: System Snmp Traplog Resend
system snmp traplog resend <time(days|hours) Scope System config system snmp traplog resend <time(days|hours)> Syntax Description Resend traps within the specified time frame. Time format is the same as with the display command. Default setting N/A Options None Example MetroStar>config system snmp traplog resend 3d 5h system snmp trapsev Scope System Syntax... -
Page 51: System Swupgr
system swupgr Scope System view|show system swupgr Syntax Description View the system’s SW upgrade parameters Default setting N/A Options None Example MetroStar>view system swupgr system swupgr autoreboot Scope System Syntax config system swupgr autoreboot <on|off> Description Enbales or disables the Auto-Reboot function. When enabled (on), a successful upgrade will be automatically followed by a SW reboot (running the new version). -
Page 52: System Swupgr Rempath
system swupgr rempath Scope System Syntax config system swupgr rempath <path-name> Description Set the remote path name for SW upgrades. The path name can consist of up to 127 characters, including ‘\’ characters. Note: the complete filename used for the SW upgrade is the concatenation of the filename (automatically created) and the path name. -
Page 53: System Swupgr Tftpser
system swupgr tftpser Scope System Syntax config system swupgr tftpser <address> Description Set the IP address of the TFTP server to be used for SW upgrades. Note: this parameter is saved only after a successful upgrade. Default setting There is no default TFTP server address for SW upgrades and the value initially set is 0.0.0.0 Options None MetroStar>config system swupgr tftpser 192.168.1.48... -
Page 54: System Syslog
system syslog Scope System Syntax view|show system syslog Description Displays all Syslog related configurations Default setting N/A Options None Example MetroStar>show system syslog system syslog <on|off> Scope System Syntax config system syslog <on|off> Description Enable or disable Syslog message sending Default setting Off Options None MetroStar>config system syslog on... -
Page 55: System Syslog Server Add
system syslog server add Scope System Syntax config system syslog server add <address> Description Configure a Syslog server IP address Default setting No servers configured Options None Example MetroStar>config system syslog server add 192.168.1.64 system syslog server clear Scope System config system syslog server clear Syntax Description Clear servers address list (requires confirmation) -
Page 56: System Syslog Test
system syslog test Scope System Syntax config system syslog test Description Send a test Syslog message, with the message text being: “This is a Syslog test message” Default setting N/A Options None MetroStar>config system syslog test Example system telnet Scope System view|show system telnet Syntax Description View the system’s Telnet parameters... -
Page 57: System Telnet Acclist
system telnet acclist Scope System Syntax config system telnet acclist <ena|dis> Description Enable or disable the Telnet access list. The access list may contain up to 16 IP addresses of hosts that are allowed to access the system via Telnet. When the access list is disabled, any host may connect to the system. -
Page 58: System Telnet Acclist Clear
system telnet acclist clear Scope System Syntax config system telnet acclist clear Description Clears the access list. Execution of this command prompts the user for the required system confirmation code (26974). If the list is enabled when cleared, a warning message will be issued. -
Page 59: System Telnet Prompt
system telnet prompt Scope System Syntax config system telnet prompt <prompt> Description Set the CLI prompt. The prompt string can contain up to 15 characters. This prompt applies to the CLI accessed through the serial terminal connection. Default setting The default prompt is MetroStar> Options None Example MetroStar>config system telnet prompt MS88>... -
Page 60: Test Alarm Send
test alarm send Scope System Syntax test alarm send <n> Description Trigger a burst of <n> test alarms with a predefined format. The alarms are sent as any other alarm generated by the system, on all configured and enabled alarm interfaces (SNMP, Syslog and console). -
Page 61: Module And Cpe Related Commands
8. Module and CPE related commands 802.1p Scope LTA models Syntax config <s> <c> <rem> port <p> 802.1p <on|off> Description Sets the port’s 802.1p based classification mode. When enabled, packets received on the port will be classified according to the 802.1p base priority. When DiffServ or 802.1p based classification are enabled, they’re ORed result will be the packet’s classification. -
Page 62: Autocross
802.1q Scope LTA models Syntax config <s> <c> <rem> 802.1q <on|off> Description Sets the tagged VLAN filtering mode. When enabled, tagged VLANs will apply. Default setting Off Options Command can be abbreviated. See general command rules and guidelines for details Example MetroStar>config 3 2 rem 802.1q on autocross... -
Page 63: Bcastprotect
bcastprotect Scope LTA models Syntax config <s> <c> <rem> port <p> bcastprotect <on|off> Description Sets the broadcast storm protection mode of a port. When enabled the port will not allow a broadcast rate higher than the one defined by the bcastrate command. Default setting On Options Command can be abbreviated. -
Page 64: Bckp2Mainfo
bckp2mainfo Scope All modules and CPEs supporting fiber redundancy Syntax config <s> <c> <loc|rem> bckp2mainfo <0|1|5|10|20|never> Description Set the device’s FO backup to main link delay time in seconds. When set to never the FO link will remain on the backup channel, until otherwise configured. -
Page 65: Bwdown
bwdown Scope All modules, supporting downstream rate limiting Syntax config <s> <c> <loc> bwdown <bw> Description Set the device’s downstream bandwidth. Bandwidth can have one of the following values: 0,1,2,…,9,10,20,…90,100Mbps, or 256/512kbps. Only the number represeting the bandwidth should be specified. Default setting Wire speed (100Mbps for FE models;... -
Page 66: Bw Rxdiff
bw rxdiff Scope LTA models Syntax config <s> <c> <rem> port <p> bw rxdiff <on|off> Description Sets the differential receive bandwidth limiting mode on a port. When enabled rate limiting will be applied by packet priority and receive priority rate limiting settings. Default setting Off Options Command can be abbreviated. -
Page 67: Bw Rxhighfc
bw rxhighfc Scope LTA models Syntax config <s> <c> <rem> port <p> bw rxhighfc <on|off> Description Sets the receive bandwidth limiting (high priority packets) flow control mode on a port. When enabled, receive rate limiting for high priority packets will use flow control. Default setting On Options Command can be abbreviated. -
Page 68: Bw Rxlowfc
bw rxlowfc Scope LTA models Syntax config <s> <c> <rem> port <p> bw rxlowfc <on|off> Description Sets the receive bandwidth limiting (low priority packets) flow control mode on a port. When enabled, receive rate limiting for low priority packets will use flow control. Default setting On Options Command can be abbreviated. -
Page 69: Bw Txhigh
bw txhigh Scope LTA models Syntax config <s> <c> <rem> port <p> bw txhigh <bw> Description Sets the transmit bandwidth limiting for high priority traffic on a port. If differential receive bandwidth limiting is disabled, this setting will have no effect. Bandwidth can have one of the following values: 0,1,2,…,9,10,20,…90,100Mbps, or 256/512kbps. -
Page 70: Buffershare
buffershare Scope LTA models Syntax config <s> <c> <rem> buffershare <on|off> Description Sets the buffer sharing mode of the device. When enabled, each port can be allocated any number of buffers from the buffer pool. Otherwise, number of buffers is fixed. Default setting On Options Command can be abbreviated. -
Page 71: Defvid
defvid Scope LTA models Syntax config <s> <c> <rem> port <p> defvid <vid> Description Sets the port’s default VID. The VID is in the range of 0 through 4095. This value will be used whenever a tag is inserted in an outgoing packet on the port. Default setting 0 Options Command can be abbreviated. -
Page 72: Diffserv
diffserv Scope LTA models Syntax config <s> <c> <rem> port <p> diffserv <on|off> Description Sets the port’s DiffServ based classification mode. When enabled, packets received on the port will be classified according to the DSCP settings. When DiffServ or 802.1p based classification are enabled, they’re ORed result will be the packet’s classification. -
Page 73: Downsle
downsle Scope All modules, supporting downstream SLE Syntax config <s> <c> <loc> downsle <on|off> Description Set the device’s downstream SLE function mode. Default setting Off Options Command can be abbreviated. See general command rules and guidelines for details MetroStar>config 3 2 loc downsle on Example dscp Scope LTA models... -
Page 74: Dscp
dscp <code> Scope LTA models Syntax config <s> <c> <rem> dscp <code> <low|high> Description Sets the priority for a certain DSCP code. The code is in the range of 0 through 63. This settings will apply when DiffServ classification is used. Default setting All codes set to low Options Command can be abbreviated. -
Page 75: E1 Port
e1 port <p> desc Scope All E1 models Syntax config <s> <c> <loc|rem> e1 port <p> desc <desc> Description Set an E1 port’s description (up to 40 characters). Default setting None Options None Example MetroStar>config 3 1 loc e1 port 2 desc mooseman e1 port <p>...Desc
-
Page 76: E1 Port
e1 port <p> locallb Scope All E1 MetroStar modules Syntax config <s> <c> <loc> e1 port <p> locallb <on|off> Description Enable or disable local loopback on a module’s E1 port. When enabled, E1 signals coming in on the port will be looped back locally.Locallb
-
Page 77: E1 Port
e1 port <p> resdef Scope PCM110-xE1 Syntax config <s> <c> loc e1 port <p> resdef Description Restores the channel’s default configuration. Default setting None Options None Example MetroStar>config 3 1 loc e1 port 1 resdef e1 port <p> rx Scope PCM110-xE1 Syntax config <s>...Resdef
-
Page 78: E1 Port
e1 port <p> taosonlos Scope PCM110-xE1 Syntax config <s> <c> loc e1 port <p> taosonlos <on|off> Description Enable/disable automatic TAOS on LOS. Default setting On Options None Example MetroStar>config 3 1 loc e1 port 1 taosonlos on e1 port <p> tx Scope PCM110-xE1 Syntax config <s>...Taosonlos
-
Page 79: E1 Port
e1 port <p> userlb Scope All E1 MetroStar CPEs Syntax config <s> <c> <rem> e1 port <p> userlb <on|off> Description Enable or disable user loopback on a CPE’s E1 port. When enabled, E1 signals coming in (from the user) on the port will be looped back (locally) towards the user.Userlb
-
Page 80: E2Ethfp
e2ethfp Scope PCM110x-E1 Syntax config <s> <c> loc e2ethfp <on|off> Description Enable or disable E1 to Ethernet Fault propogation mode. Default setting Off Options None Example MetroStar>config 3 1 loc e2ethfp on enable Scope All module and CPE TP ports, supporting port enabling and disabling config <s>... -
Page 81: F2Tlst
f2tlst Scope All module and CPE channels, supporting FO->TP LST Syntax config <s> <c> <loc|rem> f2tlst <on|off> Description Sets the FO -> TP LST mode of the channel. Default setting On Options Command can be abbreviated. See general command rules and guidelines for details MetroStar>config 2 1 rem f2tlst off Example Scope All module and CPE TP ports, supporting duplex mode... -
Page 82: Folb
folb Scope All module and CPE channels, supporting FO loopback Syntax config <s> <c> <loc|rem> folb <on|off> Description Sets the FO loopback mode of the channel. Default setting Off Options Command can be abbreviated. See general command rules and guidelines for details MetroStar>config 2 1 rem folb on Example forcefo... -
Page 83: Forcetp
forcetp Scope All modules and CPEs supporting TP redundancy Syntax config <s> <c> <loc|rem> forcetp <on|off> Description Sets force backup TP mode. When enabled, TP link will use the backup channel. Note: this command can only be given from the device’s main channel (in redundant CPEs). -
Page 84: Globalprio
globalprio Scope LTA models Syntax view|show <s> <c> <rem> globalprio Description Displays the global priority related settings (not including DSCP priority settings). Default setting N/A Options Command can be abbreviated. See general command rules and guidelines for details Example MetroStar>show 3 2 rem globalprio globalvlan Scope LTA models Syntax... -
Page 85: Ingressfilter
ingressfilter Scope LTA models Syntax config <s> <c> <rem> port <p> ingressfilter <on|off> Description Sets the tag ingress VLAN filtering mode of a port. When enabled, any packet received on the port, whose VID port membership does not include the ingress port, will be discarded. -
Page 86: Loopback
loopback Scope All modules supporting extended loopback test Syntax config <s> <c> {<loc>} loopback <test-type> {<param>} Description Perform a loopback test on the requested link. Possible test types: autosingle (1 test frame), automulti (1000 test frames), mantime (time limited; param is duration in seconds) &... -
Page 87: Lxlb
lxlb Scope MCM1000S, GSM1000/MA Syntax config <s> <c> <loc|rem> lxlb <on|off> Description Set the LX loopback mode. Default setting Off Options None Example MetroStar>config 3 2 loc lxlb on mac dynamic Scope LTA models Syntax view|show <s> <c> <rem> mac dynamic Description Displays the device’s current dynamic MAC address table. -
Page 88: Mac Static
mac static Scope LTA models Syntax view|show <s> <c> <rem> mac static Description Displays the device’s static MAC address table. Default setting N/A Options Command can be abbreviated. See general command rules and guidelines for details MetroStar>show 3 2 rem mac static Example mac static add Scope LTA models... -
Page 89: Mac Static Delete
mac static delete Scope LTA models Syntax config <s> <c> <rem> mac static delete <address> Description Deletes an address from the device’s static MAC address table. Address is given in hexadecimal notation, with a ‘-‘ character between bytes. Default setting N/A Options Command can be abbreviated. -
Page 90: Mdix
mdix Scope LTA models Syntax config <s> <c> <rem> port <p> mdix <on|off> Description Sets the MDIX mode of a TP port. This command will take effect when Auto-cross is disabled (see autocross). Default setting On Options Command can be abbreviated. See general command rules and guidelines for details Example MetroStar>config 3 2 rem port 2 mdix off... -
Page 91: Oa2Unifp
oa2unifp Scope F.CON1F/MA, GSM1000X Syntax config <s> <c> <rem> oa2unifp <on|off> Description Sets the Optical-Access to User Network Interface FP mode Default setting Off Options None MetroStar>config 3 2 rem oa2unifp on Example oalb Scope GSM1000X Syntax config <s> <c> rem oalb <on|off> Description Sets the loopback mode of the Optical Access port. -
Page 92: P1P2Fp
p1p2fp Scope MCM1000X Syntax config <s> <c> loc p1p2fp <on|off> Description Set the device’s Port 1 -> Port 2 Fault Propogation mode. Default setting Off Options Command can be abbreviated. See general command rules and guidelines for details MetroStar>config 3 2 loc p1p2fp off Example p1p2sle Scope MCM1000X... -
Page 93: P2P1Fp
p2p1fp Scope MCM1000X Syntax config <s> <c> loc p2p1fp <on|off> Description Set the device’s Port 2 -> Port 1 Fault Propogation mode. Default setting Off Options Command can be abbreviated. See general command rules and guidelines for details MetroStar>config 3 2 loc p2p1fp off Example p2p1sle Scope MCM1000X... -
Page 94: Port
port Scope LTA models Syntax view|show <s> <c> <rem> port <p> Description Displays the requested port’s basic configuration. Default setting N/A Options Command can be abbreviated. See general command rules and guidelines for details MetroStar>show 3 2 rem port 1 Example port <p>... -
Page 95: Port
port <p> vlan Scope LTA models Syntax view|show <s> <c> <rem> port <p> vlan Description Displays the port’s VLAN related settings. Default setting N/A Options Command can be abbreviated. See general command rules and guidelines for details MetroStar>show 3 2 rem port 1 vlan Example prio Scope LTA models...Vlan
-
Page 96: Prioratio
prioratio Scope LTA models Syntax config <s> <c> <rem> prioratio <ratio> Description Sets the priority based transmission policy. This ratio will determine how many high priority packets will be transmitted before one low priority packet. For example, setting the ratio to 10:1 will allow one low priority packet after every 10 high priority packets. -
Page 97: Resdef
resdef Scope All module and CPE ports, supporting restore defaults function config <s> <c> <loc|rem> resdef Syntax Description Restore the target device’s default settings. Some device types may require confirmation before execution. Default setting N/A Options Command can be abbreviated. See general command rules and guidelines for details MetroStar>config 2 1 loc resdef Example... -
Page 98: Sfp Status
sfp status Scope MCM1000X Syntax show <s> <c> loc sfp status Description Display the SFP status of all SFP ports. Default setting N/A Options None Example MetroStar>show 3 1 loc sfp status slelogic Scope LTA models Syntax config <s> <c> <rem> slelogic <and|or> Description Sets the SLE function logic. -
Page 99: Sleports
sleports Scope LTA models Syntax config <s> <c> <rem> sleports {<p1> …} Description Sets the SLE function ports. Any port specified within this command will take part in the SLE function, in conjunction with the SLE logic, when function is enabled. Specify no ports if you wish no ports to effect the SLE function. -
Page 100: Stats Clear
stats clear Scope LTA models Syntax config <s> <c> <rem> port <p> stats clear Description Clears port’s statistics (MIB counters). Default setting N/A Options Command can be abbreviated. See general command rules and guidelines for details MetroStar>config 3 2 rem port 1 stats clear Example stats collision Scope LTA models... -
Page 101: Stats Errrates
stats errrates Scope LTA models Syntax view|show <s> <c> <rem> port <p> stats errrates Description Displays the port’s error packet rates, in percents out of total packet counts. Default setting N/A Options Command can be abbreviated. See general command rules and guidelines for details Example MetroStar>show 3 2 rem port 1 stats errrates stats good... -
Page 102: Stats Total
stats total Scope LTA models Syntax view|show <s> <c> <rem> port <p> stats total Description Displays the port’s total packets statistics. Default setting N/A Options Command can be abbreviated. See general command rules and guidelines for details MetroStar>show 3 2 rem port 1 stats total Example status Scope MCM1000X, MCM100RL... -
Page 103: Sxautonego
sxautonego Scope All module SX FO ports, supporting Auto-Negotiation Syntax config <s> <c> loc sxautonego <on|off> Description Set the device’s SX FO port Auto-Negotiation mode. Default setting On Options Command can be abbreviated. See general command rules and guidelines for details MetroStar>config 3 2 loc sxautonego off Example sxlb... -
Page 104: T1 Port
t1 port <p> Scope All T1 models Syntax view|show <s> <c> <loc|rem> t1 port <p> Description Display detailed information regarding a specific T1 port of a device. Default setting N/A Options None MetroStar>show 3 1 loc t1 port 1 Example t1 port <p>... -
Page 105: T1 Port
t1 port <p> enable Scope All T1 models Syntax config <s> <c> <loc|rem> t1 port <p> enable <on|off> Description Enable or disable an T1 port. Default setting On Options None Example MetroStar>config 3 1 loc t1 port 1 enable off t1 port <p>...Enable
-
Page 106: T1 Port
t1 port <p> remalb Scope All T1 MetroStar CPEs Syntax config <s> <c> <rem> t1 port <p> remalb <on|off> Description Enable or disable remote loopback on a CPE’s T1 port. When enabled, T1 signals coming in on the corresponding port of the MetroStar module will be looped back on the CPE, back to the module.Remalb
-
Page 107: T1 Port
t1 port <p> rx Scope PCM110-xT1 Syntax config <s> <c> loc t1 port <p> rx <on|off> Description Enable/disable receiver (power up/down). Default setting On Options None Example MetroStar>config 3 1 loc t1 port 1 rx on t1 port <p> taos Scope All T1 models Syntax config <s>...Rx
-
Page 108: T1 Port
t1 port <p> tx Scope PCM110-xT1 Syntax config <s> <c> loc t1 port <p> tx <on|off> Description Enable/disable transmitter (power up/down). Default setting Options None Example MetroStar>config 3 1 loc t1 port 1 tx on t1 port <p> useralb Scope All T1 MetroStar modules Syntax config <s>...Tx
-
Page 109: T1 Resdef
t1 resdef Scope All T1 models Syntax config <s> <c> <loc|rem> t1 resdef Description Restore default settings of T1 port(s) of a device. Default setting Options None Example MetroStar>config 3 1 loc t1 resdef t1 reset Scope All T1 models Syntax config <s>... -
Page 110: T2Ffp
t2ffp Scope All modules, supporting TP->FO FP Syntax config <s> <c> <loc> t2ffp <on|off> Description Set the device’s TP->FO fault propagation function mode. Default setting Options Command can be abbreviated. See general command rules and guidelines for details MetroStar>config 3 2 loc t2ffp on Example t2flst Scope... -
Page 111: Tagremove
tagremove Scope LTA models Syntax config <s> <c> <rem> port <p> tagremove <on|off> Description Sets the tag removal mode of a port. When enabled, any packet transmitted on the port, containing 802.1q tags, will have the tag removed.. Default setting Command can be abbreviated. -
Page 112: Unilb
unilb Scope GSM1000X Syntax config <s> <c> rem unilb <on|off> Description Sets the loopback mode of the User Network Interface port. Default setting Off Options Command can be abbreviated. See general command rules and guidelines for details Example MetroStar>config 2 1 rem unilb on unusedfo Scope All modules and CPEs supporting fiber redundancy Syntax... -
Page 113: Unusedtp
unusedtp Scope All modules and CPEs supporting TP redundancy Syntax config <s> <c> <loc|rem> unusedtp <on|off> Description Sets the unused TP mark. This setting has no effect on the device’s behavior and is used to differentiate an unused backup TP port from a backup TP port with link failure. Note: this command can only be given from the device’s main channel (in redundant CPEs). -
Page 114: Userprio
userprio Scope LTA models Syntax config <s> <c> <rem> port <p> userprio <prio> Description Sets the port’s default 802.1p priority. The priority is in the range of 0 through 7. This value will be used whenever a tag is inserted in an outgoing packet on the port. Default setting Options Command can be abbreviated. -
Page 115: Vlan Add Default
vlan add default Scope LTA models Syntax config <s> <c> <rem> vlan add default Description Adds the default VLANs to the device’s VLAN table. Default setting N/A Options Command can be abbreviated. See general command rules and guidelines for details MetroStar>config 3 2 rem vlan add default Example vlan addport... -
Page 116: Vlan Delete
vlan delete Scope LTA models Syntax config <s> <c> <rem> vlan delete <vid> Description Delete an existing VLAN from the device’s VLAN table. The VID field should specify the desired VLAN’s ID. Default setting N/A Options Command can be abbreviated. See general command rules and guidelines for details The all modifier can be used instead of the VID field, to clear the entire VLAN table. -
Page 117: Abbreviations And Terms
• SLE – Subscriber Link Emulation • SW - software • TAOS – Transmit All Ones Signal FibroLAN reserves the right to make any changes without prior notice to any product to improve reliability, functionality or design Copyright 2006, FibroLAN Ltd.
