GE JS760BL Dimensions And Installation Information

JS760BL/DL/EL/SL
GE 30" Slide-In Electric Convection Range
®

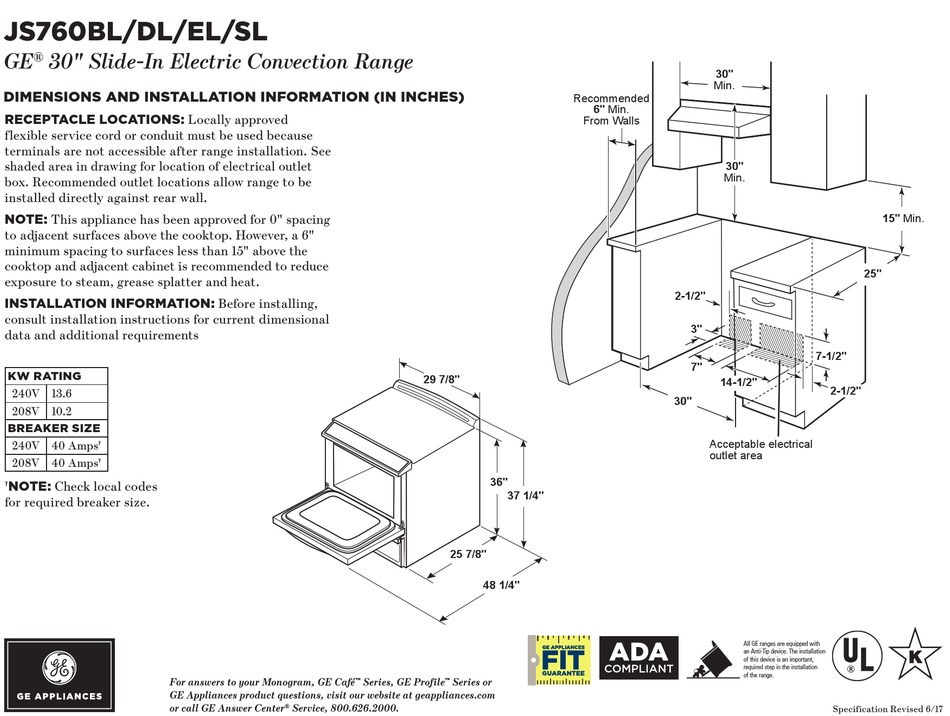

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
30"
Min.
RECEPTACLE LOCATIONS: Locally approved
Recommended
flexible service cord or conduit must be used because
6" Min.
From Walls
terminals are not accessible after range installation. See
shaded area in drawing for location of electrical outlet
box. Recommended outlet locations allow range to be
30"
installed directly against rear wall.
Min.
NOTE: This appliance has been approved for 0" spacing
to adjacent surfaces above the cooktop. However, a 6"
minimum spacing to surfaces less than 15" above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.
INSTALLATION INFORMATION: Before installing,
consult installation instructions for current dimensional
2-1/2"
data and additional requirements
3"
KW RATING
240V 13.6 7"
14-1/2"
208V 10.2
BREAKER SIZE 30"
240V 40 Amps
†
208V 40 Amps †
Acceptable electrical
outlet area
NOTE: Check local codes
†
for required breaker size.
For answers to your Monogram, GE Café
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center
15" Min.
25"
29 7/8"
7-1/2"
2-1/2"
™ Series, GE Profile
® Service, 800.626.2000.
Recommended
6" Min.
From Walls
36"
37 1/4"
25 7/8"
48 1/4"
ADA
COMPLIANT
™ Series or
30"
Min.
30"
Min.
2-1/2"
3"
7-1/2"
7"
14-1/2"
2-1/2"
30"
Acceptable electrical
outlet area
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 6/17
