White - 4ft6 Bed with Slats
Stompa -Midsleeper

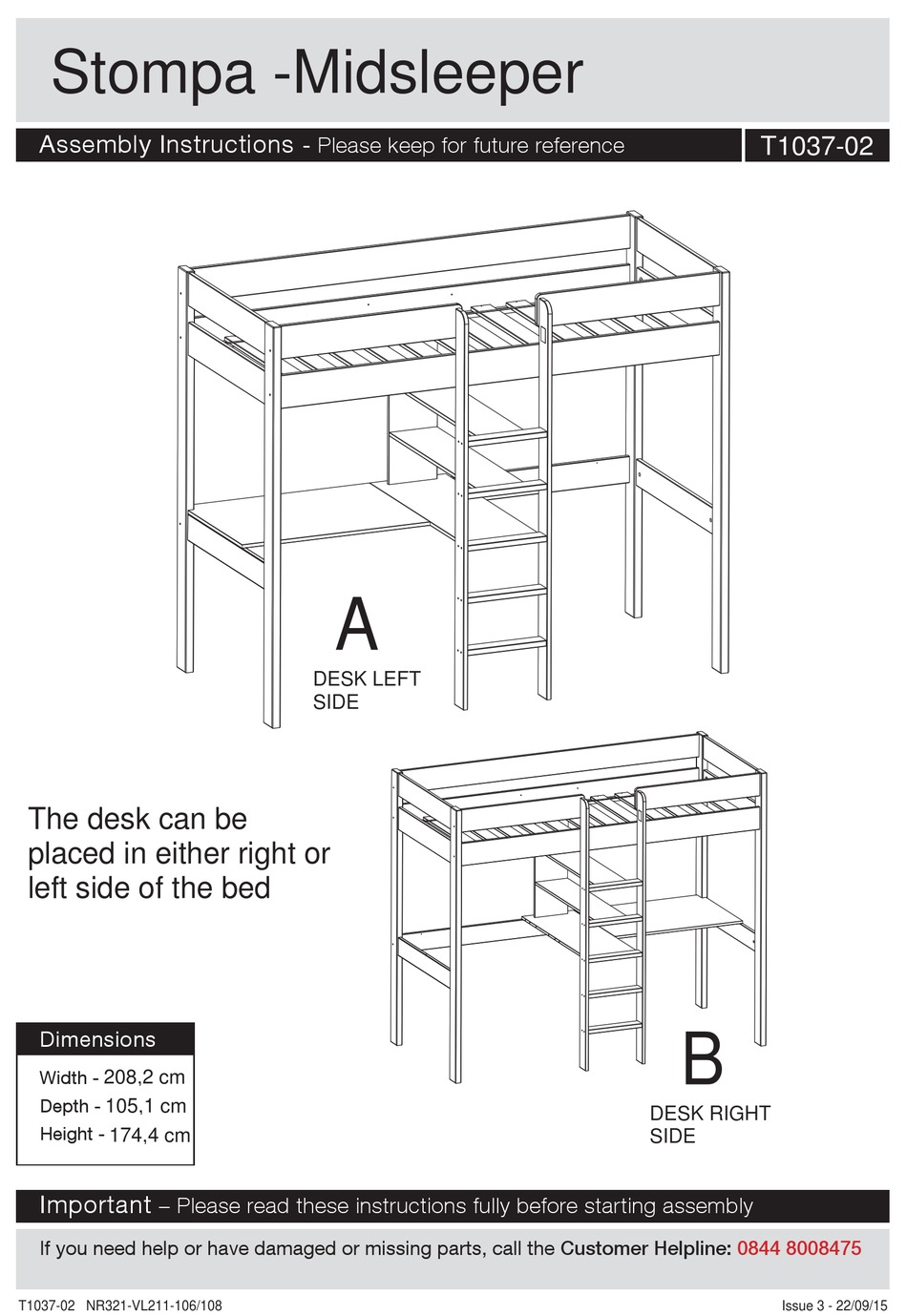

Assembly Instructions
The desk can be
placed in either right or
left side of the bed
Dimensions
208,2 cm
Width - 148cm
105,1 cm
Depth - 204cm
Height -109cm
174,4 cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
T1037-02 NR321-VL211-106/108
- Please keep for future reference
A
DESK LEFT
SIDE
Batch nr:
6564942
T1037-02
B
DESK RIGHT
SIDE
0844 8008475
Issue 3 - 22/09/15
Issue 1 - 22/10/10
