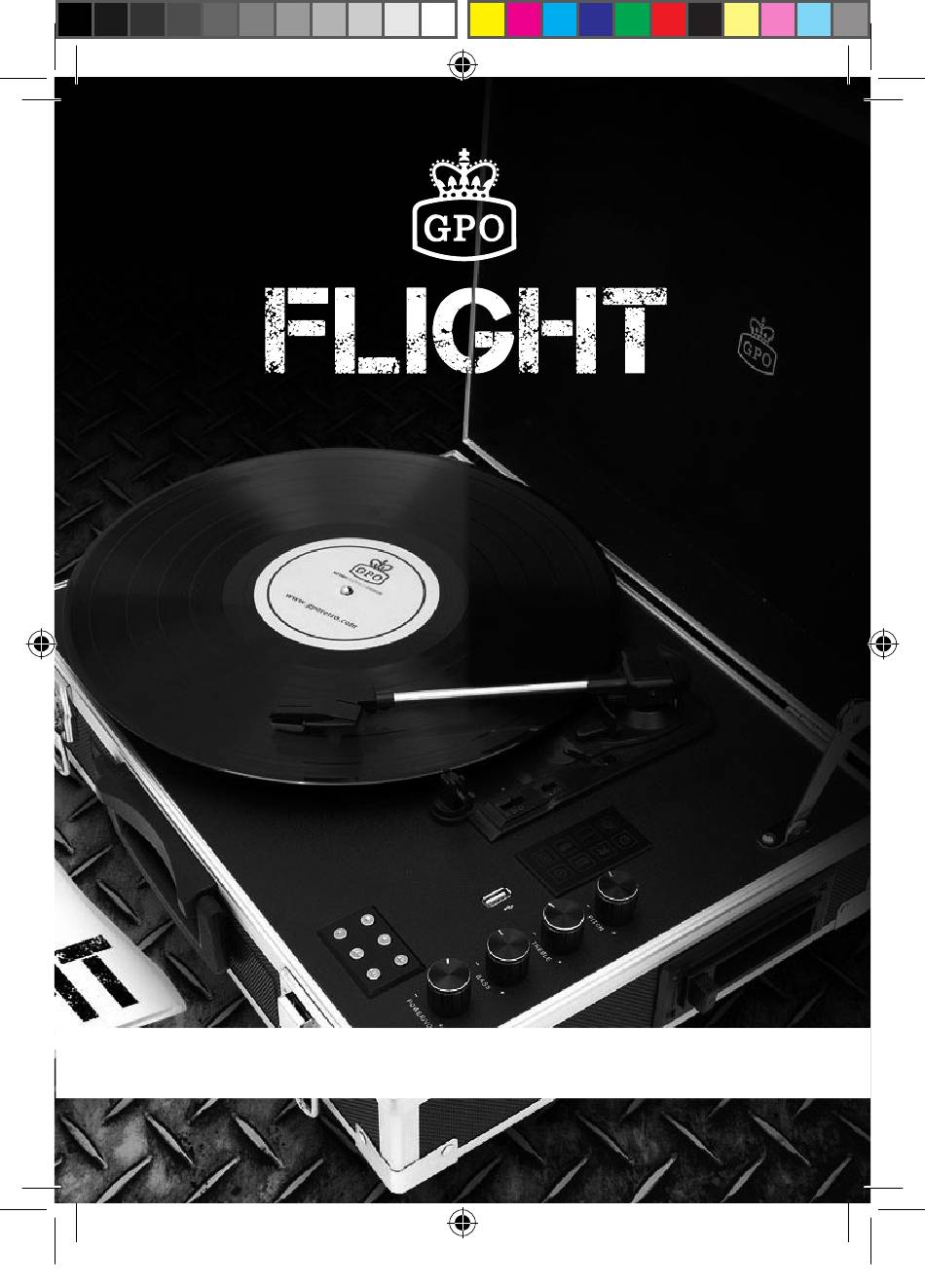

Page 1: User Manual

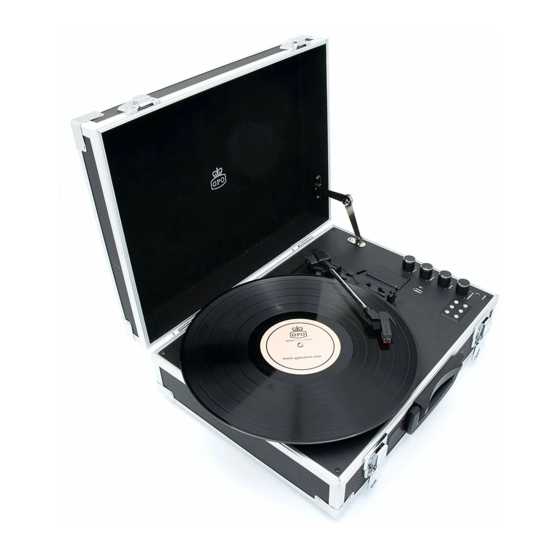

USER MANUAL V3 | SEPT 2017 Flight_user_Manual EU - Sept 2017_v3.indd 1 07/09/2017 12:36... - Page 2 ENGLISH Thanks for purchasing the Flight turntable player from GPO. This retro-themed unit adds a touch of classic style to any room, while still providing amazing audio quality through the built in speakers. To get the most from your new turntable player, please read these instructions carefully before use, and keep them in a safe place for future reference.
- Page 3 Unpacking This package contains: 1x Flight Turntable 1x Turntable Needle (fitted) 1x Turntable Rubber Slip Mat (placed on the turntable) 1x DC Power Cable 1x RCA Cable 1x Manual Carefully remove all of the contents from the packaging. Make sure you retain and store this manual for future reference.
- Page 4 Features 1. 3-speed turntable (33, 45 or 78 RPM) 2. Belt drive and semi-automatic play tone arm 3. Ceramic stereo cartridge and jewel stylus 4. Built-in 45 RPM adapter 5. Aux-in, RCA Audio out and Headphone out functions 6. Built-in 2.1 speakers 7.
-
Page 5: Location Of Controls
Location of Controls Turntable Indicator Light Aux-in Indicator Light USB Indicator Light Cassette Indicator Light Stop Indicator Light Bluetooth Indicator Light Battery Power Indicator Light Recording Indicator Light Cassette Tape Slot 10. Pitch Adjustment 11. Treble Adjustment 12. Bass Adjustment 13. - Page 6 Flight_user_Manual EU - Sept 2017_v3.indd 7 07/09/2017 12:36...
-
Page 7: Mode Selection
Mode Selection Turntable Mode - play a vinyl record through the unit’s built-in speakers USB Mode - play MP3 files stored on an external USB drive USB Record Mode - record your vinyl and cassette tape to MP3 files on an external USB drive Aux-in Mode - play music from your music player, smartphone or other device through the unit’s built in speakers Bluetooth Mode - connect the unit to external Bluetooth-enabled... -
Page 8: Unit Operation
Unit Operation Turntable Mode 1. Turn on the unit power 2. Select Turntable mode using the mode select button 3. Choose the correct speed setting, and place the vinyl record onto the turntable 4. Place the tone arm into the correct position to begin playback 5. - Page 9 5. If the devices fail to sync, please repeat points 1-4. 6. Hold down the stop button for three seconds to turn off Bluetooth mode and move straight to turntable mode Cassette Play Mode 1. Turn on the unit power 2.
- Page 10 Headphone Out Headphones can be connected using the Headphone jack. Pitch Adjustment When the Pitch knob is centered on the middle line, the record player plays at normal speed. When the LP speed is slower than expected, you can turn right to adjust the speed. When the LP speed is faster than expected, you can turn left to adjust the speed.
-
Page 11: Replacing The Stylus
Replacing the Stylus The unit’s stylus will need replacing regularly. To replace the stylus: RCA Audio Out 1. Push the arm lock to release the tone arm 2. Remove the cap from the cartridge to expose the needle 3. Carefully remove the cartridge from the socket 4. -
Page 12: Product Care
Product Care • Keep the unit clean, dry, and away from any potential sources of splashing or dripping. • Avoid areas with high levels of humidity – such as kitchens and bathrooms, and those with extreme temperatures of 35°C or higher. •... - Page 13 FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
