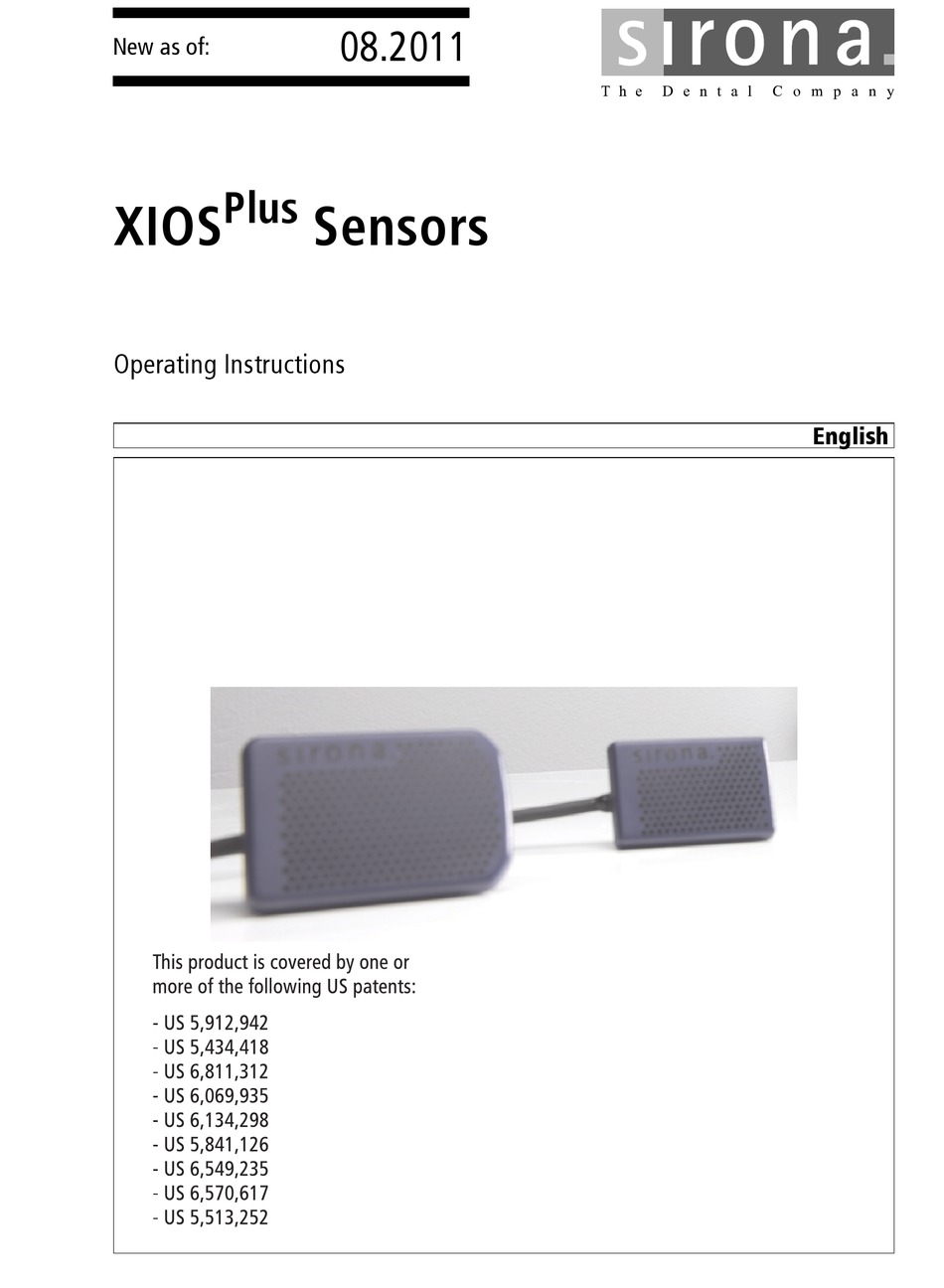

- Page 1 MUKOMNN kÉï=~ë=çÑW== mäìë uflp =pÉåëçêë léÉê~íáåÖ=fåëíêìÅíáçåë båÖäáëÜ Cover page...
-
Page 2: Table Of Contents
Sirona Dental Systems GmbH Plus Operating Instructions XIOS Sensors Table of contents Dear Customer, ......................Contents of this document ................General conventions ..................Structure of the document................1.3.1 Identification of danger levels............. 1.3.2 Formats and symbols used ..............Other valid documents .................. - Page 3 Sirona Dental Systems GmbH Plus Operating Instructions XIOS Sensors Exposure times......................HELIODENT DS................... 6.1.1 HELIODENT DS Serial Nos. 15864 and higher (wall model) and 4416 and higher (ceiling model) 6.1.2 HELIODENT DS up to Serial No. 15863 (wall model) and 4415 (ceiling model) Care of outer surface....................
-
Page 4: Dear Customer
1 Dear Customer, Sirona Dental Systems GmbH Plus 1.1 Contents of this document Operating Instructions XIOS Sensors Dear Customer, Dear Customer, XIOS Plus Sensors Plus Thank you for purchasing the XIOS X-ray sensor. Plus Plus In combination with a XIOS... -
Page 5: Formats And Symbols Used
● List Identifies a list item. "Command/menu item" Identifies commands, menu items or quotations. Other valid documents Other valid documents Documents for XIOS Plus Sensors Plus For the operation of XIOS sensors the following documents are required: ● Operating instructions: Plus... -
Page 6: Warning And Safety Information
The system owner must ensure that all inspections and maintenance events take place. If the system owner fails to fulfill the obligation to have inspections and maintenance work performed or ignores error messages, Sirona Dental Systems GmbH and its authorized dealers cannot assume any liability for resulting damage. - Page 7 The guarantee of the system's functional reliability will automatically be transferred to anyone who implements a system extension which has not been expressly approved by Sirona. Changes to unit / X-raying of patients - XIOS Plus Sensor Operating Instructions Plus Use the XIOS sensor only as described in these Operating Instructions.
- Page 8 The system may only be operated by skilled or properly trained personnel. Do not leave the patient at the unit unattended. Changes to unit / X-raying of patients - XIOS Plus Sensor Operating Instructions Plus Use the XIOS sensor only as described in these Operating Instructions.
-
Page 9: Esd Protective Measures
2 Warning and safety information Plus Operating Instructions XIOS Sensors 2.1 ESD protective measures Electromagnetic compatibility (EMC) of the XIOS Plus Sensor Electromagnetic compatibility (EMC) Plus The XIOS sensor complies with the requirements of IEC 60601-1-2. Medical electrical devices are subject to special precautionary measures regarding EMC. -
Page 10: About The Physics Of Electrostatic Charges
2 Warning and safety information Sirona Dental Systems GmbH Plus 2.2 About the physics of electrostatic charges Operating Instructions XIOS Sensors The content of this training is explained in the Chapter "About the physics of electrostatic charges" [ → 10]. - Page 11 Sirona Dental Systems GmbH 2 Warning and safety information Plus Operating Instructions XIOS Sensors 2.2 About the physics of electrostatic charges To prevent this from happening, the ESD warning label next to the plug warns of this hazard. ESD stands for ElectroStatic Discharge.
-
Page 12: Technical Description
3 Technical description Sirona Dental Systems GmbH Plus 3.1 General data Operating Instructions XIOS Sensors Technical description Technical description General data General data XIOS Plus sensors Plus The XIOS sensors, type D3495, were tested in combination with the Plus Plus... -
Page 13: Requirements For Intraoral X-Ray Tube Assemblies
Sirona Dental Systems GmbH 3 Technical description Plus Operating Instructions XIOS Sensors 3.4 Requirements for intraoral X-ray tube assemblies Relative humidity in 10% – 75% operation Air pressure (storage 500 – 1060 hPa and transport) Air pressure (operation) 700 – 1060 hPa Operating altitude: ≤... -
Page 14: Accessories And Spare Parts
4 Accessories and spare parts Sirona Dental Systems GmbH Plus 4.1 Accessories Operating Instructions XIOS Sensors Accessories and spare parts Accessories and spare parts General NOTICE Not all of the accessories listed here are included in the scope of supply. - Page 15 Sirona Dental Systems GmbH 4 Accessories and spare parts Plus Operating Instructions XIOS Sensors 4.1 Accessories ● 15x sensor holder tab, endo (gray), including localizer ring and guide ● 15x sensor holder tab, universal (green) ● 50x hygienic protective sleeves, size 1...
- Page 16 4 Accessories and spare parts Sirona Dental Systems GmbH Plus 4.1 Accessories Operating Instructions XIOS Sensors XIOS sensor holder tab, endo, gray (single use device, 50 pcs) Order No.: 61 76 551 XIOS sensor holder tab, universal, green (single use device, 100 pcs) Order No.: 61 76 544...
-
Page 17: Use Of The X-Ray Sensor
- Avoid laying sensor cables on the floor if possible. - Make sure that the patient does not bite on the sensor or the sensor cable. XIOS Plus sensor operational reliability NOTICE Operational reliability - The sensor must be checked to ensure that it is plugged in correctly before releasing an exposure! - The user must check exposure readiness prior to radiation release. -
Page 18: Hygienic Protection
● No other programs should be running on the PC during an exposure. Hygienic protection Hygienic protection 5.2.1 General information General information Hygienic protection Please use Sirona hygienic protective sleeves for hygienic protection. CAUTION Plus Use only the XIOS hygienic protective sleeves offered by Sirona, Plus especially in connection with the XIOS sensor holders. -
Page 19: Sliding The Hygienic Protective Sleeve Over The Sensor
Sirona Dental Systems GmbH 5 Use of the X-ray Sensor Plus Operating Instructions XIOS Sensors 5.2 Hygienic protection 5.2.2 Sliding the hygienic protective sleeve over the sensor Sliding the hygienic protective sleeve over the sensor Handling 1. Please select a hygienic protective sleeve with a size that matches the sensor. - Page 20 5 Use of the X-ray Sensor Sirona Dental Systems GmbH Plus 5.2 Hygienic protection Operating Instructions XIOS Sensors 1. Grasp the guide rod in one hand so that you can touch the side of the sensor facing away from the sensor cable with your thumb.
-
Page 21: Parallel Technique With Radiation Limiter
Sirona Dental Systems GmbH 5 Use of the X-ray Sensor Plus Operating Instructions XIOS Sensors 5.3 Parallel technique with radiation limiter! 4. Hold the sensor cable firmly to prevent the sensor from falling out of the hygienic protective sleeve. Parallel technique with radiation limiter! -
Page 22: Posterior Tooth Exposures
5 Use of the X-ray Sensor Sirona Dental Systems GmbH Plus 5.3 Parallel technique with radiation limiter! Operating Instructions XIOS Sensors 4. Adhere the sensor holder tab in the middle of the active area of the sensor to the hygienic protective sleeve as shown in the illustration. -
Page 23: Bite Wing Exposures
Sirona Dental Systems GmbH 5 Use of the X-ray Sensor Plus Operating Instructions XIOS Sensors 5.3 Parallel technique with radiation limiter! 4. For the left upper jaw and right lower jaw: Position the sensor holder tab in the middle of the active area of the sensor as shown in the illustration. -
Page 24: Endodontics
5 Use of the X-ray Sensor Sirona Dental Systems GmbH Plus 5.3 Parallel technique with radiation limiter! Operating Instructions XIOS Sensors Preparation 1. Plug together the straight guide rod (C) and the red localizer ring (B) of the XIOS holder system for bite wing exposures. -
Page 25: Half-Angle Technique Without Radiation Limiter
Sirona Dental Systems GmbH 5 Use of the X-ray Sensor Plus Operating Instructions XIOS Sensors 5.4 Half-angle technique without radiation limiter Preparation 1. Plug together the gray guide rod made of plastic (C) and the gray localizer ring (B) of the XIOS holder system for endodontic exposures. - Page 26 5 Use of the X-ray Sensor Sirona Dental Systems GmbH Plus 5.4 Half-angle technique without radiation limiter Operating Instructions XIOS Sensors 2. Select the green universal sensor holder tab and remove the protective foil from the adhesive surface. 3. Anterior tooth exposures: To take anterior tooth exposures, position the sensor holder tab on the edge of the sensor near the cable.
-
Page 27: Exposure Times
X-ray sensors size 2 XIOS X-ray sensors. The exposure parameters specified for X-ray sensors in the documentation for the various Sirona intraoral X-ray systems therefore do Plus not apply to size 1 and size 2 XIOS X-ray sensors. Recommended exposure times for Sirona devices are described below. -
Page 28: Heliodent Ds
6 Exposure times Sirona Dental Systems GmbH Plus 6.1 HELIODENT DS Operating Instructions XIOS Sensors and with a focus-sensor-distance of 23 cm. Corresponding values apply to devices from other manufacturers and to AC tube units. However, for optimal image quality DC tube units should be used. - Page 29 ● It is the responsibility of each individual dentist to determine the required dose for each patient in order to achieve image quality suitable to make a diagnosis. Sirona can only make recommendations. When the desired patient symbol is set to the tooth symbol, the recommended exposure times are assigned automatically.
-
Page 30: Heliodent Ds Up To Serial No. 15863 (Wall Model) And 4415 (Ceiling Model)
● It is the responsibility of each individual dentist to determine the required dose for each patient in order to achieve image quality suitable to make a diagnosis. Sirona can only make recommendations. WARNING... - Page 31 Sirona Dental Systems GmbH 6 Exposure times Plus Operating Instructions XIOS Sensors 6.1 HELIODENT DS ● G = Maxillary canine tooth / Mandibular molars ● H = occlusal exposure If a 12" SSD cone is used together with a size 1 / size 2 XIOS X-ray...
-
Page 32: Care Of Outer Surface
7 Care of outer surface Sirona Dental Systems GmbH Plus 7.1 Care and cleaning agents Operating Instructions XIOS Sensors Care of outer surface Care of outer surface Care and cleaning agents Care and cleaning agents CAUTION: Approved care and cleaning agents... -
Page 33: Sterilizing
Sirona Dental Systems GmbH 7 Care of outer surface Plus Operating Instructions XIOS Sensors 7.3 Sterilizing NOTICE Never spray with disinfectants or cleaning agents! The following should be observed regarding XIOS sensors and their connecting leads: ● Sensors must not be thermally disinfected! ●... - Page 34 7 Care of outer surface Sirona Dental Systems GmbH Plus 7.3 Sterilizing Operating Instructions XIOS Sensors NOTICE Risk of damage Please follow the instructions given below carefully. Otherwise, your components, the autoclaves or any other objects you have placed in the autoclaves may be damaged.
- Page 35 Sirona Dental Systems GmbH 7 Care of outer surface Plus Operating Instructions XIOS Sensors 7.3 Sterilizing Conditions for sterilization Sterilized contents packed loosely Sterilizer temperature/pressure, length of cycle: ● Steam sterilizer 121°C/103.4 kPa (250°F/15 psi) 20 minutes. ● Steam sterilizer 132 ℃ /206.8 kPa (270°F/30 psi) 8 minutes.
-
Page 36: Configuration
Configuration Explanation It is possible to automatically optimize the image quality of an X-ray image Plus after capture with the XIOS sensor using a configuration dialog. XIOS Plus image optimization Call "start" "programs" "SIDEXIS" "SIDEXIS Manager" ➢ Follow the path "XIOS Configuration"... - Page 37 Sirona Dental Systems GmbH 8 Configuration Plus Operating Instructions XIOS Sensors reduction is deactivated (8 bit gray levels). "16 bit" setting prevents a loss of information caused by a reduction of the gray levels. In this case, the amount of data doubles.
