- Page 1 SOLE R150 SOLE R150 USER MANUAL Thank you for purchasing this mobile. For the best performance, we recommend that you read the manual carefully. Page 1...

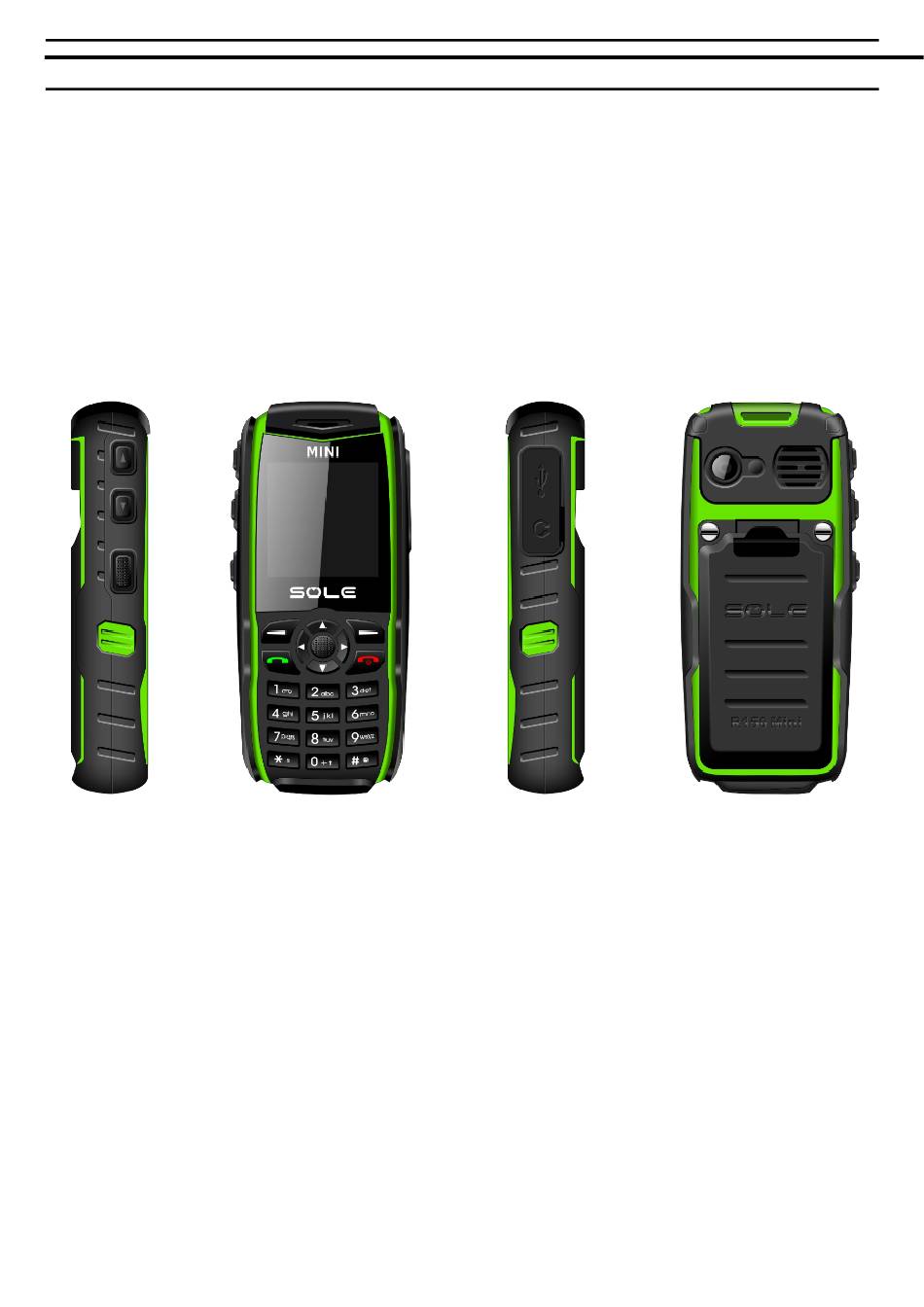

- Page 2 SOLE R150 Know Your Phone OK KEY Enter into the main menu, Long press to on/off the torch. Left soft key Enter main menu in idle mode. Press left soft key, then press * to lock/unlock the key pad Dial key Dial and receive a call.
- Page 3 SOLE R150 Batteries The battery is included in the package. It is not fully charged out of factory but it may still be able to power on your phone. Please completely use up the power of the battery and then charge it for at least 12 hours with your phone turned off. You battery will reach its optimal state after three cycles of charge and discharge. Installing and uninstalling the battery To install the battery, remove the back cover from the phone by pressing firmly on the cover and slide it down. Align the golden contacts of the battery to the contacts in the phone, and then gently snap down the battery into place. Re‐assemble the back cover. To uninstall the battery, flip the battery out from the bottom of the battery. Charging the battery Plug the charger into the socket on the side of your phone. Connect the charger to an AC wall socket. The blinking of the battery level icon indicates the battery is being charged. When the blinking stops, it indicates the charging is finished During charging, the phone and charger will feel warm to the touch. This is normal. Warning: ‐50 C. Do not use it when The operating ambient temperature of the charger is 0 C the temperature exceeds this limit. Use only chargers approved by the phone manufacturer to ensure safety. Failing to comply with this will violate the terms and conditions of the warranty. Using the battery The waiting time and calling time capacities specified by the phone manufacturer are obtained under the ideal operating environment. The actual values will vary with the network condition, operating environment and operation method. Please comply with the local regulations of disposing the battery (such as recycling). Do not dispose it as household waste. ...
- Page 4 SOLE R150 Battery level indicator When the phone is on, the battery level indicator is located at the upper right corner of the screen. Connecting to the Network SIM card Please insert available Subscriber Identity Module (SIM) card into your phone before using it. SIM card is supplied by your network carrier. All the information related to network connection is recorded on the SIM card, so are the contact information such as names, phone numbers and SMS that you set to store on the SIM. You can take out the SIM card from the phone and insert it into another GSM phone to use it. Most new phones will recognize the SIM card automatically. Do not touch the golden contacts of the SIM card and place it away from electricity and magnetism to avoid damage. You will not be able to use the phone if the SIM card is damaged. Note: Before inserting and taking out the SIM card, always make sure that the phone is switched off and disconnected from any external power source; otherwise both the phone and the SIM card may be damaged. Installing and uninstalling the SIM card The SIM card usually comes attached to a special card. The metal contacts of SIM card is easily damaged by scratching, so take it out carefully before assembling it into the phone. Switch off the phone; remove the back cover, battery and other external power Page 4...
- Page 5 SOLE R150 source. Fit the SIM card into the SIM card slot. Align the angled corner of the SIM card with the slot. Slide in the SIM card, make sure it is in place, install the battery, and restore the back cover. Likewise, to remove the SIM card, switch off the phone, remove the battery and then take out the SIM card. Unlock the SIM card PIN code Your Personal Identification Number (PIN/PIN2) code protects the SIM card against unauthorized use. Your PIN/PIN2 code is usually supplied with the SIM card. If this security function is enabled, you need to enter the PIN/PIN2 code every time you turn on the phone. You can also disable this function. To unlock the SIM card, press and hold the power button to turn on the phone. Enter the PIN/PIN2 code. After three consecutive incorrect PIN/PIN2 code entries, the code is blocked, and you need the PUK code to unblock it. PUK code This code is required to change a locked PIN code. If the code is not supplied with the SIM card, contact your service provider. After ten consecutive incorrect PUK code entries, the SIM card cannot be used any more. Please contact your service provider to buy a new SIM card. You cannot edit PUK code. If it is lost, Please contact your service provider. Connecting to the network After the SIM card is unlocked, you phone will automatically search for the registered network or other local available network. Once connected, the name of the network carrier will appear on the top of the screen. You phone is now in Standby mode, ready for making and receiving calls. Page 5...
- Page 6 SOLE R150 Basic Operations Switch Phone ON/OFF To switch ON/OFF your phone, press and hold the End key for a few seconds. Unlock the phone If you do not use the phone for a while, the screen is replaced with a locked screen. 1. Press any key to activate the screen. 2. Press Unlock key, and then press * key. Make a call You can make a call in the following ways: Enter the desired number in standby mode and press the Call key to make the call. Go to Menu > Phonebook and then select and dial the desired number. Just press the Call key to dial the contacts listed in Call logs. You can also dial a contact from the messages. Settings 【Display】 [Animation effect]: Set the power on/off animation [Wallpaper settings] Set wallpaper [Idle display setting] Set the idle [Contrast] adjust the screen's backlight brightness [Backlight] Set the backlight time screen [Keypad backlight time] Set the backlight time key 【Security】 Page 6...
- Page 7 SOLE R150 [PIN] Select open or modify the phone's PIN code [Modify PIN2] PIN2 choose to modify the phone code [Phone locked]: Set the phone locked [Change phone password]: Modify the password of phone [Date security] set access to enter the password to view functionality. (Including: call logs / message / camera / phonebook / my files / ebook / calendar / Mass storage /audio player/video player) [Auto keypad lock] Set the auto keypad lock [Lock screen by end‐key] press the end key to select whether the off‐screen function [Mobile tracker] To set the security password and open the feature, open the opportunity for the card and then prompts for security password, if the wrong password is entered three times, the ...
- Page 8 SOLE R150 [Edit]: edit the currently selected account [GPRS service]: Choose open or close GPRS service [Data connection settings]: The type of data connection [Network selection]: Choose auto or manual select network Use the effect for menu list The colors and specifications shown/mentioned in the user manual may differ from the actual product. Images shown are for representation purpose only. Other product logos and company names mentioned herein may be trademarks or trade names of their respective owners. 2. SOLE keeps the right to make modifications to any of the content in this user guide without public announcement in advance. The content of this manual may vary from the actual content displayed in the mobile phone. In such a case, the latter shall govern. Upon first use of the device it will send information related to model, mobile number, IMEI numbers, Operator, Circle through an SMS. This One time SMS will be charged as per Operator tariff. All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of is strictly prohibited. SOLE Page 8...
- Page 9 SOLE R150 FCC Warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device ...
- Page 10 SOLE R150 — Consult the dealer or an experienced radio/TV technician for help. SAR tests are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value, in general, the closer you are to a wireless base station antenna, the lower the power output. Before a new device is a available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC, Tests for each ...
