Summary of Contents for Nuvoair AIR NEXT

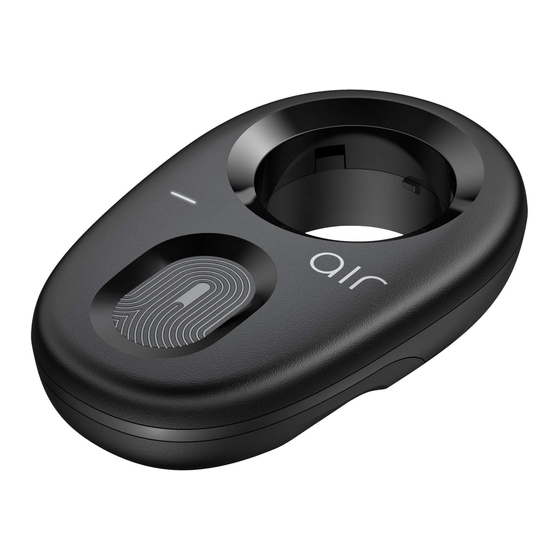

- Page 1 A I R N E X T U S E R M A N U A L...
-
Page 2: What's In The Box
WHAT’S IN THE BOX... -
Page 3: Setting Up Your Device
SETTING UP YOUR DEVICE Download the NuvoAir app Enable Bluetooth on your The spirometer lights up from AppStore or Google mobile device. Allow the when it is connected to the Play Store. app to access and use mobile device. Bluetooth and follow the... - Page 4 PERFORM A LUNG FUNCTION TEST Insert a new turbine Turn the turbine Create an account Tap the plus button by sliding it through clockwise until it or sign in to an to perform a lung the device. locks into place. existing one and function test.
- Page 5 PERFORM A LUNG FUNCTION TEST Test Your exhalation should exceed 6 seconds in order to obtain a high quality test. Take a slow deep breath - Close your lips around the Blow as hard and as fast as as deep as you can. opening of the turbine.
- Page 6 PERFORM A LUNG FUNCTION TEST BATTERY CHECK Test Results Results Flow Battery: 100 % Volume You can share the test via e-mail. Keep going until you You should rest Perform a minimum Open app settings have completely 15 to 30 seconds of 3 tests for high to check battery emptied your lungs.
-
Page 7: Indications For Use
INDICATIONS FOR USE bluetooth. Air Next is powered by (i.e. does not experience shortness Air Next is intended to be used by: 2 x 1.5 V AAA alkaline batteries. If of breath) and in good health, and • Healthcare professionals trained... -
Page 8: Important Safety Warnings
In the case of • Air Next is not made with affect the validity of spirometry damage do not use it and return it natural rubber latex. -
Page 9: Operating Environment
Type BF applied part: Device that Explanation of the safety signs and Air Next is not intended for use has conductive contact or medium symbols marked on the device: in an operating theatre nor in the to long term contact with the... - Page 10 FVC. spirometry. CAUTION: RISK OF (Peak Expiratory Flow) The Note: Home use of Air Next is in- CROSSCONTAMINATION maximum flow rate (l/s) during a tended only for indicative purpose. forced maximal expiratory effort Each new individual that uses Interpretation of the test results after a full inspiration.
-
Page 11: Maintenance
Store it in clean and moisture free conditions. Before use, always check that the device is free from dust, contamination or any particles. Air Next does not require profes- sional maintenance. If, however, the outside of the device needs to be cleaned make sure to only use a damp cloth without any detergents. - Page 12 If this equipment does ence caused by using other than cause harmful interference to specified or recommended cables Make sure that the Air Next is radio or television reception, which and battery or by unauthorized within the Bluetooth proximity of...
-
Page 13: Troubleshooting
Disposable Turbine is correctly inserted into Air Next. • Make sure that the turbine is not spinning before you do a test. • Make sure that Air Next has sufficient battery levels. • Make sure that Bluetooth is enabled on your mobile device. -
Page 14: Technical Features
TECHNICAL FEATURES Environment of use All settings Patient Population Adults and pediatric patients over 5 years old Technology for measure flow and volume Bidirectional turbine with infrared interruption Energy Type Two AAA 1.5V Alkaline batteries Physical Configuration Touchscreen on smartphone or tablet Operating environment T: min +10°C/max +40°... - Page 15 Flow range 0-14L/s Flow accuracy ±5% or 200 mL/s Flow resistance <0.5 cmH2O/L/s Communication Bluetooth Coaching Display of flow-time curves, timer and effort during test Life expectancy 10 years Regulations applicable: MDD 93/42 /EEC ISO 26782 ISO 23747 Electrical Saftey IEC 60601-1 Electro Magnetic Compability IEC 60601-1-2 EN 300 328 FCC Part 15, Subpart B, C...
- Page 16 NuvoAir AB Riddargatan 17D, SE-11457 Stockholm, Sweden Version 1.0 © 2018 NuvoAir AB NuvoAir AB guarantees that the product is free from material and fabrication defect, under normal use conditions and under the warranty period. For more information about the...
- Page 17 NuvoAir AB Riddargatan 17D, SE-11457 Stockholm, Sweden Version 1.0 © 2018 NuvoAir AB...
