Veracity CAMSWITCH VCS-4P1-Mob Quick Start Manual

We, Veracity UK Ltd. of Prestwick International Aerospace Park, 4 Dow Road, Prestwick,
KA9 2TU, United Kingdom, declare under our sole responsibility that the products
VCS-4P1-Mob (CAMSWITCH 4 Mobile)
VCS-8P2-Mob (CAMSWITCH 8 Mobile)
are in conformity with the essential requirements and other relevant requirements
of the EMC Directive (2004/108/EC)
The products are in conformity with the following standards:
EN 55022:2010
EN 55024:2010
Responsible Person
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1)this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.

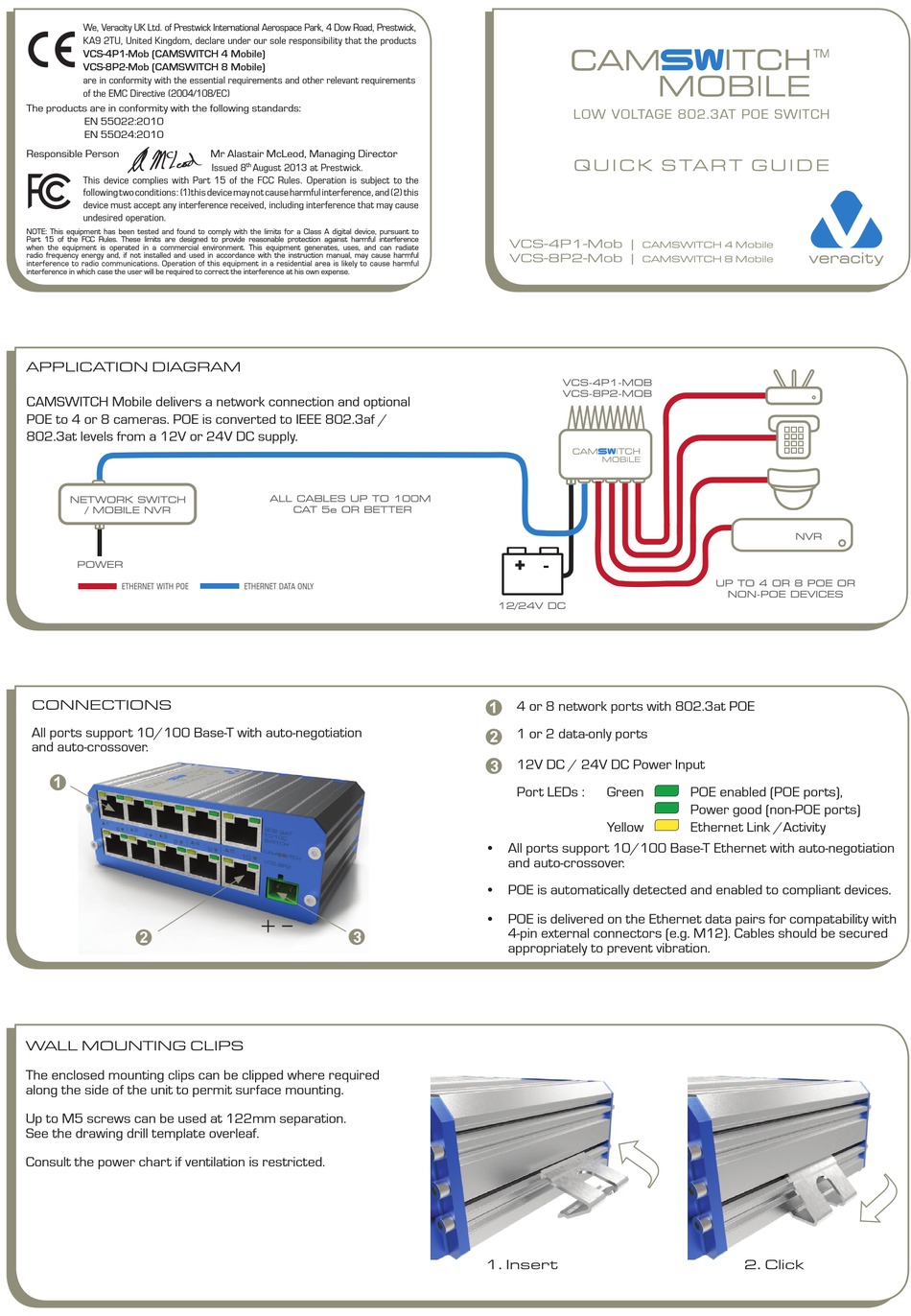

APPLICATION DIAGRAM

CAMSWITCH Mobile delivers a network connection and optional
POE to 4 or 8 cameras. POE is converted to IEEE 802.3af /
802.3at levels from a 12V or 24V DC supply.
NETWORK SWITCH
/ MOBILE NVR
POWER
ETHERNET WITH POE
CONNECTIONS
All ports support 10/100 Base-T with auto-negotiation
and auto-crossover.


WALL MOUNTING CLIPS
The enclosed mounting clips can be clipped where required
along the side of the unit to permit surface mounting.
Up to M5 screws can be used at 122mm separation.
See the drawing drill template overleaf.
Consult the power chart if ventilation is restricted.
Mr Alastair McLeod, Managing Director
Issued 8 th August 2013 at Prestwick.
ALL CABLES UP TO 100M
CAT 5e OR BETTER
ETHERNET DATA ONLY
+ _

LOW VOLTAGE 802.3AT POE SWITCH
Q U I C K S TA R T G U I D E
VCS-4P1-Mob |
CAMSWITCH 4 Mobile
VCS-8P2-Mob |
CAMSWITCH 8 Mobile
VCS-4P1-MOB
VCS-8P2-MOB
12/24V DC

4 or 8 network ports with 802.3at POE
 1 or 2 data-only ports
 12V DC / 24V DC Power Input
Port LEDs : Green
Yellow
• All ports support 10/100 Base-T Ethernet with auto-negotiation
and auto-crossover.
• POE is automatically detected and enabled to compliant devices.
• POE is delivered on the Ethernet data pairs for compatability with
4-pin external connectors (e.g. M12). Cables should be secured
appropriately to prevent vibration.
1. Insert
NVR
UP TO 4 OR 8 POE OR
NON-POE DEVICES
POE enabled (POE ports),
Power good (non-POE ports)
Ethernet Link /Activity
2. Click
