mr. steam MS-Speakers SQ Installation Instructions

Square speakers

Advertisement

mr . steam
___________________________________________________________________________________________________________________________________
INSTAL LATI ON INS TRUCTIONS

PACKAGE CONTENTS:

2 Speakers
1 Installation Instructions
2 Templates
_______________________________________________________

SPEAKER RATINGS:

60 watt peak / 30 watt RMS / 8 ohm impedance
13
13
1. Cut a 5
" x 5
" hole to mount each speaker.
1 6
1 6
!
CAUTION
All audio wiring shall be installed in accor-
dance with National Electric Code and local electrical
codes.
2. Connect the speaker wires from the stereo to the
terminals of the speaker. The "+" terminal is identified
by a "+" symbol and is larger than the "–".
3. Test speakers before securing to wall.
4. Remove the front grill of the speaker by gently rotating
out any two opposite brackets by hand as shown in the
installed view and pressing them down to pop the grill
off. Return the brackets to the original position before
installing speaker.
Failure to engage mounting brackets
!
CAUTION
correctly or improper installation may result in a falling
object hazard.
5. Apply a bead of silicone RTV (not supplied) around the
edge of the speakers as shown in the diagram as
required to obtain a watertight seal.
6. Fit the speaker into the speaker-mounting hole.
7. Secure the speaker in place using the integral mounting
brackets. The mounting brackets will rotate out and
tighten when the 4 large screws are turned clockwise.
NOTE: DO NOT OVER TIGHTEN SCREWS.
8. Gently tug on speakers to ensure they are secure in
the wall/ceiling.
9. Carefully replace the speaker grills by pressing them
in place.
10. Let the silicone cure per manufacture's instructions
before using steam room.
IMPORTANT: Do not place speakers in contact with
direct water or steam emission. Speakers may be
installed in either walls or ceilings.
mr . steam
®
Sussman-Automatic Corp®
43-20 34th Street, Long Island City, NY 11101 tel: 1 800 76 STEAM fax: 718 472 3256
9410 S. La Cienega Blvd. Inglewood CA 90301 tel: 1 800 72 STEAM fax: 310 216 2944
®

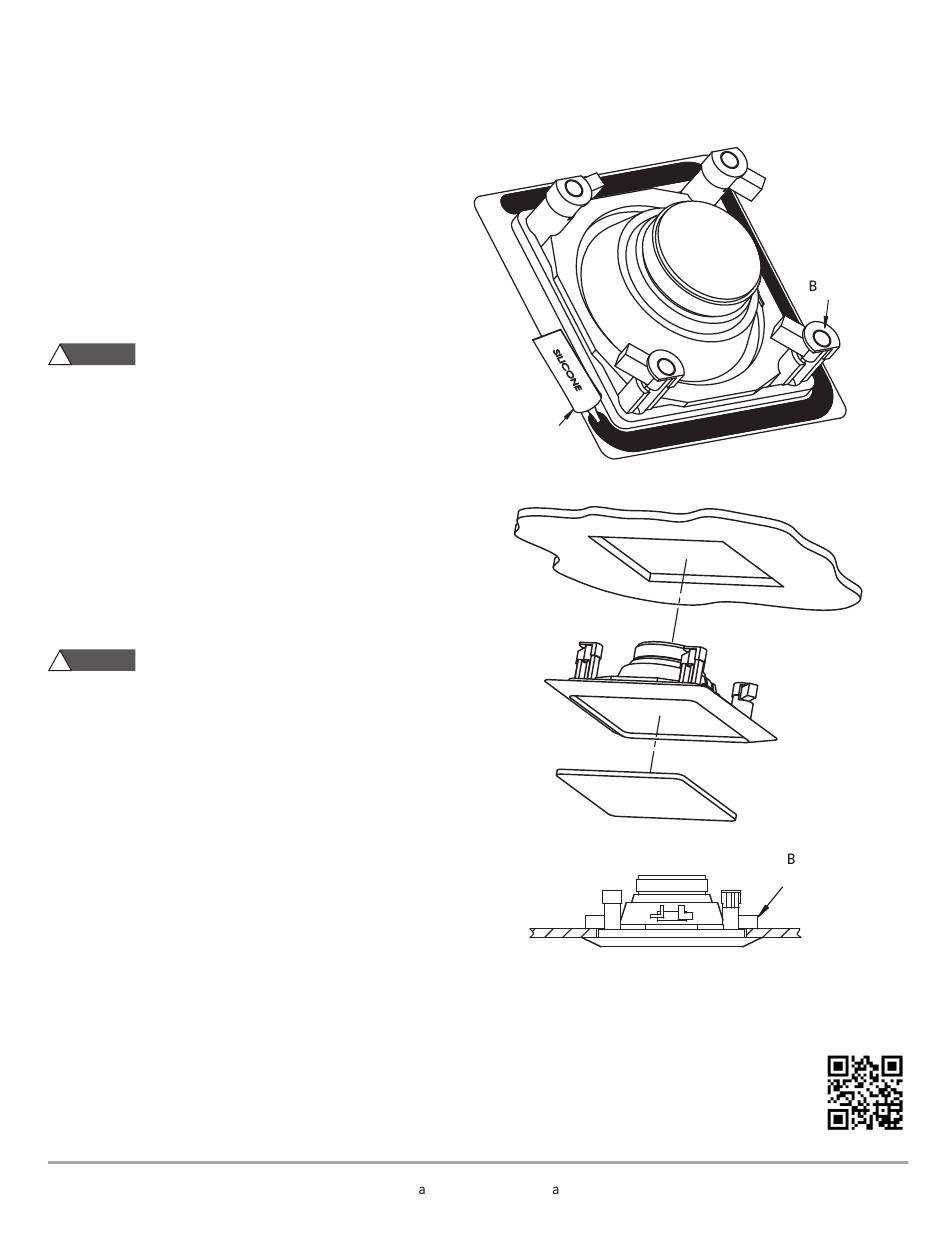

Wall or
WARRANTY: To view or download the Mr. Steam
Controls & Accessories Warranty and register your
product go to: blog.mrsteam.com/wr
hello@mrste m.com www.mrste m.com
Square Speakers
Model MS-Speakers SQ
Silicone
RTV
Ceiling
Grill
rackets
Speaker
rackets shown
rotated out after
installation
PUR 100401SQ 5.13
