Summary of Contents for Secu-tech LC200

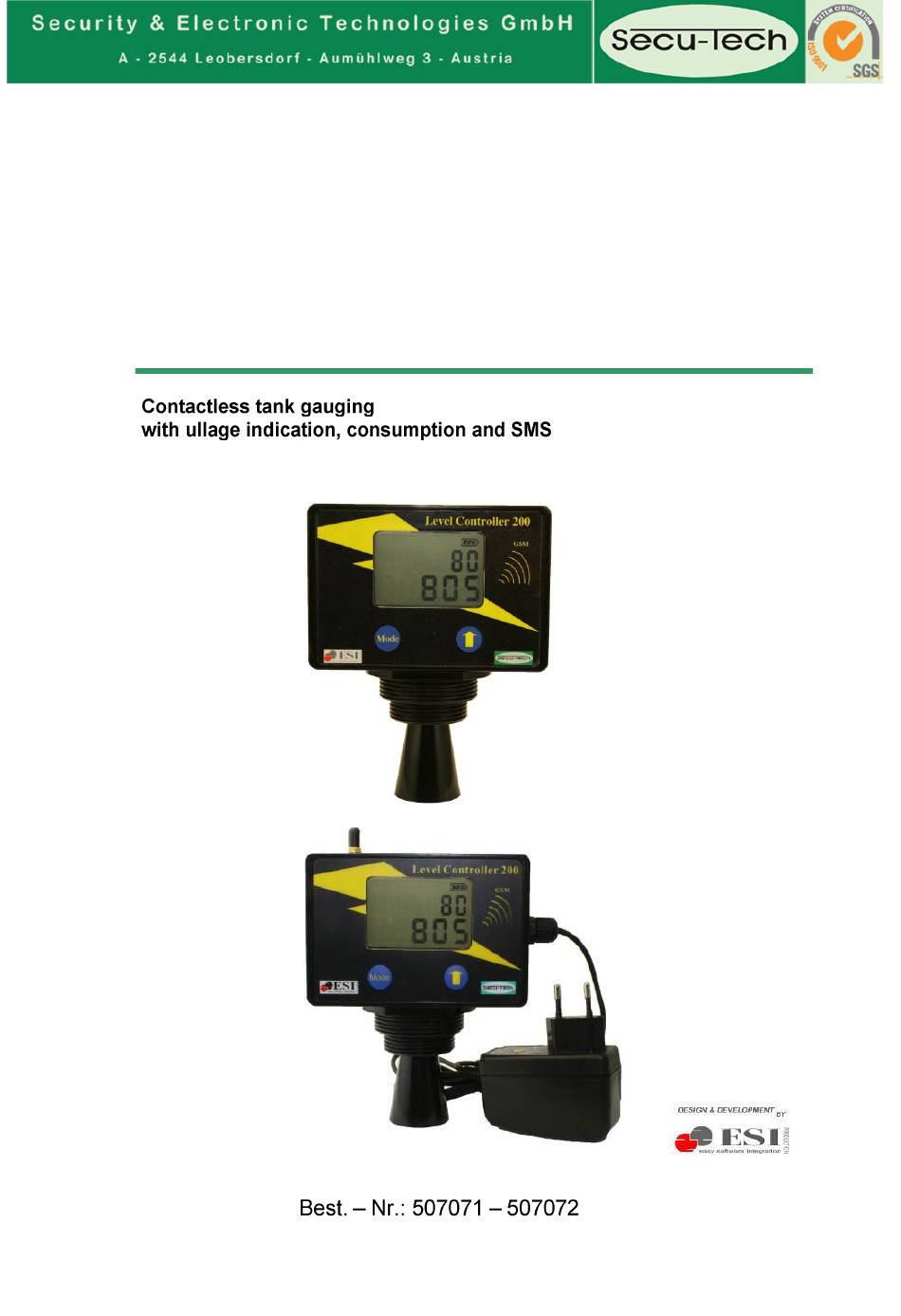

- Page 1 Operating Instruction LC200 –Level Controller 200 LC 201 – Level Controller 201 SW 02.57 05 2012 LC 2 E M 07_C...
-
Page 2: Table Of Contents
The LC gives no security against the tank becoming empty. Please, read this document carefully before the installation of LC. © SECURITY & ELECTRONIC TECHNOLOGIES GmbH Address: Aumühlweg 3/1 Ort: A-2544 Leobersdorf Telefon: +43 2256 201 77 Fax: +43 2256 201 77 11 Internet: www.secu-tech.at E-Mail: office@secu-tech.at Seite 2... -
Page 3: Product Description
Security & Electronic Technologies Product Description Main advantages: Tank contents in litres and volume percent Ullage display (how many litres can be delivered) Calculation of average daily demand in litres/day Calculation of the remaining days based on average daily demand 3 different tank shapes are supported by appropriate calculations Easy Installation No moving components in the tank... -
Page 4: Checking The Contents Of Delivery
For using the SMS-function it is necessary that a sufficient telephone network is available. If the signal from the telephone network is bad (no signal) then the LC200 hasn´t the possibility to send a SMS. -
Page 5: 1,Operating Tools
Security & Electronic Technologies 1,Operating Tools Button ▲: Set up and Button Mode: Changing values Display selection Start Up - insert 4 batteries - insert SIM-Card into GSM Modem Caution: SIM-card must not be protected!!! Button functionality: LC 200 has 2 different buttons: - "Mode"... -
Page 6: Configuration
Current time 0757 e.g.: at 07:30 h Measurement Instant of time measurement is made Time (daily) by LC200 GSM Mode 1 –SMS send according 1 :GSM enable to operated settings Mode 0: GSM disabled 0= every 28th of each month... -
Page 7: Operating
Security & Electronic Technologies Operating First Setting After inserting the batteries, the device is immediately activated and performs a measurement. Reading on display : Software Serial number Measurement Percent/Litres Actual Date / Time Reset : To start a “Reset” press simultaneous the “Mode” and “Arrow “button. Re Reset: Press once more the arrow button all statistical data will be deleted. -
Page 8: Your Tank Data´s Display
Based on average consumption Available after 10 days , before the error symbol E appears Temperature in °C Proceed with Mode Temperature inside LC200 device Full : distance sensor to sureface below 20 cm Error Measurement Error GSM Mode instead of the default display... -
Page 9: Additional Application With External Mains Power Supply Lc201
Security & Electronic Technologies Additional application with external mains power supply LC201 1, LC201 can perform measurements with short time intervals. "Sen GSM" ** the setting has two additional functions: 4 = measured every 2 hours 5 = measurement every 10 seconds Note: Alarm or error text will be sent only if a limit has been exceeded or undershot. - Page 10 - the setting "GSM sen" has two additional functions: SMS Function If you use the SMS function, the LC200 will send at the first 7 days a test SMS at the adjusted time, after the 7 days the SMS will be send at the adjusted configuration (every 28...
-
Page 11: Maintenance, Troubleshooting, Service
Measurement intervals: Operating temperature: -10°C ... +45°C Engineering standards: CE, ROHS 1 ½” and 2” Threads Warranty For the actual services and conditions see our home page www.secu-tech.at, See the GTCS – General Terms and Conditions of Sale Seite 11...
