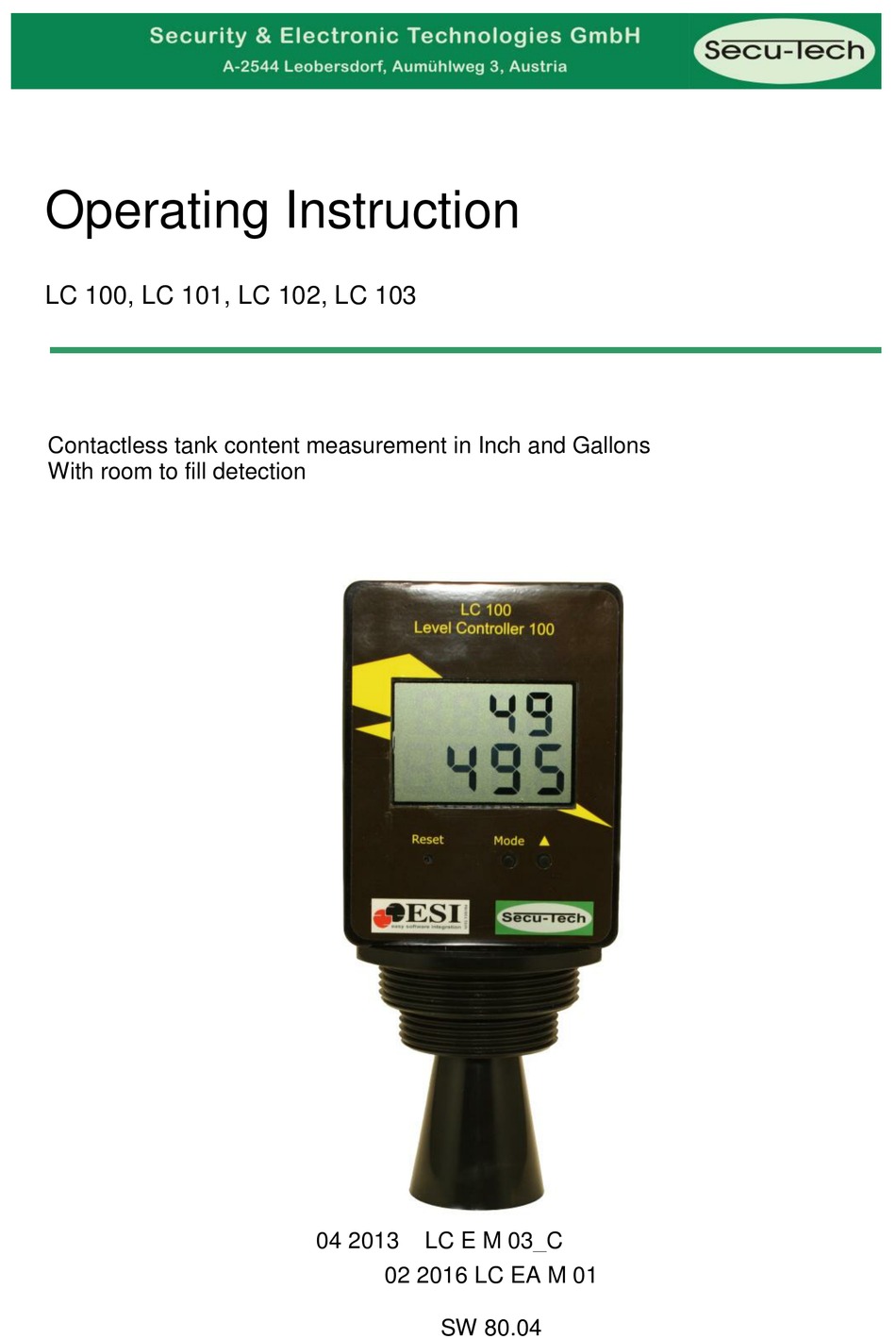

- Page 1 Operating Instruction LC 100, LC 101, LC 102, LC 103 Contactless tank content measurement in Inch and Gallons With room to fill detection 04 2013 LC E M 03_C SW 50.04 02 2016 LC EA M 01 SW 80.04...
-
Page 2: Table Of Contents
Contents General Instruction ............................2 Safety Instructions............................2 Product Description ............................2 Instruction for installation ..........................3 Checking the contents of delivery ........................3 Operating Elements ............................4 Preparation ................................ 4 1, Configuration ..............................5 Special information and error indications ..................... 6 2, Installation Instruction .......................... -
Page 3: Instruction For Installation
(e.g. heating oil tanks should be equipped with a limit indicator for working with overfill protection systems). Important: LC 100 – 103 is only for the purpose of tank level indication in non-hazardous liquid storage tanks. Any other use or application are not at Secu-Tech or Secu-Tech Distributor´s responsibility. -
Page 4: Operating Elements
Button Mode: Display Selection + Start Button Preparation Preparation LC 100 / LC 103 (Battery use) Open back-cover by unscrewing the 4 fixing screws. Insert the 4 x 1.5 V AA batteries into the battery holder. The device displays installed software version and launch a measurement. -
Page 5: Configuration
Security & Electronic Technologies Setting up the tanking data, press the Mode button in the standard display for more than 3 seconds. Button ▲ : increment the selected digit (blinking) by one If you press the Mode button again you see the next settings.The set value is stored. 1. -
Page 6: Special Information And Error Indications
Security & Electronic Technologies Special information and error indications Error message codes: 0 - no error 1 - software error 2 - measuring error (distance is more than 4 m, probe defective) 3 - the measured depth is higher than the setup value 5 - over-range, volume is more than 9.999 l In case of 80% weak batteries the symbol “b“... -
Page 7: Maintenance, Troubleshooting, Service
“b“ for low batteries (ca. 20% rest) LC101, LC 102 Mains adapter: 110 V AC / 6 V DC Dimensions (w x d x h): LC 100, 101, 102, 103 30 inch x 16,5 inch x 67 inch Protection: IP 20, for indoor usage only Display:... -
Page 8: For Your Tank Data´s
..) and do some test measurements. Important: These technical specifications can be changed any time by © SECURITY & ELECTRONIC TECHNOLOGIES GmbH Adress: Aumühlweg 3/1 Place: A-2544 Leobersdorf Telefon: +43 2256 201 77 Fax: +43 2256 201 77 11 Internet: www.secu-tech.at E-Mail: office@secu-tech.at Seite 8...
