Alarms
RED
YELLOW
The Red Alarm Symbol will illuminate in the following two
conditions:
• high or low pressure switches are off longer than 10 minutes
• high or low pressure switches are off 5 times per 10 minutes
(flash on and off).
In both cases, the unit will switch to the Ventilation mode.
The Yellow Alarm Symbol will illuminate in case of temperature
sensors failure.
Yellow Alarm number will be shown on the display for 5 seconds.
Red Alarm number will stay on the display till any button is pushed.
To restart the unit, press twice the key ON/OFF (1) to switch OFF
and ON the unit.
ATTENTION: If the alarm comes up again, don't
restart and see your nearest dealer for service.
CAUTION: The unit can automatically start and run
anytime the ignition key is in the ON or OFF position.
No matter if the ON/OFF switch is ON or OFF
(depends on setup program).
Warranty Instructions
Should you require warranty service during the warranty period,
simply present your copy of the Warranty Certificate at any of the
dealer locations shown in the Thermo King Service Directory. Terms
of the complete Thermo King Corporation Warranty are available on
request.
CAUTION: This is a driver's reference guide.
If further information is required, consult your
Thermo King service directory for the location
and phone of the local dealer.

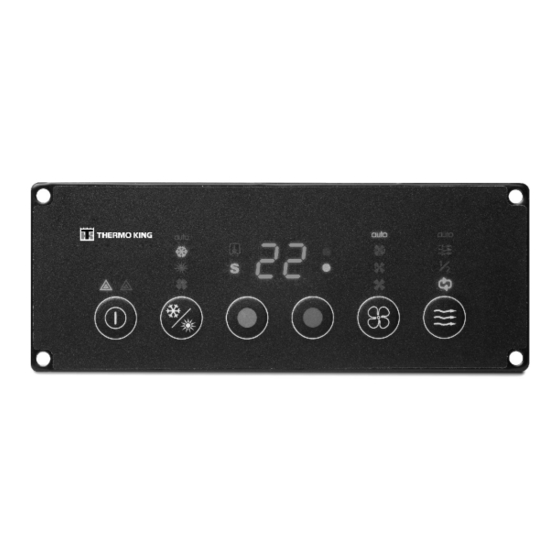

Controller
BEA133
Operator's
Manual
TK 60065-3-PC (03-07)
Copyright©2007 Ingersoll Rand CCT - ESA
BEA178
Alarms
Advertisement
Table of Contents
Related Manuals for Thermo King ClimaAIRE I D TK 60065
Summary of Contents for Thermo King ClimaAIRE I D TK 60065
- Page 1 Should you require warranty service during the warranty period, simply present your copy of the Warranty Certificate at any of the dealer locations shown in the Thermo King Service Directory. Terms of the complete Thermo King Corporation Warranty are available on request.
- Page 2 Operating Instructions Turn the system ON by pressing key ON/OFF (1). Use the keys MODE (2), DOWN and UP (3), SPEED (4) and AIR MODE (5) to adjust the system. By pressing the selection key you select one of the options in the same group. In Auto Mode all functions are controlled by the ClimaAIRE I D controller automatically according to the required setpoint.
Need help?
Do you have a question about the ClimaAIRE I D TK 60065 and is the answer not in the manual?
Questions and answers
I can't get it to go on to warm, just cold and air **** mode
The Thermo King unit with part number I D TK 60065 may not switch to warm mode if it is in Ventilation Mode, which only operates the blowers and does not provide heating. It may also be due to the unit being in Auto Mode where heating is not required based on the setpoint temperature and return air temperature. Additionally, if a Red or Yellow Alarm is active—such as a pressure switch issue or temperature sensor failure—the unit may switch to Ventilation Mode and disable heating.
This answer is automatically generated
