Summary of Contents for Olympia OC 800

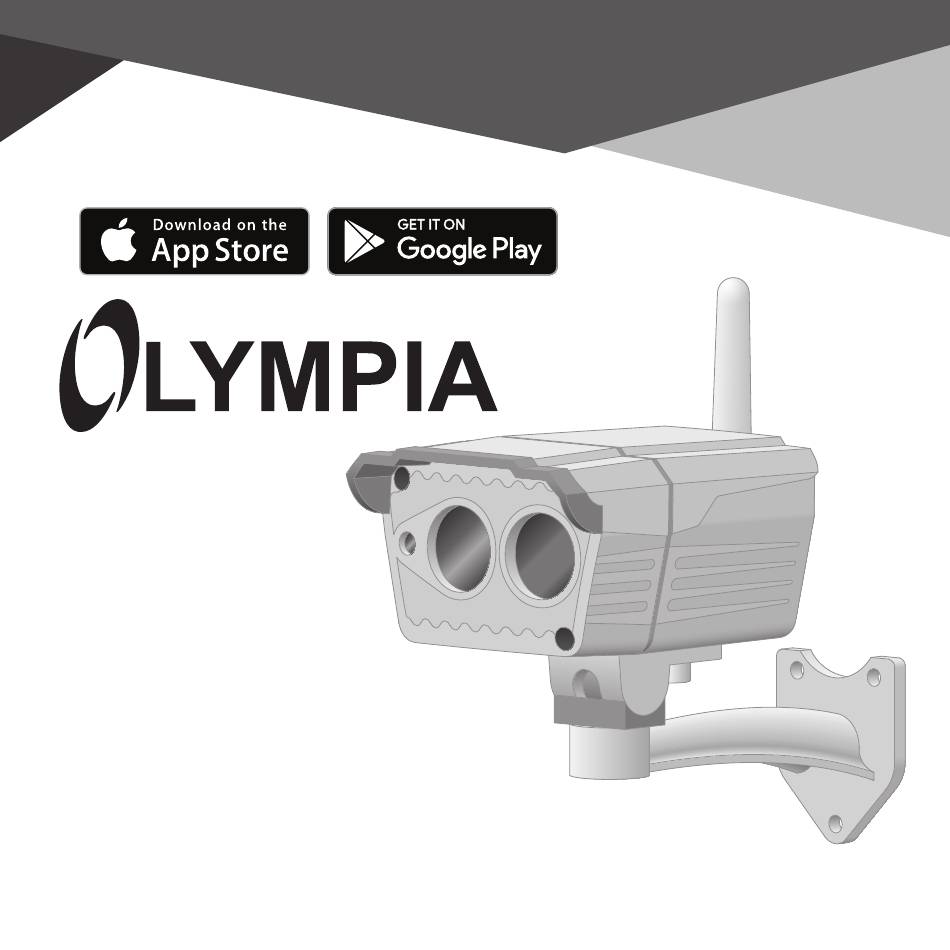

- Page 1 ...easy to operate with ProHomeIPC IP-Kamera OC 800 Quick Start Guide...
- Page 2 Do you need detailed descriptions on how to use the app and operate the camera? Visit us at www.olympia-vertrieb.de Or scan this QR code.
-
Page 3: Table Of Contents
Contents Before You Start ....... . 4 Safety Instructions ......5 Intended Use . -
Page 4: Before You Start
IP camera. Keep the operating manual in a safe place for future reference. Pay attention to this symbol. Texts which are highlighted by this symbol provide helpful information on handling the IP camera. IP-K OC 800 AMERA... -
Page 5: Safety Instructions
In the event of a fault, contact our Service Department. The following warnings indicate potentially dangerous situa- tions which could lead to minor or slight injuries if the informa- tion is ignored. IP-K OC 800 AMERA... - Page 6 Please observe local laws and regulations! ! Risk of property damage through environmental MPORTANT influences! Prevent environmental influences such as exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight. IP-K OC 800 AMERA...
-
Page 7: Intended Use
A condition for complying with the intended use is that the equipment is installed correctly and the information in the IP-K OC 800 AMERA... - Page 8 The camera is not suitable for use in potentially explosive areas. Monitoring of third-parties is not permitted without having obtained the respective, explicit authorisation and could have legal consequences. Unauthorised modifications or reconstructions are not permit- ted. IP-K OC 800 AMERA...
-
Page 9: General Overview
Package Contents Please check the contents of the package carefully. If anything is missing or has been damaged during transport, DO NOT put the camera into operation! IP Camera OC 800 Power adapter Holder Network cable 1 x Cat.5e (RJ45) - Page 10 GENERAL OVERVIEW Camera Brightness sensor Infrared LED Lens WLAN receiving antenna IP-K OC 800 AMERA...
-
Page 11: System Requirements
Power adapter connection port Reset key Network connection (LAN) Holder System Requirements You need a web-capable smartphone which has the Android (from 4.4) or iOS (from 7) operating system and the latest ver- sion of our ProHomeIPC app. IP-K OC 800 AMERA... -
Page 12: Connecting The Camera
After putting the camera into operation for the first time and configuring it, you can install the camera at the location where it should perform the video surveillance. It is essential to observe local laws and regulations! IP-K OC 800 AMERA... - Page 13 This operating manual describes the sequence of working steps recommended by us: Connecting the Camera Connecting the Camera - Network Cable Installing the ProHomeIPC App Establishing a Connection Last Steps Prior to Assembly Determining the Installation Location Installing the Camera Aligning the Camera IP-K OC 800 AMERA...
-
Page 14: Connecting The Camera
In the case of most routers, the DHCP function is activated at the facto- ry. More detailed information on the DHCP function is provided in the operating manual supplied with your router. IP-K OC 800 AMERA... -
Page 15: Installing The Prohomeipc App
Access to the camera and mobile internet can also be enabled or refused later in the setting options provided by your smartphone or tablet PC. More detailed informa- tion is provided in the operating manual supplied with your smartphone or tablet PC. IP-K OC 800 AMERA... -
Page 16: Establishing A Connection
Touch QRCode or Scan. Scan the QR code on the rear of the camera using your smartphone or tablet PC. The camera is displayed (with its unambiguous user identifi er and IP address). Google Play Store Apple App Store IP-K OC 800 AMERA... - Page 17 We urgently recommend that you change the camera's password in order to prevent unauthorised access to your camera, and thus your privacy, by third parties. IP-K OC 800 AMERA...
-
Page 18: Last Step Prior To Assembly
You can install the camera at any installation location (e.g. un- der a roof projection or on a ceiling) with the aid of the device mounting bracket. Observe the following points when selecting the assembly location. IP-K OC 800 AMERA... -
Page 19: Installing The Camera
Pay attention that you do not damage electric cables or gas pipes. Use the mounting bracket supplied as the template for the position of the holes. Drill three sufficiently large holes in the wall. IP-K OC 800 AMERA... -
Page 20: Aligning The Camera
HomeIPC app using the live image. Fix the camera in the set position. The installation and set-up work for the camera is now completed. You can now start to learn about our conven- ient camera app, ProHomeIPC App. IP-K OC 800 AMERA... -
Page 21: Detailed Operating Instructions
Permissible ambient -0 °C to +55 °C at 20% to 85% rel. conditions humidity Transmission frequency 2.4 GHz (WLAN) Transmission power 63.1 mW (WLAN) (max.) Input: 100 - 240 V, 50/60 Hz, 0,5 A / Power supply Output: 5 V, 2000 mA / 5 W IP-K OC 800 AMERA... - Page 22 1 IR LED, range up to 10 meters Angle of vision 60° Motion detection Microphone / Loudspeak- Yes / Yes 10 Base-T Ethernet / 100 Base-TX LAN / WLAN Fast Ethernet / 802.11 b, 802.11 g, 802.11 n Encryption WEP, WPA and WPA2 IP-K OC 800 AMERA...
-
Page 23: Troubleshooting
Reset your camera to its default factory settings. Use a thin object to press in the opening on the rear of the camera for ap- prox. 10 seconds. Ensure that the user identifier and password correspond to the default settings. IP-K OC 800 AMERA... - Page 24 Reset your camera to its default factory settings. Use a thin object to press in the opening on the rear of the camera for ap- prox. 10 seconds. Ensure that the user identifier and password correspond to the default settings. IP-K OC 800 AMERA...
-
Page 25: Guarantee And Service
The adjacent symbol indicates that old electrical and electronic apparatus no longer required must be disposed of separate from domestic waste in accord- ance with legal directives. Packaging materials must be disposed of according to local regulations. IP-K OC 800 AMERA... -
Page 26: Cleaning And Service
Clean the surface of the housing with a soft, lint-free cloth. Never use any chemicals or scouring agents. Information on Conformity Olympia Business Systems Vertriebs GmbH, Zum Kraftwerk 1, 45527 Hattingen hereby declares that these devices fulfil the basic requirements and other relevant provisions stipulated in the Directive 2014/53/EU. -
Page 27: Legal Notice
Apple and the Apple logo are trademarks of Apple Inc., reg- istered in the U.S. and other countries. App Store is a service mark of Apple Inc. Android is a trademark of Google Inc. Google Play is a trade- mark of Google Inc. IP-K OC 800 AMERA... - Page 28 Download the ProHomeIPC app: v1.0, 08.2017 v1.0, 08.2017 Art. No. 6011 IP Camera OC 800...
