Compression Solutions TriplePlay TPVT-01 Manual

Triple
Play VT
Vascular Therapy System
(Compressible Limb Sleeve Device)
Manufactured for: Customer Service
Wildcat Medical, Inc.
Toll Free:
dba: Compression Solutions 1-800-994-0464
1638 South Main Street Email:
Tulsa, OK 74119 USA info@compressionsolutions.us
Document # OM-TPVT-01 rev. 9
.
Copyright 2011 Wildcat Medical, Inc
Disposal
• This unit is an electromechanical device that includes printed circuit
boards and rechargeable batteries. Do not discard in landfill. Consult local,
state, federal and country requirements for proper disposal instructions.
• Cuffs may be discarded in US landfills.
• Pump control unit contains rechargeable batteries. Do not discard the
pump unit in regular waste. Bring the unit to your local recycle center or
return to Wildcat Medical.
The use of accessories, power supplies and cables other than
those specified, with the exception of components sold by the
manufacturer of the TriplePlay TPVT-01 as replacement parts,
may result in increased emissions or decreased immunity of the
TriplePlay TPVT-01.
Class II medical electrical equipment.
The cuffs are single-use devices. One patient may use a cuff
multiple times, but a single cuff may not be shared between
patients.
This unit is an electromechanical device that includes printed
circuit boards and rechargeable batteries. Do not discard in
landfill. Consult local, state, federal and country requirements for
proper disposal instructions.
This symbol designates the degree of protection against electrical
shock as being a type BF applied part.
Customer Service
Toll Free: 1-800-994-0464
Email: info@compressionsolutions.us
wildcat Medical, inc.
dba: Compression Solutions
1638 South Main Street
Tulsa, OK 74119 USA R90MTPVT01
4
Technical Data Specifications:
Main UniT:
Dimensions: ........................ 6.9 x 4.3 x 1.8 inches (1.75 x 1.1 x 4.6 centimeters)
Weight: ................................................................ Approximately 1.1 lbs. (0.50 kg)
Mode of Operation: ....................................................................................... Cyclic
Source of Power: ............................ 6 Volt, 2.0 Ah NiMH rechargeable battery
CaUTiOn: Charge batteries using only the power supply provided by
Wildcat Medical.
POwEr SUPPly:
Use only UL/CSA 60601-1 approved power supplies from Wildcat Medical
for use in hospital settings
Output: ................................................................................................. 10 Vdc, 1.1 A
Mode of Operation: ............................................................................. Continuous
SySTEM OPEraTing EnVirOnMEnT:
Temperature: ............................................................ +10˚C (50˚F) to +40˚C (104˚F)
Humidity: ................................................................................................... 30 to 75%

DEFaUlT SETTingS:

Leg Pressure (not adjustable) ............................................................... 50 mmHg
Auxiliary Pressure ............................. 35 mmHg (adjustable from 20-50 mmHg)
Cycle Time for each output............................................................ 60-70 seconds
TOlEranCES:
Pressure ............................................................................................................ ±5%
Single output run time ........................................................................... 25 hours*
Double output run time .......................................................................... 17 hours*
Triple output run time .............................................................................. 9 hours*
*Battery run time may vary when using the AUX function and/or wraps with
higher air bladder capacity than that of Wildcat Medical model TP-3333 leg cuffs.
This device is not protected against the ingress of water (ordinary protection,
IPX0).
Equipment is not suitable for use in the presence of flammable anesthetic
mixture with air or with oxygen or nitrous oxide.
1
intended Uses
The TriplePlay TPVT-01 is intended to be an easy to use portable system,
prescribed by a physician, to help prevent the onset of DVT in patients by
stimulating blood flow in the extremities (simulating muscle contractions).
This device can be used to:
• Aid in the prevention of DVT;
• Enhance blood circulation;
• Diminish post-operative pain and swelling;
• Reduce wound healing time;
• Aid in the treatment of: stasis dermatitis, venous stasis ulcers, arterial
and diabetic leg ulcers, chronic venous insufficiency and reduction of
edema in the lower limbs;
• As a prophylaxis for DVT by persons expecting to be stationary for long
periods of time.
Contraindications
The TriplePlay TPVT-01 must not be used to treat the following conditions:
• Persons with suspected, active or untreated: deep vein thrombosis,
ischemic vascular disease, severe arteriosclerosis, pulmonary edema,
congestive heart failure, thrombophlebitis or an active infection;
• On a leg where cuffs would interfere with the following conditions:
vein ligation, gangrene, dermatitis, open wounds, a recent skin graft,
massive edema or extreme deformity of the leg;
• On patients with neuropathy;
• On extremities that are insensitive to pain;
• Where increased venous or lymphatic return is undesirable;
5
The rechargeable batteries supplied in this unit are not field replaceable.
Return unit to Wildcat Medical if batteries require replacement.
nOTE: Recharge batteries every 60 days when unit is not in use in order
to maintain battery integrity. Batteries can be recharged approximately 500
times between replacements.
Battery charge (from depleted state) takes approximately 4 hours and is
terminated automatically by the control circuitry.

warnings and Precautions

warning: Do not open or remove covers. No user serviceable parts
inside. Direct all service needs to Wildcat Medical, Inc.
warning: If pulsations or throbbing occur, the cuff may be wrapped too
tightly. Loosen immediately.
warning: Stop using device if swelling occurs; consult physician.
warning: Device is to be used only by the patient prescribed, and only
for its intended use.
warning: Ensure the pump control unit is turned off and unplugged
from the wall outlet prior to and while cleaning or disinfecting.
warning: Equipment should not be used in the presence of any
FLAMMABLE ANESTHETIC MIXTURE WITH AIR OR WITH OXYGEN OR
NITROUS OXIDE.
CaUTiOn: Do not immerse in any liquid for any reason.
CaUTiOn: Do not operate device in a wet environment.
CaUTiOn: Allow cuffs to warm to room temperature if exposed to
temperatures below 5°C
CaUTiOn: Do not subject the unit to extreme shocks, such as dropping
the pump unit.
CaUTiOn: Contains no user serviceable parts. Contact Compression
Solutions Customer Service.
CaUTiOn: Do not place any items in an autoclave.
2

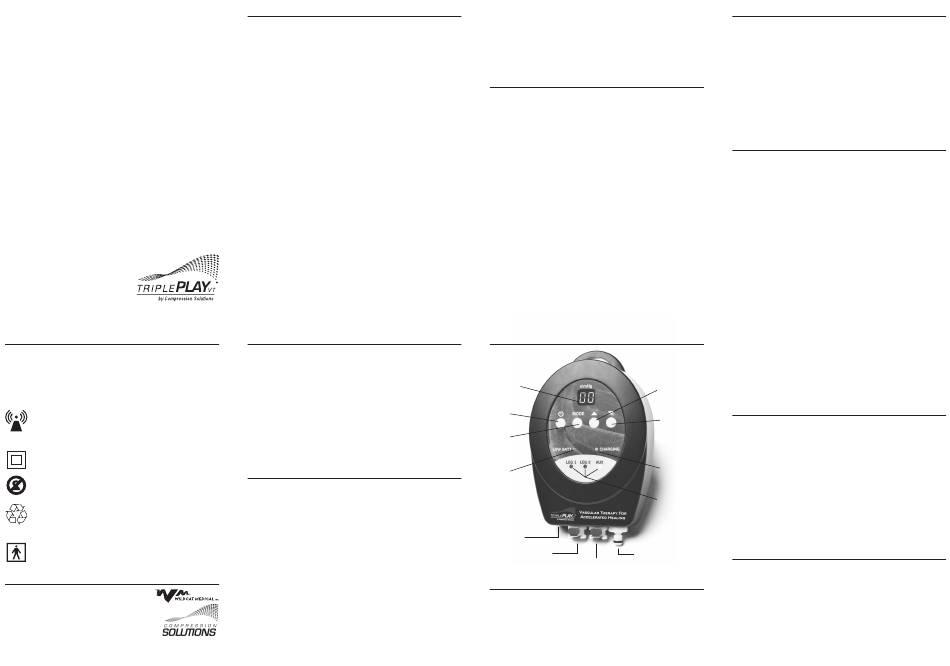

Description of System Components
Pressure
Pressure
Display
increase
Button
Power
Button
(On/OFF)
Mode
Select
Button
Battery
Charging
indicator
low
red = Charging
Battery
green = Charge
indicator
Complete
Selected Function
indicators
Battery
Charger
input
auxiliary
leg 1
air Connector
air Connector
leg 2 air
Connector
Default Settings
Leg Pressure Preset Level....................................................................... 50 mmHg
Default AUX Pressure Setting ................................................................ 35 mmHg
Auxiliary Output Pressure Range ......................................................20-50 mmHg
Cycle Time (approximate) ...............................................................60-70 seconds
Internal Safety Valve Relief Pressure .................................................. 100 mmHg
6
Environmental Considerations
• Do not expose device to direct sunlight.
• Do not operate pump below 0˚C (32˚F).
• Do not expose to heat exceeding 65˚C (149˚F).
• Do not operate the pump if it has been stored in freezing conditions. Allow
cuffs to warm to room temperature if exposed to temperatures below 5˚C
(41˚F).
• Do not unroll or attach the cuffs in below freezing temperatures (0˚C /
32˚F) as damage to the air bladders can occur, making them unable to hold
pressure.
• Store in a dry location between +10˚C (50˚F) and +40˚C (104˚F), 30% -75%
relative humidity.
• Limit Transport Temperatures to between -20˚C (-4˚F) and +60˚C (140˚F)
• Normal Operating Conditions Temperature Range +10˚C (50˚F) to +40˚C
(104˚F) Relative Humidity 30% to 75%
Purpose of this Device
The purpose of the TPVT-01 is to aid in the prevention of Deep Vein
Thrombosis (DVT) by helping to stimulate blood flow in the legs. This is
accomplished by an electronically controlled pump unit delivering a set
amount of air to the leg cuffs (model TP-3333) that, in turn, compress the calf
or calves to aid blood flow out of the lower extremities.
The TPVT-01 can also provide compression therapy to additional limb or
joint cuffs (as may be prescribed by a physician) through the use of the AUX
(auxiliary) function and output provided.
The pump unit will inflate the leg cuffs to a specified preset pressure of
50 mmHg, and the auxiliary cuff to a pressure of 20-50 mmHg (set by the user
or health care provider), and deflate once that pressure is reached. Cycles
are repeated until the unit is turned off. Internal rechargeable batteries
allow the system to be completely portable, thus preventing interruptions
in treatment.
3
iTEMS inClUDED BUT nOT SHOwn:
• Wall Plug Type Charger (DC Connector mates with control unit charger
input)
OTHEr iTEMS THaT May BE inClUDED BUT nOT SHOwn:
• Leg wraps
• Knee Wrap
• Shoulder Wrap
Set-Up instructions
Pressure
Decrease
1. Remove items from packaging and plastic bags.
Button
2. Make sure all of the pieces listed on pages 6 and 7 are readily available.
3. Inspect all components for damage. If any parts appear damaged or are
inoperable, contact Compression Solutions Customer Service (front cover).
4. Before using, connect the supplied power adapter plug into the jack on
the pump and plug into the main wall socket. The LED CHARGE indicator
will turn RED during the charge cycle and GREEN when the charge is
complete. The unit may be used while connected to the charger.
5. Uncoil the tubing being careful to remove any kinks from tubing due to
compression in shipping.
6. Apply garments to leg(s) (see "Attaching Leg cuffs"), route tubing under
clothing or in a manner to prevent a tripping hazard and to avoid kinking.
7. Ensure metal thumb tabs on the pump unit and cuffs' air connectors are
depressed to allow the air tube connector(s) to engage.
8. Connect air tube(s) to pump air outlets.
attaching the leg Cuffs
1. Make sure that the securing tabs are on the inside of the sleeve relative
to your leg.
2. Place the cuff so the middle of the bladder outline is against the back of
your calf with the air tube fitting facing out.
3. Wrap the cuff around your calf so that it is a snug fit and fasten the securing
tabs. A loose fitting cuff can cause a low pressure (LO) error alarm.
4. Adjust as necessary.
7
