INSTALLATION INSTRUCTIONS FOR ALBA PRO ELITE RAPTOR NERF
1) Remove the 2 forward engine mount bolts (14mm socket) that go thru
the lower frame. (The kit may supply 2 new bolts and nuts to replace the stock
ones, it is your choice which ones to use.)

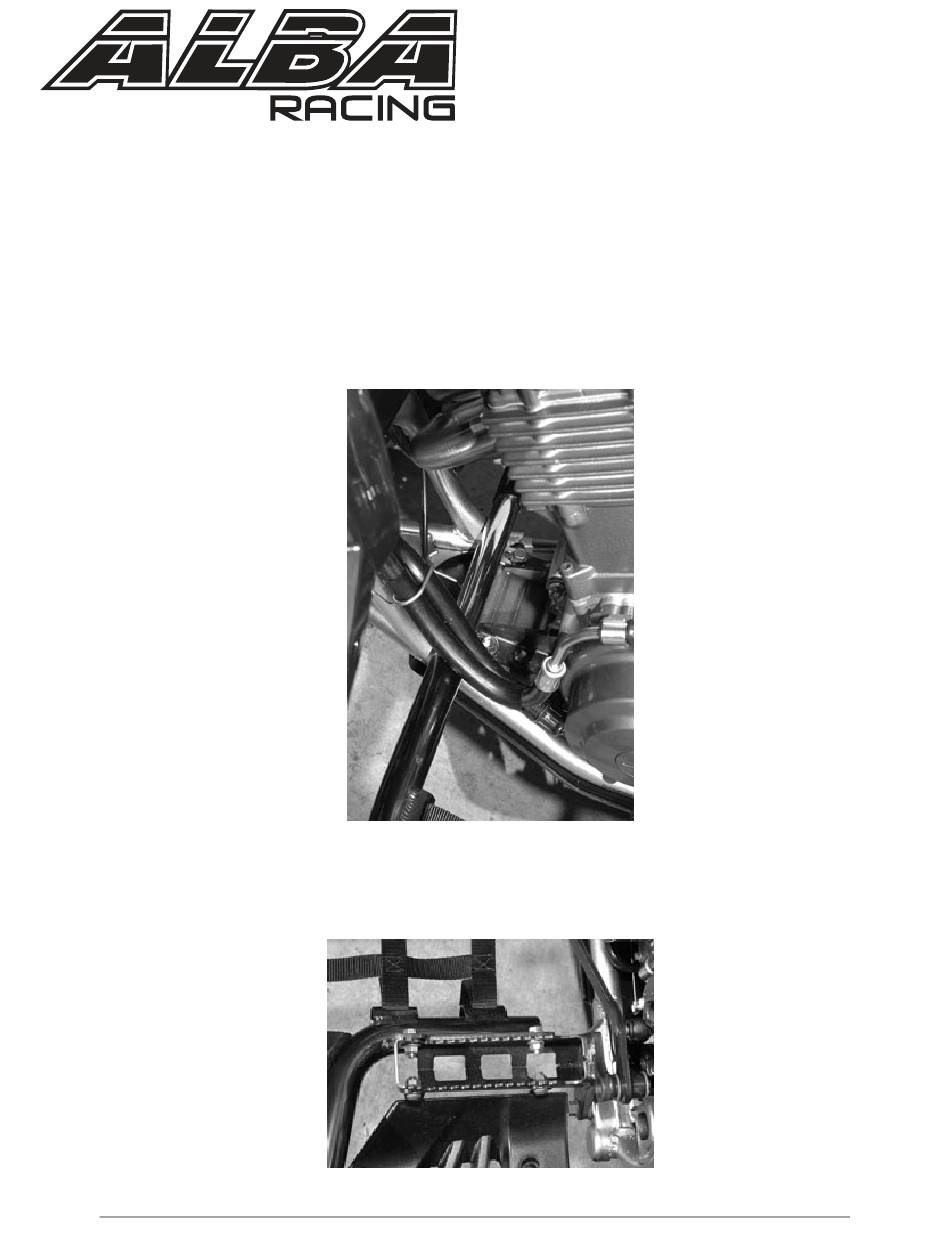

2) Mount the chrome tube with the tabs facing backwards. Use the same bolts you
removed in step 1. (see picture)
Note: The bar will go under the water and oil lines. Be sure you don't pinch the
reverse cable under the mount bracket. Do not tighten the bolts yet!
3) Slide both nerf bars over the mount bar and install the bolt and nut thru the 2
holes in the nerf and foot peg on each side. See picture:
BARS
Advertisement
Table of Contents
Related Manuals for Alba Racing pro elite raptor
Summary of Contents for Alba Racing pro elite raptor
- Page 1 INSTALLATION INSTRUCTIONS FOR ALBA PRO ELITE RAPTOR NERF BARS 1) Remove the 2 forward engine mount bolts (14mm socket) that go thru the lower frame. (The kit may supply 2 new bolts and nuts to replace the stock ones, it is your choice which ones to use.) 2) Mount the chrome tube with the tabs facing backwards.
- Page 2 4) Tighten the bolts thru the pegs first, then tighten the 2 engine mount bolts. 5) Install Nets as shown 6) Check all bolts to be sure they are tight 7) Have fun and be safe!
