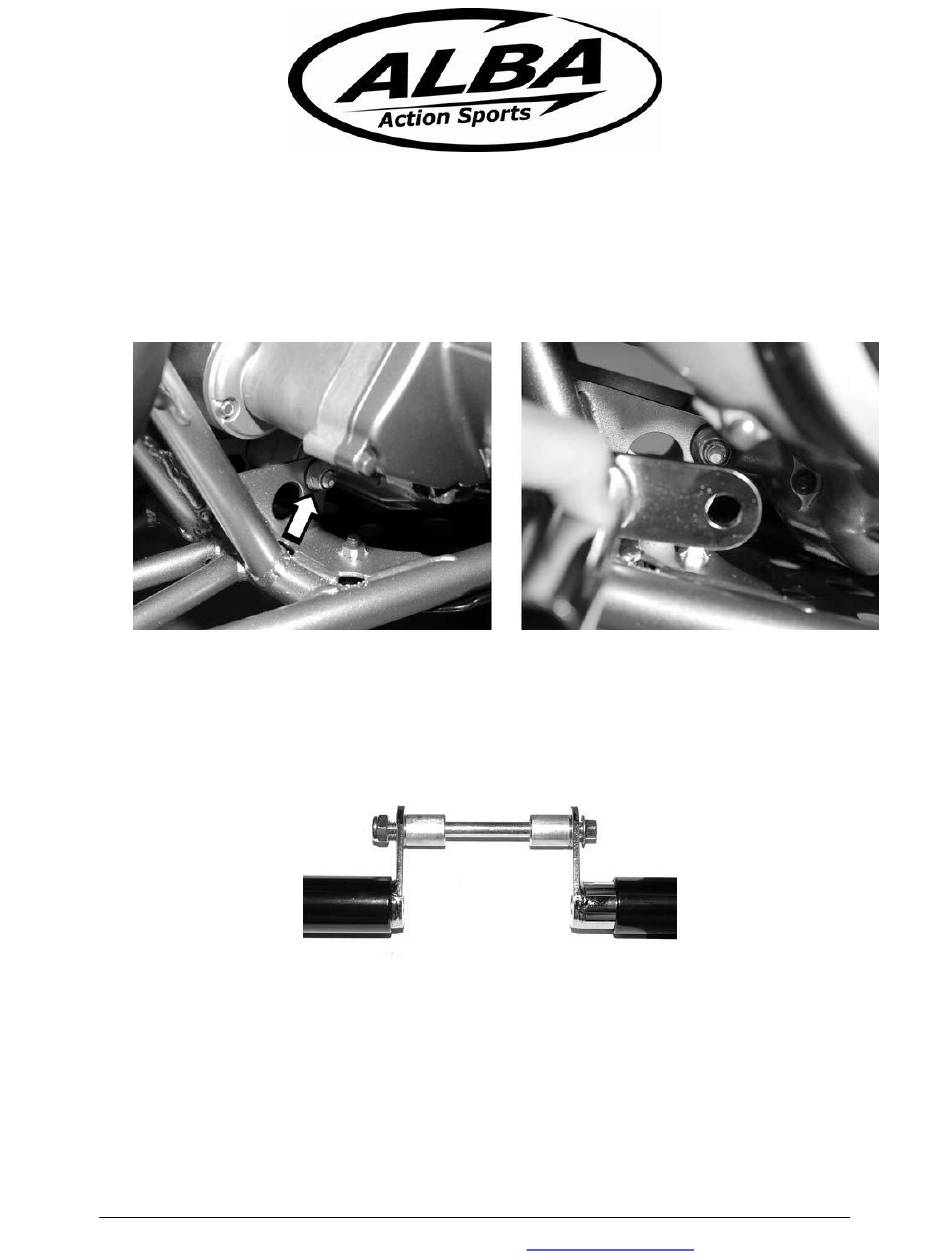

1) Remove the 2 forward engine mount bolts (14mm socket) that go thru
the lower frame. (The kit includes a replacement longer bolt, nuts, spacers and
washer.)
2) On both sides of the quad, loosely mount the chrome tube with the tabs facing
backwards using the included hardware. (see picture)
See photo below for assembly order. Make sure that the spacers are in the correct
position between the chrome mounting hole and the frame.
3) Slide both nerf bars over the mount bar. Do not tighten bolts yet!
Team Alba Racing · 12160 Community Road, Poway, CA 92064 ·
INSTALLATION INSTRUCTIONS
ALBA PRO ELITE
RAPTOR 350 NERF BARS
www.teamalbaracing.com
· 858-413-2598
