SJRC Z5 Manual

Folding drone
Hide thumbs
Table of Contents

Advertisement

Quick Links

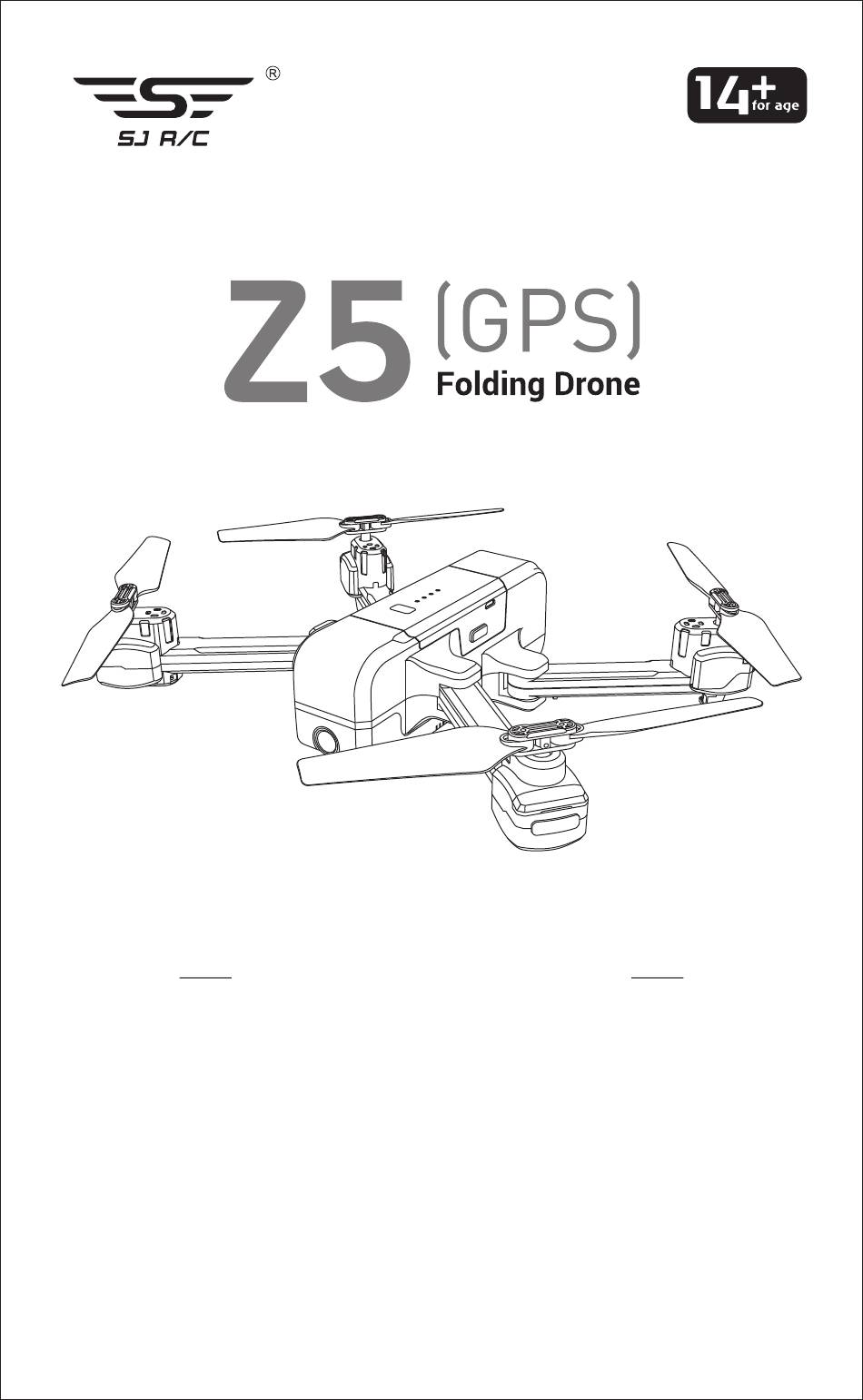

ULTRAPORTABLE AND FOLDABLE
In order to make sure that it meets the requirement of the electromagnetic environment of the
aviation radio station, flying within the scope of 10 kilometers on each side by taking the airport
runway center line as the middle line is HIGHLY FORBIDDEN or flying within the scope of 20
kilometers by taking both ends of the runway as the center is HIGHLY FORBIDDEN. Flying on
the route of the airline is also PROHIBITED. Stop using all kinds of flying models or unmanned
Quad-rotors in the AREA that prohibited by related authority or department of our country.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z5 and is the answer not in the manual?

Questions and answers

Lucio Rojas
May 25, 2025

I can't connect my drone to my cell phone via Wi-Fi. Wi-Fi doesn't appear on my cell phone My cell phone is a Samsung S21 Ultra.

0
1 comments:
Mr. Anderson
May 26, 2025

To connect your SJRC Z5 drone to your Samsung S21 Ultra via Wi-Fi:

1. Place your phone in the controller holder.
2. Power on the drone and controller.
3. On your Samsung S21 Ultra, go to Wi-Fi settings.
4. Look for the drone’s Wi-Fi network named "SJ GPS Pro" and connect to it. The drone uses 5G Wi-Fi, so your phone must support 802.11ac, which the S21 Ultra does.
5. Open the "SJ GPS Pro" app on your phone.
6. Follow the Quick Start instructions in the app to bind the controller and calibrate the compass if needed.

You should now be ready to fly.

This answer is automatically generated

0

Related Manuals for SJRC Z5

Summary of Contents for SJRC Z5

  • Page 1 ULTRAPORTABLE AND FOLDABLE In order to make sure that it meets the requirement of the electromagnetic environment of the aviation radio station, flying within the scope of 10 kilometers on each side by taking the airport runway center line as the middle line is HIGHLY FORBIDDEN or flying within the scope of 20 kilometers by taking both ends of the runway as the center is HIGHLY FORBIDDEN.

  • Page 2: Table Of Contents

    CONTENTS PREFACE -------------------------------------------------------------------------- 1 WARNING ------------------------------------------------------------------------- 2 FLY SAFETY --------------------------------------------------------------------- 5 TRANSMITTER FUNCTIONS --------------------------------------------- 6 AIRCRAFT DIAGRAM -------------------------------------------------------- 7 1.ASSEMBLE THE PROPELLER ----------------------------------------- 7 2.INTELLIGENT FLIGHT BATTERY ------------------------------------ 7 3.CHARGING THE BATTERY --------------------------------------------- 8 USING THE TRANSMITTER ----------------------------------------------- 9 FLIGHT ------------------------------------------------------------------- 9 10 11 COMPASS CALIBRATION ----------------------------------------------- 10 WAY POINT FLIGHT -------------------------------------------------------- 12 POINT OF INTEREST ------------------------------------------------------- 12...

  • Page 3: Preface

    PREFACE Thank you for purchasing the SJ-Series GPS Drone. Please read all instructions and warnings carefully before operating. Please also keep this instruction manual for future reference and maintenance. IMPORTANT: 1. This product is not a toy. It is a precision device; integrating machinery and electronics with air mechanics and high frequency transmission.
  • Page 4 4. Avoid controlling it independently. New users may have certain difficulties during the early stages of learning to operate this aircraft. Please try to avoid operating the aircraft alone. When available, always operate this aircraft under the guidance of a more experienced user.

  • Page 5: Warning

    WARNING 1. There is important information contained in this package and instruction manual, please keep it for future reference. 2. You have the responsibility to make sure that this model of aircraft won’t cause injury to others’ body or cause any damage to property. 3.
  • Page 6 20. The drone should be kept far away from any other electric compliance or equipment as far as possible or kept far away from the place where having the magnetic object nearby as they may cause interference with each other. 21.

  • Page 7: Fly Safety

    FLY SAFETY Fly in Open Strong GPS Maintain Line Fly Below Areas Signal of Sight 400 feet (120 m) Avoid flying over or near obstacles, crowds, high voltage power lines, trees, airport or bodies of water. DO NOT fly near strong electromagnetic sources such as power lines and base stations as it may affect the onboard compass.

  • Page 8: Transmitter Functions

    TRANSMITTER FUNCTIONS 1. Throttle stick 2. Direction stick 3. Click one button Return home 4. Click-"DI"sound-Power on; Press once, then hold the button for 2 seconds --“DI”sound-- Power off 5. Click Headless mode; Hold the button for 3 seconds to turn off GPS mode 6.

  • Page 9: Aircraft Diagram

    AIRCRAFT DIAGRAM 1. HD Camera 2. Propeller 3. Motor 4. LED indicator 5. Intelligent battery 1. ASSEMBLE THE PROPELLER Please note that the letter “A” or “B” is printed on each propeller, and make sure all the propellers are attached in the correct motor position. 2.

  • Page 10: Charging The Battery

    3. CHARGE THE BATTERY Press the buckle and Pull out the Battery from the drone. Phone adapter: Charging time: Charging time About 110 minutes of the transmitter: (Not included) (Depending on About 50 minutes Charging Power) Tip: When the transmitter is in low power, the power indicator light on the transmitter will keep flashing, you need to charge the transmitter this time.

  • Page 11: Flight

    REMOTE CONTROL OPERATING METHOD Throttle Joystick DOWN Direction Joystick FLIGHT Step 1: Turn on the drone and set down on a level surface — The drone will auto-trim to this level surface. — All lights blingking red. Step 2: Turn on the remote control —...
  • Page 12 COMMON PROBLEMS AND SOLUTIONS THE PROBLEM REASON COUNTERMEASURES Drone lights flashing and 1. Remote is not synced to 1. Refer to the Quick Start guide no response from the drone the drone. and re-sync the drone. when operating. 2. Insufficient battery power. 2.

  • Page 13: Compass Calibration

    Step 4: Compass Calibration 1. Compass Calibration Part 1 — Push the joysticks into the 1 & 11 o’clock position. — Lights rapid-blinkingBlue/red (back) and White/red(front). — App drone status: “Compass calibration”. 2. Compass Calibration Part 2 Front — Keeping the drone level, pick up he drone from the back and rotate your body in one full circle (360°).
  • Page 14 Starting/Stopping motors — Push the joysticks into 5 & 7 o’clock position. — Motors are starting automatically, push the left joystick to take off; or short pressing to take off. NOTE: Starting the motors should be set before the drone take off. —...

  • Page 15: Way Point Flight

    WAY POINT FLIGHT — Firstly, make sure to download and save the local map in your smart phone, then you can start the Way point flight. — Successfully connect the aircraft WIFI with your smart phone, click the App, then you can find a RED CIRCLE(LIMITTED FLIGHT RANGE)/TAKE- OFF POSITION/AIRCRAFT CURRENT POSITION on the map, mark the points (16 points at most) you plan to fly within the RED CIRCLE range on the map.

  • Page 16: Product Functions Profile

    PRODUCT FUNCTION PROFILE 1. TAKE-OFF/LANDING/EMERGENCY STOP About 5 feet Rotating propellers can be dangerous. DO NOT start the motors when there are people nearby. Press , the propellers will spin and the drone will take off at an altitude of about 5 feet. (Always keep the head of drone facing forward).

  • Page 17: Active Track

    3. ACTIVE TRACK Click , choose , tap on the object or person you want to track, and tap to confirm your selection. (NOTE: Make sure the size of the frame you mark is the same as the object or person you tap,the frame should not be too large.） 4.

  • Page 18: Headless Mode

    6. HEADLESS MODE 1. It defaults the Normal Mode when the quadcopter and remote control are matched sucessfully, click , enter into Headless mode; click again, exit the Headless mode. 2. Normal mode: Before take-off, the white lights on the quadcopter where they are heading is the forward direction.

  • Page 19: Trim

    7. TRIM UNDER NO GPS MODE If the drone flies under NO GPS Mode, you can trim the drone to obtain more balanced flight. Press for 3 seconds, and you will enter the trim mode. Push the direction stick to the opposite side that the drone drifts to rebalance the drone.
  • Page 20 Controls ON/OFF Media Gallery VR Split Screen Back to Main Menu Way Point Flight Flight Record Flip Screen GPS Signal Remote Battery Drone Battery Follow Me Active Track Hand Gesture Return Home Take Photo Auto Take-off Take Video Auto Landing Sound Recording Drone Status Speed (meters/sec)
  • Page 21 2. APP ONE KEY SHARE FUNCTION Waiting for GPS Signal D:00 H: 0.0 DS: 0.0 VS: 0.0 Pic. 1 Photo Video 2017-12-28 Check all Share Save to the Delete phone album Pic. 2 Photo Video 2017-12-28 Pic. 3 照片 视频 AirDrop.
  • Page 22 3. HOW TO SEARCH THE LOST DRONE .Continue to click 3 times to open the MAP surface to search the drone. ① Waiting for GPS Signal D:00 H: 0.0 DS: 0.0 VS: 0.0 .The last position of lost aircraft will be appeared on the MAP. ②...

  • Page 23: Camera Functions

    4. FLIGHT The Default GPS Mode is BEGINNER MODE, Under BEGINNER MODE: 1.Flight Distance is limited between 0-30 M. 2.Flight Altitude is limited between 0-30 M. 3.RTH Altitude is under 25 M. You can Turn-off the BEGINNER MODE to modify the parameters in the APP on your phone.
  • Page 24 SPECIFICATIONS ● Drone MODEL: Z5 Weight (Including Battery): 242g/8.5 oz Flight Time: About 15 minutes WIFI Distance: 100-150m/300~400m (Outdoor and unobstructed, depend on conditions and mobile device) Motor Model: 1020 Hovering: Enabled Operating Temperature Range: 32° to 104° F ( 0° to 40° C)
  • Page 25 ● Transmitter Operating Frequency: 2.4 GHz Capacity: 300 mAh Operating Voltage: 3.7V Max transmission distance: About 600m (Outdoor and unobstructed) Max Charging Time: About 50 minutes (Depending on Charging Power) Flight Time: About 10 Hours Mobile Device Holder: 4.7˝ to 5.5˝ Smart Phones Operating Temperature: 32°...
