SAT America SAT LI102W Quick Start Manual

Model No.: SAT LI102W
1D Barcode Scanner

Quick Start Guide

1D
Contents:● Barcode Scanner ●Cradle
● Quick Start Guide
● USB / RS232 Cable
● Power Adapter (Rs232 only )
No. :1230105001
5 Charging method
①
②

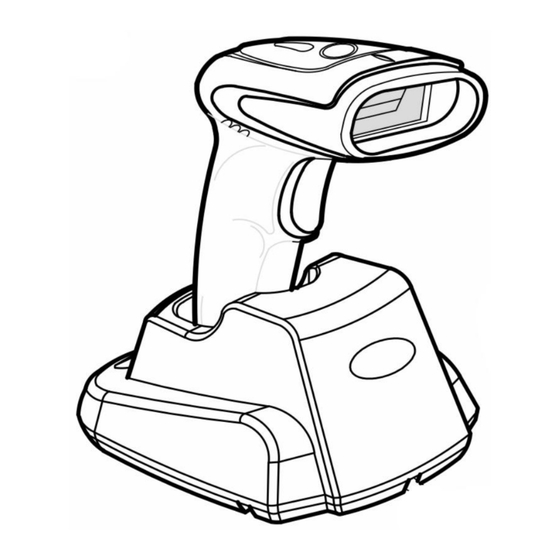

1 Scanner overview
LED Indicator
Buzzar
Trigger Bu on
Cradle LED
Indicator
Cardle
2 Cable plug&Unplug
v2.0
① Plug as picture above ② Press the buckle click,
then pull out the cable
Pairing Guide
Method
First step: Insert the cradle as above picture. the green light
of the cradle will con nue（ on not able to pair when
green light flashing.）
Second step: A er insert the cradle , it must be scan the
below bar code within 20s
Pair in one step
3
Cable connection guide
（1）USB Data cable
Scanning window
Scanner
（2）RS232 Data cable
Transmitter(Scanner)
Working mode：
Following working mode can be set directly.
*Real- me mode
Inventory mode
Cache mode
Note:
Real me mode: Scan and transmit data will automa cally lost
if upload failed.
Cache mode: Same as real me mode if connec on normal.
Scan bar codes will be automa cally restore if connec on
failed. Will upload one by one if connec on return as normal.
Inventory Mode : Scanning bar codes will be restored without
upload.
Will upload once scan "Upload data"barcode.
Will clear once scan"Clear data".
Will check sum once scan"Data sum"
4
Scanning method and distance
Correct
121311113
NOTE: LED beam should be full coveraged
on the bar code
Inventory mode setting
Following working mode can be set directly.
Upload data: Bar code data will transmit to terminal once
scan this bar code.
Date sum: Scan "Data sum"bar code to check the scanner
restore data sum.
Clear data: Scan"Clear data" and clear all the restore
data in scanner
.
Wrong
121311113
Upload data
Data sum
Clear Data
