- Page 1 www.cusamintercom.com CODING INTERCOM USER’S MANUAL...
-
Page 2: Table Of Contents
www.cusamintercom.com Contents Section Description page Ⅰ、System instruction ------------------------------------------2-6 Main Products---------------------------------------------2-3 ▲ ▲ Description of indoor phone-------------------------------4 ▲ Description of Door station--------------------------------5 System features----------------------------------------------6 ▲ Ⅱ、Technical parameter-------------------------------------------6 Ⅲ、Code setting--------------------------------------------------7-9 Ⅳ、Use method and problem dealing------------------------10-14 Ⅴ、System schematic and wiring diagram-----------------15-17 Ⅵ、Door station setting order------------------------------------18 Ⅶ、User’s operational order--------------------------------------19 Ⅷ、Wrong code form----------------------------------------------19 Ⅸ、Entrance guard setup instructions-----------------------20-21... -
Page 3: Ⅰ、System Instruction

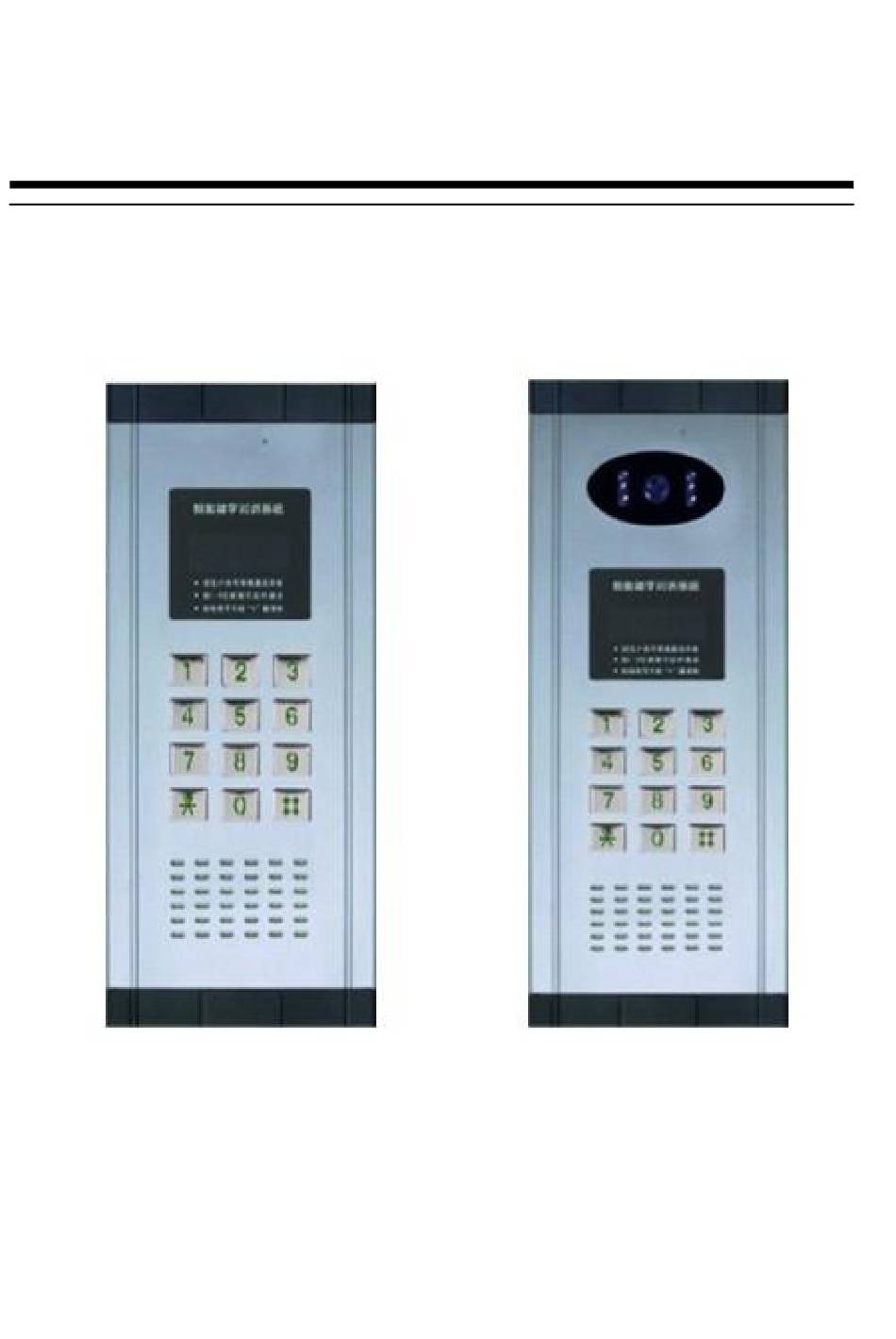

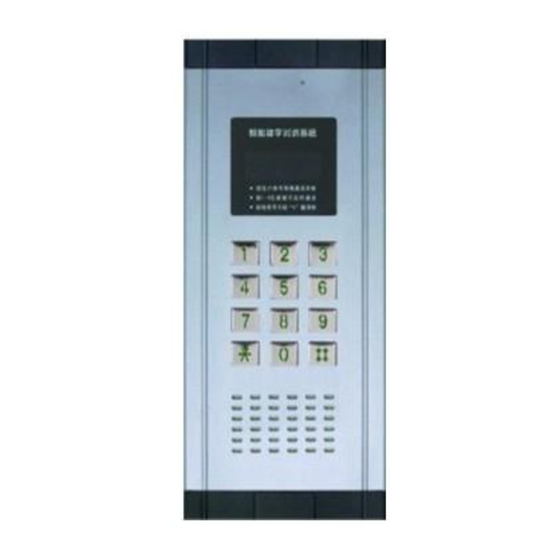

www.cusamintercom.com Ⅰ、System instruction Coding video and audio intercom system mainly consists of the door station, the module, indoor phones, the power source and so on, which is extremely suit for the high building ▲ Main Products Door station... - Page 4 www.cusamintercom.com Indoor phones...
-
Page 5: Description Of Indoor Phone
www.cusamintercom.com Description of indoor phone ▲ Location Description Function 4″/7″Indoor phone Screen Identify Visitor Power Light Indicates Power On Monitor Button View Picture On Indoor phone Call/Alarm(Alarm may choose ) Activate Alarm Button Unlock Button Operate Electric Door Lock Microphone Speak to Visitor Talk Button Telephone conversation... -
Page 6: Description Of Door Station
www.cusamintercom.com Description of Door station ▲ Location Description Function Camera Lens Sends Picture To Monitor Night Vision Light Illuminates Area In Darkness (LED Light) Speaker Enables You To Speak To Visitor Door Bell Button Pressing Gives Ding Dong Sound Microphone Enables Visitor To Speak To You... -
Page 7: System Features
www.cusamintercom.com ▲ System features LED inside the door station provides a clear picture even at night. It is with all functions and features that video and audio coding intercom system have Video indoor phones can be installed with audio indoor phones together, which is very flexible and convenient. -
Page 8: Ⅲ、Code Setting
www.cusamintercom.com Ⅲ、Code setting 1. Press**00,XXXX and enter into the coding state.(the original password of the manager is 2098) 2. Press **02 to change the coding state into “0”. 3. Using order code **16 to set the number of dialing,it depends on the floors (If it is over 9 floor,please use mixed dialing. - Page 9 www.cusamintercom.com ☆ The door station provides a quick order "**43" if the room number encoding method conforms to the rules of table 3.Use order “**40” to eliminate the comparative table of the module address and the room number". ☆ The manipulating setting of the extension phone number: press **15 and come up with Y011 after completes steps 1, 2, 3 (Y stands for the address, the 2 and 3...
- Page 10 www.cusamintercom.com Namely the coding sites are 01 to 99 (namely floors are 01 to 99), room number are 01 to 04. The first 8,421 is decimal and the latter 8,421 is the single. There are eight pairs of two sides contact pin. Coding site 01 (the first floor): the block of short-circuits should be inserted in the single 1 contact pin Coding site 03 (the third floor): the block of short-circuits should be...
-
Page 11: Ⅳ、Use Method And Problem Dealing
www.cusamintercom.com Ⅳ、Use method and problem dealing 1. The visitor can input the room number directly when he /she comes. Press “#” to eliminate and re-input when you input wrong number, then the extension telephone will have the ring sound. meanwhile, the indoor phone displays the image automatically. - Page 12 www.cusamintercom.com mainframe”, ” the extension phone” and "the balance". "The mainframe" uses to adjust the volume of the door station; "The extension phone" uses to adjust the volume of indoor phones, which limits in some range, and don’t attempt to adjust the volume of indoor phone and break potentiometer; "The balance"...
- Page 13 www.cusamintercom.com Table 1, comparative table of initialization room number and extension phone address (the 1st kind) (module (module (module (module address) (room address) (room address) (room address) (room (coding number) (coding number) (coding number) (coding number) site) site) site) site) 01.01 0101 05.01...
- Page 14 www.cusamintercom.com Table 2 ,comparative table of initialization room number and extension phone address (the 2nd kind) (module (module (module (module address) (room address) (room address) (room address) (room (coding number) (coding number) (coding number) (coding number) site) site) site) site) 01.01 0101 05.01...
- Page 15 www.cusamintercom.com Table 3 comparative table of initialization room number and extension telephone address (the 2nd kind) (module (module (module (module address) (room address) (room address) (room address) (room (coding number) (coding number) (coding number) (coding number) site) site) site) site) 01.01 0101 05.01...
-
Page 16: Ⅴ、System Schematic And Wiring Diagram
www.cusamintercom.com Ⅴ、 System schematic and wiring diagram 1、System structure schematic drawing... - Page 17 www.cusamintercom.com 2、System wiring diagram...
- Page 18 www.cusamintercom.com...
-
Page 19: Ⅵ、Door Station Setting Order
www.cusamintercom.com Ⅵ、Door station setting order CODE DIGIT CODE Significance remark ORDER *000 XXXX The manager operates the lock It should be confirm the manager password first XXXX Confirmating the manager **00 before using the order from **00 to **19 (4 passwords) password (Tacitly approves No, is 2098) XXXX... -
Page 20: Ⅶ、User's Operational Order
www.cusamintercom.com Ⅶ、User’s operational order Order name Order code Following code Remark Serial number’s The user revises the **20 0XXX(Serial number) password of XXXX(old password) Range of validity unlocking 8535(confirm code) 001-239 XXXX(new password) Serial number’s The user password *XXX XXXX(password) operates the lock (Serial Range of validity... -
Page 21: Ⅸ、Entrance Guard Setup Instructions
www.cusamintercom.com Ⅸ、Entrance guard setup instructions Refer to the below circle(the black short circuit block) 1 Set two Management Card (adding card and deleting card): First. Switch off the power → put the black short-circuit block cover on 0 → turn on the power →... -
Page 22: Ⅹ、Attentions
www.cusamintercom.com 3, deleting user cards: put an deleting card on the above of black short-circuit block for 1 second → a “bibi” sound → red and green light flash alternately → put any user card on the above of black short-circuit block for 1 second, it can be continuously →... - Page 23 www.cusamintercom.com 2. The section area should be bigger than 0.5mm ,if the length of master line is between 50M and 100M 3. The section area should be bigger than 0.15mm ,if the length of branch line is less than 20M 4.
- Page 24 www.cusamintercom.com Visible partially has two electric wires, one is for the surveillance requests (M), the other is for the video coaxial cable (vi). The video coaxial cable system uses SYV75-3, and should pay attention that the outer layer shield cann’t use as the wire to supply power, otherwise it possibly causes the power source and undulation interfering picture The section area should be bigger than 0.5mm when the length of...
