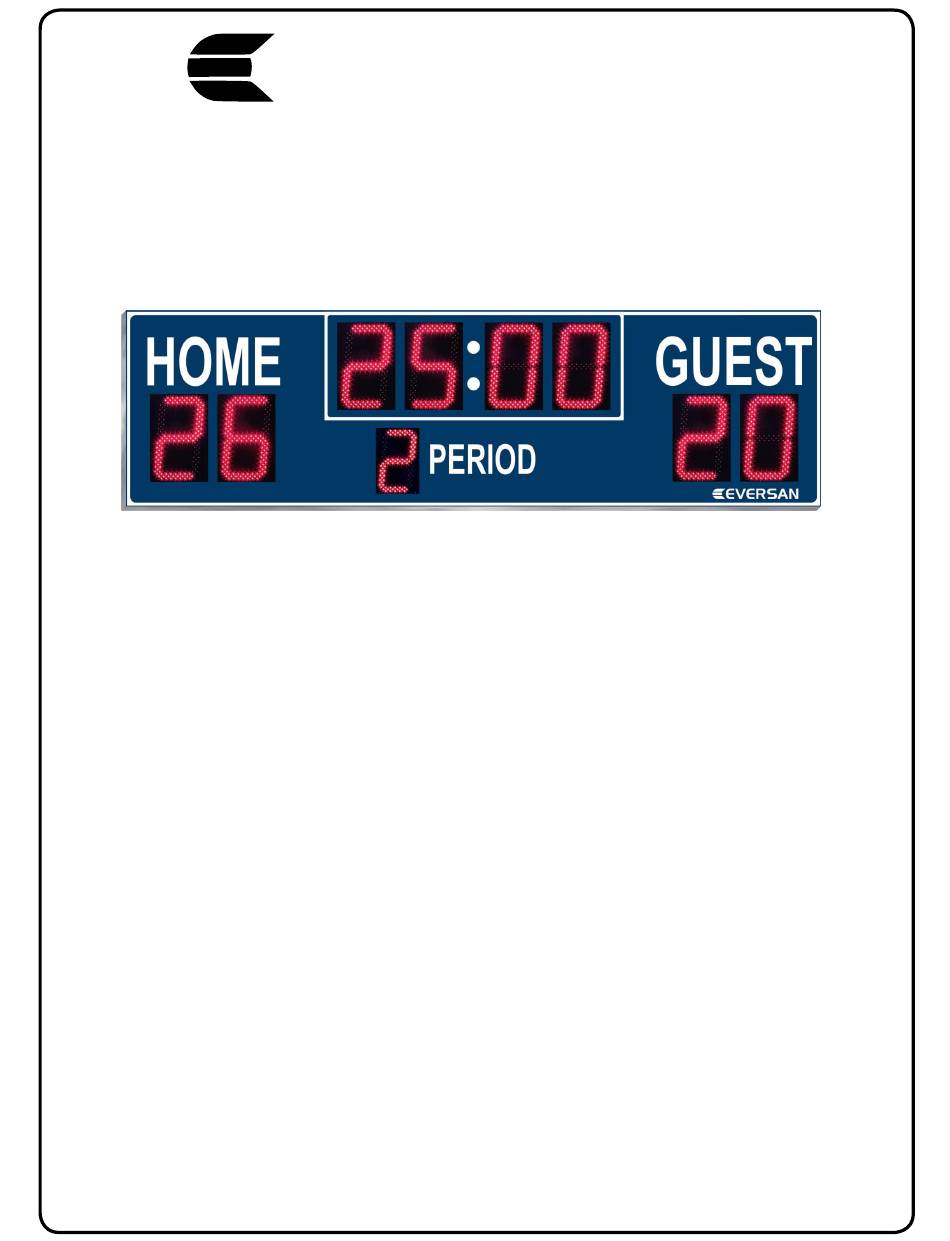

- Page 1 EVERSAN INC. www.eversan.com MODEL 9384 SYNERGY r e s o u r c e s MULTI-PURPOSE SCOREBOARD Instruction Manual Address: 34 Main Street, Whitesboro, NY 13492 Phone: 315-736-3967 • Toll Free: 800-383-6060 • Fax: 315-736-4058 SCOREBOARDS • TIMERS • MESSAGE SIGNS • VIDEO DISPLAYS • WIRELESS...
-
Page 2: Table Of Contents
Instructions for Wiring ..............2 Wireless Operation ................3 Installation Diagram ................4 Operating Instructions ..............5 Maintenance of Outdoor Scoreboards ..........6 Removal and Replacement Procedures ..........7 Cabled Console ................8 Wireless Console ................9 EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: 315-736-4058 www.eversan.com... -
Page 3: Check List
Power scoreboard using 120VAC and test scoreboard using the operating instructions provided. SHOULD THERE BE A MALFUNCTION OR SHIPPING DAMAGE, NOTIFY THE SHIPPER AND EVERSAN IMMEDIATELY. INSTALLATION EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: 315-736-4058 www.eversan.com... -
Page 4: Instructions For Wiring
Page 2 1. It is recommended that a professional sign company be hired to install the scoreboard (see drawings). Eversan recommends a minimum depth of 6 ft. and a minimum diameter of 2 ½- ft. pylon for each I-beam. 2. Calculate the wind loading by standard formula for height and dimension of sign. Dimension of the sign is 4.5FT. -
Page 5: Operating Instructions
The following steps must be used to ensure proper communication from the 9384 wireless control console and each scoreboard you want to control. 1. Turn the power on to each 9384 scoreboard that you want to control. The scoreboards will show a dash in each digit location. - Page 6 EVERSAN INC. Page 4 SYNERGY r e s o u r c e s EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: 315-736-4058 www.eversan.com...
- Page 7 Wireless Control Console Battery Operation: (Optional) 1. Turn the scoreboard power on. 2. Attach Eversan, Inc.’s special battery connector to the 4-pin connector on the back of the wireless control console. (see diagram) 3. Connect the cigarette lighter plug into the Eversan battery pack or a car cigarette lighter.
-
Page 8: Maintenance Of Outdoor Scoreboards
The EVERSAN Outdoor Scoreboard modular design allows easy removal and replacement of all key elements. Under no circumstances will EVERSAN, INC. pay for service performed on any of our products without expressed written notice from EVERSAN, INC. to the Service Company. -
Page 9: Removal And Replacement Procedures
NOTE: The connector is polarized and must be installed in only one direction. 5. Replacing the (4) four screws that hold the digit into place and test scoreboard. If problem persists please contact Eversan, Inc. EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: 315-736-4058 www.eversan.com... - Page 10 EVERSAN INC. Page 8 SYNERGY r e s o u r c e s EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: 315-736-4058 www.eversan.com...
- Page 11 EVERSAN INC. Page 9 SYNERGY r e s o u r c e s EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: 315-736-4058 www.eversan.com...
- Page 12 EVERSAN INC. www.eversan.com MODEL 9384 SYNERGY r e s o u r c e s MULTI-PURPOSE SCOREBOARD Address: 34 Main Street, Whitesboro, NY 13492 Phone: 315-736-3967 • Toll Free: 800-383-6060 • Fax: 315-736-4058 SCOREBOARDS • TIMERS • MESSAGE SIGNS • VIDEO DISPLAYS • WIRELESS...
