Test-Um Lil' Buttie LB100 Series Operating Instructions

WARRANTy
Test-Um Inc. guarantees that its products will be free of
all defects in material and workmanship. This warranty
extends for a period of 1 months for the portable
telephone test set and 1 months for the cord set from
the date of manufacture or proof-of-purchase.
All product deemed defective under this warranty will be
repaired or replaced at Test-Um's discretion. No further
warranties either implied or expressed will apply, nor
will responsibility for operation of this of this device be
assumed by Test-Um Inc.
WEEE Compliant: Prior to disposal of this product,
please contact Test-Um Inc. for proper disposal options.
SHIPPING
Before returning any product to Test-Um Inc., you must
first request a Return Merchandise Authorization Number
by contacting our Customer Services Dept. at 05-
-1500. No shipments will be accepted without this
number, which must be clearly marked on the shipping
label.
1. Ship the equipment with a copy of the sales receipt,
if available.
. Attach a description of the operational problem.
. Include a contact name, phone number, and e-mail
address.
4. Pack securely to prevent damage during shipping.
5. Ship prepaid to: Test-Um Inc.
0 Calle Plano,
Camarillo, CA 901
SUPPORT SERVICE
For technical information and support, please visit www.
test-um.com or send email to support@test-um.com.
Test-Um Inc.
The Intelligent Test Solutions Company
0 Calle Plano
Camarillo, CA 901
(05) -1500 / (05) -1595
FAX
www.Test-Um.com
TU9 (REV C-11/05)
----
Test-Um Inc.
The Intelligent Test Solutions Company
LB100
Lil' Buttie Test Set TM
Operating Instructions
Caution
Please follow correct safety practices when
operating this unit. Do not connect this unit to 110
volt or 220 volt AC electric power lines. Correct
operation is entirely the responsibility of the user.
Should the Lil' Buttie, intentionally or by accident,
be connected to electric power, all warranties are
immediately null and void.
GENERAL DESCRIPTION

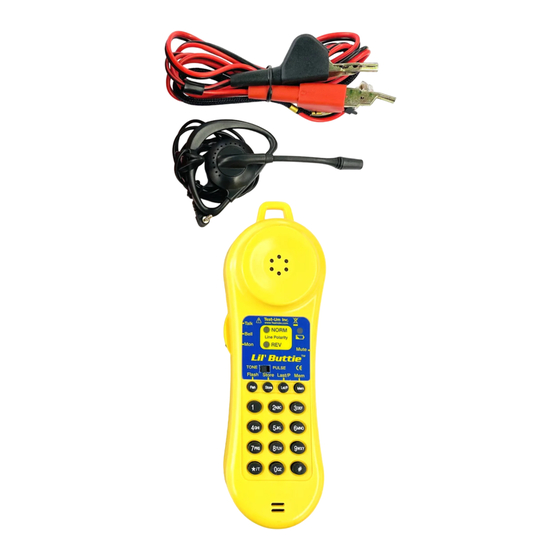

Test-Um's Lil' Buttie TM is a self-contained, self-powered,
portable telephone test set for use by installers, repair
technicians, and other authorized personnel for temporary
communications and to test the operational service and
installation of telephone/data lines.
FEATURES
• Tone and Pulse Dialing
• Microphone Mute Feature
• Last Number Redial -  Digits
• Continuous Line Polarity Indication ( or
talk monitor
• Electronic Ringer
• Amplified Line Monitor for volume levels comparable
to "off hook" operation.
• Modular cord set attachment
• Low Battery Indicator
• Headset Jack for hands-free operation
• Battery-Powered Monitor Mode with auto power
off on dead lines or when disconnected
A compact size and comfortable ergonomic shape makes
it small enough to carry in your pocket or to wear on
your belt, while still retaining the normal earpiece-to-
microphone dimensional spacing for comfortable use
while resting on the shoulder.
Included headset jack and ear-mounted headset allows
for hands-free operation. Headset is compact enough
to fit in a shirt pocket and can be worn on either ear. Its
unobtrusive design makes it easy to use while wearing a
hard hat or inclement weather clothing.
The body is made of high impact resistant to
abs
withstand the rough handling and shocks that craft tools
are normally subjected to in their everyday use.
--1--
A belt loop provides a convenient and secure location
for the attachment of the unit to various locations. An
optional belt clip attachment is also provided.
The modular jack cord set with strain relief feature allows
for easy field replacement or direct connection to modu-
Series
lar wall jack with a standard phone cord set.
FUNCTION SWITCHES, BUTTONS, AND LEDs
TALK – BELL
– MONITOR
SWITCH
)
RJ JACK
Test-Um Inc.
Talk www .Test-Um. com
NORM
Bell
Line Polarity
REV
Mon
Mute
Made in USA
Lil' Buttie TM
TONE PULSE
Flash Store Last/P Mem
FLASH
RECALL #
FROM MEMORy
STORE #
TO MEMORy
REDIAL/INSERT
PAUSE IN DIALING
SEQUENCE
----
Talk-Bell-Monitor Switch This three-position slide
switch is located on the side of the unit below the
receiver. It is used to select the mode of operation.
Talk This position creates an off-hook condition. In this
mode, the unit can be used for signaling, conversation
and testing, just like an ordinary telephone.
Bell This position connects the internal electronic ringer
for receipt of incoming ring signals. This on-hook mode
also isolates both the testing and speech circuits from
the line.
Monitor The battery is off in this mode. This position
connects the test set through a high impedance coupling.
This on-hook connection allows for telephone line
monitoring without disturbing conversations, network
signaling, or data transmissions. In this mode, the unit's
speech, ring and test circuits are isolated from the line.
MUTE
Tone-Pulse Switch This two-position slide switch is
BUTTON
used to select the dialing mode. The
selects signaling. The
dtmf
style pulse dialing.
Mute This button is located on the opposite side of the
Talk-Bell-Monitor switch. Press and hold to shut the
unit's transmitter off. This feature may also be used to
improve communications in noisy locations where it is
difficult for the user to hear a person on the other end of
the line.
Flash When pressed, causes a 0.6 second interruption
of the loop current (hook flash). Usually used for register
HEADSET recall, to put a call on hold, to activate a second line, or
where some special function needs to be activated.
JACK
*/T When pressed in pulse mode, switches from
dialing mode.
tone
Store Press Store, enter the number you wish to store,
press Store and the location on the numeric keypad (0-9)
where you wish to store the number. Ten 17 digit numbers
LOW BATTERy
can be stored.
Last/P When pressed first, the last number dialed
LINE POLARITy will be redialed from the unit's internal memory. When
pressed after another digit, a pause of approximately .6
INDICATOR
seconds is inserted in the dialing sequence for
Centrex switch dialing or other systems that require an
intermediate access digit in order to access a line.
Mem To retrieve a stored number, press Mem and the
numeric key (0-9) you stored the number to and the
number will be automatically dialed.
position
tone
position selects rotary
pulse
pulse to
or
pbx
----
