Summary of Contents for Gentex GHSLF Series
Page 1

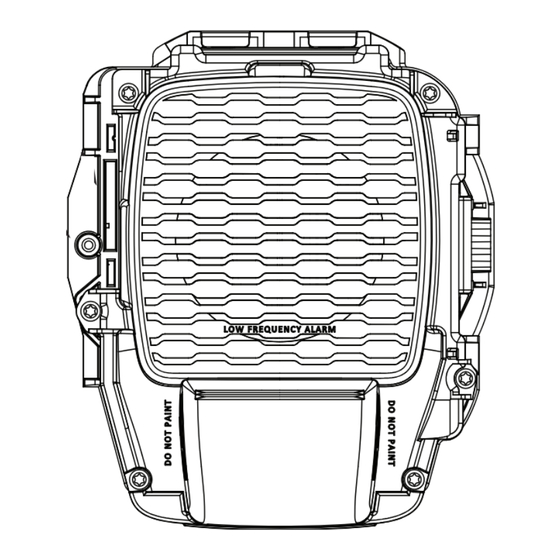

GHLF SeRIeS GHSLF SeRIeS ANSI/UL & CAN/ULC COMPLIANT LOW FReQUeNCY VISIBLe AND/OR AUDIBLe SIGNALING APPLIANCe ADDItIONAL CAN/ULC LISteD PRODUCt INFORMAtION IS FOUND ON PAGe 4 GHLF PRODUCT INFORMATION GHLF Horn Decibel Levels and Current Ratings Horn Decibel Levels: 24VDC Nominal Horn Horn Current Ratings (UL Max) Reverberant Room Current Ratings (mA) Over Input Voltage Range of 16-33V (mA) Regulated Regulated Regulated Regulated Minimum SPL Minimum SPL 24VDC 24VDC 24VFWR 24VFWR 24VDC Max. 24VDC Max. 24VFWR Max. 24VFWR Max. at 10Ft. Per at 10Ft. Per Operating Operating Operating Operating Horn Mode Operating Operating ...
Page 2
THIS APPLIANCE IS NOT RECOMMENDED FOR USE ON CODED OR PULSING SIGNALING CIRCUITS. HOWEVER, USE OF THE GTSM CONTROL MODULE IS PERMITTED TO SYNCHRONIZE THE HORN. w THE FOUR PULSE TEMPORAL PATTERN (TEMPORAL 4) CAN ONLY BE OBTAINED ON THIS PRODUCT WHEN USED IN CONJUNCTION WITH THE GENTEX GTSM SYNCHRONIZATION MODULE OR GTSM SYNCHRONIZATION PROTOCOL.
5. Return to: Gentex Corporation, 10985 Chicago Dr., Zeeland MI 49464. Prior to returning, call Gentex at 1-800-436-8391 or e-mail FP_RMA@gentex.com to obtain a RMA Number from our Customer Service Department.
Page 4
LIMITED WARRANTY For a period of 36 months from the date of purchase or a maximum of 42 months from the date of manufacture (or as long as required by applicable law), Gentex warrants to you the original purchaser that the appliance described in this product information booklet will be free from defects in workmanship and materials under normal use and service.
Page 5
SÉRIeS GHLF SÉRIeS GHSLF CONFORME À ANSI/UL ET À CAN/ULC APPAReIL De SIGNALISAtION VISUeLLe OU SONORe BASSe FRÉQUeNCe POUR DeS ReNSeIGNeMeNtS SUPPLÉMeNtAIReS SUR L’HOMOLOGAtION CAN/ULC DU PRODUIt, VOIR LA PAGe 4. RENSEIGNEMENTS SUR LE PRODUIT: GHLF GHLF NIVeAUX SONOReS (dB) De L’AVeRtISSeUR et CARACtÉRIStIQUeS NOMINALeS De COURANt Niveaux sonores (dB) de Caractéristiques nominales de courant pour un Caractéristiques nominales de courant de l’avertisseur pour l’avertisseur : Pièce réverbérante avertisseur de 24 V c.c. (mA) une plage de tensions d’entrée de 16 à 33 V (mA) tension tension dBnps minimum dBnps minimum tension stabilisée tension stabilisée 24 V c.c. 24 V c.c. 24 V RDA 24 V RDA stabilisée stabilisée à 10 pi (3,04 m) à 10 pi (3,04 m) maximum de 24 V maximum de 24 V Mode de Courant de Courant de ...
Page 6
Câblage pour la synchronisation du stroboscope et de l’avertisseur. Avec cette méthode, vous pouvez : Utiliser le protocole de synchronisation GTSM Gentex pour assurer la synchronisation des cadences temporelles à trois tonalités et à quatre tonalités et pour désactiver l’avertisseur, le cas échéant.
Page 7
5. Retourner à : Gentex Corporation, 10985 Chicago Dr., Zeeland MI 49464. Avant de retourner l’appareil, appeler Gentex au 1 800 436-8391 ou envoyer un courriel à l’adresse FP_RMA@gentex.com pour obtenir un numéro d’autorisation de retour (RMA) du Service à...
GARANTIE LIMITÉE Pour une période de 36 mois à compter de la date d'achat ou un maximum de 42 mois à compter de la date de fabrication (ou aussi longtemps que requis par la loi applicable), Gentex vous garantit que l'appareil décrit dans ce livret d'information produit Être exempt de défauts de fabrication et de matériaux dans des conditions normales d'utilisation et de service.
