Brookstone BIG BLUE AMPLIFIER Manual

LITHIUM-ION BATTERY
WARNINGS
This device contains a non-removable

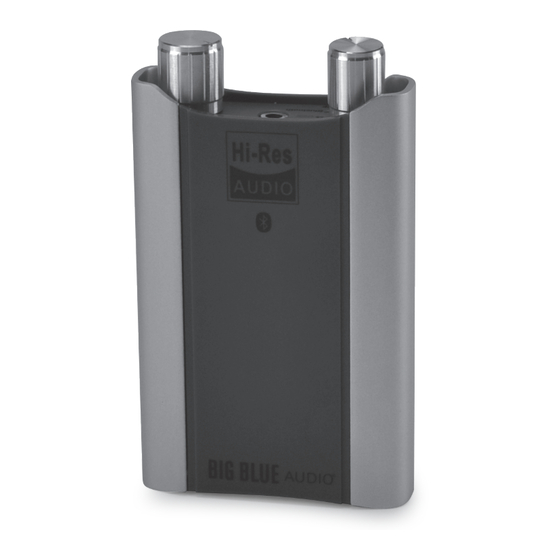

BIG BLUE AMPLIFIER
lithium-ion battery. The battery must be
recycled or disposed of properly.
IMPROVES HEADPHONE SOUND
Contact your local waste management
LETS YOU GO WIRELESS
office for information on battery
recycling or disposal.

FCC INFORMATION

This equipment has been tested
and found to comply with the
limits for a Class B Digital Device,
pursuant to Part 15 of the FCC
Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses, and can radiate radio frequency
energy and, if not installed and used
in accordance with the instructions,
may cause harmful interference to
radio communications. However, there
is no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful
interference to radio or television
reception, which can be determined
by turning the equipment off and
on, the user is encouraged to try to
correct the interference by one or
more of the following measures:
• Reorient or relocate the
LOCATION OF PORTS AND
receiving antenna.
CONTROLS
• Increase the distance between
1. Source Knob
the equipment and receiver.
2. Headphone Jack
• Connect the equipment to an outlet
3. Volume Knob
on a circuit different from that to
which the receiver is connected.
4. Source LED Indicator x 4
• Consult the dealer or an
5. Charge LED Indicator
experienced radio/TV technician
6. SPDIF-Out Port
for help.
7. SPDIF-In Port
This equipment complies with
8. Line-In Port
Part 15 of the FCC Rules.
9. USB-In Port
Operation is subject to the
following two conditions:
10. Micro USB Data and Charging
Cable (not shown)
1. This equipment may not cause
harmful interference.
11. 3.5mm Audio Cable (not shown)
2. This equipment must accept any
12. Travel Pouch (not shown)
interference received, including
interference that may cause
undesired operation.
Modifications not authorized by the
manufacturer may void the user's
authority to operate this device.
FCC ID: VHVBTVD6000

CHARGING THE AMPLIFIER

1. Connect the USB Cable (included)
to the Micro USB Port on the
headphone amplifier.
2. With the amplifier powered off, plug
the other end of USB Cable into a
USB Port on your PC or a 5V 1A
adapter (not included).
3. The Charge LED indicator light will
illuminate red while charging and
the Charge LED indicator will turn
solid green when the unit is fully
charged. Charges in approximately
2 hours for up to 10 hours of
listening enjoyment.

BASIC OPERATION

1. Connect an audio cable to an audio
source and the Line-In, SPDIF-In or
USB-In port on the amplifier.
2. Turn the Source knob to select input
4 5
source. The blue light will indicate
Charge
the selected source.
3. Connect a headphone/earphone to
1 2 3
the headphone jack of the amplifier.
4. Use your audio source to control
music playback and volume, or
adjust volume through the amplifier.
6 7 8 9
5. Turn the Source knob to OFF. The
LED indicator light will turn off and
the headphone amplifier is powered
off.
Merrimack, New Hampshire, USA 03054
800-846-3000 • Brookstone.com
311665
