Model 485 Dispensing Systems
Systems User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 485 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for dymax 485

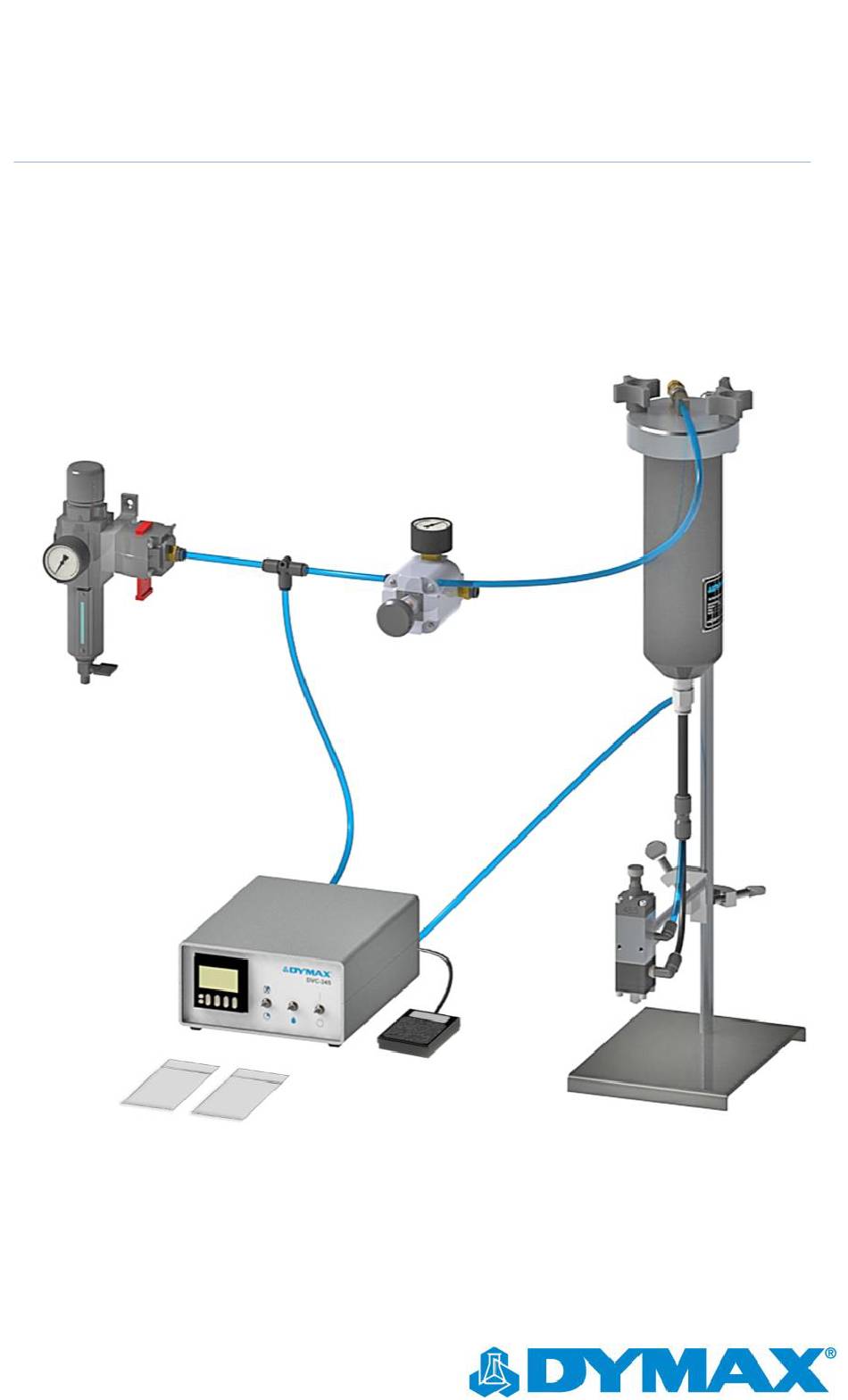

  • Page 1 Model 485 Dispensing Systems Systems User Guide...
  • Page 2: Table Of Contents

    Model 485 Dispensing Systems User Guide Contents Safety ........................3 Using Safe Operating Pressures ..................3 Operating Specifications ..................3 Configuration Overview ..................4 Key System Connections ..................5 Dispensing Tips ....................6 System Configurations ..................7 A - Systems Using a Cartridge Retainer ..............8 Packaged Components ..................8...
  • Page 3: Safety

    Model 485 Dispensing Systems User Guide Safety Using Safe Operating Pressures Pressurizing the components in the dispensing system beyond the maximum recommended pressure can result in the rupturing of components and serious personal injury. To minimize the risk of rupturing components and injury, do not exceed the maximum operating pressure of the components in your fluid dispensing system.
  • Page 4: Configuration Overview

    Model 485 Dispensing Systems User Guide Configuration Overview Controls Dispensing Valve Reservoirs & Accessories Dymax valves and digital Dymax dispensing valves for Dymax carries a variety of controller provide precise handheld and bench-top material reservoirs to and consistent actuation. applications deliver precision...
  • Page 5: Key System Connections

    Model 485 Dispensing Systems User Guide Key System Connections NOTE: Figures 1-4 apply to all systems. Figure 1. Valve Air & Material Figure 2. Controller Connections, Connections Rear Panel Air in from controller Fluid in Air out Foot Power Air in...
  • Page 6: Dispensing Tips

    The following tips are included with this system, and are recommended for use with the Model 485 dispensing valve. Either tip kit can be used depending on the exact viscosity and application. P3424 Dispensing Tip Kit for Low-Viscosity Materials (<500 cP)
  • Page 7: System Configurations

    Model 485 Dispensing Systems User Guide System Configurations Systems Using a Cartridge Retainer (p. 8-9) Systems Using a Bottle Drop-In Tank (p. 10-12) Systems Using a 10-Gallon Pressure Tank (p. 13-15)
  • Page 8: A - Systems Using A Cartridge Retainer

    Model 485 Dispensing Systems User Guide A - Systems Using a Cartridge Retainer Packaged Components T17736 System User Guide T16786 Controller Air Line Kit T16787 T16789 3/8" OD Fluid Line Kit Reservoir Air Line Kit T16793 Fluid Line Kit, 1/4" OD...
  • Page 9: Assembled System

    Model 485 Dispensing Systems User Guide Assembled System Cartridge Reservoir 6 oz T15257 12 oz T14085 20 oz T15223 T16629 T16307 High-Precision Filter Regulator Regulator T16789 Reservoir Air Line Kit T16787 Fluid Line Kit, 3/8" OD T16786 T11146 T16857 Controller...
  • Page 10: B - Systems Using A Bottle Drop-In Tank

    Model 485 Dispensing Systems User Guide B - Systems Using a Bottle Drop-In Tank Packaged Components T17736 T16786 System User Guide Controller Air Line Kit T16787 3/8" OD Fluid Line Kit T16793 T16789 Fluid Line Kit, Reservoir Air Line Kit 1/4"...
  • Page 11: Assembled System

    Model 485 Dispensing Systems User Guide Assembled System T16787 Fluid Line Kit, 3/8" OD T16789 Reservoir Air Line Kit T16857 Mounting Assembly T16307 T16786 Filter Regulator Controller Air Line Kit T16793 T17617 Fluid Line Kit, Model 485 1/4" OD Needle Valve...
  • Page 12: Installing The Fluid Line To The Reservoir

    Model 485 Dispensing Systems User Guide Installing the Fluid Line to the Reservoir Air Line Air Line Fluid Line Fluid Line Tube length from top of fitting: 14.5" End of tubing must be cut at an angle. 1-Liter Bottle 1-Gallon Bottle...
  • Page 13: C - Systems Using A 10-Gallon Pressure Tank

    Model 485 Dispensing Systems User Guide C - Systems Using a 10-Gallon Pressure Tank Packaged Components T17736 System User Guide T16787 3/8" OD Fluid Line Kit T16789 T16786 Reservoir Air Line Kit Controller Air T16793 Line Kit Fluid Line Kit, 1/4" OD T15279 Lab Stand, 24"...
  • Page 14: Assembled System

    Model 485 Dispensing Systems User Guide Assembled System T16789 Reservoir Air Line Kit T16787 T16307 Fluid Line Kit, Filter Regulator 3/8" OD T16857 Mounting Assembly T16786 Controller Air Line Kit T16793 Fluid Line Kit, T17617 1/4" OD Model 485 Needle Valve...
  • Page 15: Installing The Fluid Line To The Reservoir

    Model 485 Dispensing Systems User Guide Installing the Fluid Line to the Reservoir Tube to be flush with the bottom of the lid tube 15-Liter Pail...
  • Page 16 © 2013 Dymax Corporation. All rights reserved. All trademarks in this guide, except where noted, are the property of, or used under license by Dymax Corporation, U.S.A. Delrin and Teflon are registered trademarks of DuPont. Please note that most dispensing system applications are unique. Dymax does not warrant the fitness of the product for the intended application. Any warranty applicable to the product, its application and use is strictly limited to that contained in Dymax standard Conditions of Sale published on our website.
