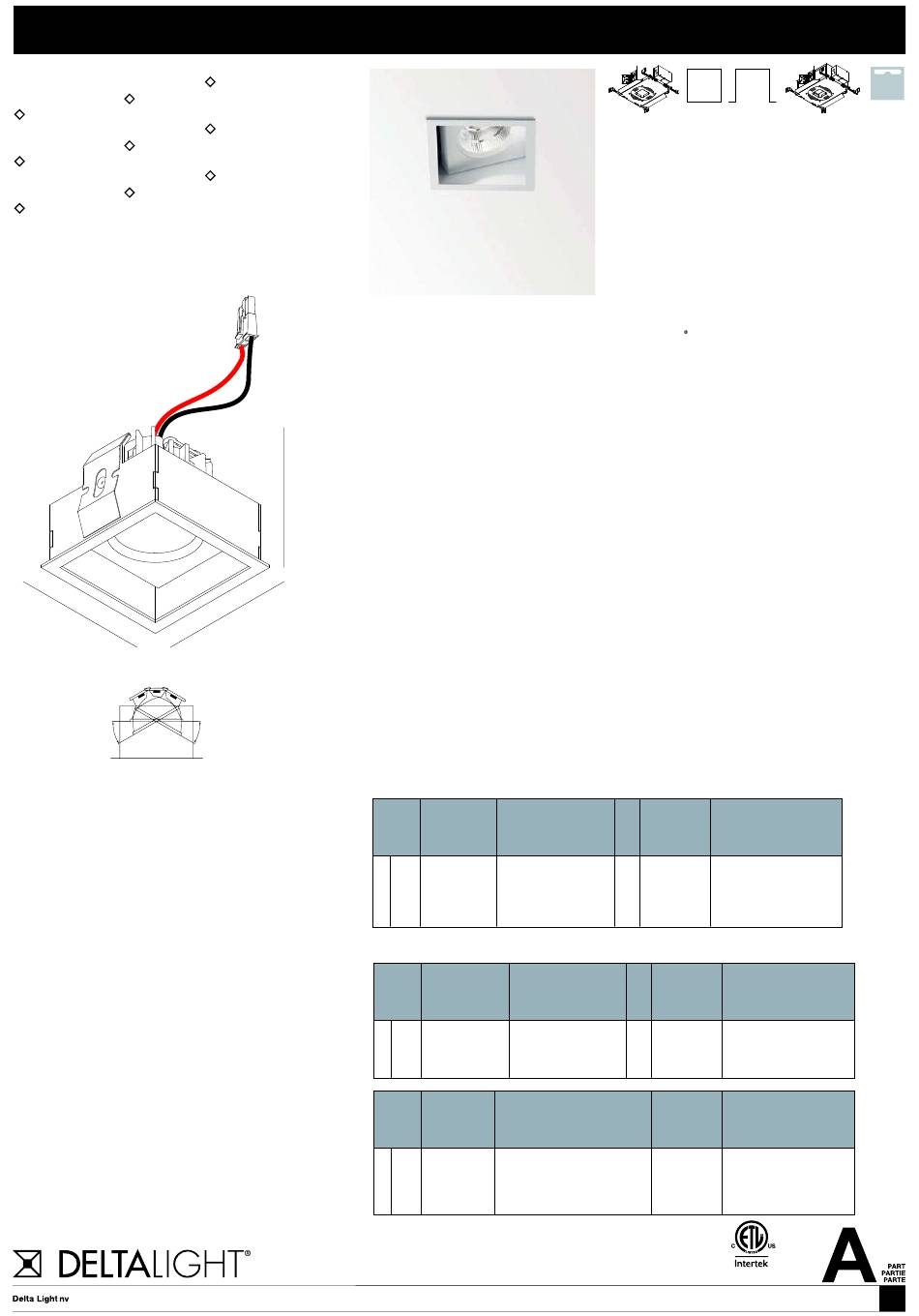

Delta Light CARREE ST OK LED 92733 S2 Installation Instruction

Installation instruction
CARREE ST OK LED 92733 S2
6 202 502 811 922
= A / W / B
CARREE ST OK LED 93033 S2
6 202 502 811 932
= A / W / B
CARREE ST OK LED 93533 S2
6 202 502 811 952
= A / W / B
79mm
3"-1/8
0°-30°
HEADQUARTERS - www.deltalight.com - USA - www.deltalight.us - CANADA - www.deltalight.ca

Application

Finishing section to be used with DELTA LIGHT rough-in housing or
plasterframe.

Ceiling Thickness

For 5/8" ceiling standard up to 7/8"

Light source

1 x 15W POWERLED WHITE
65mm

Power Supply

2"-9/16
Included in rough-in or remodel option.

Connector

Housing and trim connection through pre-installed snap-in connector

Specification features

Body fabricated of surface treated aluminum
79mm
Pre-installed springs for easy installation
3"-1/8
Suitable for dry and damp locations

Dimensions

Height:
Width:
Ceiling Cut out:
0°-30°

Required options

New construction
Housing for IC and/or airtight applications
New construction
Plasterframe for NON-IC applications
Remodel
NORTH AMERICAN EDITION
65 mm = 2"- 9/16
79 mm x 79 mm = 3"-1/8 x 3"- 1/8
Mounting kit 75 trimless
Range Installation Power/Dimming
type
6 202 7 - IC AT Housing S 42 - 7W 0-10V DIM
6 202 7 - IC AT Housing S 46 - 7W mains dimmable (ELV)
6 202 7 - IC AT Housing S 48 - 7W non-dimmable
6 202 7 - IC AT Housing S 43 - 10W 0-10V DIM
6 202 7 - IC AT Housing S 49 - 10W non-dimmable
6 202 7 - IC AT Housing S 62 - 10W mains dimmable (ELV)
Range Installation Power/Dimming
type
6 202 01 - NIC Plasterframe S 00 - /
6 202 01 - NIC Plasterframe S 46 - 7W mains dimmable (ELV)
6 202 01 - NIC Plasterframe S 48 - 7W non-dimmable
6 202 01 - NIC Plasterframe S 49 - 10W non-dimmable
6 202 01 - NIC Plasterframe S 62 - 10W mains dimmable (ELV)
Range Installation Power/Dimming
type
6 202 9 - NIC-IC IJB 19 - 10W mains dimmable (ELV)
6 202 9 - NIC-IC IJB 20 - 10W 0-10V DIM
6 202 9 - NIC-IC IJB 20 - 10W 0-10V DIM
6 202 9 - NIC-IC IJB 21 - 14W mains dimmable (ELV)
9 - NIC-IC IJB 69 - 14W 0-10V DIM
6 202
6 202 9 - NIC-IC IJB 69 - 14W 0-10V DIM
CARREE ST OK LED
IC
NIC
AT
Voltage Mounting Option
1 - 120V
Voltage
0 - No bar hangers
2 - 277V
1 - Bar hangers standard
3 - 120-277V
05 3 - 120-277V 1 - Bar hangers standard
05 1 - 120V 1 - Bar hangers standard
05 1 - 120V 1 - Bar hangers standard
05 3 - 120-277V 1 - Bar hangers standard
05 1 - 120V 1 - Bar hangers standard
05 1 - 120V 1 - Bar hangers standard
Voltage Mounting Option
1 - 120V
0 - No bar hangers
2 - 277V
1 - Bar hangers standard
3 - 120-277V
05 0 - / 1 - Bar hangers standard
05 1 - 120V 1 - Bar hangers standard
05 1 - 120V 1 - Bar hangers standard
05 1 - 120V 1 - Bar hangers standard
05 1 - 120V 1 - Bar hangers standard
Voltage Spacings
1 - 120V
1- Standard spacings
2 - 277V
1- Marked spacings
3 - 120-277V
1 - 120V 1- Standard spacings
1 - 120V 1- Standard spacings
2 - 277V 1- Standard spacings
1 - 120V 1- Marked spacings
1 - 120V 1- Marked spacings
2 - 277V 1- Marked spacings
Conforms to ANSI/UL Std. 1598
Cert. to CAN/CSA Std. 22.2 No. 250.0
Last Update ALLU 02/05/2018
