Delta Light MONTUR M E26 Installation Instruction

Advertisement

Quick Links

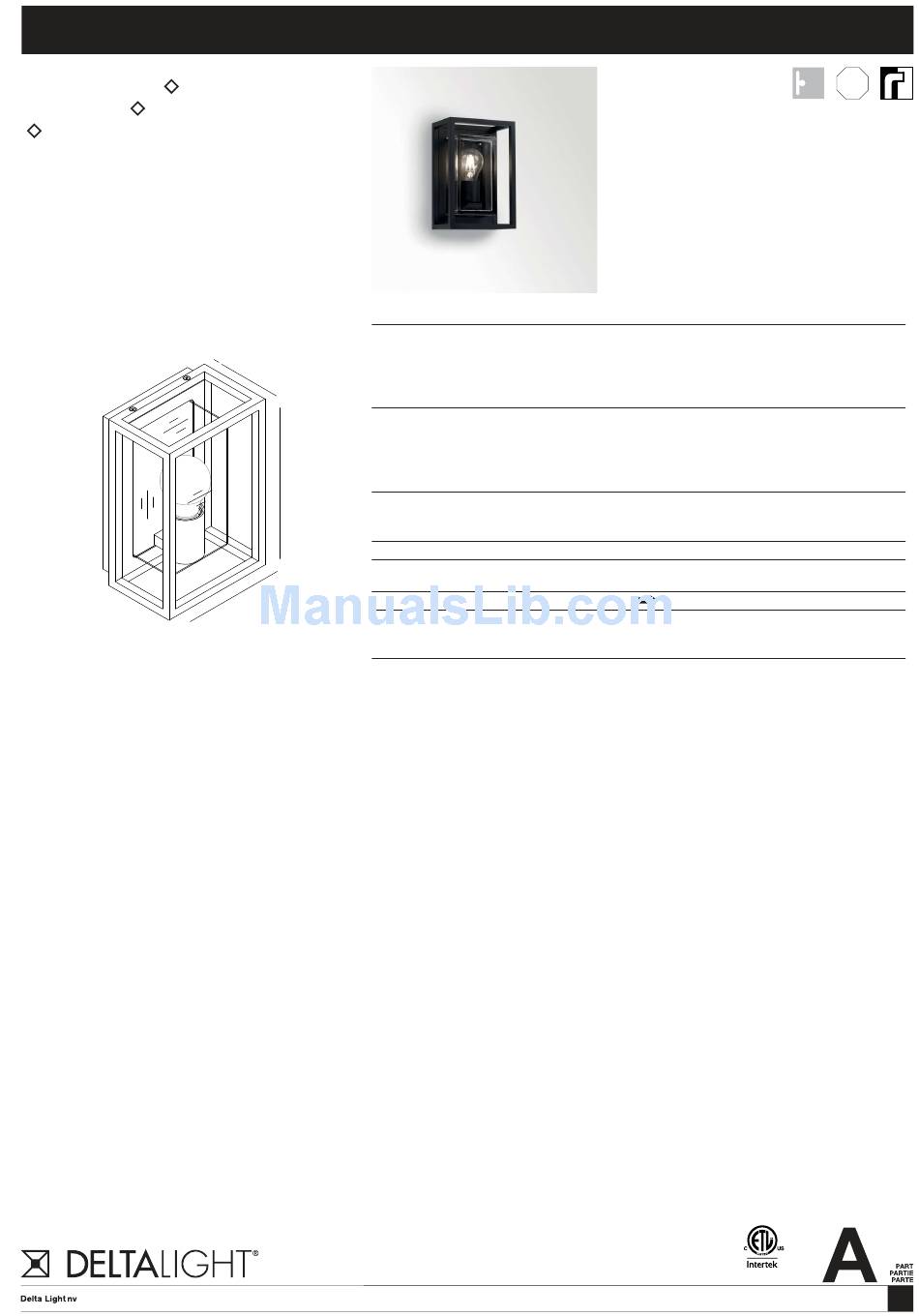

Installation instruction
MONTUR M E26
6 232 213 00
= B / W / A
HEADQUARTERS - www.deltalight.com - USA - www.deltalight.us - CANADA - www.deltalight.ca

Application

19mm
Wall surface mounted luminaire
Installation to a standard 4" octagonal J-box or EMT/FMC fitting
3/4"
101mm
For indoor and outdoor use
4"

Color Finish

B - BLACK
A - ALU GRAY
W - WHITE
240mm

Light source

9"-7/16
1 X A19, MAX. 40W

Product description

Corrosion protected and powder coated aluminum assembly
Input voltage: 120V - 60Hz
Suitable for dry, damp or wet locations
Protected against waterjets and dust-tight
160mm
Weight: 5,5lbs 2,5kg
6"-5/16

Dimensions

Height:
Cross section:
NORTH AMERICAN EDITION
IP65
240mm / 9"-7/16
160 x 120mm / 6"-5/16 x 4"-3/4
MONTUR M E26
4"
Conforms to ANSI/UL Std. 1598
Cert. to CAN/CSA Std. 22.2 No. 250.0
Last Update ALLU 08/03/2017
1
