QM-products SPM-2011 Operation Manual

2 x hdmi/av to 1 x dvb-t/c
Hide thumbs

Advertisement

Quick Links

Download this manual

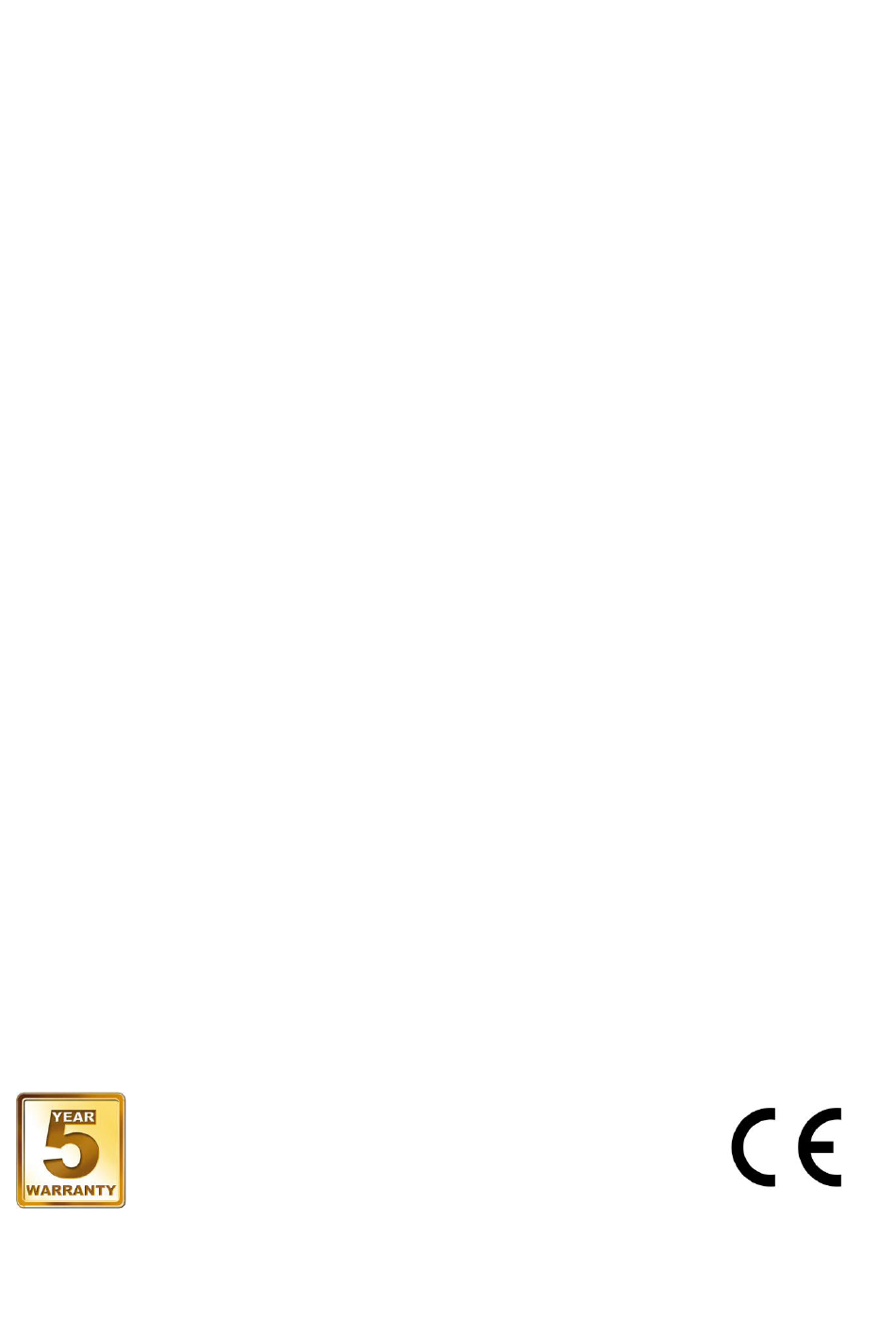

SPM-2011
2 x HDMI/AV to 1 x DVB-T/C
Operation Manual
QM-Products 2016 v1.0
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPM-2011 and is the answer not in the manual?

Questions and answers

Related Manuals for QM-products SPM-2011

Summary of Contents for QM-products SPM-2011

  • Page 1 SPM-2011 2 x HDMI/AV to 1 x DVB-T/C Operation Manual QM-Products 2016 v1.0...
  • Page 2 If the mains cord or the power connector is damaged or destroyed, or if there is a sudden loss of picture during operation, or if you notice a strange smell or there is smoke, immediately switch the unit off, disconnect the mains cord and contact the manufacturer’s technical support department. QM-Products 2016 v1.0...
  • Page 3 Contact the manufacturer’s technical support department.  Do not step on or place heavy objects on top of the unit. To avoid hardware damage, handle all buttons, connectors and switches gently. QM-Products 2016 v1.0...
  • Page 4 3. INSTRUCTIONS 3.1 DESCRIPTION The SPM-2011 is a very powerful, all-in-one device, able to receive up to 2 independent HDMI/AV sources and to convert them in 1 x DVB-T/C RF output channel. The embedded web server of the SPM-2011 provides a very friendly user interface as well as the ability of remote or local control of the device via Ethernet.
  • Page 5 SPM-2011 Reset button Status LED IP LAN control RF output RF input HDMI/AV inputs QM-Products 2016 v1.0...

  • Page 6: Installation

    4. INSTALLATION 4.1 General The SPM-2011 has a very friendly interface for programming and monitoring purposes. The user is able to gain access to the embedded webserver, by opening an Internet browser (eg. Internet Explorer, Firefox or Chrome) and type the following static IP: 192.168.1.200.
  • Page 7 RF output frequencies and modulation settings. System This section provides general information of the device, like internal status of all device’s modules, CPU temperature and fan state as well as error codes for troubleshooting purposes. Setup 4.2.2 “Input” page Figure No 2 QM-Products 2016 v1.0...
  • Page 8 10. Video PID – Set the Video PID 11. Audio PID – Set the Audio PID Once all settings are being written, the user must click the “Apply” button for the settings to be saved. 4.2.3 “RF Output” page Figure No 3 QM-Products 2016 v1.0...
  • Page 9 In the “RF Output” page (Figure No 3) the user is able to setup the RF output settings of the SPM-2011. With the use of the radio buttons the user is able to select the mode that the SPM-2011 will operate as follows: DVB-T: modulator working in DVB-T standard DVB-C: modulator working in DVB-C standard...
  • Page 10 NIT: User can choose the following options (Off , Basic , Auto , Custom) LCN provider: Choose the appropriate LCN provider (EACEM, ITC, Nordig, APN) 4.2.4 “NIT” page In “NIT” page (Figure No 5) the user is able to create a full customize NIT table Figure No 5 QM-Products 2016 v1.0...
  • Page 11  Primary DNS: Set the IP address of the primary DNS  Secondary DNS: Set the IP address of the secondary DNS  Port: Assign the control port  MAC address: Depicts the MAC address of the LAN control QM-Products 2016 v1.0...
  • Page 12 In “Administration” section the user is able to change the default password of the webserver. Figure No 7 4.2.7 “System restart” page Figure No 8 In “System restart” section (Figure No 8) the user is able to apply a full reset to the device. QM-Products 2016 v1.0...
  • Page 13 4.2.9 “Import/Export Config” page In “Import/Export Config” section (Figure No 10) the user is able to do the following: Figure No 10 1. Export: Save all the configuration is a specific file 2. Import: Upload a previously save configuration file. QM-Products 2016 v1.0...
  • Page 14 Figure No 11 4.2.11 “Info” page Figure No 18 In “Info” (Figure No 18) section the user is able to see the serial No of the device as well as the firmware and MAC address. QM-Products 2016 v1.0...

  • Page 15: Technical Specifications

    5,6,7,8MHz Mode 2K,8K Constellation 16QAM,32QAM,64QAM,128QAM,256QAM Symbol Rate 1-7.2Ms/s RF Output Type 1 x RF out 36…950MHz (1 Hz step) Output Frequencies Output Level 90dbµV 75Ω - F, female Connector 0…-20dB Output Attenuator >40dB Output loop-through loss <1dB QM-Products 2016 v1.0...
  • Page 16 10/100 Mbps Connector: RJ45 Compatible browsers: IE Edge, Firefox, Chrome General Power Supply: 12 VDC 50/60Hz Power supply consumption: 1.2A Operating Temperature: 0 ºC to 40 ºC Storage Temperature: -10 ºC to +70 ºC Humidity: Up to 90% QM-Products 2016 v1.0...
  • Page 17 7. QM-Products LIMITED WARRANTY This “QM-products” is guaranteed against defects in workmanship and materials for a period of five (5) years beginning on the date of the purchase of the product. During the applicable warranty period, Digital-Innovations BV will repair or replace at our own cost and without charges, any defective component parts of the purchased unit.
  • Page 18 14.745 15.612 16.086 14.929 16.588 17.564 18.096 16-QAM 16.588 18.431 19.516 20.107 17.418 19.353 20.491 21.112 14.929 16.588 17.564 18.096 19.906 22.118 23.419 24.128 22.394 24.882 26.346 27.144 64-QAM 24.882 27.647 29.273 30.160 26.126 29.029 30.737 31.668 QM-Products 2016 v1.0...
  • Page 19 12.902 13.661 14.075 13.063 14.515 15.369 15.834 16-QAM 14.515 16.127 17.076 17.594 15.240 16.934 17.930 18.473 13.063 14.515 15.369 15.834 17.418 19.353 20.491 21.112 19.595 21.772 23.053 23.751 64-QAM 21.772 24.191 25.614 26.390 22.861 25.401 26.895 27.710 QM-Products 2016 v1.0...
  • Page 20 11.059 11.709 12.064 11.197 12.441 13.173 13.572 16-QAM 12.441 13.824 14.637 15.080 13.063 14.515 15.369 15.834 11.197 12.441 13.193 13.572 14.929 16.588 17.564 18.096 16.796 18.662 19.760 20.358 64-QAM 18.662 20.735 21.995 22.620 19.595 21.772 23.053 23.751 QM-Products 2016 v1.0...
