Instruction Sheet
No. 75-0279
CAUTION:
BEFORE BEGINNING
THIS INSTALLATION
PROCEDURE,
READ THROUGH
INSTRUCTIONS
CAREFULLY AND
COMPLETELY
STEP 1: Remove all the Brackets from the wrappers and check the hardware list to be sure all the parts are
included. Read the instructions thoroughly before beginning installation.
STEP 2: Using the Bracket Chart below, lay out and, with a pencil, clearly mark the mounting locations for
the final Bracket positions.
STEP 3: Drill the 5/16" pinch weld holes in all pre marked locations in the pinch weld. Note: Drill each
hole in the pinch weld so that it is evenly placed relative to the bottom of the pinch.
SUGGESTED LOCATIONS FROM FRONT FENDER WELL, BOTH SIDES

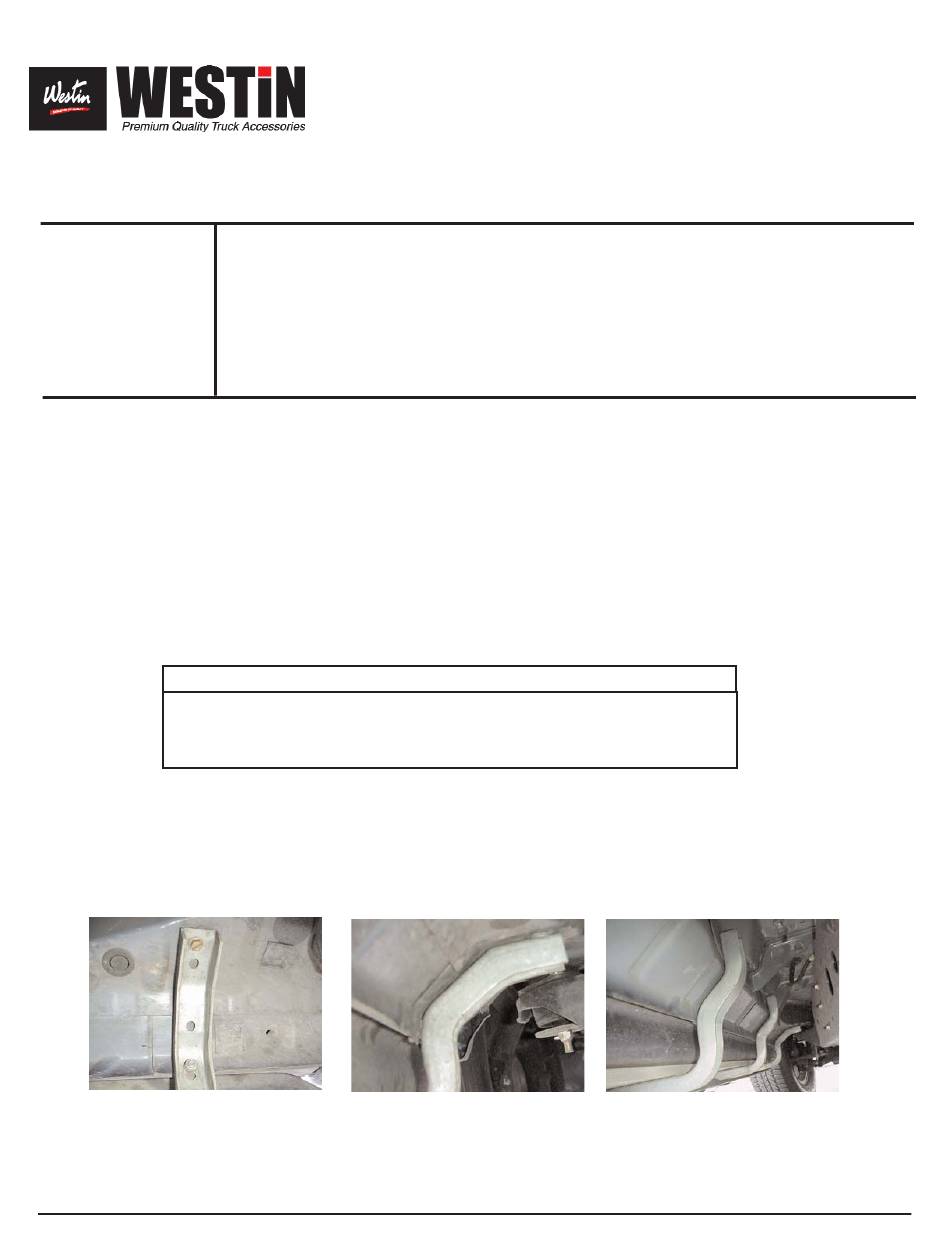

Front Bracket
Middle Bracket (Front)
STEP 4: Using the 5/16" Hex Head Bolts, SAE Washers and Nylocks, attach the Main Brackets to the
previously drilled Pinch Weld holes from Step 3 (eight brackets). Install the #14 TEK screws through the
Main Brackets and into the frame rail (two per bracket).
Front Bracket
STEP 5: Carefully remove the Step Boards from the box and place them face down on a soft clean surface.
For the unlighted version, skip to STEP 8.
Westin Automotive Products, Inc. • Irwindale, CA • (800) 345-8476 • Fax (626) 338-1630
STEP BOARD KIT #27-1155
INSTALLATION INSTRUCTIONS
APPLICATION: 1999+ TUNDRA EXTENDED CAB, 4 DOOR
NOTE: WESTIN RECOMMENDS THAT YOU USE A PROFESSIONAL
TO INSTALL THE WIRING HARNESS FOR THE LIGHTED VERSION.
2
Front Brackets
6
Rear Brackets
10
5/16" Hex Head Bolts
16
5/16" Square Head Bolts
BRACKET CHART: 99+ TUNDRA EXTENDED CAB, 4 DOOR
11"
28"
USES 70" STEP BOARD #27-0000 & 27-0005
HARDWARE KIT
16
24
24
Middle Bracket (Rear)
Rear Bracket
Front Bracket
#14 Hex Head TEK Screws
5/16" SAE Washers
5/16 Nylock Nuts
45"
64"
Middle Brackets
#75-0279 Rev. 10/00
