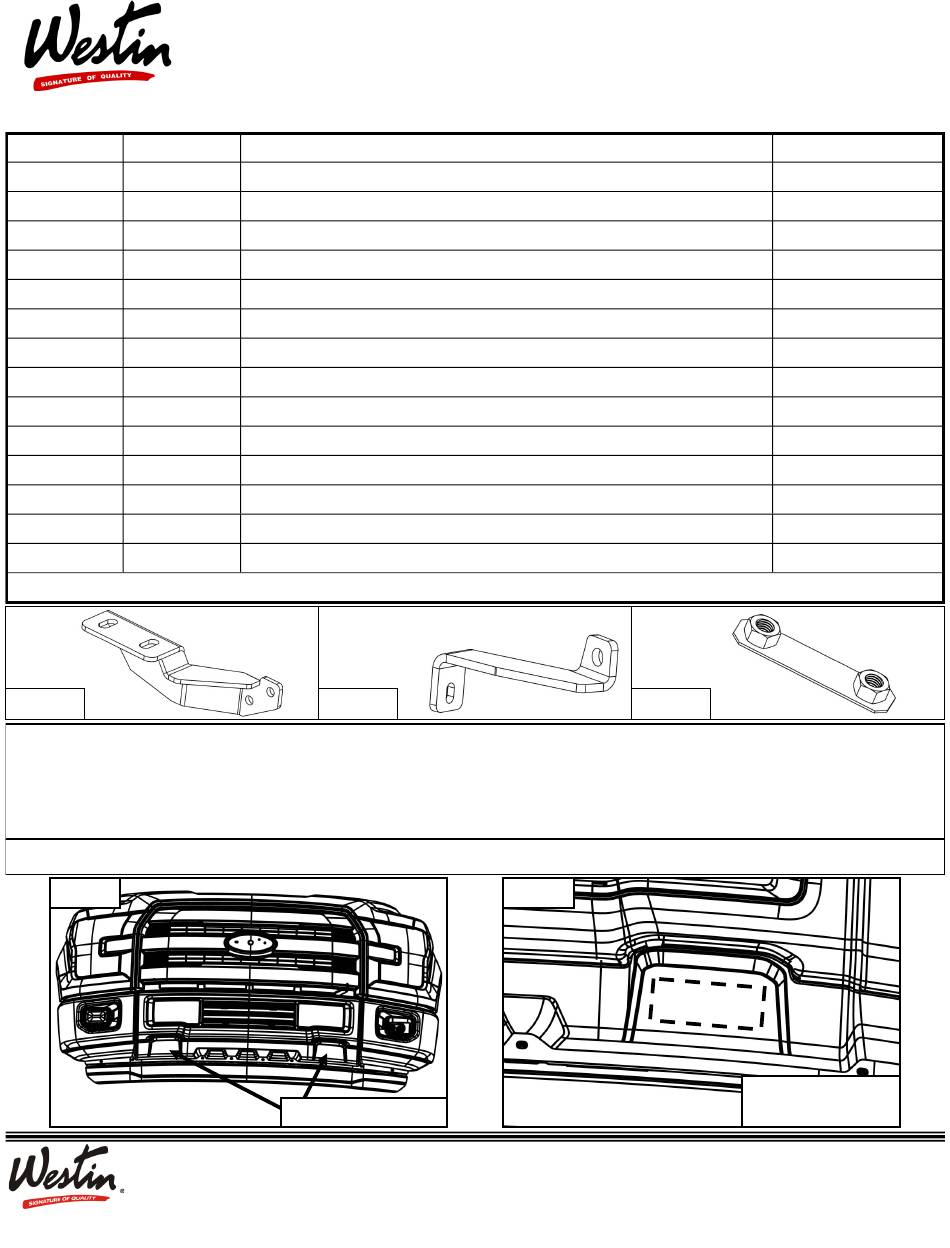

Westin 40-3835 Installation Instructions Manual

AUTOMOTIVE PRODUCTS,
ITEM QUANTITY
1 1
2,3 2
4,5 2
6 2
7 2
8 4
9 4
10 4
11 2
12 2
13 2
14 6
15 6
16 6
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
ITEM 2
1. Remove contents from box, verify if all parts listed are present and free from damage.
Carefully read and understand all instructions before attempting installation.
Failure to identify damage before installation could lead to a rejection of any claim.
2. For vehicles without factory tow hooks: Tr im the plastic in the ar eas in Figures 1 - 2. Repeat for the passenger side.
Figure 1
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-3078-RevC ECO #: W17-0999
INSTALLATION INSTRUCTIONS
SPORTSMAN & HDX GRILLE GUARD
APPLICATION:
2015-2017 Ford F-150
PART NUMBER: 40-3835, 45-3830, 57-3830, 57-3835
GRILLE GUARD ASSEMBLY
LOWER MOUNTING BRACKET, DRIVER (2) AND PASSENGER (3)
UPPER SUPPORT BRACKET, DRIVER (4) AND PASSENGER (5)
DOUBLE NUT PLATE
M12 HEX CAP SCREW (YELLOW ZINC)
M12 FLAT WASHER (YELLOW ZINC)
M12 SPLIT LOCK WASHER (YELLOW ZINC)
M8 CAP SCREW (YELLOW ZINC)
M8 FLAT WASHER (YELLOW ZINC)
M8 SPLIT LOCK WASHER (YELLOW ZINC)
M12 HEX BUTTON HEAD SCREW (STAINLESS)
M12 CUP WASHER (STAINLESS)
M12 SERRATED FLANGE NUT (STAINLESS)
Driver side items shown,
passenger side items opposite.
ITEM 4
PROCEDURE
Trim designated areas.
DESCRIPTION
8MM SPACER
Figure 2
Thank you for choosing Westin products
for additional installation assistance please call
1
TOOLS NEEDED
14MM SOCKET
15MM SOCKET
18MM SOCKET
UTILITY KNIFE
PRY TOOL
ALLEN WRENCH
SOCKET EXT.
RATCHET
TORQUE WRENCH
ITEM 7
Close up on trim area.
Driver Side Shown
Customer Service (800) 793-7846
www.westinautomotive.com
DATE: 5/10/17
