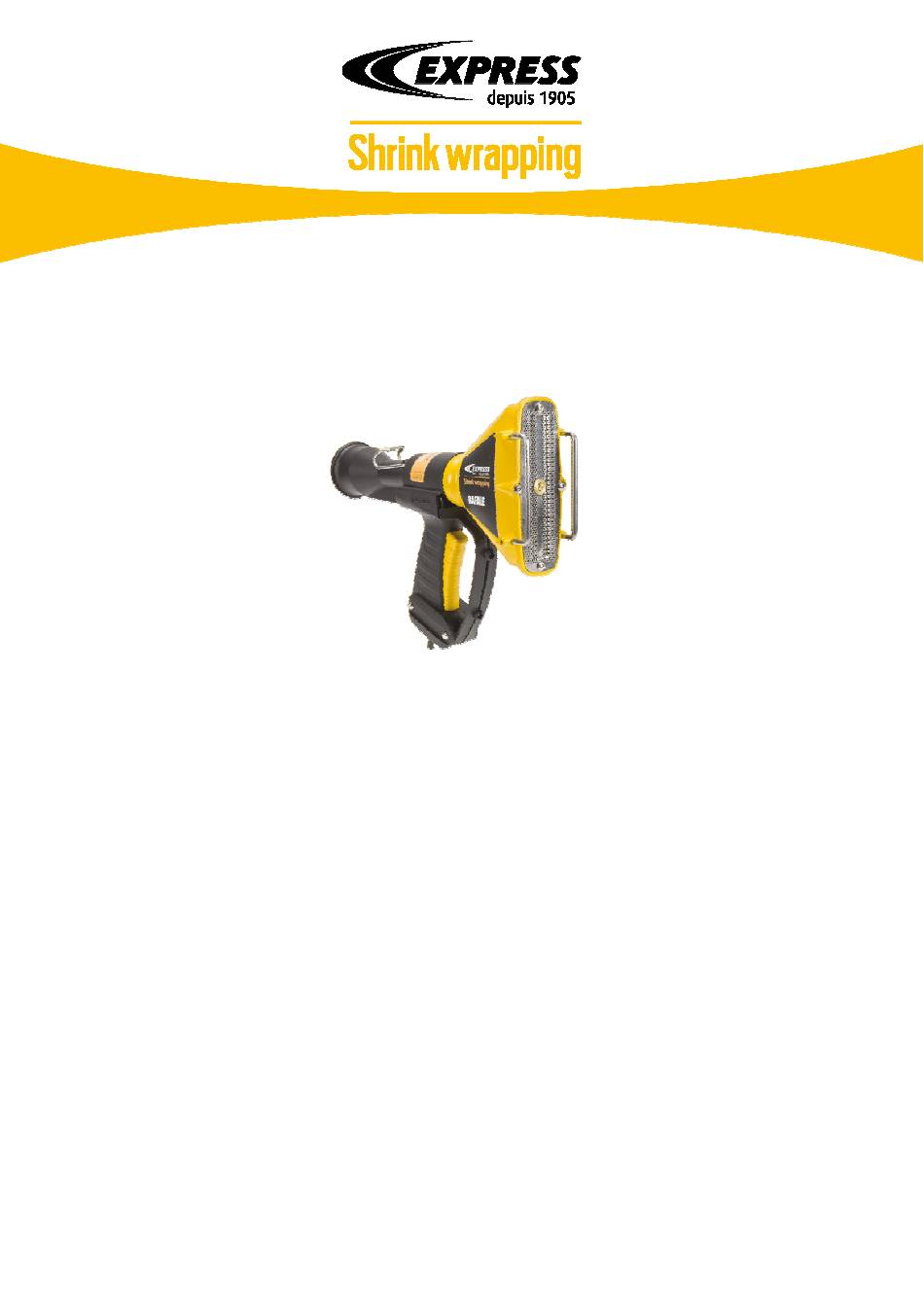

RAFALE Item. 4040 / RAFALE + 4040 RAFALE + Item. 4065
The RAFALE and RAFALE + are EXPRESS products.
AND RETAIN IT IN A SAFE PLACE FOR FUTURE REFERENCE.
RAFALE and RAFALE + equipment are intended only for professional applications and must only be
used by users who are trained in its use.
•
Never point the burner at anyone (burns can result from contact with the flame or hot air), or
towards the gas cylinder or hose, or onto combustible materials (this can cause fires or
could cause toxic fumes to be released).
•
Always close the gas cylinder valve when not in use for an extended period.
•
Never use this equipment for continuous heating on a fixed station.
•
Never make any modifications to the equipment. Always contact your EXPRESS
distributor for any maintenance or replacement of parts.
For safety reasons all repairs must be undertaken by the manufacturer and distributors. Failure to
observe this clause will result in the guarantee being null and void.
It is essential that you read this manual before use.
USER MANUAL
GENERAL PRECAUTIONS FOR USE
READ THIS MANUAL CAREFULLY IN ITS ENTIRETY
GB
Advertisement
Table of Contents
Related Manuals for Express RAFALE 4040
Summary of Contents for Express RAFALE 4040
- Page 1 Never use this equipment for continuous heating on a fixed station. • Never make any modifications to the equipment. Always contact your EXPRESS distributor for any maintenance or replacement of parts. For safety reasons all repairs must be undertaken by the manufacturer and distributors. Failure to observe this clause will result in the guarantee being null and void.
- Page 2 Never lay the gas cylinder flat. It should preferably be placed in a special EXPRESS trolley Item. 666. Never attempt to heat the cylinder with the RAFALE or with another flame. If problems are encountered in terms of flow-rates, of low pressures or frosting, then use the EXPRESS cylinder coupler Item.
- Page 3 REGULATOR Characteristics: Gas: commercial propane. Maximum inlet pressure: 16 bar Nominal outlet pressure: 1.5 bar to 3.5 bar. Nominal flow: 6 to 10 kg/hr. Inlet connection: left-handed cylinder nut NF 21.7 x 1.814. Export : contact us. Outlet connection: male thread G 3/8 ISO 228. Safety device: by means of manual reset excess-flow valve.
- Page 4 The sound of gas Use another cylinder or a larger cylinder. cannot be heard The gas cylinder temperature is Use the EXPRESS coupler Item. 18970 to when the trigger is too low (frosting). connect 2 cylinders. fully depressed. The gas cylinder valve flow limiter has been triggered Close the cylinder valve and open it slowly.
- Page 5 8/ TECHNICAL SPECIFICATIONS Equipment type RAFALE RAFALE + Energy source Propane / I3P Propane / I3P Qn (at 50.7 psi) (kW) 150000 BTU 220000 BTU Operating pressure (bar) 21.7 to 50.7 psi 21.7 to 50.7 psi Adjustable power (from 21.7 psi to From 82000 to 150000 BTU From 126000 to 220000 BTU 50.7 psi) (kW)
- Page 6 10/ APPLICATION Heat-shrinking covers around pallets Heat-shrink covers have much better mechanical properties than those of stretch-wrap. They allow much heavier and larger loads to be secured and provide much better protection against theft. Always operate in a suitable area which is ventilated and free of combustible materials. Protect your hands using appropriate gloves.
- Page 7 This guarantee is expressed through the replacement of defective parts. Express provides a guarantee that your equipment will operate correctly for the first two years of use following purchase, on condition that the operating method specified in the instructions has been followed and on condition that your equipment has not been subjected to any impacts (deformation of the body, of the protection wires or of the burner, no damage to threads etc.).
