Product overview

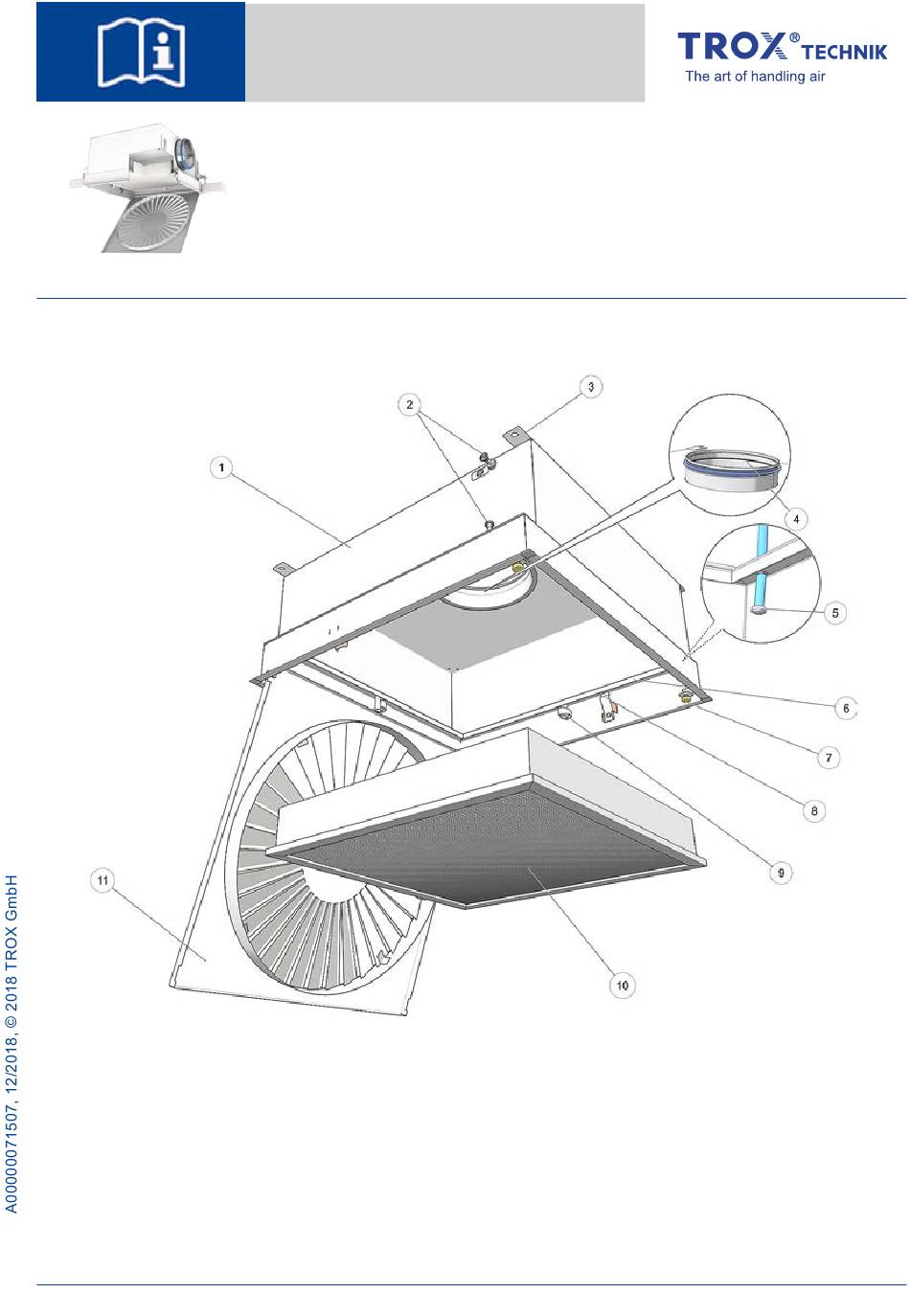

Fig. 1: Schematic illustration, e. g. TFP-TC-S
①
Casing
②
Differential pressure measuring point (x2)
③
Suspension (x4)
④
Spigot with lip seal
⑤
Internal measuring tube
⑥
Seal blade
Installation and mainte-
nance manual
TFP
Pharmaceutical clean room terminal
filters
TFP Pharmaceutical clean room terminal filters
GB/en
⑦
Magnet (x2)
⑧
Springs (x2)
⑨
℗
Turn clip
(x4)
⑩
Filter
⑪
Diffuser face
TROX GmbH
Heinrich-Trox-Platz
47504 Neukirchen-Vluyn, Ger-
many
Germany
Phone: +49 (0) 2845 2020
Fax: +49 (0) 2845 202265
E-mail: trox@trox.de
Internet: http://www.trox-
technik.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Trox TFP-TC-S
Summary of Contents for Trox TFP-TC-S
- Page 1 Phone: +49 (0) 2845 2020 Fax: +49 (0) 2845 202265 Pharmaceutical clean room terminal E-mail: trox@trox.de filters Internet: http://www.trox- technik.com Product overview Fig. 1: Schematic illustration, e. g. TFP-TC-S ① ⑦ Casing Magnet (x2) ② ⑧ Differential pressure measuring point (x2) Springs (x2) ③...
-
Page 2: Important Notes
Section VI, Warranty Claims, of the Delivery and hygiene regulations when you install, commission Payment Terms of TROX GmbH. or use the pharmaceutical clean room terminal filter. The Delivery and Payment Terms of TROX GmbH Incorrect use are available at www.troxtechnik.com. Qualified staff... -
Page 3: Protective Gloves
Important notes HVAC technicians are individuals who have suffi- Protective gloves cient professional or technical training, knowledge and actual experience to enable them to work on HVAC systems, understand any potential hazards related to the work under consideration, and recog- nise and avoid any risks involved. -
Page 4: Supply Package, Transport And Storage
Supply package, transport and storage Supply package, transport and storage Assembly Pharmaceutical clean room terminal filter supply General information package Personnel: TFP housing HVAC technician Diffuser face Protective equipment: Filter element (optional) Industrial safety helmet Protective gloves ... - Page 5 Assembly Fixing the unit to the ceiling Fixing to the suspended ceiling Fig. 3: Fixing to the load-bearing suspended ceiling ① C rail Fig. 2: Fixing ② Support angle section ③ Lock nut ① Suspension lug with drilled hole ∅ 12 mm ④...
-
Page 6: Connecting The Ductwork
Connecting the ductwork Connecting the ductwork Commissioning Type TFP pharmaceutical clean room terminal fil- General information ters are available with different spigots: Before you start commissioning: Top entry circular spigot Check that the filter casings are correctly Side entry circular spigot ... - Page 7 Commissioning Inserting filters This presses the filter seal (Fig. 4/5) on ð to the seal blade (Fig. 4/3). Do not unpack filter elements until you are ready to install them. Once you have inserted the filter element, check that there are no leaks, Ä...
-
Page 8: Maintenance
Maintenance Maintenance Removing the diffuser face Maintenance applies mainly to the filter element. Some maintenance jobs, such as sealing integrity Check the filter regularly and replace it, if neces- testing, leakage testing, filter changes or cleaning, sary. require you to remove the diffuser face. The service life of a filter depends mainly on how polluted the air is. - Page 9 Differential pressure measurement A functional test of the filter system is required to The initial differential pressure for TROX filters is ensure that there are no leaks and that the filter ele- given on the label on the filter frame.
- Page 10 Maintenance Connecting a mobile measuring device Changing the filter Plus (+) - to the internal measuring tube Personnel: (Fig. 7/2) Properly trained person Minus (–) - Don't connect; the differential pressure Protective equipment: is measured against the room pres- Industrial safety helmet ...
- Page 11 To ensure permanent protection from particulate matter and other pollutants we recommend using only original TROX filters. Original TROX filters carry a sticker on the frame with both the use before date and information on how to order replacements. To avoid downtime of the ventilation and air con- ditioning system, we recommend you to always have the required filters in stock.
- Page 12 TFP Pharmaceutical clean room terminal filters...
