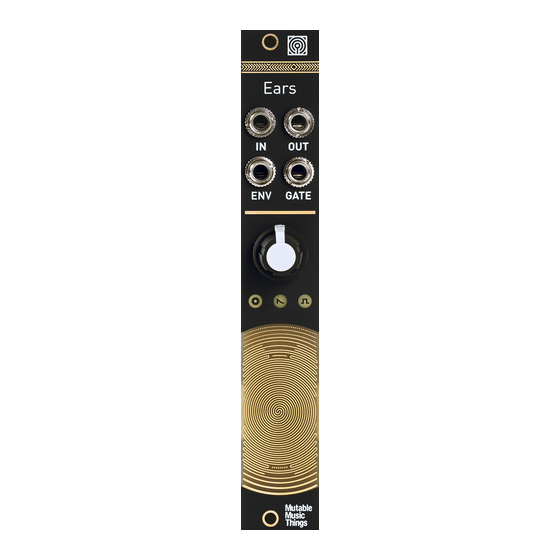

Mutable Instruments Ears User Manual

Hide thumbs Also See for Ears:

Ears requires a -12V / +12V power supply (2x5 pin connector). The ribbon cable connector must be

aligned so that the red stripe of the ribbon cable (-12V) is on the same side of the module's power header

as the "Red stripe" marking on the board. The module draws 5mA from both the +12V and the -12V supply

rails.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired

operation.

This device meets the requirements of the following standards: EN55032, EN55103-2,

EN61000-3-2, EN61000-3-3, EN62311.

Gain control, 0 to +40dB. This large gain ranges covers everything - from the amplification of line-level

instruments, to the magnification of tiny sonic details captured by external contact microphones.

Contact microphone. Scratch, tap, rub, brush... to your heart's delight.

Mutable Instruments | Ears
