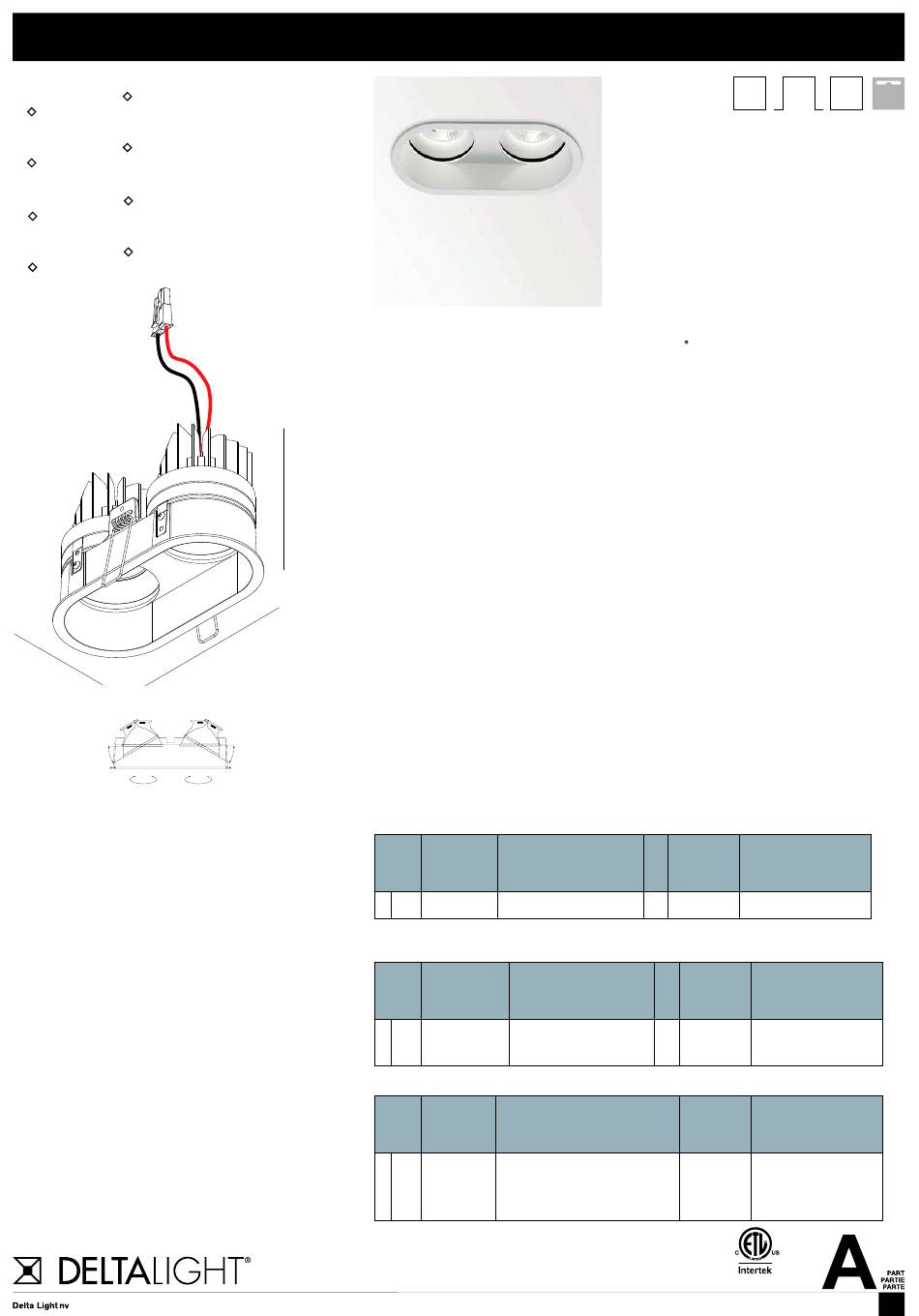

Installation instruction
DIRO DUO ST OK LED 3033
6 202 292 28222
= MMAT / W
DIRO DUO ST OK LED 2733
6 202 292 28223
= MMAT / W
DIRO DUO ST OK LED 3033-9
6 202 292 29222
= MMAT / W
DIRO DUO ST OK LED 2733-9
6 202 292 29223
= MMAT / W
82mm
3"-1/4
0°-20°
350° 350°
HEADQUARTERS - www.deltalight.com - USA - www.deltalight.us - CANADA - www.deltalight.ca

Application

Finishing section to be used with DELTA LIGHT rough-in housing,
Plasterframe or Remodel IJB

Ceiling Thickness

For 5/8" ceiling standard up to 7/8"

Light source

For two max 15W POWERLED WHITE
100mm

Power Supply

3"-15/16
Current controled Class 2 power supply required. (supplied with housing or plasterframe)
Max 700mA, typical forward voltage 21,4V. Do not interconnect in parallel!

Connector

Housing and trim connection through pre-installed snap-in connector

Specification features

Housing fabricated of surface treated aluminum
Pre-installed springs for easy installation
160mm
Suitable for dry or damp locations
6"-5/16
Weight: 1,8lbs

Dimensions

Height:
width:
0°-20°

Required options

New construction

Housing for IC and/or airtight applications
Range
6
6
New construction
Plasterframe for NON-IC applications
Range
6
6
6
6

Remodel (2 NEEDED PER FIXTURE)

Range
6
6
6
6
6
6
NORTH AMERICAN EDITION
0,8kg
100mm = 3"- 15/16
82mm x 160mm = 3"-1/4 x 6"-5/16
Installation Power/Dimming
type
202 7 - IC AT Housing S 45 - 10,4W 1-10V dimmable
202 7 - IC AT Housing S 50 - 10,4W Lutron Ecosystem dimmable
Installation Power/Dimming
type
202 01 - NIC Plasterframe S 45 - 10,4W 1-10V dimmable
202 01 - NIC Plasterframe S 45 - 10,4W 1-10V dimmable
202 01 - NIC Plasterframe S 50 - 10,4W Lutron Ecosystem dimmable
202 01 - NIC Plasterframe S 50 - 10,4W Lutron Ecosystem dimmable
Installation Power/Dimming
type
202 9 - NIC-IC IJB 19 - 10,4W mains dimmable (ELV)
202 9 - NIC-IC IJB 20 - 10,4W 0-10V dimmable
202 9 - NIC-IC IJB 20 - 10,4W 0-10V dimmable
202 9 - NIC-IC IJB 21 - 15W mains dimmable (ELV)
202 9 - NIC-IC IJB 69 - 15W 0-10V dimmable
202 9 - NIC-IC IJB 69 - 15W 0-10V dimmable
DIRO DUO ST OK LED
IC
IJB
AT
Voltage Mounting Option
1 - 120V
Voltage
0 - No bar hangers
2 - 277V
1 - Bar hangers standard
3 - 120-277V
48 3 - 120-277V 1 - Bar hangers standard
48 3 - 120-277V 1 - Bar hangers standard
Voltage Mounting Option
1 - 120V
0 - No bar hangers
2 - 277V
1 - Bar hangers standard
3 - 120-277V
48 1 - 120V 1 - Bar hangers standard
48 2 - 277V 1 - Bar hangers standard
48 1 - 120V 1 - Bar hangers standard
48 2 - 277V 1 - Bar hangers standard
Voltage Spacings
1 - 120V
1- Standard spacings
2 - 277V
1- Marked spacings
3 - 120-277V
1 - 120V 1- Standard spacings
1 - 120V 1- Standard spacings
2 - 277V 1- Standard spacings
1 - 120V 1- Marked spacings
1 - 120V 1- Marked spacings
2 - 277V 1- Marked spacings
Conforms to ANSI/UL Std. 2108
Cert. to CAN/CSA Std. 22.2 No. 250.0
Last Update ALLU 13/04/2018
