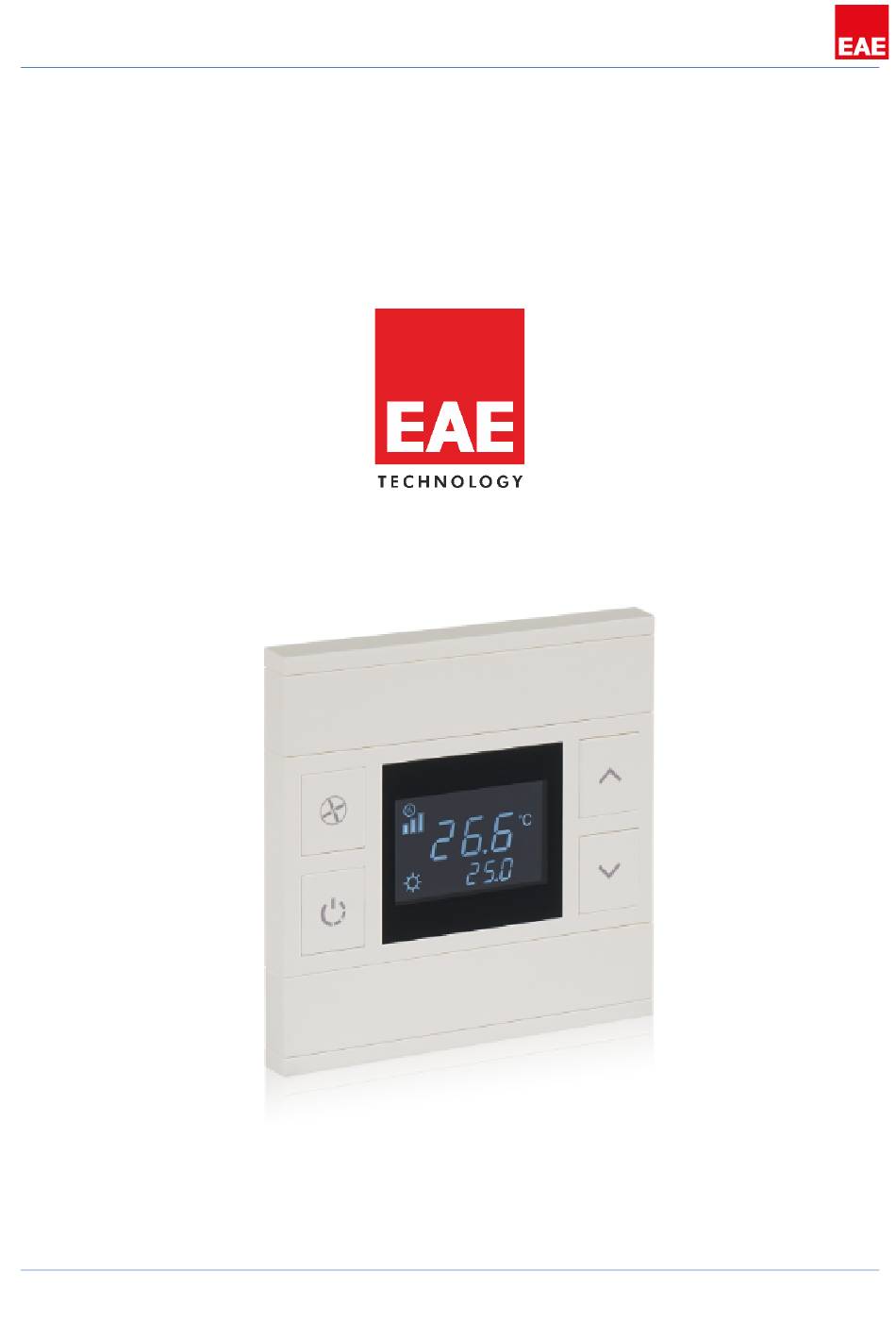

  • Page 1 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 EAE ORIA THERMOSTAT Product Manual Oria Thermostat EAE Technology www.eaetechnology.com Sayfa / 50 ©...

  • Page 2: Table Of Contents

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Content 1. General ..............................4 2. Device Technology ..........................4 2.1 Button Definitions ........................... 4 2.2 Connection Diagram ........................4 2.3 Technical Data ..........................5 2.4 Dimensions ............................5 3. Communication Object Table ........................6 4. Parameters and Communication O bjects ....................8 4.1 General ............................8 4.1.1 Parameters ..........................8...
  • Page 3 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.4.4.3 On/Off ........................... 34 4.4.4.4 Fan Coil ..........................35 4.4.4.5 Split Unit ..........................36 4.4.5 Cooling Control .......................... 37 4.4.5.1 PI Continuous ......................... 38 4.4.5.2 PI PWM ..........................39 4.4.5.3 On/Off ........................... 40 4.4.5.4 Fan Coil ..........................41 4.4.5.5 Split Unit ..........................42 4.4.6 Fan Control ..........................43 4.4.6.1 Parameter ..........................44 4.4.6.2 Communication Objects ......................44 4.5...

  • Page 4: General

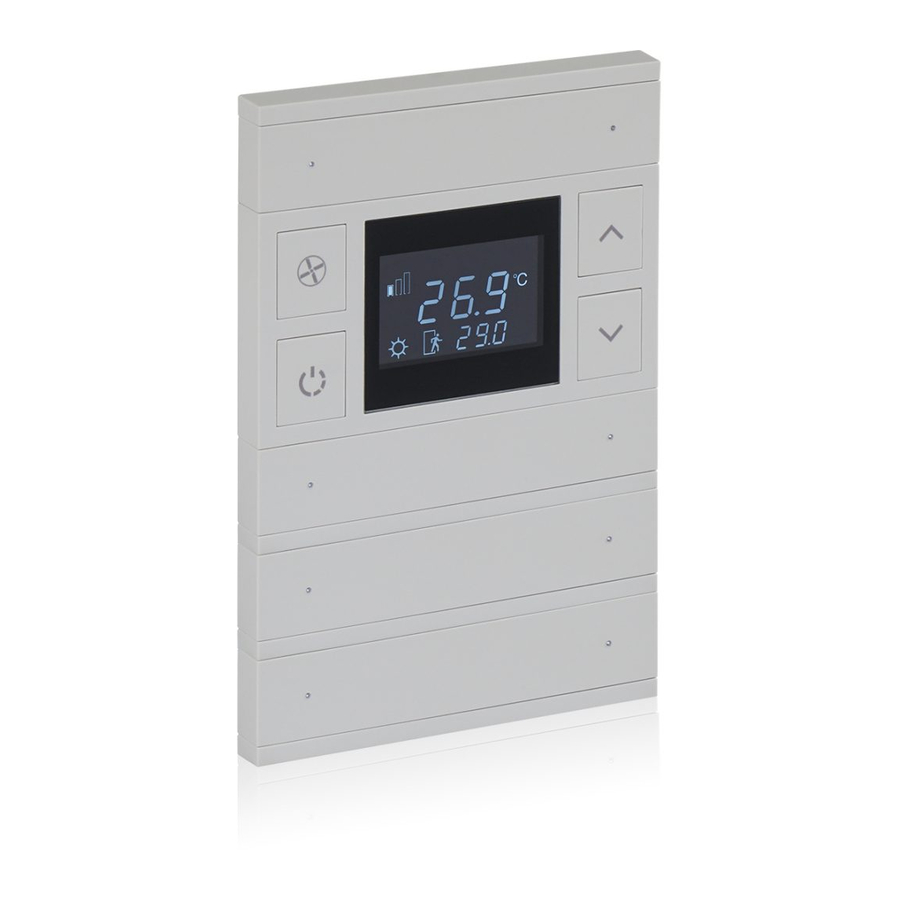

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 1. General Extendable up to 4 folds, Oria thermostats offer a wide range of functional flexibility with integrated programmable switches. Buttons on Oria thermostats can be programmed to control lighting, shutter/blind drivers, speakers, make scene calls and mimic panic buttons. Each button can be programmed independently for a different function. 2. Device Technology Button Definitions 1. Programmable Button Group 1 2. Fan Speed (1, 2, 3, A) 3. Operation Mode (Comfort, Night, Away, OFF) 4. Setpoint Temperature UP 5. Setpoint Temperature DOWN 6. Programmable Button Group 2 Connection Diagram 1. KNX Port Terminal 2. Programming Button 3. Programming LED EAE Technology www.eaetechnology.com Sayfa / 50 ©...

  • Page 5: Technical Data

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Technical Data Protection Type IP20 EN 60529 Safety Class EN 61140 Supply Voltage Range 21-30V DC, Supply from EIB/KNX line Supply Voltage 20 mA Power Consumption 20 mA x 30V Operation LEDs Programming LED for each fold 1 to 5 RGB LEDs for physical address identification Button Operation Life 100.000 Temperature Operating -5° C + 45° C Storage -25° C + 55° C Transport -25° C + 70° C In accordance with EMC guideline and low voltage regulation...

  • Page 6: Communication Object Table

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 3. Communication Object Table Object Name Function Number of Bits Flags General, operation Active Rocker 1, switch On/Off Rocker 1, shutter Up/Down Rocker 1, value[0,1] Send Rocker 1, value[0…255] Send Rocker 1, value[0…65535]...
  • Page 7 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Window Status Open/Close Regulation On/Off Split Heat On/Off Split Cool On/Off Split Heat Error True/False Split Coo Error True/False Current Temperature Temperature Current Setpoint Temperature Operating Mode Send...

  • Page 8: Parameters And Communication O Bjects

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Status Away True/False Status Protect True/False 4. Parameters and Communication O bjects 4.1 General General parameters includes configuration of “in operation bit”, total rocker count, telegram limitations, window status, LED and LCD controls.

  • Page 9: Communication Objects

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Telegram Limit Period Duration 50ms, 100ms, …, 30sn, 1min Visible when “Enable Telegram Limit” enabled. Time period to check telegram numbers Maximum Telegram Count in 1..100…255 Visible when “Enable Telegram Period Limit”...

  • Page 10: Rockers And Push B Uttons

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 If window status enabled, this communication object will be used to detect window status. If window detected as open thermostat will enter protect mode and will not response mode change commands (over communication object or operating mode button) until window detected as closed through this communication object.
  • Page 11 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Shutter Rocker can control shutter, venetian blind, blind, roller and awning. (For more information Chapter 4.2.1.3) Value Operation Rocker buttons can send predefined values from different data types. (For more information Chapter 4.2.1.4)
  • Page 12 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Operation Indication Status LED of the pressed rocker button will be on for the time period selected at “Light Duration of LED” parameter at “General” tab. Separate Comm Object Enable/Disable Only visible when “Function of LED”...
  • Page 13 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Rockers can be configured with switching and dimming capability. When configured as “Switch and Dim” rocker buttons will have two modes switch mode and dim mode. When rocker button pressed shorter than time period specified in “Long Press Duration”...
  • Page 14 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Inverted Status Indication Status LED of last pressed rocker button is off, other rocker button is on. If “Separate Comm Object” parameter selected as “Enable” status LEDs will wait for confirmation from communication object before changing state.
  • Page 15 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Figure 6 Selecting “Shutter” for “Rocker Operation” enables shutter operation for rocker buttons. Shutter functions can be configured to control two different shutter operations “Shutter/Venetian Blind” function or “Blind/Roller/Awning”...
  • Page 16 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Mode of Buttons Left Up Right Down Select which rocker button is “Up Left Down Right Up Button” and which rocker button is “Down Button”. Shutter/Venetian Blind Control Type Selects control type of blinds.
  • Page 17 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 This communication object should be linked to an appropriate group address that will be used to detect whether blind is at “Top Position” (True) or not (False). Rocker1-Bottom...
  • Page 18 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Transmitted value [-32768…32767] -32768…0…32767 Visible when “Data Type” selected as “2 byte value [-32768…32767]”. 0…65535 Transmitted value [0…65535] Visible when “Data Type” selected as “2 byte value [0…65535]”.

  • Page 19: Push Buttons

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 PushButton1- long - Send 4 byte value[temperature] DPT 14.068 Enabled when “Long Press Data Type” selected as “4 byte value [floating point] PushButton1- long - Send 4 byte value[0…4294967295]...
  • Page 20 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 operation directly with buttons or using communication objects for confirmation to show current status. 4.2.2.1.1 Parameters Parameter Setting Description On / Off / Toggle / No command Command on Press Selects button function when button pressed.
  • Page 21 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.2.2.2 Switch and D im Figure 9 When push button function selected as “Switch and Dim” push button can be configured in three different ways to control brightness value.
  • Page 22 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.2.2.2.1 Parameters Parameter Setting Description Darker(Short Press Off) Dim Operation Select push button dim operation. (For Brighter(Short Press On) more information Chapter 4.2.2.2) Darker/Brighter (Short Press Toggle) Long Press Time...
  • Page 23 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.2.2.2.2 Communication Objects Object Name Function Data type Flags PushButton1 – On/Off 1 bit switch DPT 1.001 On/Off telegrams will be send to group address that is linked to this communication object.
  • Page 24 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 pressed while the blind is moving, stops the blind, short pressed while the blind is not moving adjust the lamella position up. Toggle: “Long Press” moves the blind upwards or downwards toggling the last “Long Press” action. For example, if last state was up, when push button long pressed, it will send “Down”...
  • Page 25 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.2.2.3.2 Communication Objects *[6] LED Function – Status Indication Status indication operates the same way for “Shutter/Venetian Blind” and “Blind/Roller/Awning”. LEDs status respective to blind’s state and “Button Function” configuration given below;...
  • Page 26 Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Data Type No Reaction Select data type. 1 bit value 1byte value [0…255] Percent value [%0…%100] 2 byte value [-32768…32767] 2 byte value [0…65535] 4 byte value [floating point] 4 byte value [0…4294967295]...

  • Page 27: Temperature Sensor

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Transmitted value 0…4294967295 Visible when “Long Press Data Type” selected as “4 byte value [0…4294967295] [0…4294967295]”. Table 23 Temperature Sensor Temperature sensor and temperature status parameters should be configured from “Temperature Sensor” tab.

  • Page 28: Communication Objects

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Minimum Difference (1/10 K) 1…255 Only visible if “Send Temperature” selected as “Cyclic and Change”. Selects minimum change in temperature that will trigger transmission of temperature. Table 24 4.3.2 Communication Objects...

  • Page 29: Parameters

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 under “Thermostat Parameters” tab. Controller operation should be configured in respective tabs for heating, cooling and if enabled fan control. When control mode selected as “Heat/Cool”, configuration parameters for switchover (transition from heating to cooling or vise versa) conditions should be entered here.

  • Page 30: Communication Objects

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Communication Objects 4.4.2 Object Name Function Data Type Flags Operating Mode Select Operating 1 byte Mode DPT 5.011 Comfort mode Enable 1 bit DPT 1.003 Night Mode Enable 1 bit DPT 1.003...

  • Page 31: Control Types

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 “Status Operating Mode” is visible when “Status Comm Object Type” is “1 byte”. Values for different operating modes; 0: Comfort Mode, 1: Night Mode, 2: Away Mode, 3: Protect Mode.

  • Page 32: On/Off

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.4.3.3 On/Off On/Off controller operate as a simple switch around the given setpoint using hysteresis values. Hysteresis values prevent the thermostat from oscillation and give larger margin to turning heat or cool on or off. When system is more active hysteresis values should be given larger and more inactive values can be given smaller.

  • Page 33: Pi Pwm

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.4.4.1.1 Parameters Parameter Setting Description Cyclic Interval 1…5…255 Time period to send heating control value over “Heating Control Value” communication object. Enable / Disable Inverse Output Invert the output of the controller.

  • Page 34: On/Off

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.4.4.2.1 Parameters Parameter Setting Description Inverse Output Enable / Disable Invert the output of the controller. For example if normal output is “On”, then inverted output is “Off”.

  • Page 35: Fan Coil

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Heating control parameters for on/off controller type should be configured here. For more information about on/off controller read Chapter 4.4.3.3. 4.4.4.3.1 Parameters Parameter Setting Description Cyclic Interval 1…5…255 Time period to send heating control value over “Heating...

  • Page 36: Split Unit

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.4.4.4.1 Parameters Parameter Setting Description Cyclic Interval 1…5…255 Time period to send heating control value over “Heating Control Value” communication object. Enable / Disable Inverse Output Invert the output of the controller.

  • Page 37: Cooling Control

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.4.4.5.1 Parameters Parameter Setting Description Cyclic Interval 1…5…255 Time period to send heating control value over “Heating Control Value” communication object. Enable / Disable Send On/Off at Control Mode Enables “Split Heat”...

  • Page 38: Pi Continuous

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.4.5.1 PI Continuous Figure 19 For more information how the PI parameters should be selected Chapter 4.4.3.1 4.4.5.1.1 Parameters Parameter Setting Description Cyclic Interval 1…5…255 Time period to send heating control value over “Cooling...

  • Page 39: Pi Pwm

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.4.5.2 PI PWM Figure 20 For more information how the PI parameters should be selected Chapter 4.4.3.2 4.4.5.2.1 Parameters Parameter Setting Description Enable / Disable Inverse Output Invert the output of the controller.

  • Page 40: On/Off

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.4.5.2.2 Communication Objects Object Name Function Data Type Flags Cool Control Value Send 1 bit DPT 1.002 Cooling actuator will be controlled through this communication object. Table 42 4.4.5.3 On/Off Figure 21 Cooling control parameters for on/off controller type should be configured here.

  • Page 41: Fan Coil

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.4.5.4 Fan Coil Figure 22 Cooling control parameters for fan coil controller type should be configured here. 4.4.5.4.1 Parameters Parameter Setting Description Cyclic Interval 1…5…255 Time period to send cooling control value over “Cool Control...

  • Page 42: Split Unit

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.4.5.5 Split Unit Figure 23 Split unit controller does not directly control temperature, since temperature control is split unit’s responsibility “Current Temperature” and “Current Setpoint” communication objects should be linked to split units “Ambient Temperature”...

  • Page 43: Fan Control

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.4.5.5.2 Communication Objects Object Name Function Data Type Flags Split Cool On/Off 1 bit DPT 1.001 Visible if “Send On/Off at Control Mode Switchover” parameter enabled. This communication object is not a control object, it will send “True”...

  • Page 44: Parameter

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.4.6.1 Parameter Parameter Setting Description 0 / 1 Comm Object Value to Enable Telegram value to enable Automatic Fan Speed automatic fan speed might differ between different actuators; use...

  • Page 45: Setpoints

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.5 Setpoints Setpoints, setpoint limitations, fan speeds and reset on site operations controlled through this parameter tab. Figure 25 Current setpoint value can be transmitted over “Current Setpoint” communication object periodically or periodically and when a change occurs.

  • Page 46: Setpoint Limitations

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 4.5.1 Setpoint Limitations Setpoint limitations can be controlled through “Allowed Range”, “Minimum Setpoint” and “Maximum Setpoint” parameters. “Allowed Range” parameter limits setpoint values relative to the default setpoint values of the operating modes downloaded with ETS when commissioned.

  • Page 47: Reset On Site

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Error Enter Error Mode Condition Leave Error Mode Condition Window Status Open Close Split Heat Error True False Split Cool Error True False Table 48 When in error mode if another error condition occurs, thermostat will stay in error mode until both errors are fixed.

  • Page 48: Communication Objects

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Setpoint 0…23…99 Night mode setpoint value Fan Speed Fan Speed 1 / Fan Speed 2 / Night mode fan speed value Fan Speed 3 / Auto Away Mode Setpoint 0…21…99...

  • Page 49: Status

    Product Manual Oria Thermostat EAE KNX Oria Thermostat Oria Thermostat PM R1.0 Status Figure 26 4.6.1 Parameters Status parameter can be used to enable/disable additional control mode status telegrams. Status telegrams operate the same way as switchover telegrams. But instead of sending switchover telegrams as DPT 1.100 or DPT 20.105, sends 1 bit On/Off (DPT 1.002) telegrams.

  • Page 50: Local Control

    4.7 Local Control Figure 27 4.7.1 Parameters Parameter Setting Description Setpoint Button Enable / Disable Enable/Disable setpoint buttons on thermostat. Fan Speed Button Enable / Disable Enable/Disable fan speed button on thermostat. Enable / Disable Operating Mode Button Enable/Disable operating mode button on thermostat Table 53 When any of the thermostat buttons disabled “Lock Icon”...
