Premier Mounts iPad IPM-100 Installation Instructions

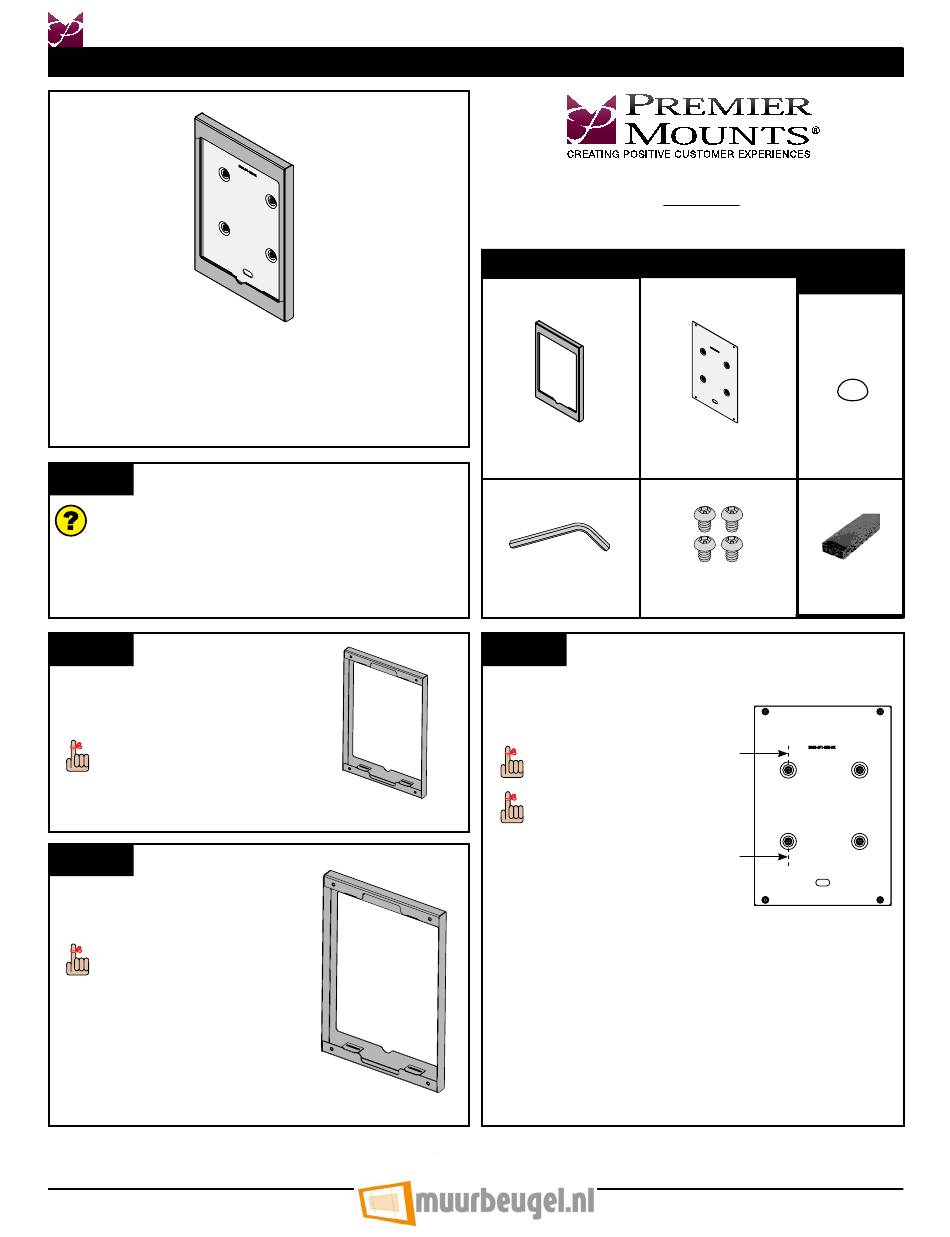

iPad™ IPM-100 Mounting Frame Installation Instructions
The IPM-100 mounting frame securely holds the Apple iPad™ or
iPad2™ (not included) in place and prevents access to all control
buttons except the home button. It fastens easily to any of Premier
Mounts' wall or table mounts (sold separately) using the VESA
100x100mm mounting pattern. The IPM-100 provides flexibility and
security for the optimal hands-free experience.

Step 1

Are you installing an iPad™ or iPad2™ to the IPM-100?
If an iPad™, skip to step 5 on page 2.
If an iPad2™, continue to step 2 below.

Step 2

Attach two (2) strips of adhesive foam
tape to locations "A" inside the front
piece.
Locations "A" are inside the
outer edges of the front piece.

Step 3

Attach four (4) adhesive-backed bumpers to
locations "B" inside the front piece.
Locations "B" are over the centers of
the inside slots.
• All trademarks are the property of the respective trademark owners.
Installation Instructions
9531-056-001-01
Other Locations – Phone: (001).714.632.7100; Fax: (001).714.632.1044 ©Premier Mounts 2011

Parts List

IPM-100 - Front Piece
M5 Security Allen Wrench

Step 4

Attach four (4) adhesive-backed
bumpers to locations "C" on the inside
A
of the back piece.
A
Inside of Front Piece
Continue to step 5 on page 2.
B
B
B
B
3130 East Miraloma Avenue
Anaheim, CA 92806 USA
USA and Canada
Phone: 1.800.368.9700
Fax: 1.800.832.4888
IPM-100 - Back Piece
(Qty 1) (Qty 1)
M4 x 8mm Security Screw
(Qty 4)
(Qty 1)
Locations "C" are 1½˝ away
from the center of each bump
on the back piece.
Make sure the metal bumps on
the back piece are protruding
on the opposite side of the
adhesive-backed bumpers.
IPM-100
iPad2™ Kit
Adhesive-Backed
Bumper (Qty 8)
Adhesive Foam
Tape (Qty 2)
C C
1½˝
1½˝
C C
Page 1
