799000616 / Rev. 14/ 2019-01-17
Translation of the original operating manual
Operating Manual
SERIES EMAX / EMAL
Magnetic Absolute Linear Encoder with 10 µm resolution
Absolute encoder with 10 µm resolution
No referencing required (changes of position
are also recognized in the de-energized state)
Wear free and contactless measurement
Measuring length up to 10 m (EMAX) resp. 20 m (EMAL)
Too large distances between sensor and magnetic tape
are automatically detected and signalized by an LED
Sensor with fixed cable outlet or optionally with
M9 round connector on sensor housing
Additional incremental or sine-cosine signals for
dynamic movement control available
Available interfaces: SSI, CANopen, RS422, RS232
New: IO-Link acc. to IEC 61131-9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elgo EMAX Series
Summary of Contents for Elgo EMAX Series

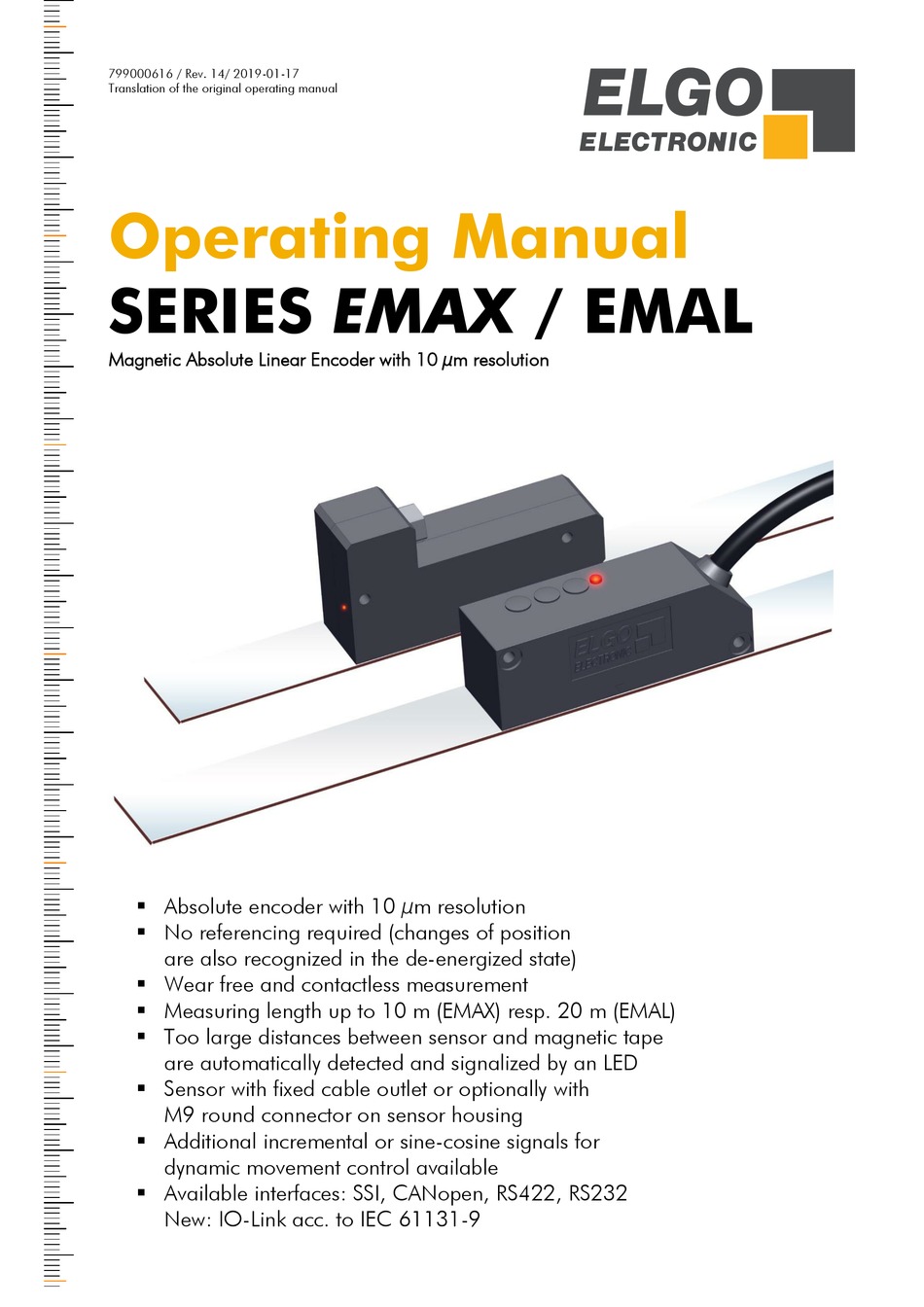

- Page 1 799000616 / Rev. 14/ 2019-01-17 Translation of the original operating manual Operating Manual SERIES EMAX / EMAL Magnetic Absolute Linear Encoder with 10 µm resolution Absolute encoder with 10 µm resolution No referencing required (changes of position are also recognized in the de-energized state) ...
- Page 2 +49 (0) 7731 9339 – 0 +49 (0) 7731 2 13 11 info@elgo.de Document- No. 799000616 Document- Name EMAX-EMAL-00-MA-E_03-19 Document- Revision Rev. 14 Issue Date 2019-01-17 Copyright © 2019, ELGO Electronic GmbH & Co. KG - 2 -...
-
Page 3: Table Of Contents
Interfaces ..................20 Interface SSI (option SB0 and SG0) ..............20 Interface CANopen (option CA0) ................. 21 CAN BASIC ELGO (Option CN0) ................ 22 Termination Resistor ..................23 Interface RS422 (Option 420) & RS232 (Option 230) ..........24 RS422 Addressable Version (Option A20) ............. 25 Connection to a RS422 Master ................ - Page 4 Contents Optional Incremental Output ............29 Incremental A/B Signals (TTL / HTL) ..............29 Sine/Cosine Incremental Signals (Option SC50) ............ 29 Pin Assignment ................30 10.1 Connections of Housing with fixed Cable Outlet ............ 30 10.2 Connections of Housing with M9 Round Connector ..........36 Disturbances, Maintenance, Cleaning ..........
-
Page 5: List Of Figures
Contents 2 List of Figures: Figure 1: Coding of the magnetic tape ....................... 9 Figure 2: Dimensions of sensor with cable outlet ..................10 Figure 3: Dimensions of sensor with M9 round connector ................10 Figure 4: Dimensions of guide carriage FW2080 ..................11 Figure 5: Components of the magnetic tape ..................... -
Page 6: General, Safety, Transport And Storage
General, Safety, Transport and Storage 4 General, Safety, Transport and Storage Information Operating Manual This manual contains important information regarding the handling of the device. For your own safety and operational safety, please ob- serve all safety warnings and instructions. Precondition for safe operation is the compliance with the specified safety and handling instruc- tions. -
Page 7: Statement Of Warranties
General, Safety, Transport and Storage Statement of Warranties The producer guarantees the functional capability of the process engineering and the selected parameters. Demounting and Disposal Unless acceptance and disposal of returned goods are agreed upon, demount the device considering the safety instructions of this manual and dispose it with respect to the environment. -
Page 8: Conventional Use
The product described in this manual was developed to execute safety-related functions as a part of an entire assembly or machineThe ELGO-device is only conceived for the conventional use described in this manual. The ELGO EMAX / EMAL linear encoders only serve to measure lengths. -
Page 9: Product Features
Product Features 5 Product Features The series EMAX / EMAL is an absolute length measuring system. Sensor and translator and interpolation unit are together in the same compact housing. The magnetic tape of series EMAB is paste up to a plain area. The EMAX / EMAL encoders can be mounted with a maximum distance of 1.5 mm to the magnetic tape. -
Page 10: Technical Data
The type label serves for the identification of the unit. It is located on the housing of the sensor and gives the exact type designation (=order reference, see type designation) with the corresponding part number. Furthermore, the type label contains a unique, traceable device number. When corresponding with ELGO always indicate this data. Dimensions Sensor Housing with Cable Outlet 14.1 22.5... -
Page 11: Dimensions Guide Carriage Fw2080
Technical Data Dimensions Guide Carriage FW2080 Top view: 83.5 16.5 Ø 3.5 Ø 6 Side view: Ø 4.5 Ø 8 Rear view: Figure 4: Dimensions of guide carriage FW2080 REMARK! The accessorial guide carriage FW2080 ( 12.2) is only available for the housing version with a fixed cable outlet (... -
Page 12: Technical Data Sensor
Technical Data Technical Data Sensor EMAX / EMAL (standard version) Mechanical Data Measuring principle absolute Measurement linear Repeat accuracy ±1 Increment System accuracy in µm at 20°C ±(150 + 20 x L) (standard 010 12) (L = measuring length in meters) ±(50 + 20 x L) (option F10 ... -
Page 13: Technical Data Magnetic Tape
Weight magnetic tape ca. 62 g/m (incl. magnetic tape and cover tape) Tape imprint ELGO standard, printing color black, digit height >= 5 mm External magnetic fields must not exceed 64 mT (640 Oe; 52 kA/m) on Influence of external magnets the surface of the magnetic tape as this could damage or destroy the code on the tape. -
Page 14: Installation And First Start-Up
In case of damage caused by failure to observe this operating manual, the warranty expires. ELGO is not liable for any secondary damage and for damage to persons, property or assets. The operator is obliged to take appropriate safety measures. The first start-up may only be performed by staff that has been trained and authorized by the operator. -
Page 15: Installation Of The Magnetic Tape
Installation and First Start-Up Installation of the Magnetic Tape NOTE External Magnetic Fields The magnetic tape must not be influenced by external magnetic fields! The magnetic tape must not come into direct contact with other magnetic fields (e.g. perma- nent magnets, magnetic clamps, electromagnets, magnetic stands)! This may cause irrepara- ble damage, which will compromise the measuring accuracy or even the functioning. - Page 16 Installation and First Start-Up 7.2.2 Handling In order to avoid tension in the tape, it must not be stretched, compressed or twisted. It should be stored with the magnetized plastic tape to the outside, the minimum bending radius must be noted here Magnetized Plastic tape...
- Page 17 Installation and First Start-Up 7.2.4 Cutting and Gluing Before starting the gluing process, both the magnetic and the cover tape have to be cut to the required length Length cover tape = measuring length + sensor length + 50mm (end caps) NOTE! When sticking the magnetic tape pay attention to the markings on the tape and the Sensor.
-
Page 18: Installation Of The Sensor
Installation and First Start-Up Installation of the Sensor In order to fasten the sensor head, two M3 must be used. NOTE! The correct distance sensor / magnetic tape is monitored and displayed by the LED on the top resp. on the front sensor (depends on design). Distance not correct LED glow red The mounting tolerances given below are valid for both housing types (standard version with fixed cable outlet or sensor housing with round connector). -
Page 19: Offset Calibration
Installation and First Start-Up 7.3.2 Mounting Direction of EMAX / EMAL Sensor to Magnetic Tape Since the magnetic tape has two magnetized tracks, the sensor and magnetic tape must always be mounted in the correct direction in order to obtain correct measurement results. Marking arrows on the tape and sensor clearly indicate the correct mounting direction. -
Page 20: Interfaces
Interfaces 8 Interfaces The following chapters give detailed information about the available interfaces. Interface SSI (option SB0 and SG0) Principle of the function: If the clock is not interrupted for the time Tm-T/2 (output of further 25 periods), the shift register clocks once again the same data value (error recognition in evaluation). -
Page 21: Interface Canopen (Option Ca0)
First 4 bytes = Position (resolution 0.01 mm), bit rate 250 KB/s sponding EDS or XDD file. Following 2 bytes = velocity in mm/s Download: https://www.elgo.de/filead min/user_upload/software/ EMAX_DS406.zip Position Velocity The CAN-Identifier can be adjusted in the range of 181... -
Page 22: Can Basic Elgo (Option Cn0)
CAN BASIC ELGO (Option CN0) Interface / Protocol: When ordering option “CN0”, the EMAX / EMAL encoder is equipped with a CAN interface according to the ELGO CAN standard protocol. The following identifiers are given: Table 3: Identifier Option CN0... -
Page 23: Termination Resistor
Interfaces Termination Resistor As standard the interfaces CANopen and addressable RS422, is supplied with an internal 120 Ω termination resistor. For sensors with a fixed cable outlet, this can be deactivated via a trimmer located under a protective cap right next to the LED. PLEASE NOTE: With the sealed option V or sensor housings with round connector, the above-mentioned terminating resistor is not accessible! If no terminating resistor is required for these variants,... -
Page 24: Interface Rs422 (Option 420) & Rs232 (Option 230)
Interfaces Interface RS422 (Option 420) & RS232 (Option 230) Depending on the order specification the encoder can be equipped with a RS422 (option “420”) or RS232 interface (option “230”). Both versions use the same protocol and differ only in their level height. The data transmission has the following format: 1 Start Bit / 8 Data Bits / 1 Stop Bit / No Parity Data protocol:... -
Page 25: Rs422 Addressable Version (Option A20)
Interfaces RS422 Addressable Version (Option A20) The device address can be defined by using a rotary code switch that is located behind a protective cap on the top of the sensor housing: Bit rate Address Figure 14: Set options on top of the housing Table 6: Addressable RS422 Option A20 Position Bit rate (left) - Page 26 Interfaces Protocol of an addressable EMAX / EMAL: General format of a message to the EMAX or EMAL: 0x02 Byte1 Byte2 Byte3 0x03 check 0x02 (STX) starts a message 0x03 (ETX) close the message Byte3 (check) is the arithmetic sum of 0x02(STX), Byte1 and Byte2. ETX is not included in the checksum General format of a message from the EMAX or EMAL: 0x02...
-
Page 27: Connection To A Rs422 Master
Interfaces Table 7: Error messages of an addressable EMAX / EMAL Code Description 0x04 Wrong succession of bytes sent to EMAX / EMAL for example if the 4. byte after the STX is no ETX or the byte after STX is not 0x04, 0x05 or 0x06. 0x05 Receive Error: Error concerning the interface (for example if there has been sent a message with a wrong baud rate etc.) -
Page 28: Io-Link Interface
3. EMAX-IO calculates the offset so that zero is output at the approached position. 8.8.5 Download Data Sheet The download of the complete data sheet with all relevant data, commands and parameters can be found on: https://www.elgo.de/fileadmin/user_upload/pdf/flyer/sensors/EMAX-IO-000-TD-E.pdf - 28 -... -
Page 29: Optional Incremental Output
Optional Incremental Output 9 Optional Incremental Output Note: This option is only available for EMAX/EMAL sensor designs with fixed cable outlet. Incremental A/B Signals (TTL / HTL) Optionally two 90° phase shifted, rotary pulse encoder compatible square-wave signal outputs with HTL or TTL level (push/pull) are available. -
Page 30: Pin Assignment
Pin Assignment 10 Pin Assignment 10.1 Connections of Housing with fixed Cable Outlet 10.1.1 SSI-Interface Table 9: Connections of SSI interface cable 1 Color SSI (SG0, SB0) SSI (SG0, SB0) + Incremental HTL White 0 V / GND 0 V / GND Brown + 10 …... - Page 31 Pin Assignment Table 12: Connections of SSI interface with option MCM0, 12-pin M16 round connector Color Function White 0 V / GND Brown + 10 … 30 VDC Green CLOCK − Yellow CLOCK + Grey DATA + Pink DATA − Blue 1 Vpp SIN + (option) 1 Vpp SIN −...
- Page 32 Pin Assignment 10.1.2 CANopen Interface Table 15: Connections of CANopen interface (open cable ends) Color CAN (CA0) CAN (CA0) + Incremental HTL CAN (CA0) + Incremental TTL White 0 V / GND 0 V / GND 0 V / GND Brown + 10…30 VDC + 10 …...
- Page 33 Pin Assignment 10.1.3 RS422 Interface Table 17: Connections of RS422 interface (open cable ends) Color Function White Brown + 10 … 30 VDC Yellow TX (+) Orange TX (−) Violet RX (−) (only with A20 available) Green RX (+) (only with A20 available) Grey HTL A (option) Black...
- Page 34 Pin Assignment Table 20 : Connections of RS422 interface option M8M0, 8 pin M16 round connector Color Function White 0 V / GND Brown + 10 … 30 VDC Orange TX (−) Yellow TX (+) Violet RX (+) Green RX (−) Grey HTL A (option) Black...
- Page 35 Pin Assignment 10.1.5 IO-Link Interface Table 23: Connections - cable outlet with 4-pin. M12 round connector 4-pin M12 IO-Link interface (IOL) +10 … 30 VDC 0 V / GND C / Q Note: The 4-pin M12 round connector and its assignment comply with the IO-Link standard. 10.1.6 IO-Link Interface with optional Incremental Output Table 24: Connections - open cable ends (standard) IO-Link interface (IOL)
-
Page 36: Connections Of Housing With M9 Round Connector
Pin Assignment 10.2 Connections of Housing with M9 Round Connector REMARK: Additional incremental outputs as well as sine/cosine outputs are not available with the connector housing design ( 12). 10.2.1 SSI / CANopen / RS422 / RS232 Table 26: Connections of the 7-pin M9 round connector (male) CANopen RS422 RS232... -
Page 37: Disturbances, Maintenance, Cleaning
Disturbances, Maintenance, Cleaning 11 Disturbances, Maintenance, Cleaning This chapter describes possible causes for disturbances and measures for their removal. In case of increased disturbances, please follow the measures for fault clearance in chapter 11.1. In case of disturbances that cannot be eliminated by following the advice and the fault clear- ance measures given here, please contact the manufacturer (see second page). -
Page 38: Type Designation
D9M5 = 9-pin (male) D-SUB (only for RS422 with Bit rate 09k6) with Option 5 (pin assignment suitable for Z25 indicators) M8F0 = 8-pin (female) M16 connector with ELGO standard SSI assignment, suitable for ELGO PNO1 (only for SSI) M8M0 = 8-pin (male) M16 connector (only for RS422 and SSI available) -
Page 39: Example Of Available Variants
EMAX00015010SG0-----------T2N5 EMAX with SSI-Gray Interface, 25 Bit, 1.5 m cable, TTL-square-wave signal, 2,5 µm Resolution EMAL00015010CA0125k0---------- EMAL for measuring lengths up to 20 m, according to ELGO standard, with CANopen interface, 1.5 m cable, 125 kbit/s and device address: 0 12.2 Accessories... - Page 40 Notes: - 40 -...
- Page 41 Notes: - 41 -...
- Page 42 Notes: - 42 -...
-
Page 43: Index
Mounting Direction Sensor/Tape ...... 19 Accessories ............. 39 Mounting Tolerances ........18 Accident prevention regulations......6 Offset Calibration ........... 19 CAN ELGO standard ........22 Operating area ..........14 CAN interface ..........21 Operational safety ..........6 CAN-Identifier ..........21 Order reference .......... - Page 44 Document- No.: 799000616 / Rev. 14 ELGO Electronic GmbH & Co. KG Measuring | Positioning | Control Document- Name: EMAX-EMAL-00-MA-E_03-19 Carl - Benz - Str. 1, D-78239 Rielasingen Subject to change - © 2019 Fon:+49 (0) 7731 9339-0, Fax:+49 (0) 7731 28803 ELGO Electronic GmbH &...
