Elgo LIMAX33 CP-00 SERIES Owners & Safety Manual

Safe magnetic absolute shaft information system standard version
Hide thumbs
Table of Contents

Advertisement

Quick Links

D-102840 / Rev. 11 / 2018-09-26

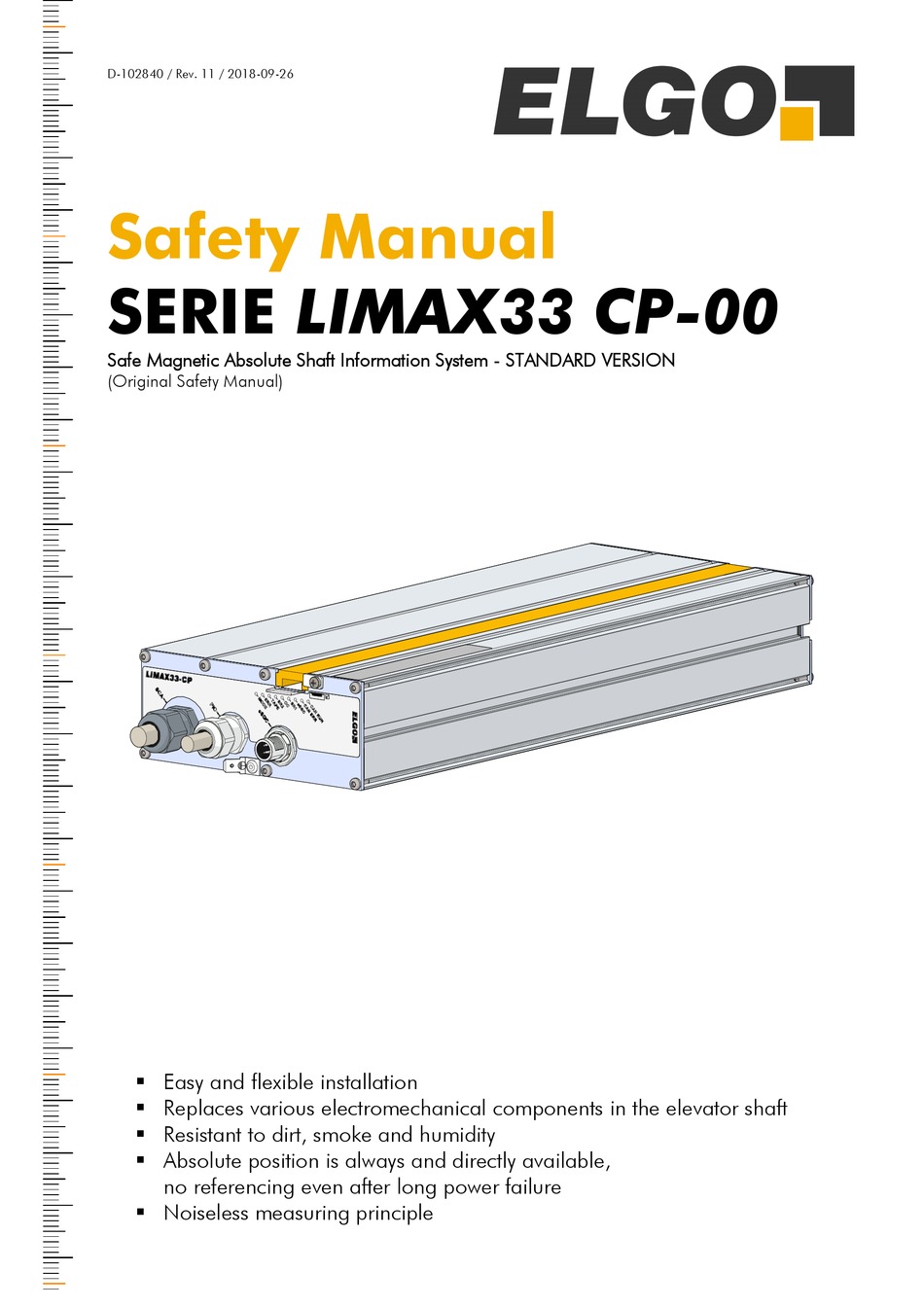

Safety Manual
SERIE LIMAX33 CP-00
Safe Magnetic Absolute Shaft Information System - STANDARD VERSION
(Original Safety Manual)
 Easy and flexible installation
 Replaces various electromechanical components in the elevator shaft
 Resistant to dirt, smoke and humidity
 Absolute position is always and directly available,
no referencing even after long power failure
 Noiseless measuring principle

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIMAX33 CP-00 SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elgo LIMAX33 CP-00 SERIES

Summary of Contents for Elgo LIMAX33 CP-00 SERIES

  • Page 1 D-102840 / Rev. 11 / 2018-09-26 Safety Manual SERIE LIMAX33 CP-00 Safe Magnetic Absolute Shaft Information System - STANDARD VERSION (Original Safety Manual)  Easy and flexible installation  Replaces various electromechanical components in the elevator shaft  Resistant to dirt, smoke and humidity ...
  • Page 2 +49 (0) 7731 9339 – 0  +49 (0) 7731 2 13 11  info@elgo.de Document- No. D-102840 Document - Name LIMAX33CP-00-MA-E_39-18 Article Number 799000808 Document- Revision Rev. 11 Issue Date 2018-09-26 Copyright © 2018, ELGO Electronic GmbH & Co. KG - 2 -...

  • Page 3: Table Of Contents

    General Contents List of Figures ..................5 List of Tables ..................5 General ....................7 Information on the Safety Manual .................. 7 References ........................7 Explanation of Symbols ....................7 Statement of Warranties ....................9 Demounting and Disposal .................... 9 Safety ....................
  • Page 4 General During Operation ................53 12.1 Triggering the Safety Functions ..................53 12.2 The Error Level and Error Codes .................. 53 12.3 The Fault Register ...................... 56 12.4 Testing of the OC- Relays ................... 56 12.5 Testing of the eSGC-actuator ..................56 12.6 LED Signals ......................

  • Page 5: List Of Figures

    General 1 List of Figures Figure 1: Example of a type label for identification of the sensor ..............14 Figure 2: Example of an info label on the housing with a specific system configuration ......... 14 Figure 3: Example of an info sheet for the documentation of the installation with a specific system configuration ................................
  • Page 6 General Table 28: Diagnostics Test Interval (DTI) of the subsystems ................. 84 Table 29: Demands of 61508 ......................... 85 Table 30: Calculation of  for the entire system ..................86 Table 31: Accessories ..........................90 - 6 -...

  • Page 7: General

    They are not necessarily to scale and can slightly differ from the actual design. 3.2 References /LIMAX33CP-00-MI/ Mounting Instructions for LIMAX33 CP-00 with installation kit LIMAX S-RMS2 https://www.elgo.de/fileadmin/user_upload/pdf/manual/lift/LIMAX33CP-00-MI-E.pdf /CiA DR303-3/ CiA Draft Recommendation 303, Part 3: Indicator specification; CAN in Automation /EN81-20/...
  • Page 8 General Tips and recommendations: NOTE! … points out useful tips and recommendations as well as information for an efficient and trouble-free operation. References: () This symbol marks a reference to a chapter of this document () This symbol marks a reference to chapter of another document - 8 -...

  • Page 9: Statement Of Warranties

    General 3.4 Statement of Warranties The statement of warranties is enclosed separately in the sales documents. Guarantee The producer guarantees the functional capability of the process engineering and the selected parameters. The period of warranty is one year and begins with the date of delivery. 3.5 Demounting and Disposal Unless acceptance and disposal of returned goods are agreed upon, demount the device considering the safety instructions of this manual and dispose it with respect to the environment.

  • Page 10: Safety

    Safety 4 Safety CAUTION! Please read the operating manual carefully, before using the device! Observe the installa- tion instructions! Only start up the device if you have understood the operating manual. The operating company is obliged to take appropriate safety measure. The initial operation may only be performed by qualified and trained staff.

  • Page 11: Conventional Use

    It is the responsibility of the manufacturer of a machine or installation to ensure the prop- er operation of the system. The ELGO-device is conceived only for the intended use described in this manual. The ELGO length measuring system LIMAX33 CP-00 serves only to measure lengths in lift systems and to fulfill the required safety functions (described in chapter ...

  • Page 12: Transport And Storage

    Transport and Storage 5 Transport and Storage 5.1 Safety Instructions for Transport, Unpacking and Loading CAUTION! Transport the package (box, palette etc.) professionally. Do not throw, hit or fold it. 5.2 Handling of Packaging Material Notes for proper disposal:  3.5 5.3 Inspection of Transport Check the delivery immediately after the receipt for completeness and transport damage.

  • Page 13: Product Features

    Product Features 6 Product Features LIMAX33 CP-00 is a magnetic tape-based shaft information and safety system which covers: Several safety functions named in the EN81-20/21  The requirements regarding cab position measurement (e.g. as information for lift control)  Non safety relevant functions like door zone indication for emergency release ...

  • Page 14: Technical Data

    (= order reference, see  9) with the corresponding part number. Furthermore, the type label contains a unique, traceable device number, the production date as well as the hardware and software versions. When corresponding with ELGO always indicate this data. Type Designation ( 9):...

  • Page 15: Figure 3: Example Of An Info Sheet For The Documentation Of The Installation With A Specific System Configuration

    Figure 3: Example of an info sheet for the documentation of the installation with a specific system configuration 7.1.3 Configuration of the Device The customer has the choice. He may either order an already configured device at ELGO ( 7.1.3.2), or he orders a blank device and does the configuration on site. 7.1.3.1 Configuration on site It is possible to order a blank device at ELGO and do the configuration on site.

  • Page 16: Dimensions Of Limac33 Cp-00

    Technical Data 7.1.3.2 Configuration at ELGO It is possible to order a configured device at ELGO on own expense. In this case, all labels and sheets will be provided. 7.2 Dimensions of LIMAC33 CP-00 Figure 4: Dimensions of the sensor...

  • Page 17: Technical Data Limax33 Cp-00

    Technical Data 7.3 Technical Data LIMAX33 CP-00 LIMAX33 CP-00 (Standard version) Mechanical Data Measuring principle Absolute Repeat accuracy ±1 increment System accuracy in µm at 20°C ±(1000 + 100 x L) L = measuring length in meters Distance sensor / magnetic tape the correct distance is guaranteed by guidance Basic pole pitch 8 mm...

  • Page 18: Constraints For Use (Safety Requirements For Integration)

    Constraints for Use (Safety requirements for integration) 8 Constraints for Use (Safety requirements for integration) The general constraints for use of LIMAX33 CP-00 are listed here: 1. Configuration of LIMAX33 CP-00 and the elevator (where it is installed) must fit. The configuration is not- ed on the info sheet ...
  • Page 19 Constraints for Use (Safety requirements for integration) The speed limited by safety function “inspection overspeed (final tripping)” can be used to ensure the worst-case speed for the determination of the braking distance for “pre-triggered stopping sys- tem” (see point  n) m.
  • Page 20 Constraints for Use (Safety requirements for integration) 8. The worst case reaction times of relay contacts OC, SR1 and SR2 when a safety function is triggered is <55 ms and concerning the eSGC <45 ms. 9. Constraints for Installation of magnetic tape according to its instruction manual must be observed 10.

  • Page 21: Figure 5: Values For L And R Of Trip Coil

    Constraints for Use (Safety requirements for integration) L[mH] L=1500 mH 1500 Increasing time for braking eleiment to trip 1000 permitted / recommended values of L and R of trip coil connected to eSGC Too high current L/R = 1ms time for braking element to trip is too short (possibly trips during test of eSGC) R[W] Figure 5: Values for L and R of trip coil...

  • Page 22: Type Designation

    Additional information about the parameter set (Designation 2): The parameter set is used to designate devices that are preconfigured at the ELGO Batscale on special custom- er request  7.1.3. For the standard devices (delivered with an "empty" configuration which is configured by the customer) the parameter set is P-0000.

  • Page 23: Installation And First Start-Up

    In case of damage caused by failure to observe this safety manual, the war- ranty expires. ELGO is not liable for any secondary damage and for damage to persons, property or assets. The operator is obliged to take appropriate safety measures. The first start-up may only be performed by staff that has been trained and authorized by the operator.

  • Page 24: Check Of Safety Relevant Configuration

    Installation and First Start-Up 10.2 Check of Safety Relevant Configuration Before installing the LIMAX33 CP-00, the technician must ensure that the safety-relevant configuration specified on the info sheet belonging to the LIMAX33 CP-00 complies with the relevant lift conditions. If this is not the case, the LIMAX33 CP-00 must not be used for this lift.

  • Page 25: Figure 6: View On The Top- And Bottom-Side Of Limax33 Cp-00 With Esgc

    Installation and First Start-Up TOP view Holding plate for the guide rail Tape guide Guide rail Underlay SCA cable PIO cable Earthing lug eSGC connector LED indicator Sensor housing BOTTOM view Floor sensor 1 (FS1) Floor sensor 2 (FS2) Figure 6: View on the top- and bottom-side of LIMAX33 CP-00 with eSGC Remark: The top side view of the version without eSGC is slightly deviant: The eSGC-connector is not fitted and the LED assignment differs depending on the order.

  • Page 26: Table 1: Connections Pio And Sca-Cable

    Installation and First Start-Up NOTE! Before the electrical installation can begin, the complete elevator unit has to be de-energized. The upper part of Figure 6 shows a view on the LIMAX33 CP-00 housing (including the defi- nition of the cable assignment, connectors and earthling lug to the designations used in the following tables).

  • Page 27: Table 3: Floor Sensor Plugs

    Installation and First Start-Up Table 3: Floor Sensor plugs Number of Floor Sensors Type of electrical Installation No floor Sensor No installation necessary (max.) 2 floor Sensors In case of LIMAX33 CP-00 with (optional) two floor sensors, there are circular connectors on the bottom side.

  • Page 28: Figure 8: Installation Circuit Diagram Of Limax33 Cp-00 (Maximum Configuration)

    Installation and First Start-Up 10.4.3 Overview of the Integration in the Lift Installation Figure 8 Figure 9 on the next pages shows the circuit diagrams to connect the single wires of the PIO and SCA cable due to their functions to the elevator system. AC supply of Power supply CP 24VDC Safety circuit...

  • Page 29: Figure 9: Installation Circuit Diagram Of Limax33 Cp-00 (Minimum Configuration)

    Installation and First Start-Up Power AC supply of supply Safety circuit 24 VDC GND Upper fixation Inspe cti on swi tch Inspe cti on Inspe cti on D OW N 24 V GND Recall OC*) OC-I OC-O LIMAX33CP-00 Recall Recall DOWN front doors rear doors...

  • Page 30: Figure 10: One Sr And One Door Side

    Installation and First Start-Up 10.4.4 Integration of the bridgeable contact (OC) The integration is placed in a way that assures that OC can be bridged by the recall panel (refer to Figure 8 and Figure 9 ). 10.4.5 Integration of the SR In case of two SR’s, SR1 and SR2 should be connected following Figure 8.

  • Page 31: Figure 12: Esgc Actuator Connected To A Blocking Device On The Speed Governor (Remote Tripping)

    Installation and First Start-Up 10.4.6 Integration of the Magnetic Tape Presence Detector The magnetic tape presence detector is a contact which must open the safety circuit if the magnetic tape is not in the correct position. The contact has to be placed in non-bridgeable position within the safety circuit. It is not allowed to place the presence detector in a spot where it can be bridged by the recall panel.
  • Page 32 Installation and First Start-Up 10.4.10 Connection of the EN81-21-Input The “EN81-21-input” must be connected to the “EN81-21-signal”. In normal lift operation this signal should be HIGH (24 V). This signal must be LOW (resp. open input) if a door giving access to the car roof or the shaft pit is opened by a key.

  • Page 33: Operation Modes And Commissioning

    Operation modes and Commissioning 11 Operation modes and Commissioning 11.1 Operation Modes The following operation modes are available: Pre-commissioning mode  Teach mode  Normal mode  Test mode  Settings mode  Teach mode and test mode provide additional sub-modes. The figure on next page shows an overview of the operation modes and the transitions between them.

  • Page 34: Figure 13: Operation Modes Overview

    Operation modes and Commissioning System Error „diagnosis floor table“ PRE-COM- MISSIONING TEACH Power on or reset Submodes - MANUAL (default) - AUTO Blue transitions are made NORMAL with CANopen Lift State commands TEST = limit switch references Submodes and floor table will be deleted - IDLE (default) - ETSL UP - ETSL DOWN...

  • Page 35: Table 5: Safety Output States In Pre-Commissioning Mode (See Also  13.4)

    Operation modes and Commissioning In Teach mode shaft information can be learned. There are two types of shaft information: 1. The floor table (total number of floors, positions of the single floors and possibly side of the floors) 2. The (limit switch) reference positions refer to  11.2.2 It depends on the enabled safety functions/features whether only the floor table, only the reference positions or both of them or none of them are needed, refer to section ...

  • Page 36: Table 6: Safety Output States In Teach Mode Or Teach Auto Mode When Reference Positions Are Available

    Operation modes and Commissioning 11.1.2 Teach Mode 11.1.2.1 General In order to reach the normal mode (for normal lift operation), it is necessary to teach a valid floor table and/or reference positions using a commissioning process. This can only be done in teach mode. There are two kinds of teach procedures: manually and automatically.
  • Page 37 Operation modes and Commissioning Remarks: If neither floor table nor reference positions are needed in order to fulfil the respective enabled subset of safety functions the LIMAX33 CP-00 will start directly in normal mode even after first installation. A de- mand to enter the teach mode will be refused.
  • Page 38 Operation modes and Commissioning 11.1.5 Test Mode Test mode can only be entered from normal mode. This is done by the corresponding CANopen command. The test mode provides the following sub modes: Idle  Trip  ETSL-UP  ETSL-DOWN  Pre-trig ...
  • Page 39 Operation modes and Commissioning 11.1.5.2 Test mode, sub-mode ETSL-UP Test mode, sub-mode ETSL-UP can be entered by CANopen command to change the sub-mode to “ETSL-UP”. This can be only done if the device is in test mode. The behavior of safety function deceleration control (ETSL) is different in this sub-mode: When moving up, distance “s”...

  • Page 40: Manual Learning Of The Floor Table

    Operation modes and Commissioning 11.2 Manual Learning of the Floor Table NOTE! This chapter gives a summary about the procedure when learning the floor table manually. The following figure shows an overview of the flow of events in teach mode, sub mode manual. Details are described in the following subchapters.
  • Page 41 Operation modes and Commissioning The order of learning is absolutely arbitrary - not only concerning the single floors, but also the order of learning of the reference positions and the floors. So, it is possible to save time by optimizing the order of events: first one reference positions is learned, ...
  • Page 42 Operation modes and Commissioning NOTE! If a power cycle happens starting from teach mode and both reference positions have been learned, LIMAX33 CP-00 will restart in normal mode for the case that LIMAX33 CP-00 does not need a floor table , reference positions will be available. Learning process is finished. 11.2.3 Learning the Floor Table After learning the reference positions, an inspection trip between the inspection limit switches is possible.

  • Page 43: Figure 15: Canopen Learning Of Double Sided Floors

    Operation modes and Commissioning Figure 15 and Table 7 illustrate the learning of double sided floors: Front floors Rear floors (first side) (second side) Lift control CAN-Command: #5 (second side) Store actual 10000mm position as floor #4, both sides #4 (both sides) 7000mm #3 (first side) 4000mm...

  • Page 44: Automatic Learning Of The Floor Table

    Operation modes and Commissioning 11.2.4 Leaving the Teach Mode, Sub-Mode “Manual” to Normal Mode When the limit switch reference positions and all floors have been learned (refer to chapter 11.2.3 ) the techni- cian leaves the teach mode to normal mode by CANopen command. If the teaching is succeeded, LIMAX33 CP-00 will leave teach mode to normal mode.

  • Page 45: Figure 16: Flow Of Events In Teach Mode Auto

    Operation modes and Commissioning Precommissioning or Normal Mode Teach request CANopen: Transition to TEACH Teach Mode, submode Manual Drive to top position Teach upper reference CANopen: Teaching reference position top Drive to bottom position CANopen: Teaching Teach lower reference reference position bottom CANopen: Teach Sub-mode Transition to Teach,...
  • Page 46 Operation modes and Commissioning The order of learning reference positions and floor positions by passing by the floor magnets is arbitrary; therefore it is also possibly to optimize the flow events in order to save time. If the teaching process follows Figure 17 (see next page), it is only necessary to move one and a half time through the whole shaft: 1.

  • Page 47: Figure 17: Time-Saving Flow Of Events In Teach Mode Auto

    Operation modes and Commissioning Precommissioning or Normal Mode CANopen: Transition to TEACH Teach request Teach Mode, Sub-mode manual Teach Sub-mode CANopen: Transition to TEACH, Auto request Sub-mode Auto Teach Mode, Sub-mode Auto Drive to bottom position CANopen: Teaching Teach lower reference reference position bottom Drive trough the whole shaft LIMAX Safe CP learns...
  • Page 48 Operation modes and Commissioning 11.3.1 Activation of Teach Mode “Auto” The technician first enters teach mode by CANopen command. The default sub mode is “Manual”. Optionally, he can teach the reference positions. Chapters  11.2.1 and  11.2.2 are here applicable as well. Remark: reference positions can also be learned later, after change to sub mode “Auto”.

  • Page 49: Figure 18: Automatic Learning Of Double Sided Floors

    Operation modes and Commissioning In case a floor which is already stored in the floor table is detected a second time during teach mode (within a tolerance of ± ), the new detected position overwrites the position already available in “Door minimum distance”...

  • Page 50: Reentering Of Teach Mode, Sub-Mode "Manual

    Operation modes and Commissioning 11.3.3 Leaving the Teach Mode, Sub-Mode „Auto“ to Normal Mode When all floors have been learned (refer to chapter  11.3.2 ) the technician can leave the teach mode, sub- mode “auto” to normal mode via CANopen command. If teaching succeeded, LIMAX33 CP-00 will leave teach mode to normal mode.

  • Page 51: Reentering Of Teach Mode, Sub-Mode „Auto

    Operation modes and Commissioning 11.5 Reentering of Teach Mode, Sub-Mode „Auto“ After re-entering teach mode  11.4, sub-mode can be changed to “auto” by the corresponding CANopen command. This may be useful if a new floor should be added. In this case it is sufficient to pass by only the new floor mag- net.
  • Page 52 Operation modes and Commissioning 11.6.2 Automatic Adjustment by Floor Sensors While adjusting, using floor detection sensors, an already known floor in the floor table will be adjusted auto- matically under the following conditions: The actual speed is less than 1 m/s ...

  • Page 53: During Operation

    During Operation 12 During Operation Once LIMAX33 CP-00 was commissioned correctly, it is only in the following cases that any necessary opera- tions are required on LIMAX33 CP-00: Emergency evacuation and troubleshooting if a safety function has been triggered or in case of defects ...

  • Page 54: Table 10: Error Codes

    72xh All other failures replace LIMAX33 CP-00 concerning the con- figuration All other Only of inter- All other Only of interest for replace LIMAX33 CP-00 error est for repair error repair at ELGO-plant codes at ELGO-plant codes - 54 -...

  • Page 55: Table 11: Errors Concerning Nonvolatile Stored Data

    During Operation Table 11: Errors concerning nonvolatile stored data Name Error codes Measures Shaft parameter 1. 0x643 Go to settings or teach mode.  (offset final limit switch, 2. 0x644 Set new shaft parameter or set them to default.  offset inspection limit 3.

  • Page 56: The Fault Register

    During Operation 12.3 The Fault Register The fault register contains the information if a safety function ( 13) tripped. A detailed description of the fault register can be found in the CANopen specifications. 12.4 Testing of the OC- Relays When a relay is opened by LIMAX33 CP-00, it is checked by the feedback contacts whether the relay has really opened.

  • Page 57: Led Signals

    During Operation 12.6 LED Signals The LEDs at the upper side of the sensor indicate the operating status or possible errors. Figure 19: LED´s on the upper side of the sensor in case of eSGC – Version Note: The view on the top side of version without eSGC is similar, but LED-assignment differs. Table 12: Meaning of the LEDs Meaning MODE...

  • Page 58: Safety Functions

    Safety Functions 13 Safety Functions 13.1 Safety Function Configuration The safety functions LIMAX33 CP-00 can be adapted to the needs of the customer. The behavior of some safety functions can be changed by adapting configuration or settable parameter  14.1 /  14.2. And most of the safety functions (...
  • Page 59 Safety Functions If the SGC triggers due to a safety function, the SR actuator(s) always opens. In the table this is only shown for the safety functions, where this is mandatory. This shows which actuators must be activated in the configuration and integrated to fulfill the corresponding safety function.

  • Page 60: Table 14: Distance To Assumptive Buffer Dependent On Moving Direction And Mode

    Safety Functions LIMAX33 CP-00 does know the position of the buffers by the lower resp. upper reference position, refer to  11.2.2. Additional there may be set an offset in der to reduce the (assumed) distance to the buffer. There are two offsets, one of them for moving up and one for moving down.

  • Page 61: Figure 20: Etsl-Curves

    Safety Functions Figure 20 shows the functional graphs of the ETSL-Formula for normal mode, moving up; normal mode, mov- ing down; and “decel test mode up”, moving up as examples ETSL speed for moving down (red) ETSL speed for moving up (blue) ETSL speed for moving up in Decel test mode Up...
  • Page 62 Safety Functions 13.2.4.1 Door bridging levelling The conditions for door bridging levelling are: 1. Door bridging command for levelling has been given by CANopen. 2. Actual position is in the door zone for levelling of that floor, the door bridging levelling has been ena- bled for ...
  • Page 63 Safety Functions 13.2.5 Unintended Car Movement (UCM) Three conditions must be fulfilled for causing door over-bridging (SR1/SR2 close) 13.2.4: 1. Door over-bridging (for levelling or re-levelling) must be enabled by CAN: “CAN-condition” 2. Speed must be below 0.8 m/s for levelling resp. 0.3 m/s for re-levelling: “speed-condition” 3.

  • Page 64: Figure 21: Conditions For Door Bridging And Ucm

    Safety Functions Zone condidition Zone condidition Speed condition Speed condition CAN-Condition CAN-Condition Black and bold condition fulfilled Zone condidition Zone condidition Speed condition Speed condition CAN-Condition CAN-Condition Gray: condition not fulfilled Zone condidition Zone condidition Speed condition Speed condition CAN-Condition CAN-Condition Zone condidition Zone condidition...
  • Page 65 Safety Functions 13.2.5.1 Actuator and Braking element for UCM If the machine brake built due to EN81-20 §5.9.2.2.2, the machine brake may be the braking element for UCM. Therefore, the eSGC-actuator is not necessarily needed with regard to UCM. If the machine brake is not built due to EN81-20 §5.9.2.2.2, a brake, which is not needed for controlling the speed in normal lift operation, must be the braking element for UCM.

  • Page 66: Clearance

    Safety Functions 13.2.6.5 Positions of “inspection limit switches” and “pre-triggered stopping system limit switches” In EN81-21-state additional limit switches are activated: 1. Upper/lower stopping system limit switch => opening eSGC and therefore acting safety gear when the corresponding stopping system limit switch positions are over-traveled. Theses switches are only active if the corresponding safety function (upper/lower pre-triggered stopping system) is enabled (...
  • Page 67 Safety Functions 13.2.6.6 Pre-triggered Stopping System There is an upper pre-triggered stopping system for the shaft head and a lower pre-triggered stopping for the shaft pit: The upper pre-triggered stopping system trips if “there is EN81-21-state” AND  “actual position is higher than the upper stopping system limit“ The lower pre-triggered stopping system trips if “there is EN81-21-state”...

  • Page 68: Table 15: Oc Reaction If Position Is Higher Than Upper Inspection Limit

    Safety Functions Table 15: OC reaction if position is higher than upper inspection limit DOWN-Button pushed released UP-Button pushed OPEN OPEN released CLOSED OPEN Table 16: OC reaction if position is lower than lower inspection limit DOWN-Button pushed released UP-Button pushed OPEN CLOSED...

  • Page 69: Figure 23: Relations To The Lower Reference Position

    Safety Functions 13.2.8 Relations limit switches/Offsets/ETSL and reference positions (summary) Figure 23 (below) illustrates the lower final limit switch, the lower pre-triggered stopping limit, the lower inspec- tion limit and the distance s for ETSL-calculation when moving down related to the lower (limit switch-) reference position.

  • Page 70: Figure 24: Relations To The Upper Reference Positions

    Safety Functions Figure 24 (below) illustrates the upper final limit switch, the upper pre-triggered stopping limit, the upper inspec- tion limit and the distance s for ETSL-calculation when moving up related to the upper (limit switch-) reference position. The upper reference posi tion will norm ally be Offset upper...

  • Page 71: Safety Functions During Commissioning

    Safety Functions 13.3 Safety Functions during Commissioning During commissioning (LIMAX33 CP-00 is in Teach mode  11.1) the system fulfils the safety functions listed in the table below: Table 17: Safety functions during commissioning Name Norm reference Comments Overspeed EN 81-1 9.9.11.1 SIL 2 Same as in normal mode (pre-tripping)

  • Page 72: Safety Functions Before Commissioning

    Safety Functions 13.4 Safety Functions before Commissioning The behavior of the safety functions in pre-commissioning mode  11.1 is the same as in trach mode  13.3. Remark: Reference positions are never available in in pre-commissioning mode. In pre-commissioning mode 11.1, only the following safety functions are active: Table 18: Safety functions before commissioning Name Norm reference...

  • Page 73: Configured/Settable Parameter And Features

    14.1 Configuration The configuration of a LIMAX33 CP-00 cannot be changed after it has once set. It is programmable only once. Setting of the configuration will only be done either at ELGO plant or at site 7.1.2 . WARNING! Removing, exchanging or distorting of the information on the info label is prohibited.

  • Page 74: Table 20: Configuration Parameter For Etsl-Curve

    Configured/settable Parameter and Features Hint for definition of final-tripping speed inspection: When the customer defines the offsets for the pre-triggered stopping system limits (see Table 21) he has to take the braking distance of the car after the safety gear tripped into account. The breaking distance again depends on the speed.

  • Page 75: Table 22: Configuration Features For Safety Functions

    Configured/settable Parameter and Features 14.1.2 Configured Safety Functions There are configuration features concerning if single safety functions are enabled /disabled: Table 22: configuration features for Safety functions Feature Selection Group*) Explanation All “Inspection-safety disa- If the user wants to care about safe in inspection/EN81-21-state functions”...

  • Page 76: Table 23: Dependency "Enabled Safety Functions" => Needed Actuators/Relay Contacts

    Configured/settable Parameter and Features 14.1.3 Configuration of enabled actuators General remarks concerning the relationship between “relay-contacts”, “relays” and “actuators”: An actuator which appears to the outside when the device is regarded as a black box is the either a dry-contact (concerning OC, SR1 and SR2) or a solid state switch (concerning SGC) Enabling/disabling of actuators are also configuration features.

  • Page 77: Table 24: Behavior Of Ucm And Overspeed Final Tripping Dependent On The Concerning Configuration Features

    Configured/settable Parameter and Features 14.1.4 Configuration of actuators and Safety Function Behavior There are two configuration features influencing the behavior of UCM and overspeed final tripping: 1. Safety gear trip direction: In case LIMAX33 CP-00 will be used in a lift installation with a unidirectional acting safety gear, the fea- ture “safety gear trip direction”...

  • Page 78: Settable Parameters

    Configured/settable Parameter and Features 14.2 Settable Parameters Some parameter can be changed by CANopen always and as often. But this is only possible within a defined rage in compliancy with the EN81-20. Table 25: Settable parameters Parameter Value range Default Unit Explanation Offset upper...

  • Page 79: Initial And Annual Examination

    Initial and Annual Examination 15 Initial and Annual Examination In this chapter is described how the auditor can check LIMAX33 CP-00 at initial and annual examination. The existing local accident prevention regulations and additional especially the rules of the EN81 must be ob- served when carrying out the tests for examination.

  • Page 80: Verification Of The Floor Table

    Initial and Annual Examination 15.6 Verification of the Floor Table The floor table as it is stored in LIMAX33 CP-00 must be verified. For example, this is possible by the following procedure: Send the car from one floor to the other. Normally this will be done by car call. All floors stored in the ...
  • Page 81 Initial and Annual Examination 15.7.2 Pre-Triggered Stopping System The upper resp. lower pre-triggered stopping system must be tested, if the corresponding safety function is ena- bled in order to perform safety for a man on the roof resp. in the pit in case of a short shaft head resp. pit. There must be no person in the shaft or on the car roof when carrying out this test.
  • Page 82 Initial and Annual Examination 15.7.6 Overspeed (Pre-Tripping) The auditor adjusts lift control/inverter in such a way that overspeed can be reached. He performs a travel, each in upwards and in downwards direction and with a speed just above the pre-tripping speed. Check: OC opens when pre-tripping speed is reached and the machine brake stops the lift.

  • Page 83: Functional Safety

    Functional Safety 16 Functional Safety 16.1 Safety Parameters Table 26: Required and achieved SIL Required SIL due to Achieved PFHD EN81 (or Percentage Safety Norm SIL due [FIT] due to risk of required Comments function reference to PFHD (acc. to analysis, and SFF FMEDA)

  • Page 84: Table 27: Safe Failure Fraction, Hft And Type Of The Subsystems

    Functional Safety Required SIL due to Achieved PFHD EN81 (or Percentage Safety Norm SIL due [FIT] due to risk of required Comments function reference to PFHD (acc. to analysis, and SFF FMEDA) refer to comments) ing system, the better values are valid (eSGC would secure a failure of OC in this case).

  • Page 85: Demands Of En 61508-2, Annex D2

    Functional Safety Subsystem Diagnostic Measurement Comments Digital inputs Pulses are added to the input-signal (in 10 ms (INSP., UP, DOWN) case of High-level of input-signal Digital inputs Defined operation pattern n. a. Diagnostics only possible (RESET) (and necessary) when inputs are actuated Check of the force guided feedback 24 h...

  • Page 86: Safety Requirements For The Integration Of The System

    Functional Safety Ref. 61508 EN 61508 demand Value, description of references to other chapters D2.2 g.) Initiated outputs  12.2 D2.2 h.) Regular test and maintenance  18,  15 D2.2 i.) External diagnostics not applicable D2.2 j.) Hardware failure tolerance Table 27 Refer to D2.2 k.)

  • Page 87: Disturbances

    Functional Safety 17 Disturbances This chapter describes possible causes for disturbances and measures for their removal. In case of increased disturbances, please follow the measures for fault clearance ( 17.1). In case of disturbances that cannot be eliminated by following the advice and the fault clearance measures given here, please contact the manufactur- er (see second page).

  • Page 88: Repairs / Maintenance

    Functional Safety Re-Start after Fault Clearance After the fault clearance: 1. Reset the emergency stop mechanism if necessary 2. Reset the error report at the super-ordinate system if necessary 3. Ensure that there are no persons in the danger area 4.

  • Page 89: Replacing Components

    Replacing Components 19 Replacing Components 19.1 Replacing Magnetic Tapes When the magnetic tape is replaced, it is absolutely necessary to erase the floor table and the reference posi- tions in LIMAX33 CP-00. The floor table and the reference positions stored in LIMAX33 CP-00 are not valid anymore in combination with the new tape.

  • Page 90: Cleaning

    Replacing Components 20 Cleaning WARNING! The device can only be cleaned with a damp cloth, do not use aggressive cleanser! 21 Accessories Table 31: Accessories Order Code Description LIMAX S-RMS Magnetic tape mounting kit for rail mounting AB20-80-10-1-R-D-15-BK80 Magnetic tape LIMAX33 CP MW Mounting angle - 90 -...
